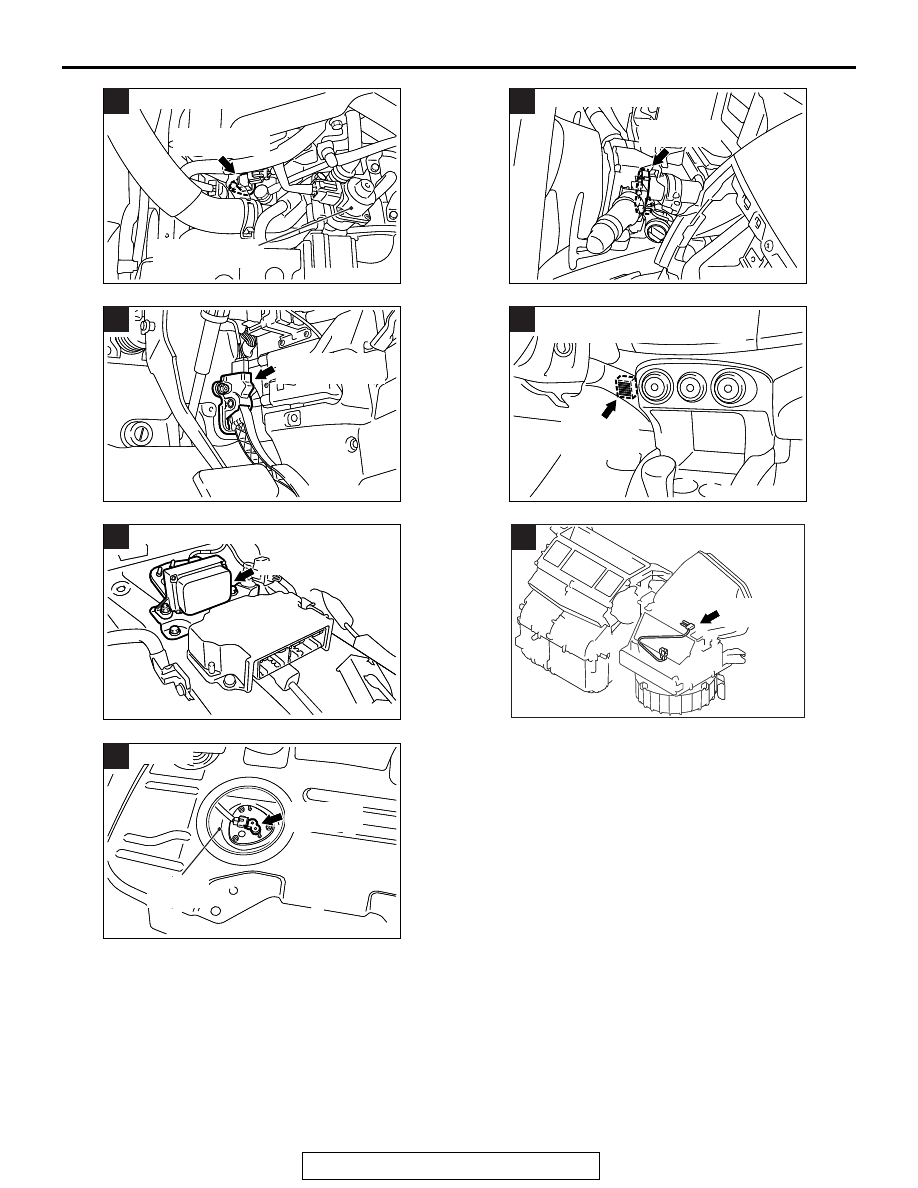

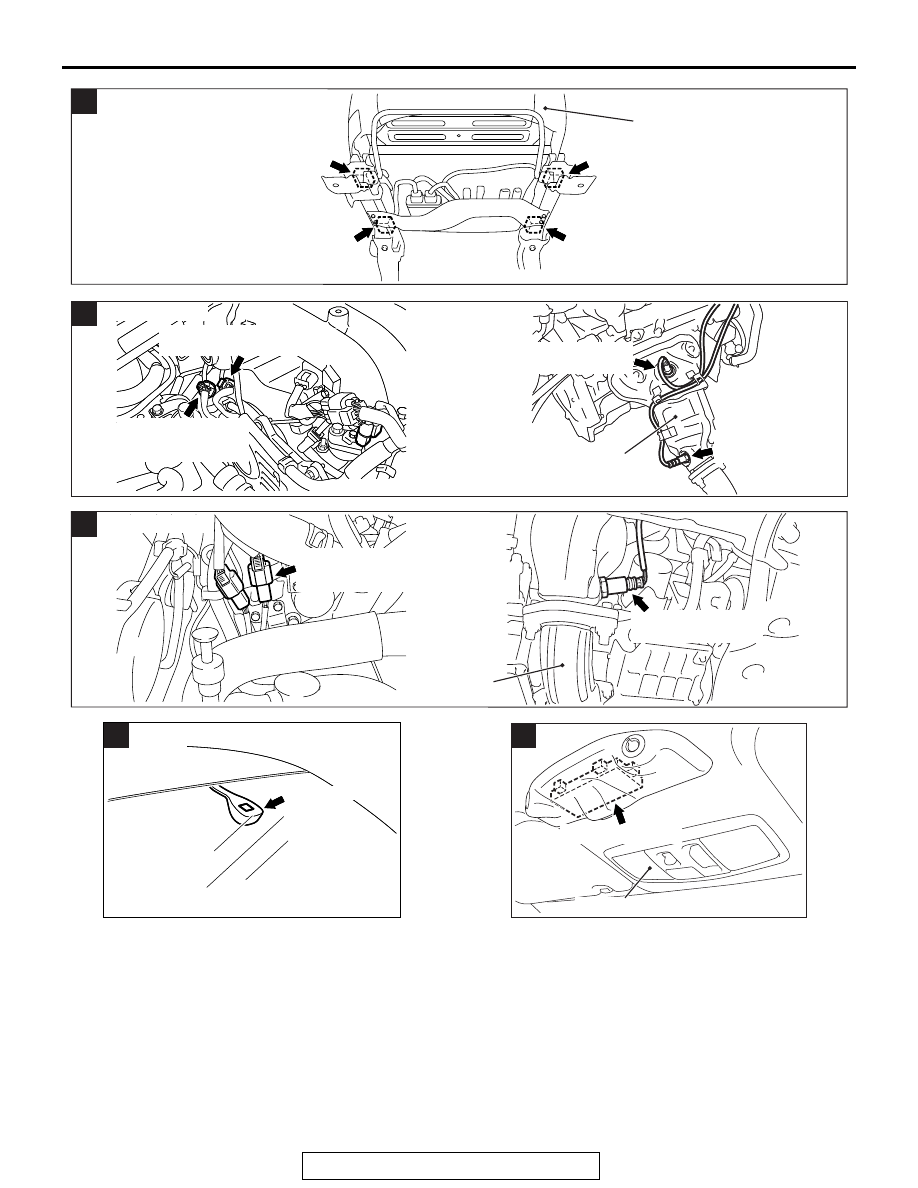

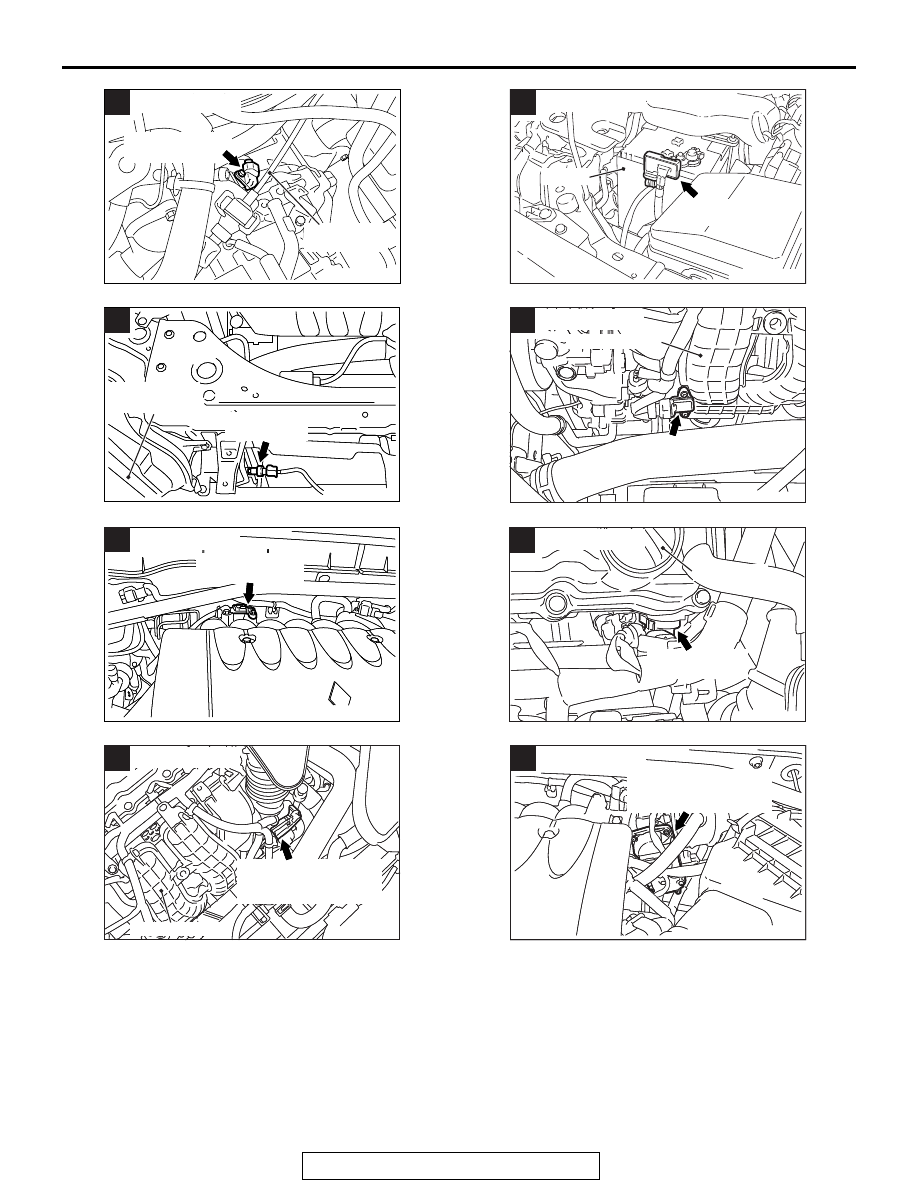

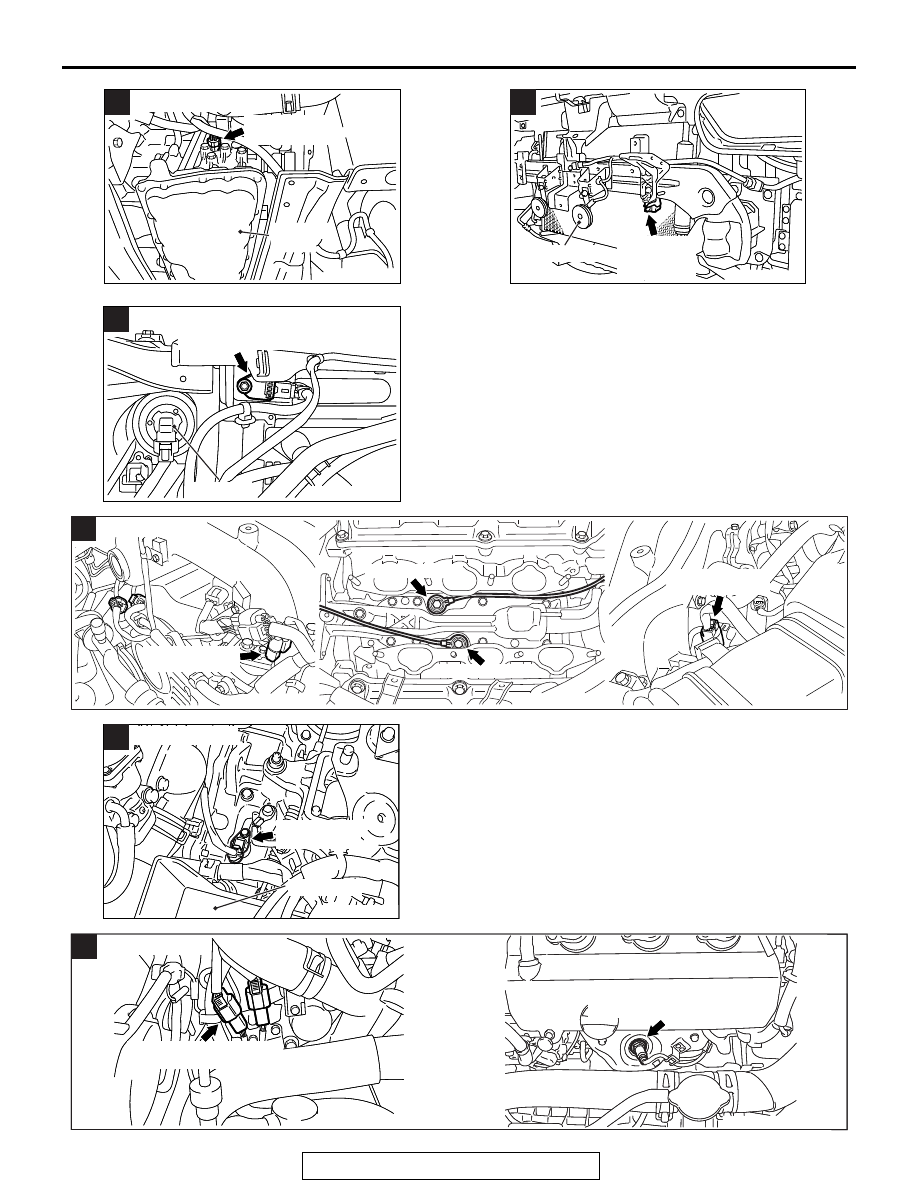

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-11

AC506574

AX

Secondary pulley
speed sensor

Transaxle
control cable

<2.4L Engine>

F

AC808532

G

Battery current
sensor

Battery

AM

<2.4L Engine>

AC900256

AC900256

AD

Headlight
assembly (RH)

A/C pressure
sensor

H

AC506596

AC506596AR

Manifold absolute
pressure sensor

Intake manifold

<2.4L Engine>

I

AC900258

AC900258

AD

<3.0L Engine>

Manifold absolute
pressure sensor

I

AC506591

AC506591AQ

Intake camshaft
position sensor

Oil filler cap

<2.4L Engine>

J

AC507166

AC507166AQ

Throttle body assembly
(incorporating throttle
position sensor)

Intake manifold

<2.4L Engine>

K

AC900261

AC900261AD

Throttle body assembly
(incorporating throttle
position sensor)

<3.0L Engine>

K

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-12

AC506575

AC506575

AR

Primary pulley
speed sensor

Transaxle
oil pan

<2.4L Engine>

L

AC900257

AC900257

AD

Ambient air
temperature
sensor

Horn (Low)

M

AC702537

AC702537

AE

Front impact sensor

Headlight

N

AC900365

<3.0L Engine>

AH

Knock sensor 2
connector

Knock sensor 1
connector

Knock sensor 2

Knock sensor 1

O

AC702527

AC702527

Input shaft
speed sensor

AD

Battery tray

<3.0L Engine>

P

AC702596

AC702596

Left bank heated oxygen
sensor (front)

Left bank heated oxygen
sensor (front) connector

AE

<3.0L Engine>

Q

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-13

AC702546

AC702546

AE

Camshaft
position sensor

Exhaust gas
recirculation valve

<3.0L Engine>

R

AC702556

AC702556

AE

Steering
wheel sensor

<Vehicles with ASC>

S

AC702543

AC702543

AE

Accelerator pedal
position sensor

T

AC702548

AC702548

AF

Interior
temperature
sensor

<Vehicles with automatic air
conditioning system>

U

AC702599

AC702599

AE

<Vehicles with ASC>

G and yaw rate sensor

V

AC702600

AC702600AE

Air thermo
sensor

W

AC702547

AC702547

AG

Fuel level
sensor (sub)

Fuel tank
assembly

<AWD>

X

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-14

AC702560

AG

Front seat assembly
(RH)

Weight sensor
(front-RH)

Weight sensor
(rear-RH)

Weight sensor
(front-LH)

Weight sensor
(rear-LH)

Y

AC900514

AC900259

AC900514

AC900259

AD

Front exhaust
pipe RH

Right bank heated
oxygen sensor (front)

Right bank heated
oxygen sensor (front)
connector

Right bank heated oxygen
sensor (rear) connector

Right bank heated
oxygen sensor (rear)

<3.0L Engine>

Z

AC702610

a

AE

Left bank heated
oxygen sensor (rear)

Left bank heated
oxygen sensor (rear)
connector

Front
exhaust pipe

<3.0L Engine>

AC703208

AC703208

AJ

<Vehicles with automatic light>

Lighting control
sensor

b

ACA00813AF

c

Theft-alarm sensor

Front room lamp
