DOOR

TSB Revision

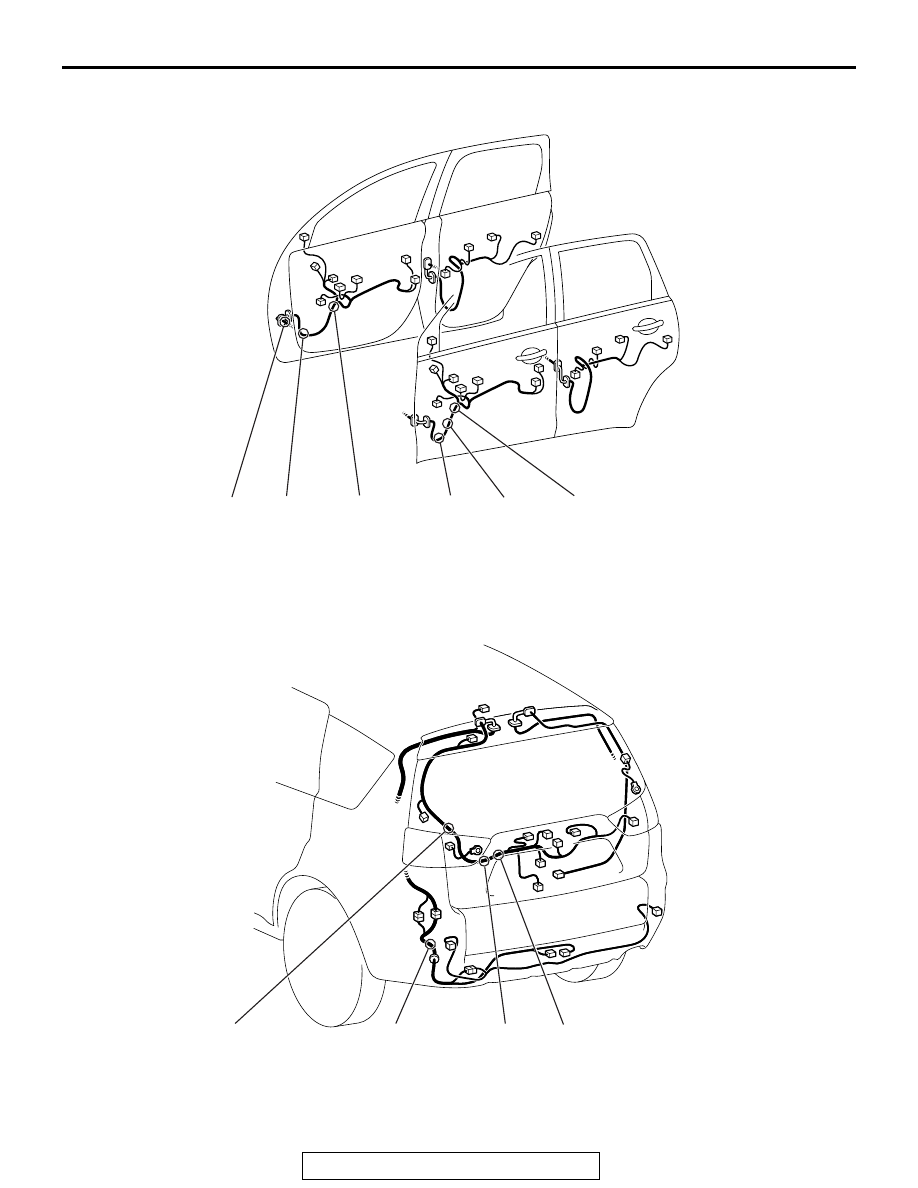

SPLICE LOCATIONS

80B-9

DOOR

M1802000800862

LIFTGATE

M1802001300406

ACA02545AB

S235

S236

S237

S238
S239

S240

S241

ACA02546

ACA02546AB

S122

S123

S124

S125

NOTES

70-1

GROUP 70

COMPONENT

LOCATIONS

CONTENTS

RELAY . . . . . . . . . . . . . . . . . . . . . . . .

70-2

CONTROL UNIT. . . . . . . . . . . . . . . . .

70-4

INSPECTION TERMINAL  . . . . . . . . .

70-7

SENSOR. . . . . . . . . . . . . . . . . . . . . . .

70-8

SOLENOID AND SOLENOID VALVE

70-17

FUSIBLE LINK, FUSE AND IOD



OR STORAGE CONNECTOR  . . . . . .

70-20

OTHER DEVICES . . . . . . . . . . . . . . . .

70-22

GROUNDING CABLE. . . . . . . . . . . . .

70-22

GROUNDING  . . . . . . . . . . . . . . . . . . .

70-23

RELAY

TSB Revision

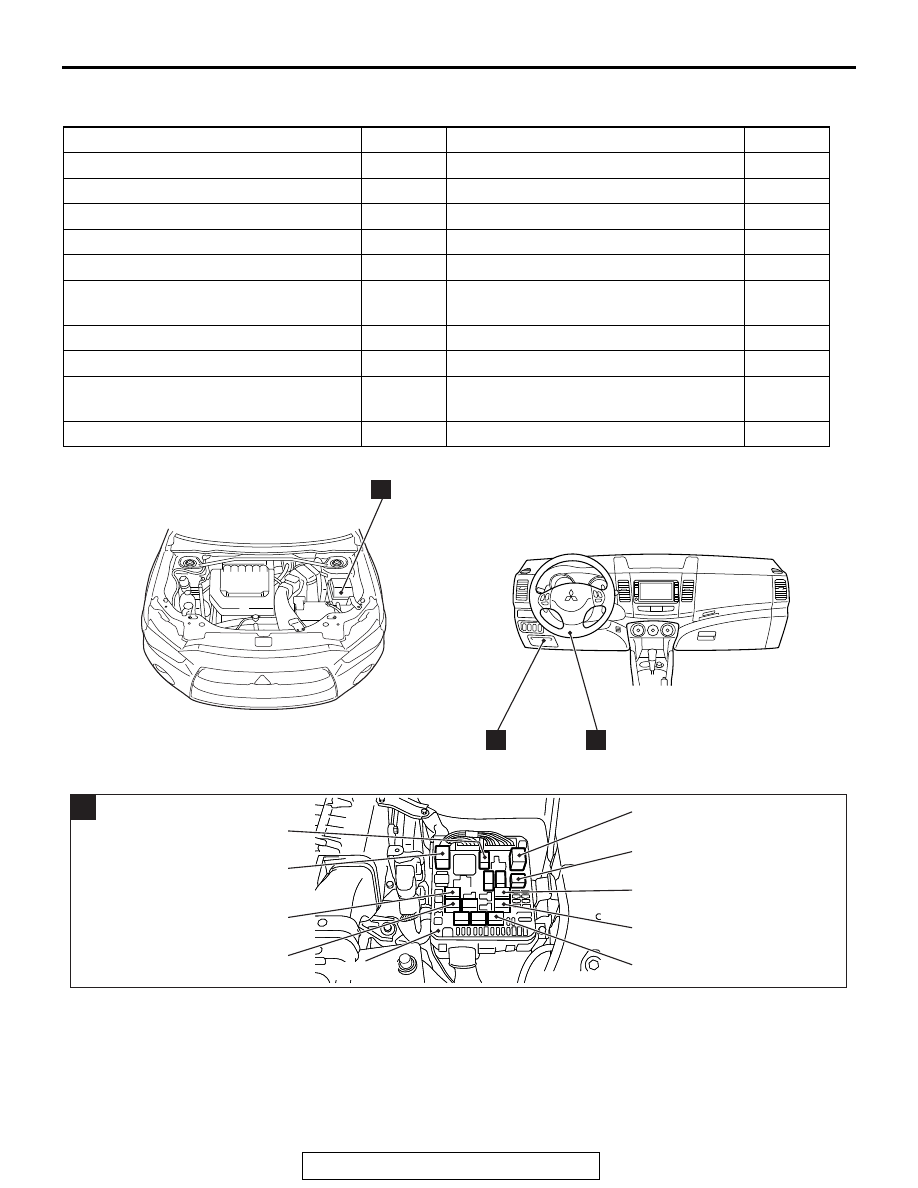

COMPONENT LOCATIONS

70-2

RELAY

M1701000402224

Name

Symbol

Name

Symbol

A/C compressor relay

A

Heated seat relay

B

A/T control relay <3.0L Engine>

A

Horn relay

A

Blower relay

B

Injector relay

A

Condenser fan relay

A

MFI relay

A

CVT control relay <2.4L Engine>

A

Radiator fan relay

A

Daytime running light relay <Vehicles
with discharge type headlight>

A

Rear window defogger relay

B

Fan control relay

A

Starter relay

A

Fog light relay

A

Stoplight relay

C

Headlight relay (High)

A

Theft-alarm horn relay <Vehicles
without theft-alarm sensor>

A

Headlight relay (Low)

A

Throttle actuator control motor relay

A

AC900431

A

B

AH

C

AC707342

AC707342

AH

Throttle actuator
control motor relay

A

Fan control relay

Radiator fan relay

Theft-alarm horn relay
<Vehicles without
theft-alarm sensor>

Relay box

MFI relay

Headlight relay (Low)

Injector relay

Headlight relay (High)

A/C compressor relay

<2.4L Engine>
