THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-877

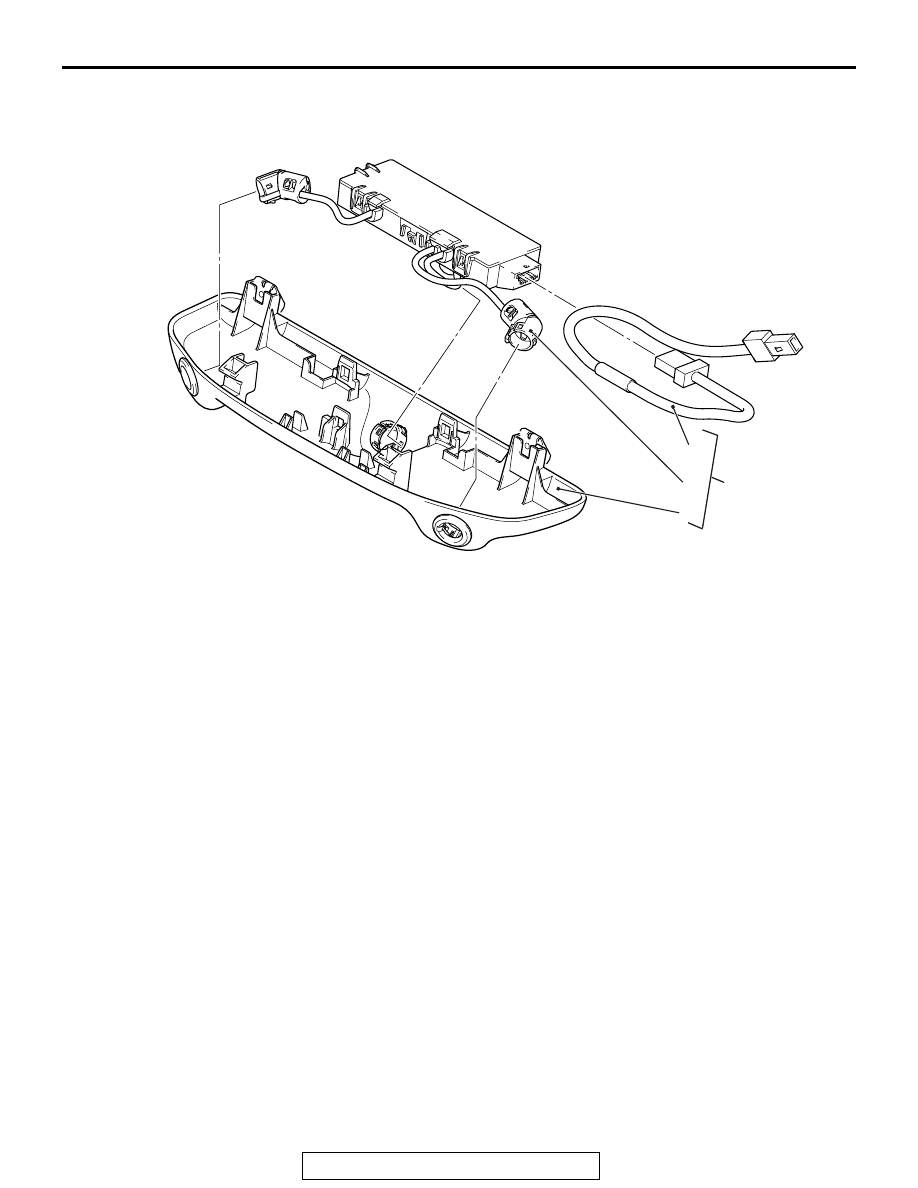

REMOVAL AND INSTALLATION

M1547004900018

AC902749

1

AB

2

4

3

Removal Step

1.

Theft alarm sensor assembly
(Refer to GROUP 52A -
Headlining

P.52A-15

)

2.

Theft alarm sensor

3.

Theft alarm sensor cover

4.

Sub harness

Removal Step (Continued)

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-878

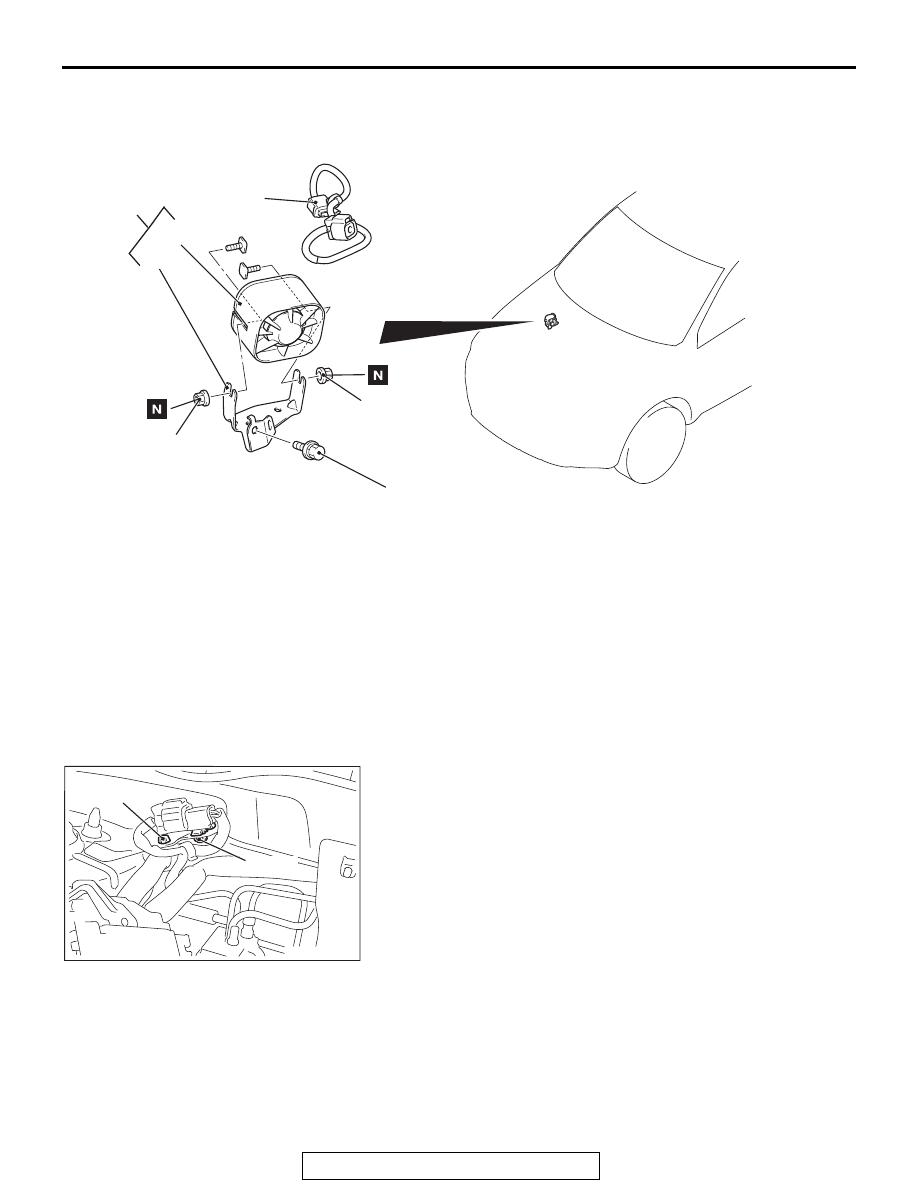

REMOVAL AND INSTALLATION

M1547005000018

REMOVAL SERVICE POINT

.

 <<A>> REMOVAL OF ANTENNA FEEDER

Remove the clip A and clip B.

AC901015

2

4

3

1

AE

11 ± 1 N·m
97 ± 8 in-ld

11 ± 1 N·m
97 ± 8 in-ld

18 ± 7 N·m
13 ± 5 ft-ld

Removal Steps

Strut tower bar (Refer to GROUP
33

− Strut assembly

P.33-10

 )

ABS-ECU or ASC-ECU harness
connector (Refer to GROUP 35B

−

Hydraulic Unit

P.35B-188

 or

GROUP 35C- Hydraulic Unit

P.35C-287

)

<<A>>

1.

Theft alarm siren assembly

2.

Theft alarm siren bracket

3.

Theft alarm siren

4.

Sub harness

Removal Steps (Continued)

AC902111

Clip A

Clip B

AB

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-879

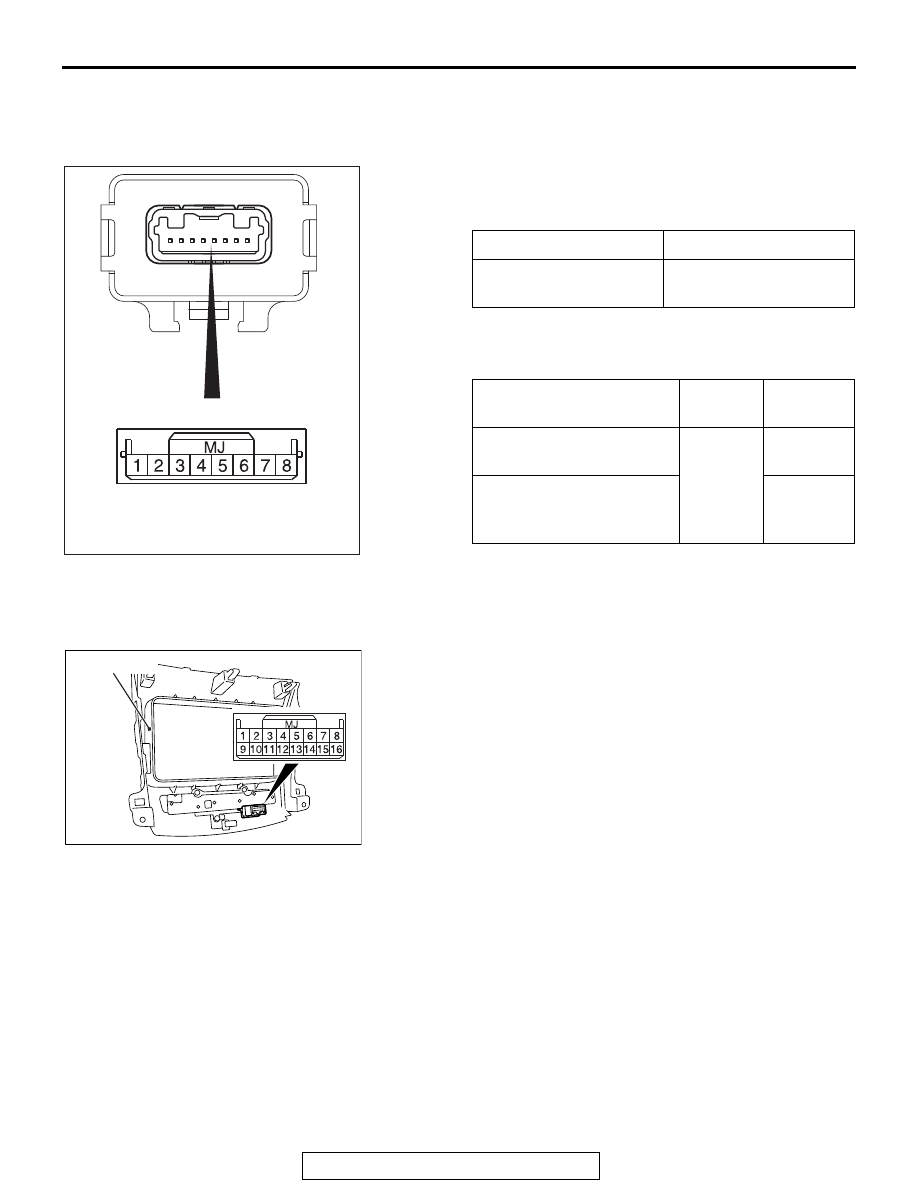

INSPECTION

LIN CUTOFF CONTROL UNIT CHECK

M1547005600010

.

CONTINUITY CHECK

Remove the LIN cutoff control unit.(Refer to

P.54A-876

)

.

RELAY CHECK

Remove the LIN cutoff control unit.(Refer to

P.54A-876

)

THEFT-ALARM INDICATOR CHECK

M1547001100198

1. Remove the center panel.
2. Connect the battery (+) terminal with the center panel

connector (terminal No. 15). Then, check if the theft-alarm
indicator is illuminated when the battery (

−) terminal and the

center panel connector (terminal No. 12) are connected.

3. If the theft-alarm indicator is illuminated, it is judged good.

Terminal number

Measurement value

5 to 3

Continuity exists (2

Ω or

less)

Battery voltage

Terminal
number

Normal
condition

At no energization

5 to 7

No
continuity

With current supply
[terminal 1 (+), terminal 8
(

−)]

Continuity
exists (2

Ω

or less)

AC900636AB

AC703574 AB

Center panel

PANIC ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-880

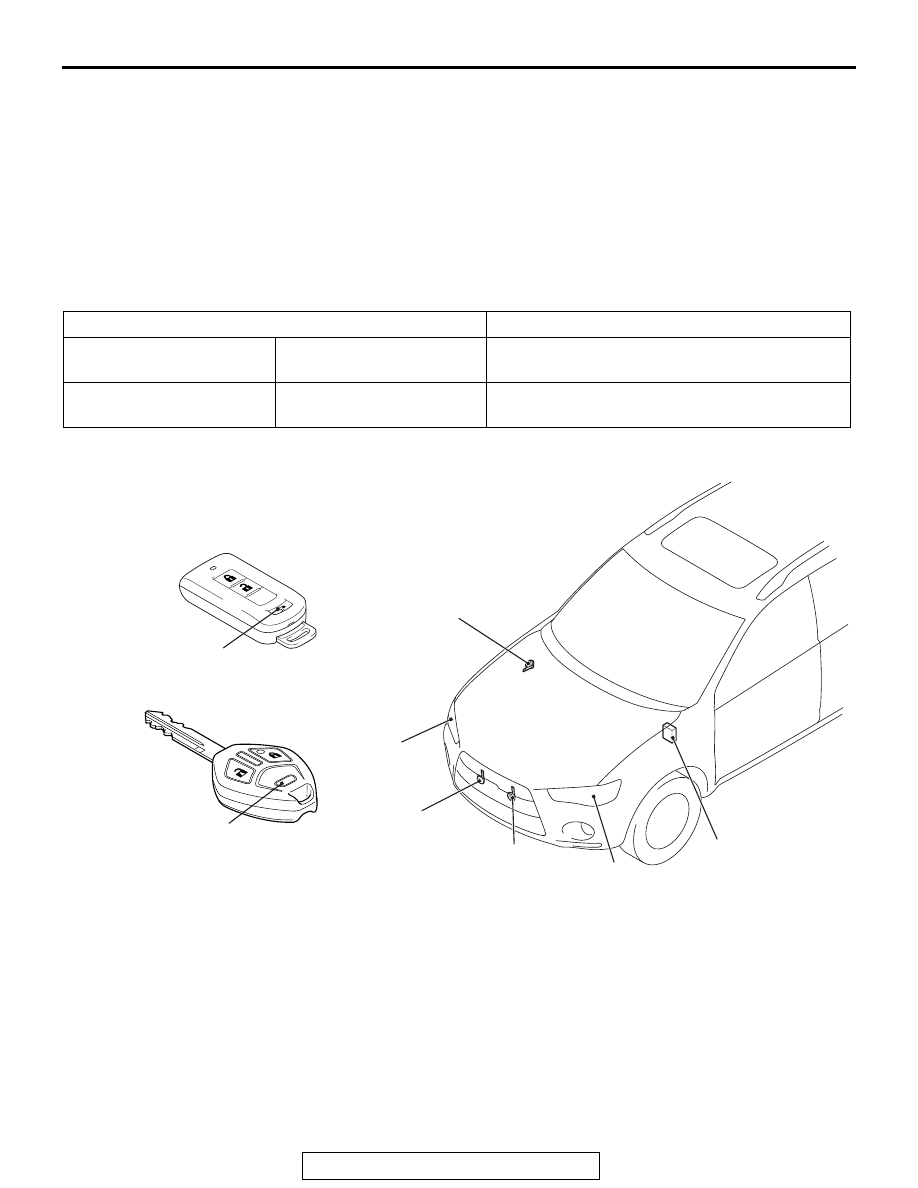

PANIC ALARM

GENERAL INFORMATION

M1547000100311

If danger is perceived near the vehicle and if the igni-
tion switch is in the OFF position or the key has been
removed, press the panic button on the ignition key
or the keyless operation key for one second, then the
headlights flash and the horns(HI, LO, theft-alarm
horn <Vehicles without theft-alarm siren>) sound for
approximately 3 minutes.

NOTE: The theft-alarm siren does not sound.<Vehi-
cles with theft-alarm siren>

Panic alarm system operation table

Construction diagram

.

Operation of keyless operation key or ignition key

System operation

Panic button

Press once (press and hold
for 1 second)

Starts the panic alarm (headlights flash and horn
honks for abut three minutes)

Lock button, Unlock button,
Panic button

Press again

Stops the panic alarm in progress

AC901213

Panic button

Panic button

<Vehicles with KOS>

<Vehicles with WCM>

Theft-alarm horn
<Vehicles without theft-alarm siren>

Horn (LO)

Horn (HI)

Headlight

ETACS-ECU

PANIC

AB

Headlight
