THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-837

SYSTEM BLOCK DIAGRAM

AC900821

<"Ready to be triggered">

<Except "Ready to be triggered">

LIN cutoff control unit

LIN cutoff control unit

Theft alarm siren

Theft alarm siren

Theft alarm sensor

LIN bus line

LIN bus line

Signal line

AC

ETACS-ECU

keyless entry function or the keyless operation system
ignition switch, Door switch,
Tailgate latch switch, Hood switch

Theft alarm indicator, turn-signal lamp

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-838

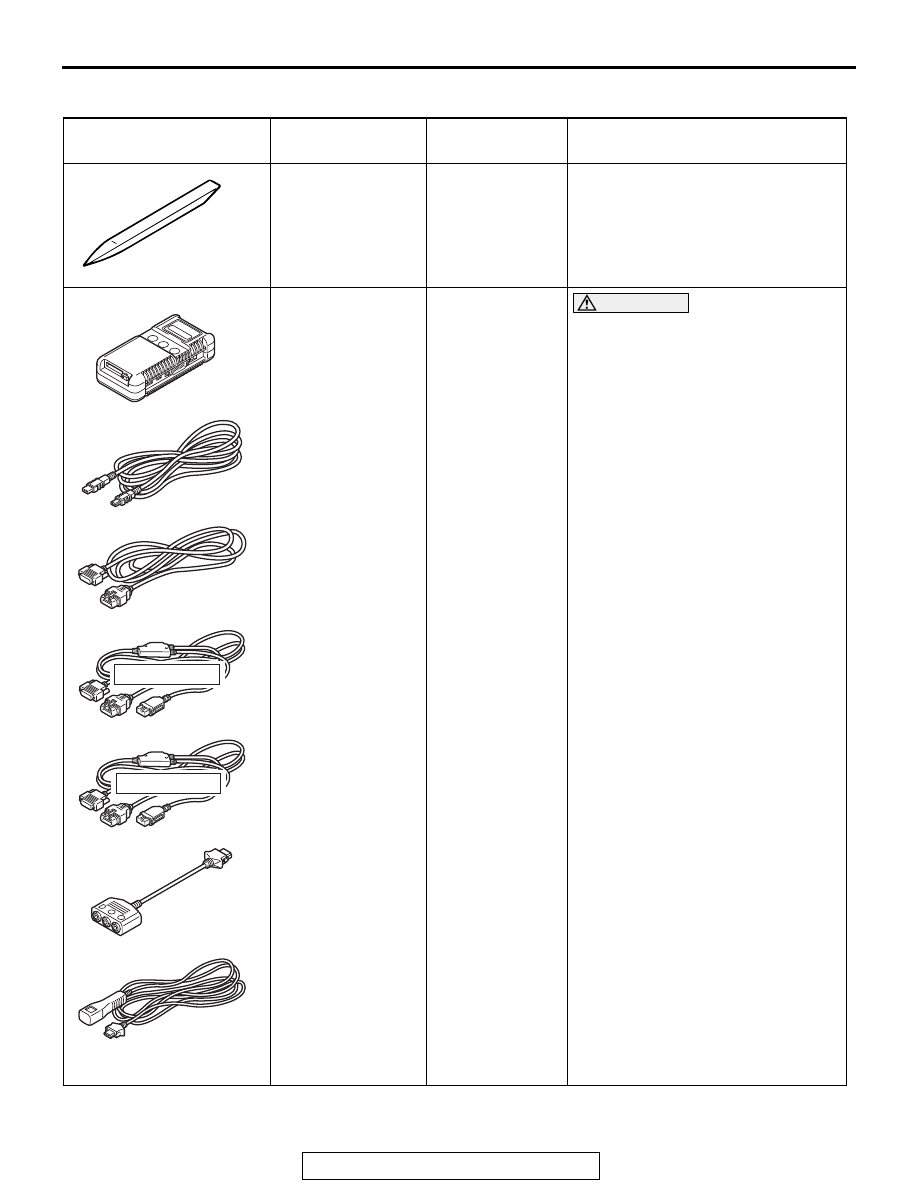

SPECIAL TOOLS

M1547000600394

Tool

Tool number and
name

Supersession

Application

MB990784
Ornament remover

General service
tool

Removal of center air outlet, center
panel.

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Reading diagnostic trouble code

MB990784

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-839

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1547001200139

Refer to GROUP 00

− Contents of troubleshooting

P.00-7

.

DIAGNOSTIC FUNCTION

M1547001300084

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

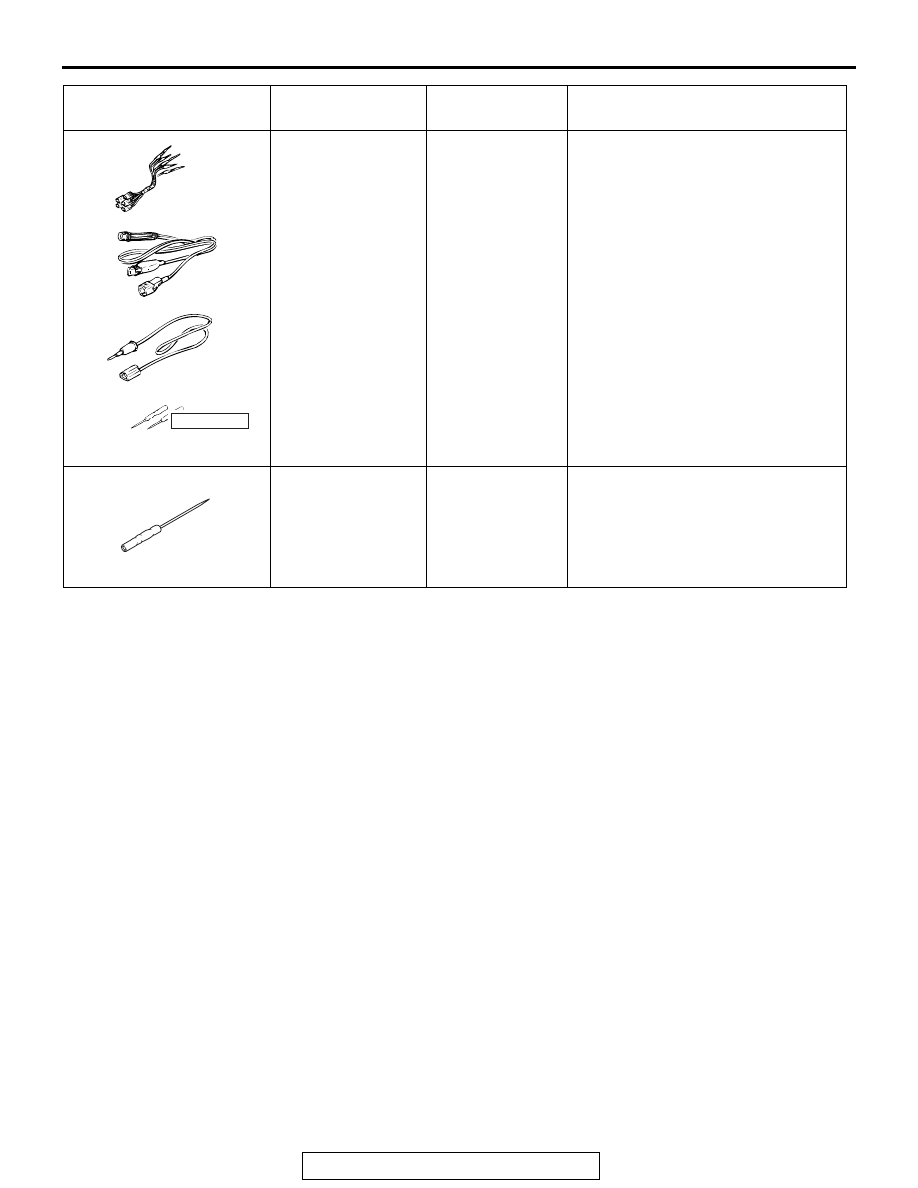

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service
tool

Continuity check and voltage
measurement at harness wire or
connector.

a. Connector pin contact pressure

inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-840

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

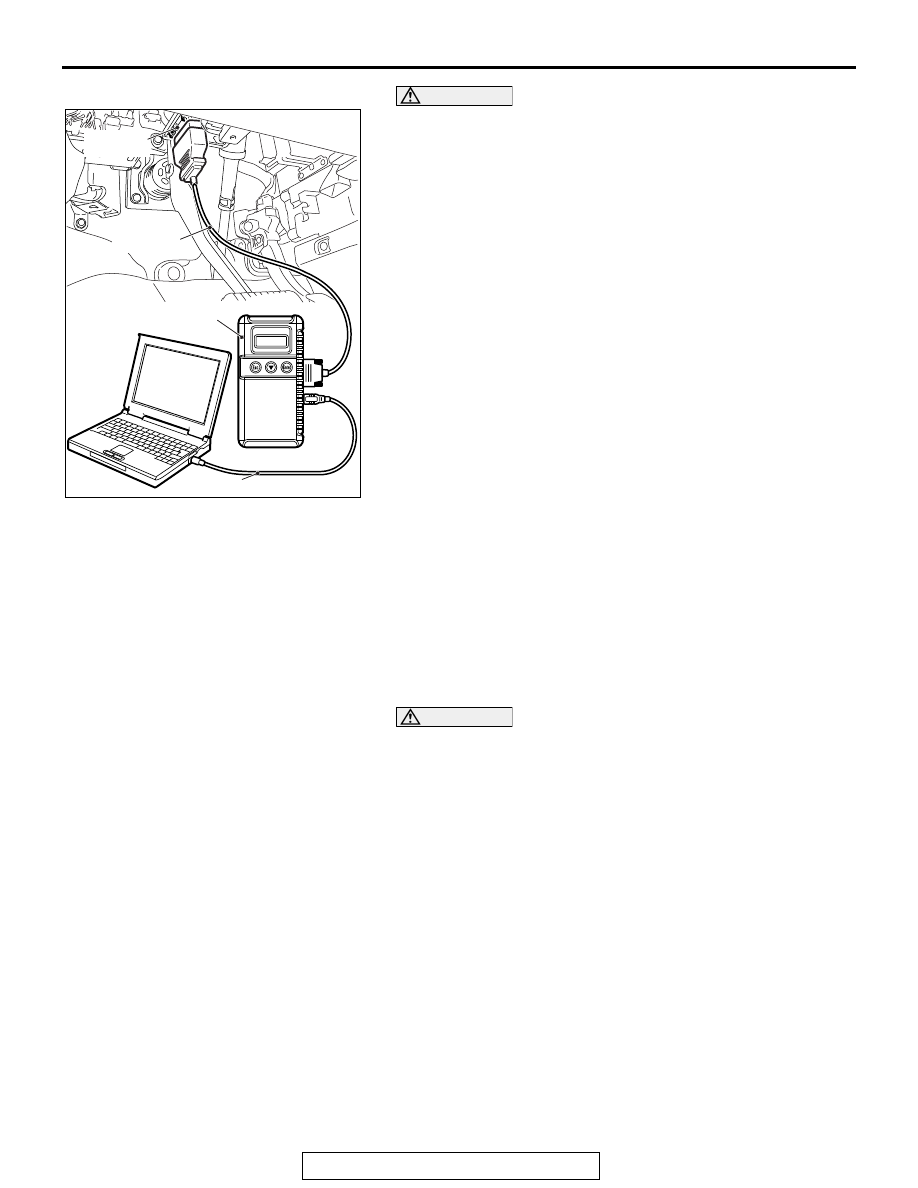

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "ETACS" from "System List", and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code." to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
