ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-781

290

Brake switch

Brake pedal depressed

ON

Other than above

OFF

291

Front wiper auto stop switch

When the windshield wiper is in
operation

ON

Other than above

OFF

292

Rear wiper auto stop switch

When rear wiper is in operation ON
Other than above

OFF

293

Process error information

−

−

294

Process error

−

0

−255 times

340

Headlight switch(tail)

Lighting switch: Position light
position

ON

Other than above

OFF

341

Headlight switch

Lighting switch: Headlight
position

ON

Other than above

OFF

342

Headlight switch(Dimmer)

Lighting switch: During dimmer
switch operation

ON

Other than above

OFF

343

Turn switch left

Turn-signal light switch: LH
position

ON

Other than above

OFF

344

Turn switch right

Turn-signal light switch: RH
position

ON

Other than above

OFF

345

Fog light ON

Fog light switch: During ON
operation

ON

Other than above

OFF

346

Fog light OFF

Fog light switch: During OFF
operation

ON

Other than above

OFF

347

Switch type

−

LHD

348

Headlight switch(auto)

Lighting switch: AUTO position

ON

Other than above

OFF

349

Headlight cleaner

Not used

OFF

350

Headlight switch(flasher)

Lighting switch: During dimmer
switch operation

ON

Other than above

OFF

351

Column ECU sleep

Ignition switch: Other than ON
or START position

OK

Ignition switch: ON or START
position

NG

352

Front wiper(INT)

Wiper switch: INT position

ON

Other than above

OFF

Item No. Display on scan tool

Check condition

Normal condition

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-782

TROUBLE SYMPTOM CHART

M1545001200218

353

Front wiper(LO)

Wiper switch: LO position

ON

Other than above

OFF

354

Front wiper(HI)

Wiper switch: HI position

ON

Other than above

OFF

355

Front wiper(washer)

Wiper switch: During washer
operation

ON

Other than above

OFF

356

Rear wiper

Wiper switch: Rear wiper

ON

Other than above

OFF

357

Rear wiper(washer)

Wiper switch: During rear
washer operation

ON

Other than above

OFF

358

Front wiper(MIST)

Wiper switch: During MIST
operation

ON

Other than above

OFF

359

Front wiper(interval volume)

Variable intermittent wiper
control switch is switched from
(+) to (

−).

The value changes
from 0 (+) to 254 (

−).

360

Wiper switch lever fail

When normal

No fail

When abnormality is present

Fail

361

Turn/Light switch lever fail

When normal

No fail

When abnormality is present

Fail

Item No. Display on scan tool

Check condition

Normal condition

Trouble symptom

Reference page

Malfunction of ETACS-ECU power supply circuit

P.54A-783

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-783

SYMPTOM PROCEDURES

Malfunction of ETACS-ECU power supply circuit

.

TECHNICAL DESCRIPTION (COMMENT)

If the ETACS-ECU functions do not work at all, the
ETACS-ECU power supply system, ground system,
or ETACS-ECU may have a problem.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

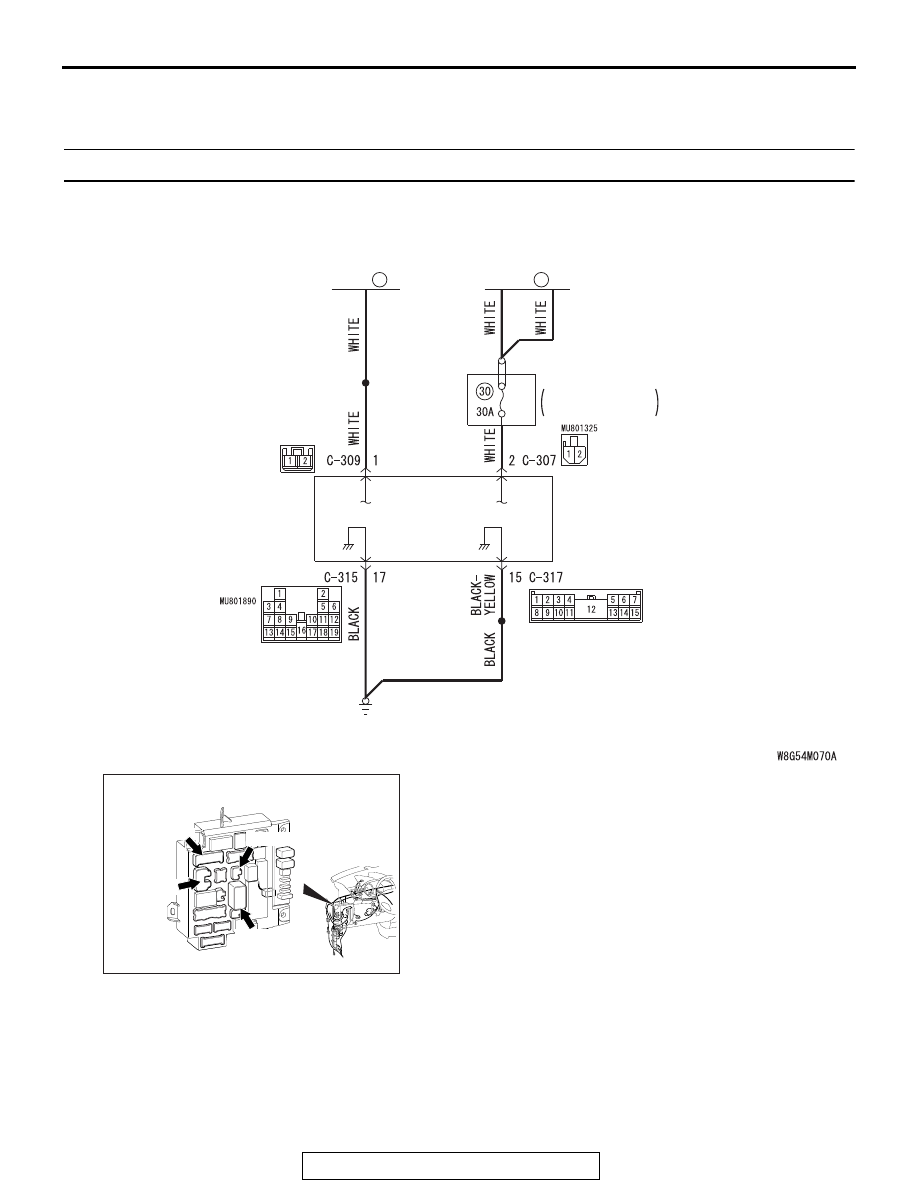

ETACS-ECU Power Supply Circuit

FUSIBLE
LINK

36

FUSIBLE
LINK

34

ETACS-ECU

RELAY BOX

ENGINE
COMPARTMENT

ACA02655AE

Connectors: C-307, C-309, C-315, C-317

C-307 (B)

C-309 (B)

C-315

C-317

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-784

STEP 1. Check ETACS-ECU connectors C-315 and C-317
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is ETACS-ECU connectors C-315 and C-317 in good

condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

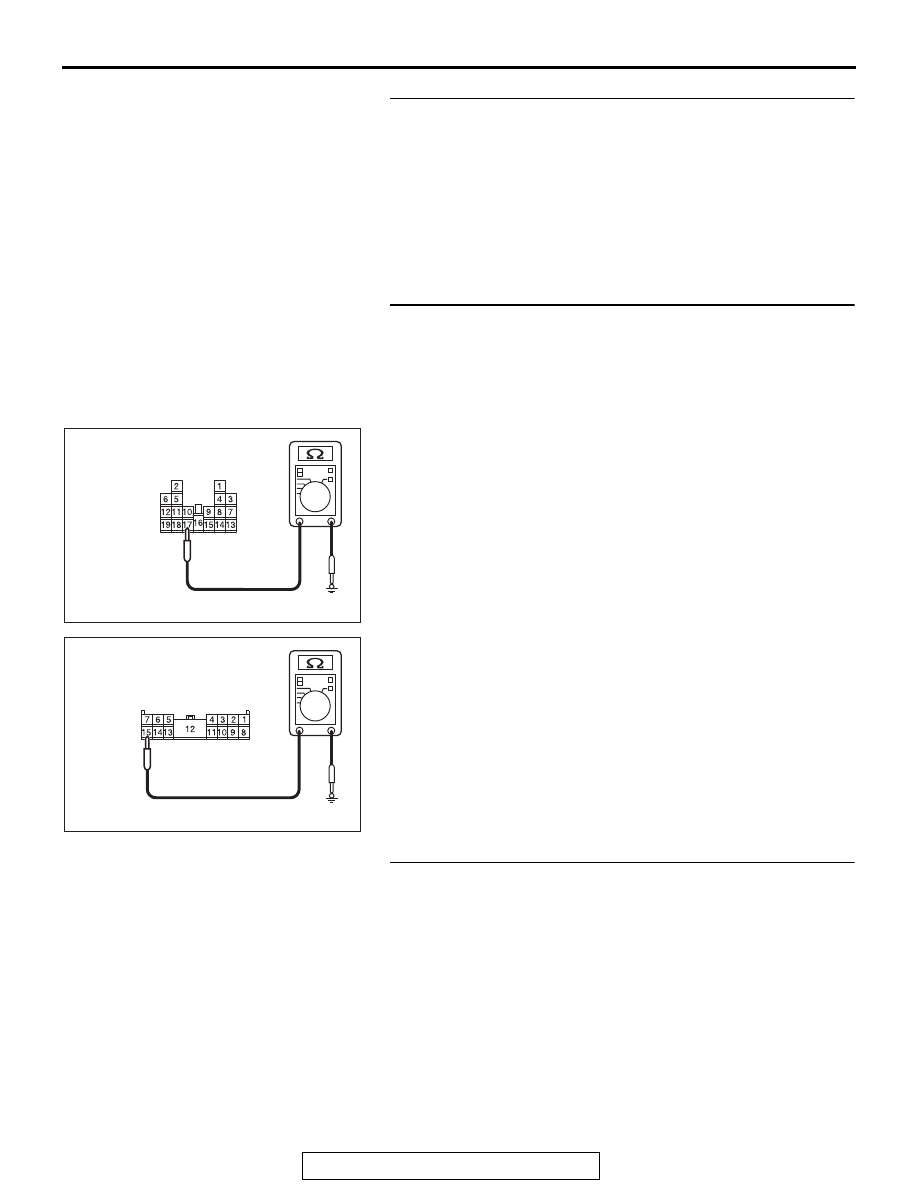

STEP 2. Check the ground circuit to the ETACS-ECU.
Measure the resistance at ETACS-ECU connectors C-315
and C-317.
(1) Disconnect ETACS-ECU connector C-315 and C-317 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between ETACS-ECU

connector C-315 terminal 17 and ground.

• The resistance should be 2 ohms or less.

(3) Measure the resistance value between ETACS-ECU

connector C-317 terminal 15 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 4.
NO :  Go to Step 3.

STEP 3. Check the wiring harness between ETACS-ECU
connector C-315 (terminal 17) or C-317 (terminal 15) and
the ground.

• Check the ground wires for open circuit.

Q: Is the wiring harness between ETACS-ECU connector

C-315 (terminal 17) or C-317 (terminal 15) and the
ground in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC608255 BG

Harness side: C-315

AC608255 BH

Harness side: C-317
