REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-721

COMMENTS ON TROUBLE SYMPTOM

The wiring harness between the ETACS-ECU and
the rear display unit, the ETACS-ECU or the multivi-
sion display may have a problem.

.

PROBABLE CAUSES

• The rear display unit may be defective

• The ETACS-ECU may be defective

• Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.
Q: Is the DTC set?

YES : Diagnose the combination meter (Refer to

P.54A-34

).

On completion, go to Step 2.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.
Check if the DTC is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to

P.54A-733

), and

then go to Step 3.

NO :  Go to Step 3.

STEP 3. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-722

STEP 4. Check the power supply circuit to the combination
meter. Measure the voltage at combination meter
connector C-03.

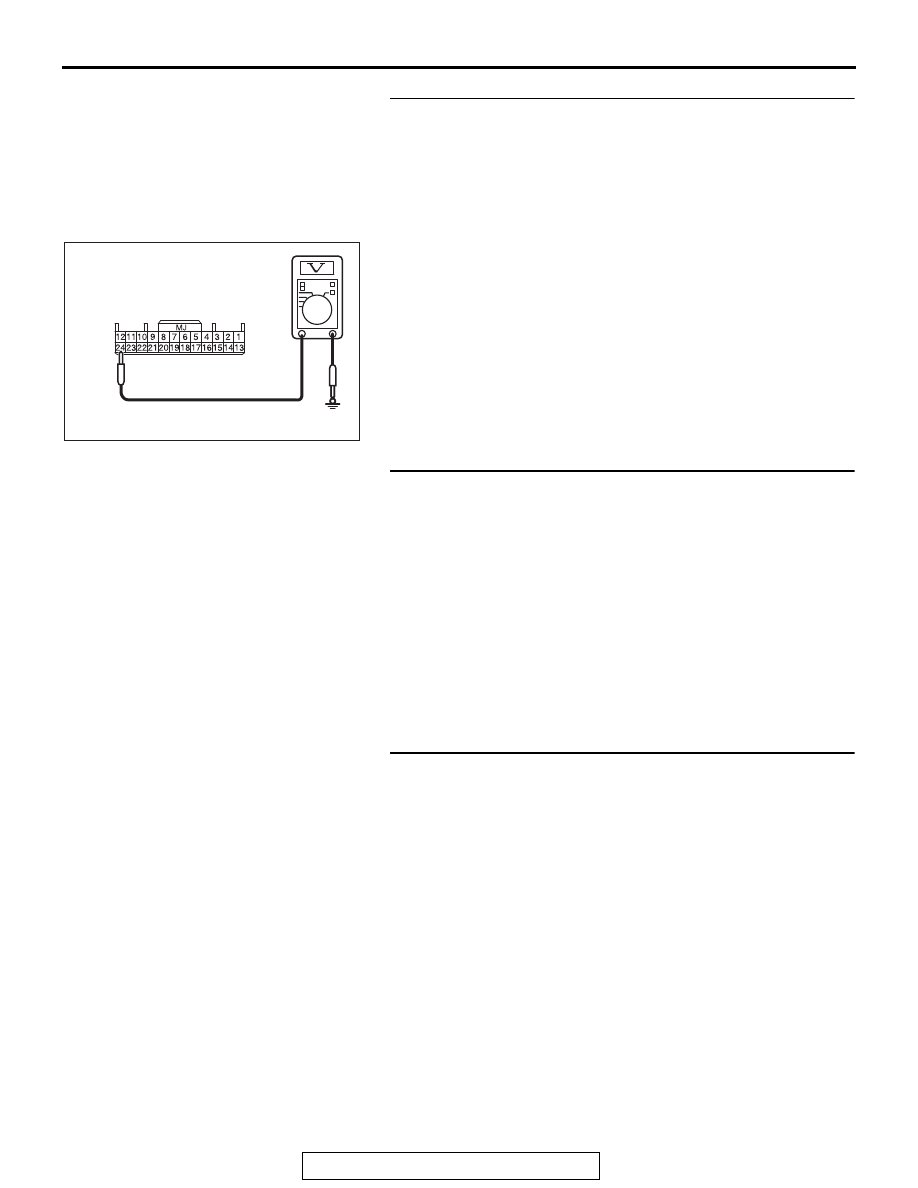

(1) Disconnect combination meter connector C-03, and

measure the voltage available at the wiring harness-side
connector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Measure the voltage terminal No.24 and the body ground.

OK: The voltage should measure approximately 12
volts (battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Check the wiring harness between ETACS-ECU
connector C-317 (terminal 2) and combination meter
connector C-03 (terminal 24).

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the wiring harness between ETACS-ECU connector

C-317 (terminal 2) and combination meter connector
C-03 (terminal 24) in good condition?
YES : Replace the ETACS-ECU, then go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 6. Check the wiring harness between combination
meter connector C-03 (terminal 23) and rear display unit
connector D-06 (terminal 5).
NOTE: Also check intermediate connector D-123 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-123 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 23) and rear display unit
connector D-06 (terminal 5) in good condition?
YES : Replace the rear display unit.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC702831 AX

Harness side: C-03

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-723

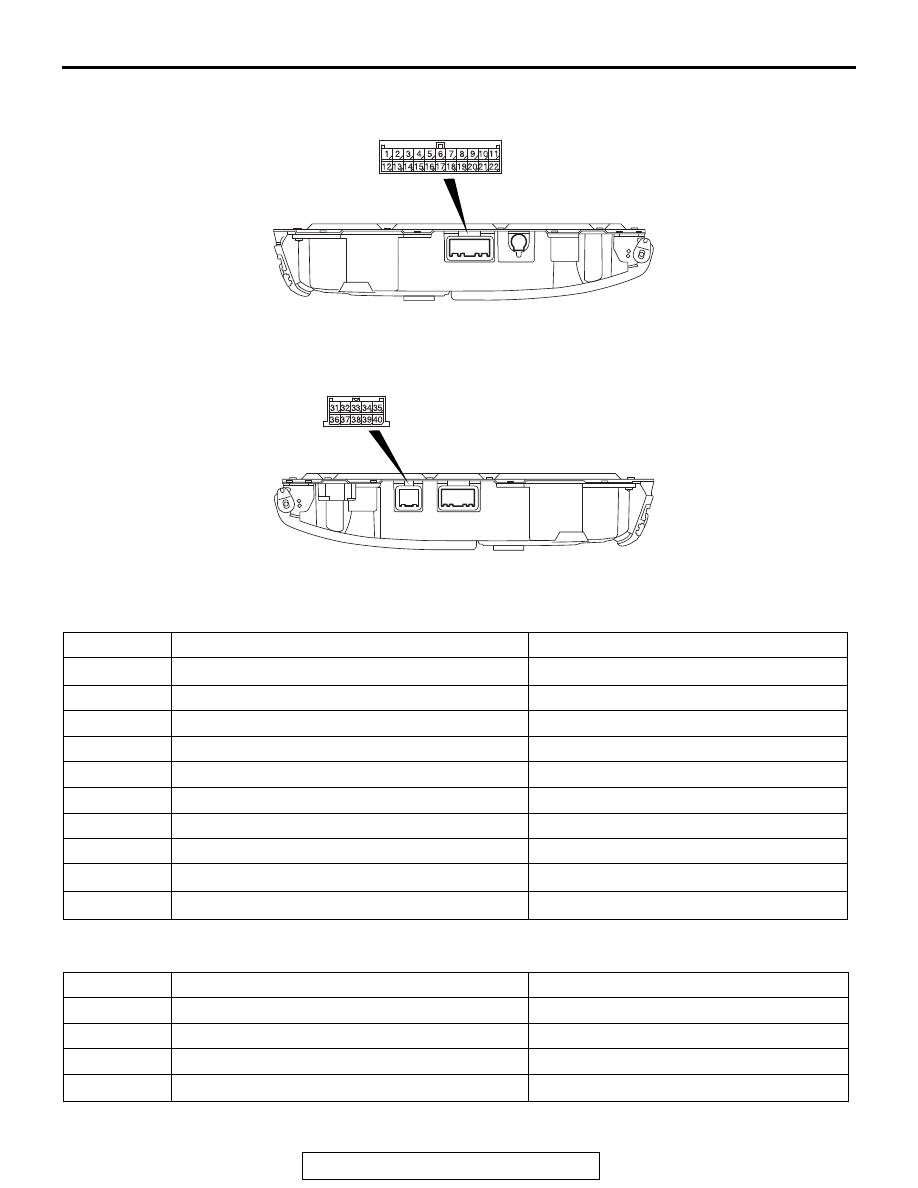

MAIN UNIT TERMINAL VOLTAGE

M1546401500265

.

D-06

.

D-16

AC702309AB

D-16

<Rear display unit right view>

<Rear display unit left view>

D-06

Terminal No. Signal symbol

Terminal voltage (V)

1

GND

−

3

+B

Battery positive voltage

4

ACC+

Battery positive  voltage

5

ILL+

0 - battery positive voltage

8

VIDEO-OUT

0 - 1 Vp-p (AC)

10

AUDIO-L-OUT

0 - battery positive voltage (AC)

11

AUDIO-R-OUT

0 - battery positive voltage (AC)

14

SWITCH-OUT

0 - 5 V

20

VIDEO-OUT-SHIELD

−

22

AUDIO-OUT-SHIELD

−

Terminal No. Signal symbol

Terminal voltage (V)

31

VTR-VIDEO-IN

0 - 1 Vp-p (AC)

33

VTR-AUDIO-R-IN

0 - battery positive voltage (AC)

35

VIDEO-IN

0 - 1 Vp-p (AC)

36

VTR-VIDEO-SHIELD-GND

−

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-724

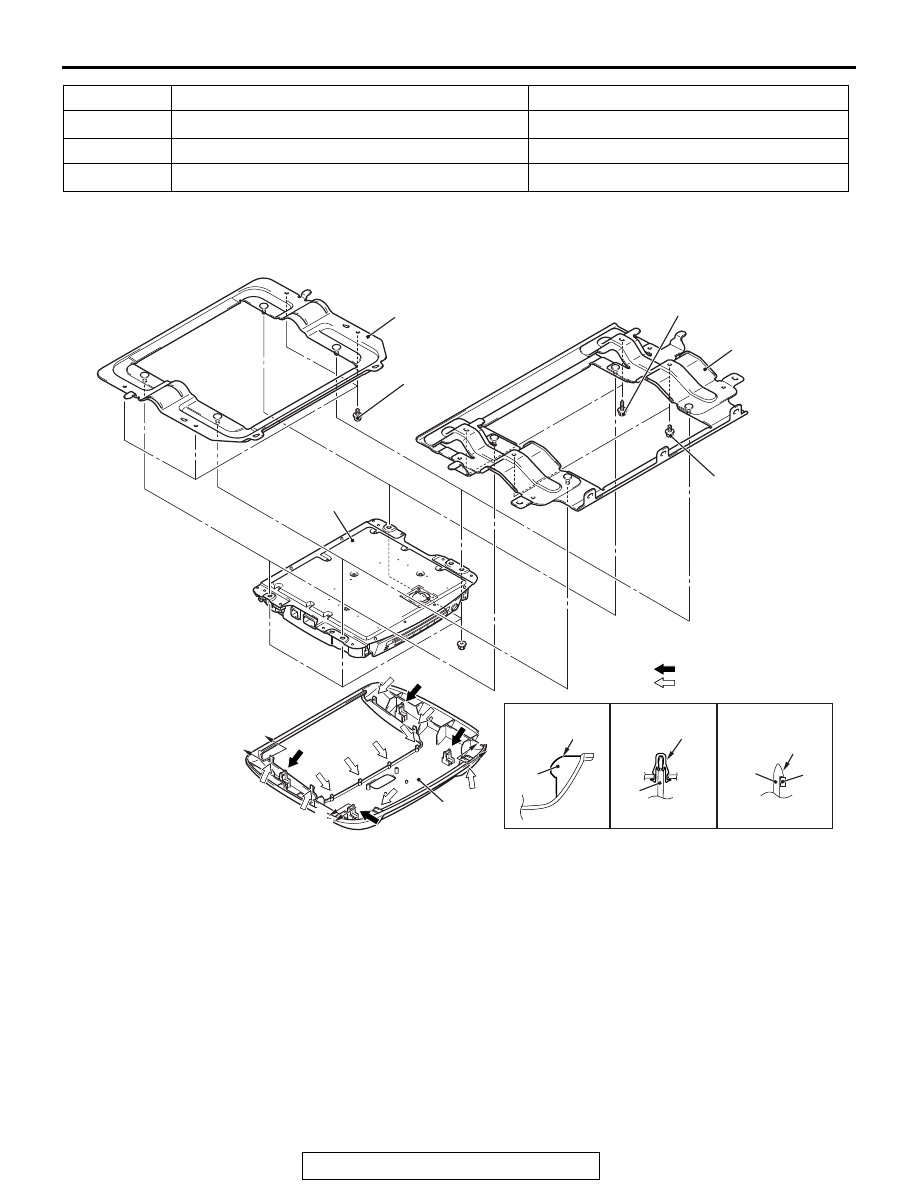

REMOVAL AND INSTALLATION

M1546700200176

37

VTR-AUDIO-SHIELD-GND

−

38

VTR-AUDIO-L-IN

0

−battery positive voltage (AC)

40

VIDEO-IN-SHIELD

−

Terminal No. Signal symbol

Terminal voltage (V)

AC507427

NOTE
(1)       : Clip positions
(2)       : Claw positions

Section B – B

Section C – C

2

3

1

2

1

3

<Vehicles without sunroof>

<Vehicles with sunroof>

1.5 ± 0.5 N·m
14 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

Clip

Claw

AI

Section A – A

1

1

B

B

C

C

A

A

Claw
