DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-161

FAIL-SAFE FUNCTION

If an abnormality occurs to the signal of sensors,
switches, solenoids, or others, the AWC-ECU per-
forms a control for the driver safety and system pro-
tection. The control contents are as follows.

FAIL-SAFE REFERENCE TABLE

NOTE: All the fail-safe functions are reset by turning
OFF

→

 ON the ignition switch.

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

Diagnostic trouble code
No.

Control content

C2203

The S-AWC control is continued with the code creation only.

C1614, C1624

A warning is given to the driver with the trouble displayed to the multi
information display, but the S-AWC control is maintained because the vehicle
behavior is not affected.

C1629, C1630, C1631,
C1632, C1633, C1219,
C2205, C121A, C1460,
C123C, C1242, U0428,
U0401, U1425, U1428,
U0126, U0100

A warning is given to the driver with the trouble displayed to the multi
information display, and the front differential control is stopped. (The center
differential control is continued.)

C161F, C1621, C145F

A warning is given to the driver by the flashing of multi information display
S-AWC control mode, and the S-AWC control is stopped by the protection
control.

Others (other than above) A warning is given to the driver with the trouble displayed to the multi

information display, and the S-AWC control is stopped.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-162

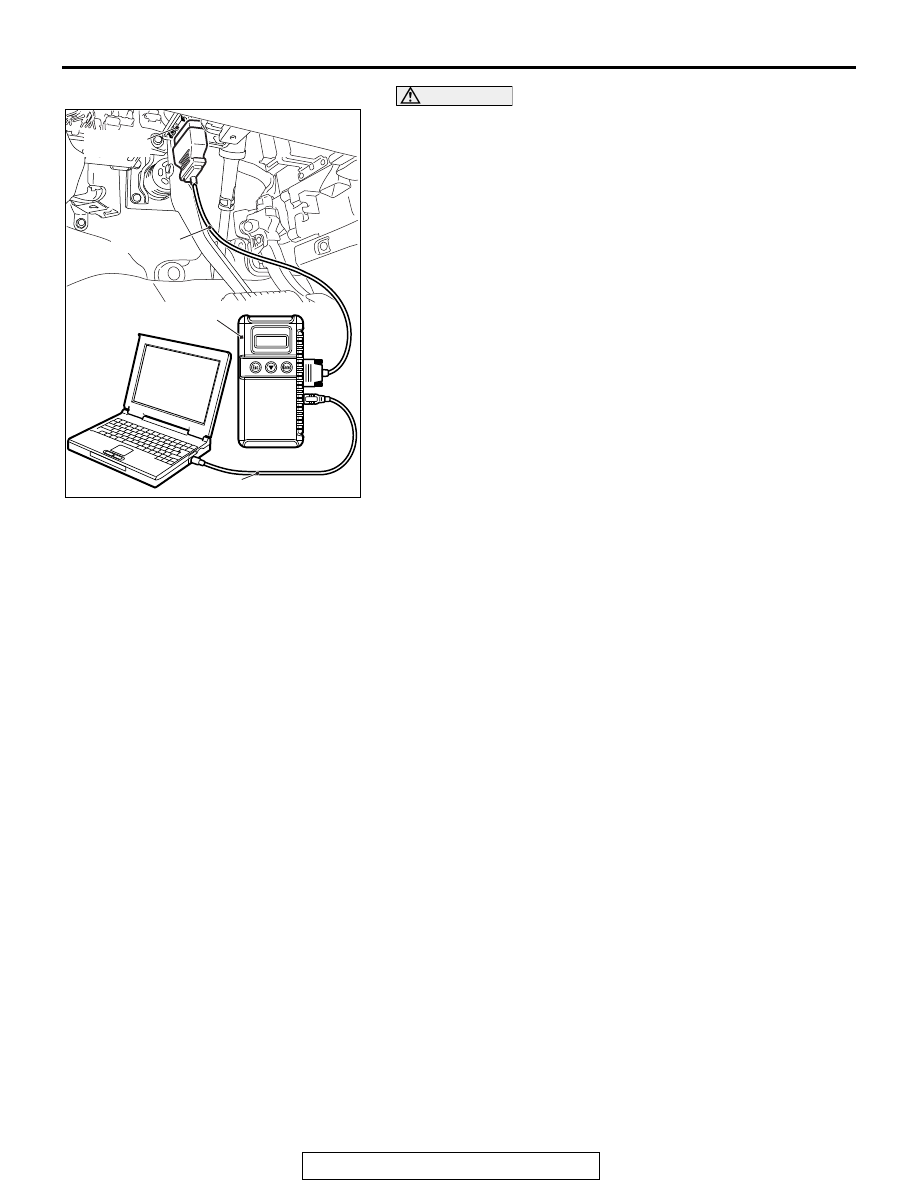

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-163

CHECK OF THE FREEZE FRAME DATA

Various data of when the diagnostic trouble code has been set
is obtained, and the status of that time is stored. By analyzing
each data using M.U.T.-III, troubleshooting can be carried out
efficiently.
Display items of the freeze frame data are as follows.
DISPLAY ITEM LIST

Item No.

Item

Unit/display contents

1

Odometer

km

2

Ignition cycle

Count

4

Current trouble accumulative time

min

5

S-AWC control mode

• NORMAL

• SNOW

• OFF LOAD

6

ABS/ASC operation flag

• ON

• OFF

7

Estimated vehicle speed

km/h

8

Stop lamp switch

• ON

• OFF

9

Parking brake switch

• ON

• OFF

10

Front electronic control coupling torque

Nm

11

Steering angle sensor

deg

12

Accelerator opening angle

%

13

Wheel speed sensor <FL>

km/h

14

Wheel speed sensor <FR>

km/h

15

Wheel speed sensor <RL>

km/h

16

Wheel speed sensor <RR>

km/h

17

center electronic control coupling torque

Nm

18

Yaw rate sensor

deg/s

19

Lateral G-sensor

m/s

2

20

Longitudinal G-sensor

m/s

2

21

Transfer temperature

°C

22

Front electronic control coupling fluid temperature

°C

23

center electronic control coupling fluid temperature

°C

24

Front electronic control coupling clutch temperature

°C

25

center electronic control coupling clutch temperature

°C

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-164

CHECK CHART FOR DIAGNOSTIC TROUBLE CODE

M1231007900932

CAUTION

During diagnosis, a diagnostic trouble code associated with other system may be set when the igni-
tion switch is turned ON with connector(s) disconnected. On completion, confirm all systems for
diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

Diagnostic
trouble
code No.

Item

Reference
page

C100A

FL

Wheel speed sensor system (faulty circuit)

P.23C-166

C1015

FR

C1020

RL

C102B

RR

C1011

FL

Wheel speed sensor system (faulty signal)

P.23C-167

C101C

FR

C1027

RL

C1032

RR

C1014

FL

Wheel speed sensor system (characteristics abnormality)

P.23C-168

C101F

FR

C102A

RL

C1035

RR

C1078

Tire turning malfunction

P.23C-169

C1219

Steering wheel sensor system (faulty signal)

P.23C-171

C121A

Steering wheel sensor system (neutral learning abnormality)

P.23C-173

C123C

G and yaw rate sensor system (faulty signal)

P.23C-174

C1242

G and yaw rate sensor system (abnormality of longitudinal G sensor output
signal)

P.23C-177

C145F

System disable mode (over temperature)

P.23C-179

C1460

S-AWC control mode selector circuit malfunction

P.23C-181

C1610

AWC power supply electronic relay malfunction

P.23C-184

C1614

Parking brake switch system (stuck ON)

P.23C-187

C1616

Cranking signal system (stuck ON)

P.23C-190

C161F

AWC actuator protection 1

P.23C-193

C1621

AWC actuator protection 2

P.23C-195

C1624

AWC-ECU system (Internal Error)

P.23C-197

C1626

Actuator power supply voltage malfunction

P.23C-198

C1627

Abnormal electronic control solenoid (front) current

P.23C-202

C1628

Abnormal electronic control solenoid (center) current

P.23C-204

C1629

ASC CAN data (not received)

P.23C-206

C1630

Steering wheel sensor CAN data (not received)

P.23C-207

C1631

ETACS CAN data (not received)

P.23C-208

C1632

Engine CAN data (not received)

P.23C-209
