AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-93

DTC P0815: Paddle Shift Switch (Up) System

PADDLE
SHIFT
SWITCH

TRANSMISSION
CONTROL
MODULE

AC702732

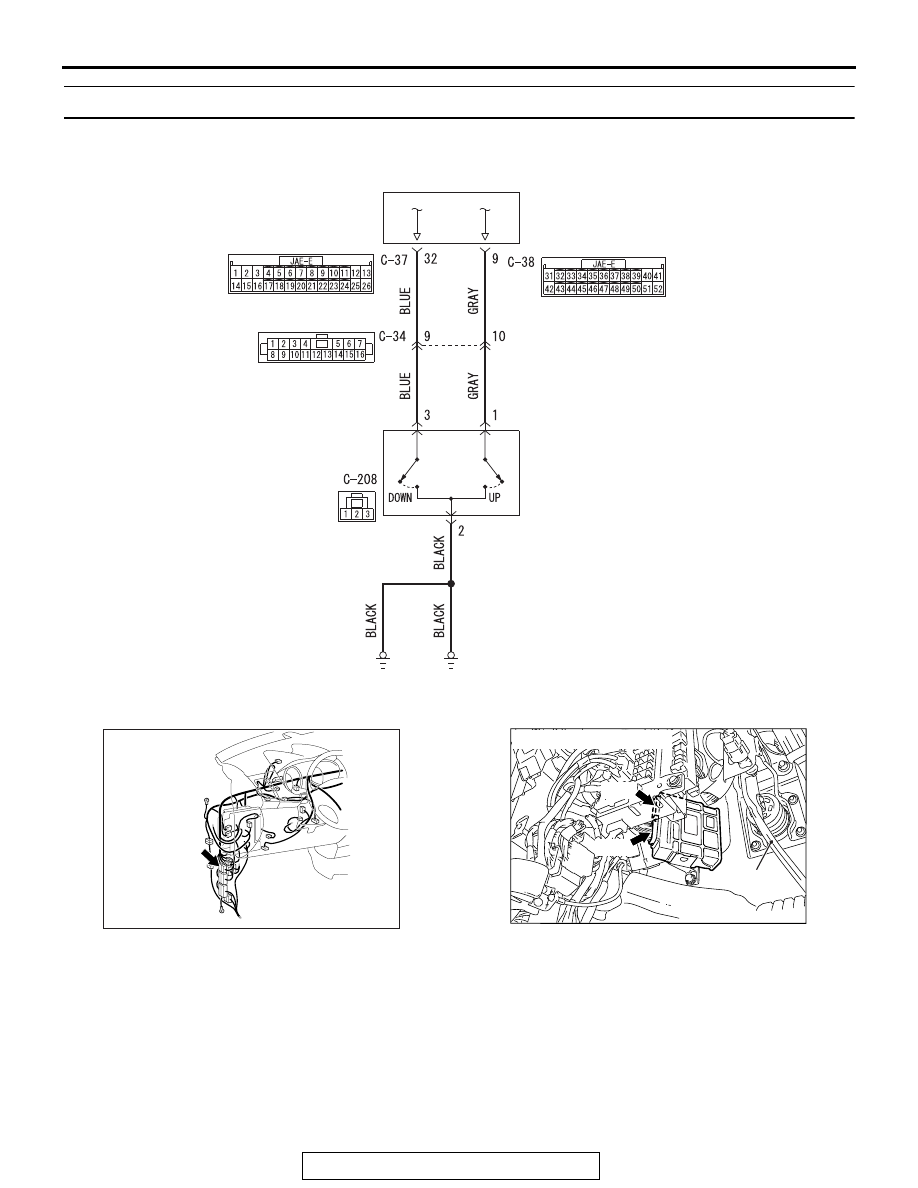

Paddle shift switch system circuit

AB

AC702815

Connector: C-34

C-34 (BR)

AI

AC703253

Connectors: C-37, 38

C-38

C-37

Brake pedal

AD

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-94

.

DESCRIPTIONS OF MONITOR METHODS

• With the ignition switch ON, the paddle shift

switch (up) status continues for 60 seconds.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the Paddle shift switch (up) system

circuit

• Damaged harness or connector

• Malfunction of the TCM

• Malfunction of the paddle shift switch

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-38 TCM connector (vehicle side, connected)]
Measure the voltage between C-38 No. 9 and body ground.

• Ignition switch: ON

• Paddle (ON) operated: 1V or less

• Other than above: battery positive voltage

Q: Is the check result normal?

YES : Go to Step 2.
NO :  Go to Step 3.

STEP 2. Check the TCM connector, vehicle-side wiring
harness connector pin terminal, and the connection
status.
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair or replace the failure section.

STEP 3. Check between the TCM connector and the paddle
shift switch (up).
Check for continuity between C-38 TCM connector terminal No.
9 and C-208 paddle shift switch (up).
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors C-34 and repair that if necessary.

• Between C-38 terminal No. 9 and C-208 terminal No. 1:

Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair or replace the failure section.

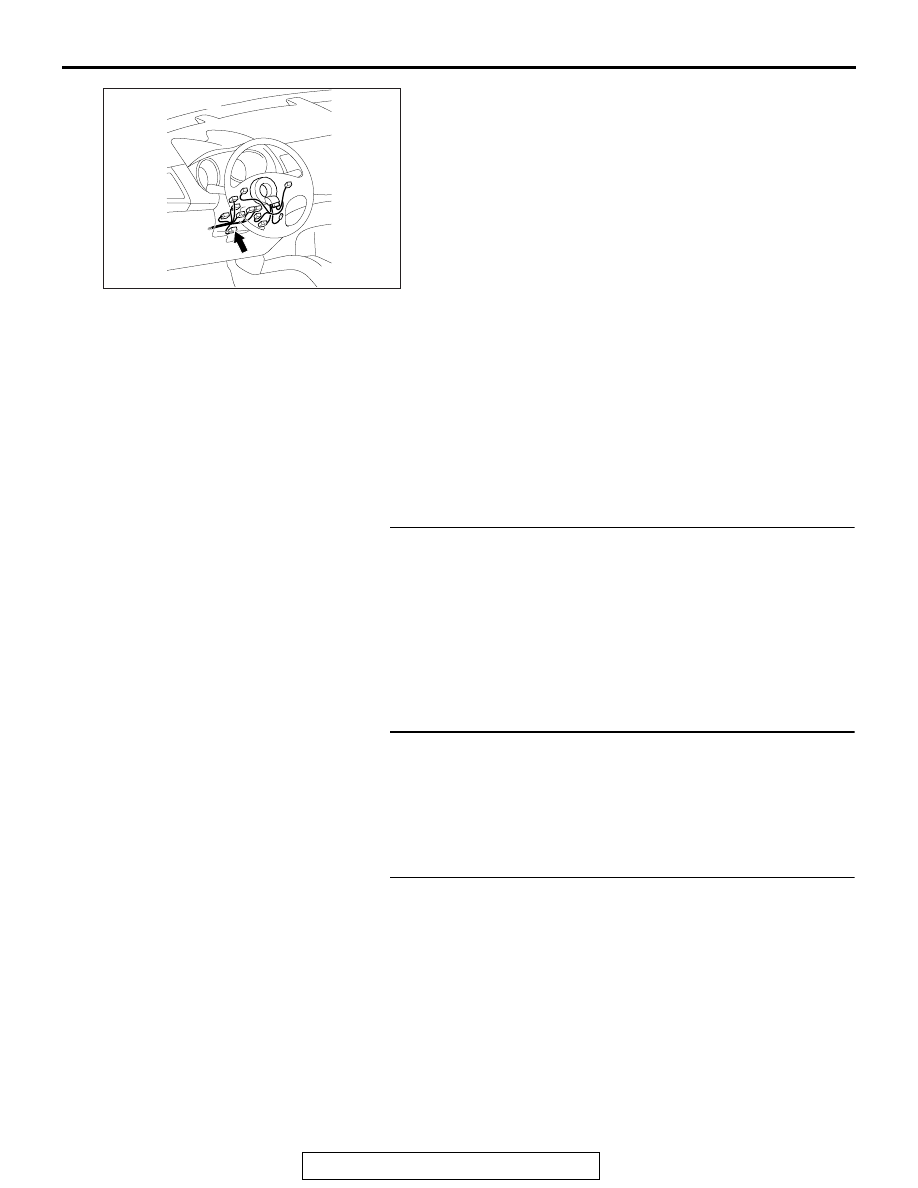

AC703259

Connector: C-208

AB

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-95

STEP 4. Check the paddle shift switch (up).
Refer to

P.23C-276

.

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair or replace the failure section.

STEP 5. Check the TCM connector, vehicle-side wiring
harness connector pin terminal, and the connection
status.
Q: Is the check result normal?

YES : Replace the TCM.
NO :  Repair or replace the failure section.

STEP 6. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

DTC P0816: Paddle Shift Switch (Down) System

.

PADDLE SHIFT SWITCH (DOWN)
SYSTEM CIRCUIT

Refer to

P.23C-93

.

.

DESCRIPTIONS OF MONITOR METHODS

• With the ignition switch ON, the paddle shift

switch (down) status continues for 60 seconds.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the Paddle shift switch (down) sys-

tem circuit

• Damaged harness or connector

• Malfunction of the TCM

• Malfunction of the paddle shift switch

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure the voltage between C-37 terminal No. 32 and body
ground.

• Ignition switch: ON

• Paddle (ON) operated: 1V or less

• Other than above: battery positive voltage

Q: Is the check result normal?

YES : Go to Step 2.
NO :  Go to Step 3.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-96

STEP 2. Check the TCM connector, vehicle-side wiring
harness connector pin terminal, and the connection
status.
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair or replace the failure section.

STEP 3. Check between the TCM connector and the paddle
shift switch (down).
Check for continuity between C-37 TCM connector and C-208
paddle shift switch (down).
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors C-34 and repair that if necessary.

• Between C-37 terminal No. 32 and C-208 terminal No. 3:

Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair or replace the failure section.

STEP 4. Check the paddle shift switch (down).
Refer to

P.23C-276

.

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair or replace the failure section.

STEP 5. Check the TCM connector, vehicle-side wiring
harness connector pin terminal, and the connection
status.
Q: Is the check result normal?

YES : Replace the TCM.
NO :  Repair or replace the failure section.

STEP 6. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.
