AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-57

DTC P0729, P0732,P0733, P0734, P0735: 6th, 2nd, 3rd, 4th, 5th Gear Ratio

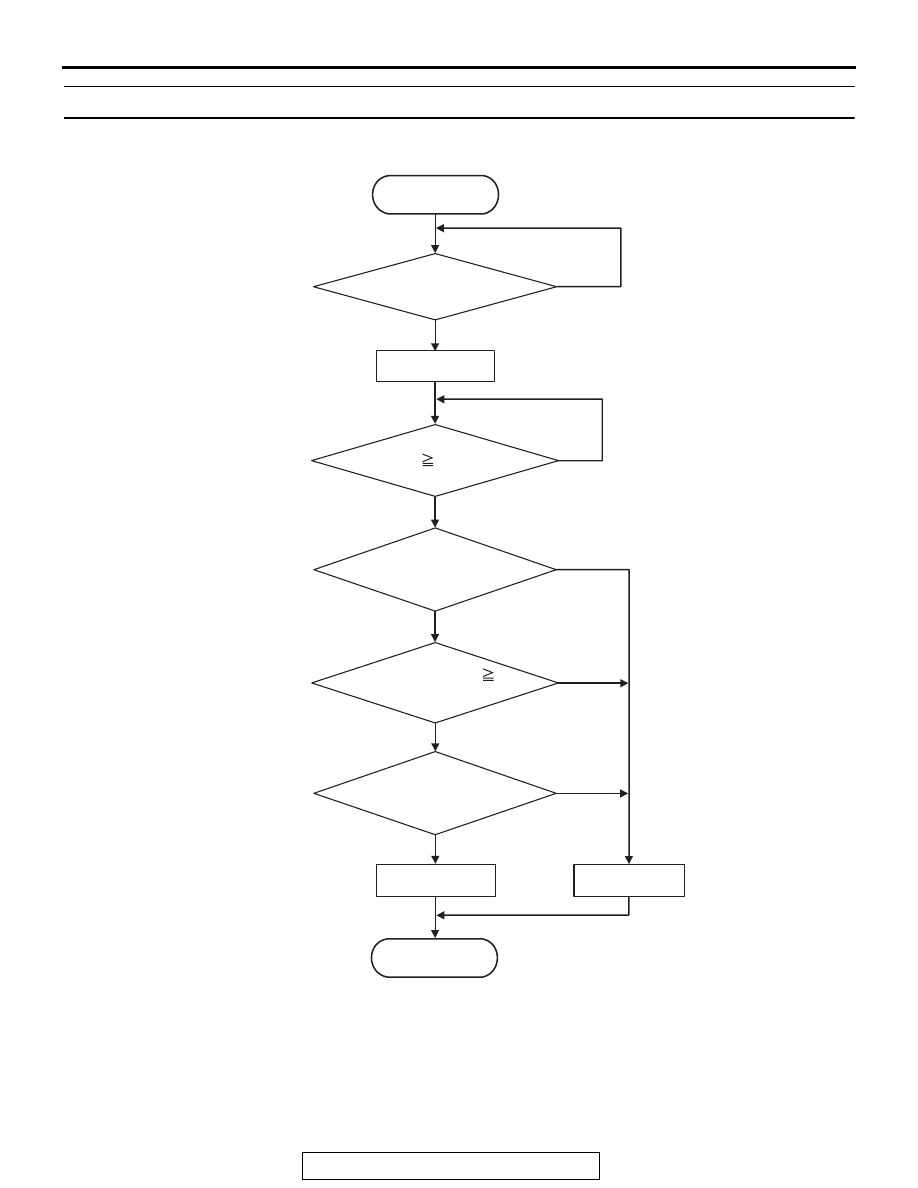

LOGIC FLOW CHARTS (Monitor Sequence)

.

DESCRIPTIONS OF MONITOR METHODS
<DTC P0729>

• After 6th gear is achieved for 2 seconds, the

engine runup

*1

 is detected for 250 milliseconds.

*1

: The actual gear ratio deviates from the target

gear ratio to the high engine (turbine) speed.

.

MONITOR EXECUTION <DTC P0729>

• 6th gear driving

.

Good

END

No

No

No

No

Actual gear ratio
expected gear ratio

Malfunction

Timer start

      Shift stage
commanded by A/T

No

AC802666

Shift changing is finished

Timer     2 secs.

Continuous failure
      for 250 msecs.

Yes

Yes

Yes

Yes

Yes

START

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-58

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR) <DTC
P0729>

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0846: Malfunction of the 2-6 brake pressure

switch system

• P0876: Malfunction of the High clutch pressure

switch system

• P0988: Malfunction of the Low-reverse brake

pressure switch system

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Transmission range switch

• Lock-up and low-reverse brake linear solenoid

• Low clutch linear solenoid

• 2-6 brake linear solenoid

• 3-5 reverse clutch linear solenoid

• High clutch linear solenoid

• Low clutch shift solenoid

• Low-reverse brake shift solenoid

• Engine revolution signal

• CAN communication

.

DTC SET CONDITIONS <DTC P0729>

Check Conditions

• Shift stage: 6th gear.

• Time after shift changing finish: 2 seconds or

more.

Judgement Criteria

• Gear ratio: 0.753 or more. (0.25 second)

.

OBD-II DRIVE CYCLE PATTERN <DTC
P0729>

6th gear driving for 5 seconds or more

.

DESCRIPTIONS OF MONITOR METHODS
<DTC P0732>

• After 2nd gear is achieved for 2 seconds, the

engine runup

*1

 is detected for 250 milliseconds.

*1

: The actual gear ratio deviates from the target

gear ratio to the high engine (turbine) speed.

.

MONITOR EXECUTION <DTC P0732>

• 2nd gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR) <DTC
P0732>

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0846: Malfunction of the 2-6 brake pressure

switch system

• P0876: Malfunction of the High clutch pressure

switch system

• P0988: Malfunction of the Low-reverse brake

pressure switch system

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Transmission range switch

• Lock-up and low-reverse brake linear solenoid

• Low clutch linear solenoid

• 2-6 brake linear solenoid

• 3-5 reverse clutch linear solenoid

• High clutch linear solenoid

• Low clutch shift solenoid

• Low-reverse brake shift solenoid

• Engine revolution signal

• CAN communication

.

DTC SET CONDITIONS <DTC P0732>

Check Conditions

• Shift stage: 2nd gear.

• Time after shift changing finish: 2 seconds or

more.

Judgement Criteria

• Gear ratio: 3.225 or more. (0.25 second)

.

OBD-II DRIVE CYCLE PATTERN <DTC
P0732>

2nd gear driving for 5 seconds or more

.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-59

DESCRIPTIONS OF MONITOR METHODS
<DTC P0733>

• After 3rd gear is achieved for 2 seconds, the

engine runup

*1

 is detected for 250 milliseconds.

*1

: The actual gear ratio deviates from the target

gear ratio to the high engine (turbine) speed.

.

MONITOR EXECUTION <DTC P0733>

• 3rd gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR) <DTC
P0733>

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0846: Malfunction of the 2-6 brake pressure

switch system

• P0876: Malfunction of the High clutch pressure

switch system

• P0988: Malfunction of the Low-reverse brake

pressure switch system

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Transmission range switch

• Lock-up and low-reverse brake linear solenoid

• Low clutch linear solenoid

• 2-6 brake linear solenoid

• 3-5 reverse clutch linear solenoid

• High clutch linear solenoid

• Low clutch shift solenoid

• Low-reverse brake shift solenoid

• Engine revolution signal

• CAN communication

.

DTC SET CONDITIONS <DTC P0733>

Check Conditions

• Shift stage: 3rd gear.

• Time after shift changing finish: 2 seconds or

more.

Judgement Criteria

• Gear ratio: 1.947 or more. (0.25 second)

.

OBD-II DRIVE CYCLE PATTERN <DTC
P0733>

3rd gear driving for 5 seconds or more

.

DESCRIPTIONS OF MONITOR METHODS
<DTC P0734>

• After 4th gear is achieved for 2 seconds, the

engine runup

*1

 is detected for 250 milliseconds.

*1

: The actual gear ratio deviates from the target

gear ratio to the high engine (turbine) speed.

.

MONITOR EXECUTION <DTC P0734>

• 4th gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR) <DTC
P0734>

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0846: Malfunction of the 2-6 brake pressure

switch system

• P0876: Malfunction of the High clutch pressure

switch system

• P0988: Malfunction of the Low-reverse brake

pressure switch system

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Transmission range switch

• Lock-up and low-reverse brake linear solenoid

• Low clutch linear solenoid

• 2-6 brake linear solenoid

• 3-5 reverse clutch linear solenoid

• High clutch linear solenoid

• Low clutch shift solenoid

• Low-reverse brake shift solenoid

• Engine revolution signal

• CAN communication

.

DTC SET CONDITIONS <DTC P0734>

Check Conditions

• Shift stage: 4th gear.

• Time after shift changing finish: 2 seconds or

more.

Judgement Criteria

• Gear ratio: 1.340 or more. (0.25 second)

.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-60

OBD-II DRIVE CYCLE PATTERN <DTC
P0734>

4th gear driving for 5 seconds or more

.

DESCRIPTIONS OF MONITOR METHODS
<DTC P0735>

• After 5th gear is achieved for 2 seconds, the

engine runup

*1

 is detected for 250 milliseconds.

*1

: The actual gear ratio deviates from the target

gear ratio to the high engine (turbine) speed.

.

MONITOR EXECUTION <DTC P0735>

• 5th gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR) <DTC
P0735>

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0846: Malfunction of the 2-6 brake pressure

switch system

• P0876: Malfunction of the High clutch pressure

switch system

• P0988: Malfunction of the Low-reverse brake

pressure switch system

Sensor (The sensor below is determined to be

normal)

• Input shaft speed sensor

• Output shaft speed sensor

• Transmission range switch

• Lock-up and low-reverse brake linear solenoid

• Low clutch linear solenoid

• 2-6 brake linear solenoid

• 3-5 reverse clutch linear solenoid

• High clutch linear solenoid

• Low clutch shift solenoid

• Low-reverse brake shift solenoid

• Engine revolution signal

• CAN communication

.

DTC SET CONDITIONS <DTC P0735>

Check Conditions

• Shift stage: 5th gear.

• Time after shift changing finish: 2 seconds or

more.

Judgement Criteria

• Gear ratio: 0.984 or more. (0.25 second)

.

OBD-II DRIVE CYCLE PATTERN <DTC
P0735>

5th gear driving for 5 seconds or more

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Transaxle assembly powertrain parts failure

• Malfunction of the P0715: input shaft speed sen-

sor system

• Malfunction of the P0720: output shaft speed

sensor system

• Malfunction of the P0748: line pressure linear

solenoid valve system circuit

• Malfunction of the P0753: low clutch linear sole-

noid valve system circuit

• Malfunction of the P0758: 2-6 brake linear sole-

noid valve system circuit

• Malfunction of the P0763: 3-5 reverse clutch lin-

ear solenoid valve system circuit

• Malfunction of the P0768: high clutch linear sole-

noid valve system circuit

• Malfunction of the P1753: low clutch shift sole-

noid valve system circuit

• Malfunction of the low clutch, 2-6 brake, 3-5

reverse clutch, high clutch

• Malfunction of the valve body assembly

DIAGNOSIS

STEP 1. Check the DTC.
Check that P0715 (input shaft speed sensor) and P0720 (out-
put shaft speed sensor) are set.
Q: Is the DTC set?

YES : Check and repair the relevant DTC system.
NO :  Go to Step 2.
