AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-25

CAUTION

• The throttle should not be fully open for more

than five seconds.

• If you repeat the stall test when the transmis-

sion fluid temperature is greater than 80

°C

(176

°F), move the selector lever to the "N"

position and let the engine run at approxi-
mately 1,000 r/min for at least one minute.
Wait until the transmission fluid temperature
returns to 80

°C (176°F) or less.

6. Move the selector lever to the "D" position. Fully

depress the accelerator pedal and read the
maximum engine speed.

Standard value: Stall speed: Approx. 2,300

−

2,800 r/min

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-26

HYDRAULIC PRESSURE TESTS

M1231205500114

WARNING

Do not let anyone stand in front of or behind the vehi-
cle while this test is performed.

CAUTION

The transmission fluid temperature should be between 70
− 90°C (158 − 194°F) during the test.
1. Check the transmission fluid level and temperature. Check

engine coolant temperature.

• Transmission fluid level: "H" mark on the dipstick

• Transmission fluid temperature: 70 − 90°C (158 − 194°F)

• Engine coolant temperature: 80 − 100°C (176 − 212°F)

2. Raise the vehicle so that the wheels are free to turn.

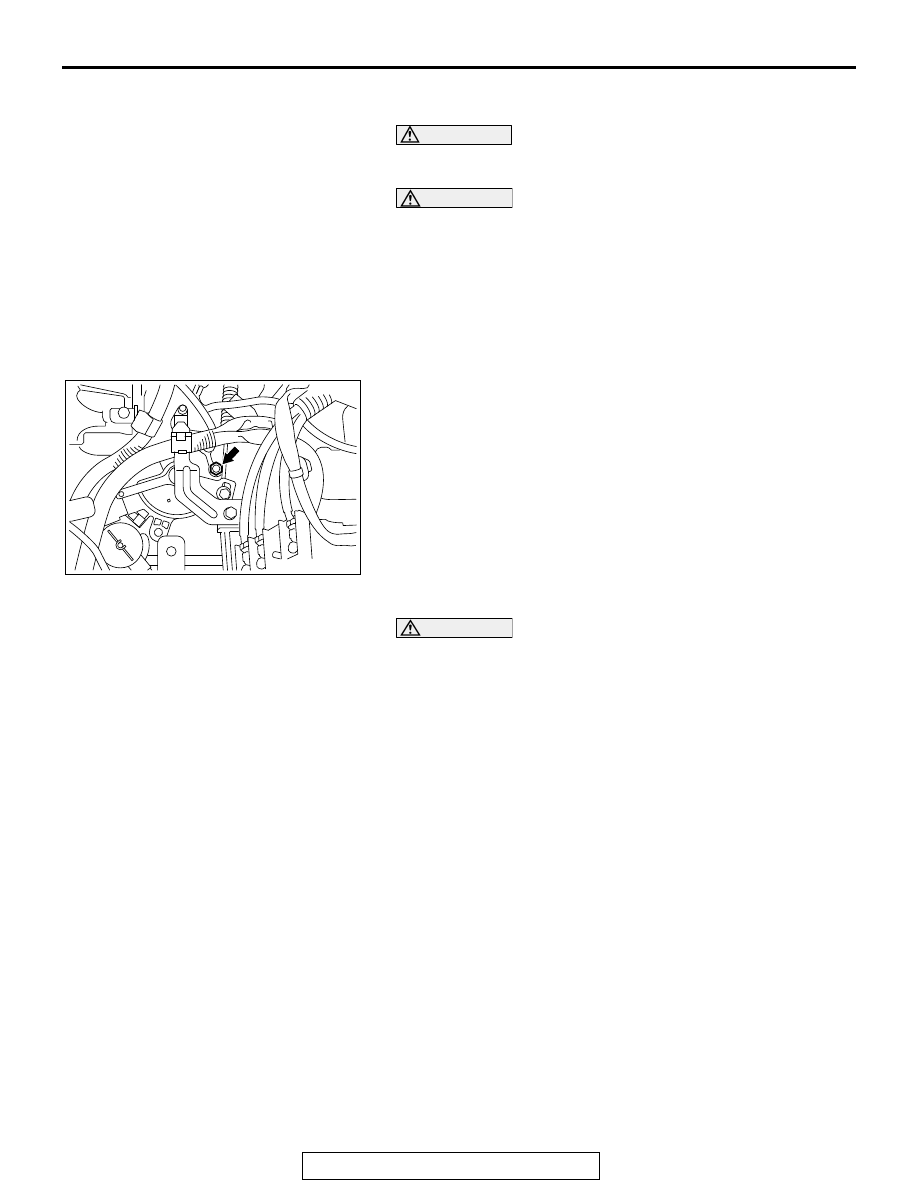

3. Connect the special tools (3.0 MPa (427 psi) oil pressure

gauge [MD998330] and adapters [MB992127 ]) to each
pressure discharge port.

4. Apply the parking brakes fully.
5. Restart the engine.
6. Check that there are no leaks around the special tool port

adapters.

7. At the "D" position, measure the hydraulic pressure during

idling (engine speed: 650

± 50 r/min).

Standard value: Approx. 0.385

− 0.525 MPa (56 − 76

psi)

CAUTION

The throttle should not be fully open for more than five
seconds.
8. At the "D" position, fully depress the foot brake pedal. Then

fully depress the accelerator pedal while checking the
hydraulic pressure indicator, and quickly read the maximum
hydraulic pressure.

Standard value: Approx. 1.53 MPa (222 psi)

9. Stop the engine.
10.Remove the O-ring from the port plug and replace it.
11.Remove the special tool, and install the plugs to the

hydraulic pressure ports.

12.Start the engine and check that there are no leaks around

the plugs.

AC607731 AB

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-27

DIAGNOSTIC TROUBLE CODE CHART

M1231007900965

CAUTION

During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion, confirm all systems for DTC code(s).
If DTC code(s) are set, erase them all.

DTC No. Diagnosis item

Reference
page

P0703

Stoplight switch malfunction

P.23C-29

P0705

Transmission range switch system

P.23C-34

P0712

Transmission fluid temperature sensor system

Short circuit

P.23C-39

P0713

Open circuit

P.23C-43

P0715

Input shaft speed sensor system

P.23C-46

P0720

Output shaft speed sensor system

P.23C-51

P0729

6th gear incorrect ratio

P.23C-57

P0731

1st gear incorrect ratio

P.23C-62

P0732

2nd gear incorrect ratio

P.23C-57

P0733

3rd gear incorrect ratio

P.23C-57

P0734

4th gear incorrect ratio

P.23C-57

P0735

5th gear incorrect ratio

P.23C-57

P0736

Reverse gear incorrect ratio

P.23C-65

P0741

Torque converter clutch system

Stuck off

P.23C-68

P0742

Stuck on

P0743

Lock-up and Low-reverse brake linear solenoid valve system

P.23C-72

P0748

Line pressure linear solenoid valve system

P.23C-76

P0753

Low clutch linear solenoid valve system

P.23C-80

P0758

2-6 brake linear solenoid valve system

P.23C-83

P0763

3-5 reverse clutch linear solenoid valve system

P.23C-86

P0768

High clutch linear solenoid valve system

P.23C-89

P0815

Puddle shift switch (up) system

P.23C-93

P0816

Puddle shift switch (down) system

P.23C-95

P0826

Shift switch assembly system

P.23C-97

P0846

2-6 brake pressure switch system

P.23C-100

P0876

High clutch pressure switch system

P.23C-105

P0893

Interlock detection

P.23C-109

P0988

Low-reverse brake pressure switch system

P.23C-112

P1705

Throttle position sensor information (engine)

P.23C-116

P1706

Accelerator pedal position information

P.23C-118

P1731

1st engine brake detection

P.23C-120

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-28

SYMPTOM CHART

M1231008000512

CAUTION

During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion, confirm all systems for DTC code(s).
If DTC code(s) are set, erase them all.

P1753

Low clutch shift solenoid valve system

P.23C-122

P1758

Low-reverse brake shift solenoid valve system

P.23C-125

P1773

ABS information (ASC)

P.23C-128

P1796

Idle neutral control malfunction

P.23C-130

U0001

CAN bus off

P.23C-131

U0100

ECM time-out

P.23C-133

U0121

ASC-ECU time out

P.23C-135

U0141

ETACS-ECU time out

P.23C-136

DTC No. Diagnosis item

Reference
page

Symptom

Inspection
procedure No.

Reference page

The vehicle does not run at any range (including low power).

1

P.23C-137

The vehicle does not run at the "D" or the "R" range.

2

P.23C-138

The acceleration is poor.

3

P.23C-139

The vehicle moves at the "N" range.

4

P.23C-140

Gears cannot be shifted at all, or a certain gear shift (1st to 2nd,
2nd to 3rd, etc.) is not made.

5

P.23C-141

The torque converter is not locked up.

6

P.23C-142

The clutch slips when the vehicle starts or during gear shift.

7

P.23C-143

The engine brake is not applied.

8

P.23C-144

The shift shock is large at a certain gear shift. (1st to 2nd, 2nd to
3rd, etc.)

9

P.23C-145

The select shock is large when the transmission range is shifted
from "N" to "D", and "N" to "R."

10

P.23C-146

Abnormal sound occurs during idling.

11

P.23C-147

Abnormal sound occurs during driving.

12

P.23C-148

Abnormal sound occurs during gear shift.

13

P.23C-149

Engine stall

14

P.23C-150

Oil leaks from the air breather.

15

P.23C-151

The starter does not rotate at the "P" or "N" range. (The engine
does not start.)

16

P.23C-152
