TRANSAXLE CONTROL MODULE (TCM)

TSB Revision

CVT

23A-165

TRANSAXLE CONTROL MODULE (TCM)

REMOVAL AND INSTALLATION

M1231211400183

CAUTION

To store the change gear ratio status of the CVT assembly in the TCM memory, drive the vehicle at 3
km/h or faster after replacing the TCM.

Pre-removal and post-installation operation
• Bottom cover assembly (passenger side) removal and

installation (Refer to GROUP 52A

− Instrument Panel

Assembly

P.52A-2

.)

• Glove box assembly removal and installation (Refer to

GROUP 52A

− Instrument Panel Assembly

P.52A-2

.)

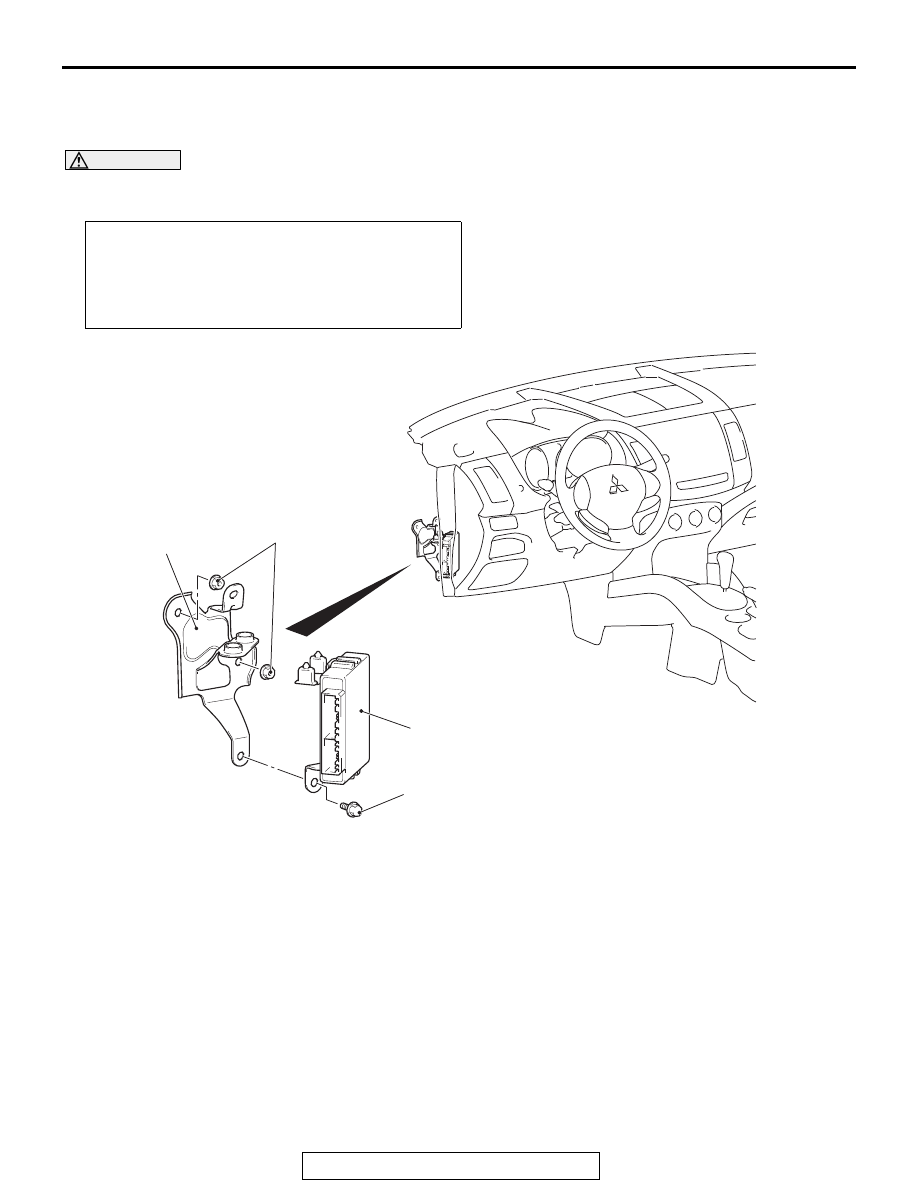

AC702849AE

2

1

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

Removal steps

1.

TCM

2.

TCM bracket

TRANSMISSION FLUID COOLER AND COOLER LINE

TSB Revision

CVT

23A-166

TRANSMISSION FLUID COOLER AND COOLER LINE

REMOVAL AND INSTALLATION

M1231212500235

Pre-removal and post-installation operation
• Engine room under cover front, engine room side cover

(Refer to GROUP 51

− Under Cover

P.51-23

.)

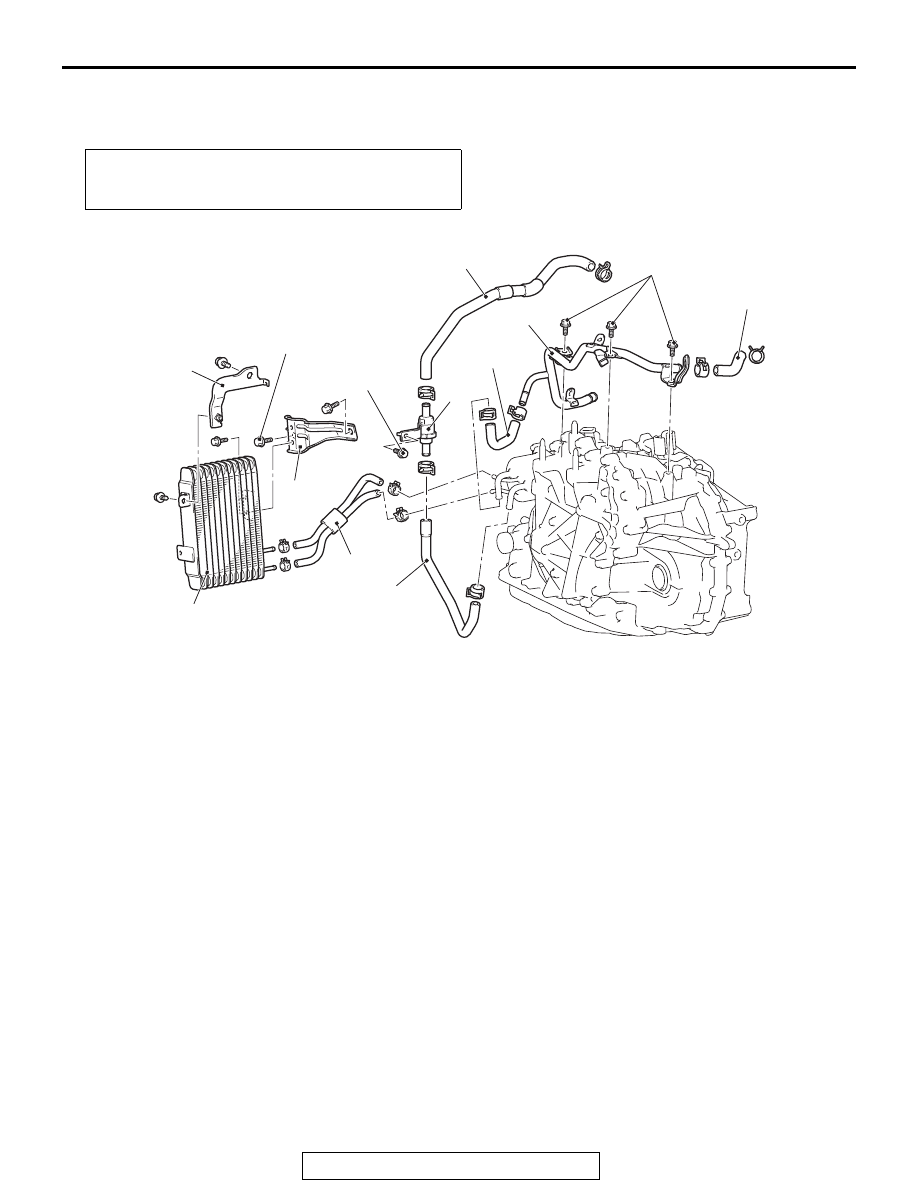

AC606747AF

5

1

3

2

7

8

9

10

4

6

25 ± 4 N·m
18 ± 3 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

9.5 ± 3.5 N·m
84 ± 31 in-lb

CVT fluid cooler line removal
steps

1.

Water feed hose B

2.

Water feed hose A

3.

Thermo valve assembly

4.

Water return hose A

5.

Water return hose B

6.

Water tube assembly

CVT fluid cooler removal steps

7.

CVT fluid cooler hose assembly

8.

CVT fluid cooler bracket A

9.

CVT fluid cooler bracket B

10. CVT fluid cooler assembly

TRANSMISSION FLUID COOLER AND COOLER LINE

TSB Revision

CVT

23A-167

THERMO VALVE CHECK

M1231204900227

.

1. Obtain a container filled with water and place the thermo

valve in it with a stick [approximately 6 mm (0.24 inch) in
diameter] inserted. Gradually warm up the water while
stirring, and check that the thermo valve opening
temperature is within the standard value. The stick rises
when the thermo valve opens.

Standard value:
75

± 1.5°C (167 ± 2.7°F)

2. Warm up the water to the full-open temperature of the

thermo valve, and check that the valve lift amount is within
the standard value.

Standard value:

Full-open temperature 95

°C (203°F) or more

Valve lift amount when it is fully opened:

3 mm (0.12 inch) or more

NOTE: Measure the height of the fully closed valve in
advance, and then measure the valve height at fully open
temperature to calculate the lift amount.

AC506983

AB

Thermo
valve

Stick [6 mm (0.24 in) in diameter]
