Mitsubishi Outlander GS45X. Manual - part 164





SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-653

SATELLITE RADIO TUNER

GENERAL INFORMATION

M1544000100420

SATELLITE RADIO

• The satellite radio is a broadcast technology that

offers a clear digital sound directly by using satel-
lites.

• The registered service provider is SIRIUS™ satel-

lite radio.

• This service offers listeners more than 100 pro-

grams such as news, sports, music, and enter-
tainment.

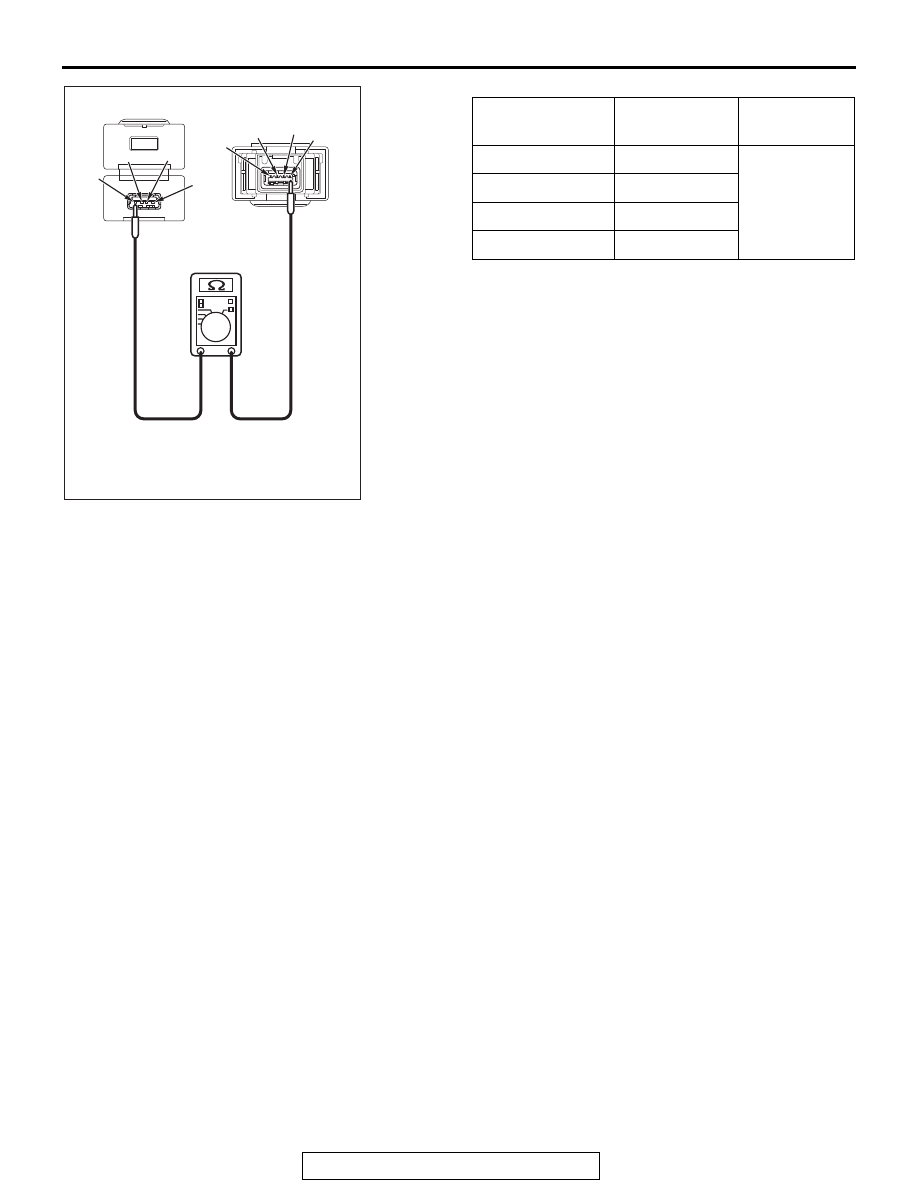

Front side
terminal

Rear side
terminal

Measurement
value

1

1

Continuity
exists (2

Ω or

less)

2

2

3

3

4

4

AC900440

AB

Front side

Rear side

1

2

3

4

4

3

2

1

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-654

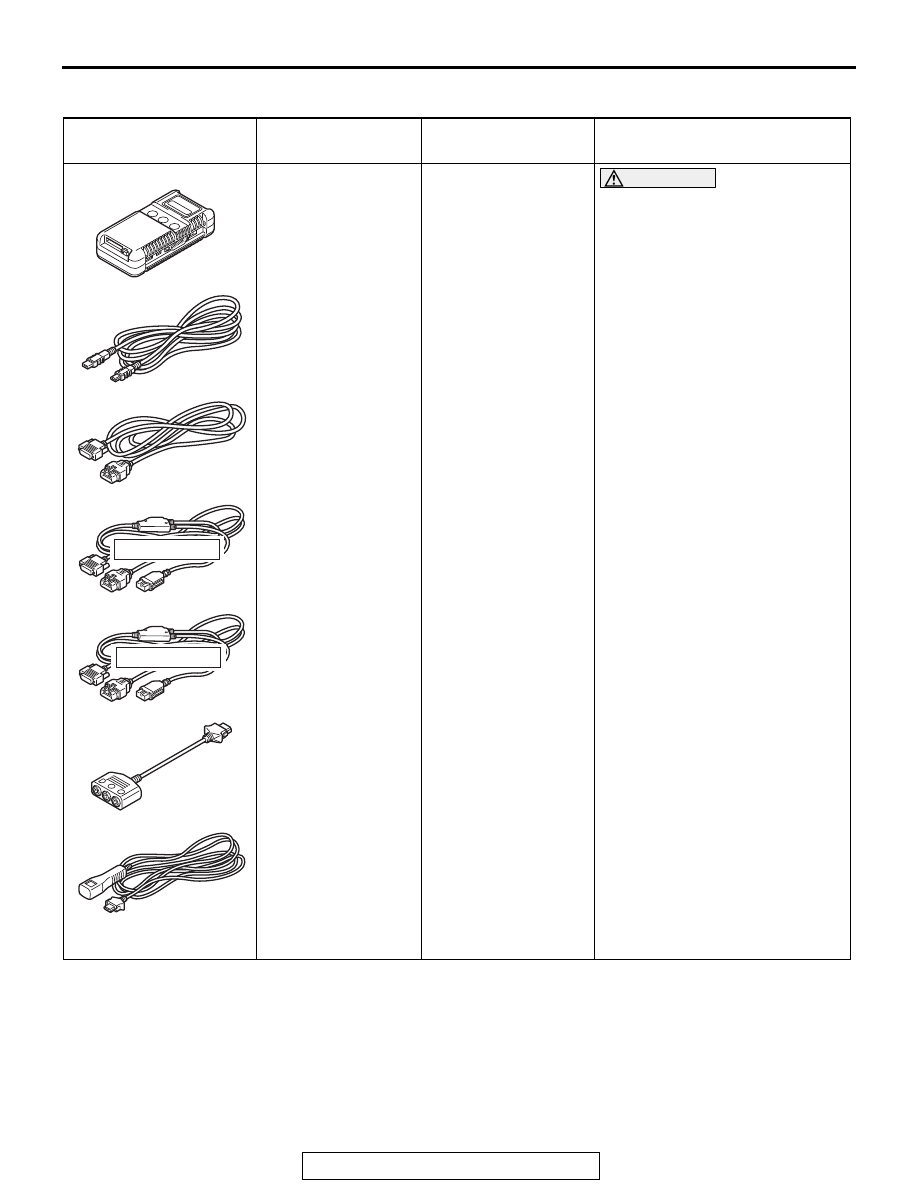

SPECIAL TOOLS

M1544000600726

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics or
diagnostic trouble code check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-655

DIAGNOSIS

INTRODUCTION TO SATELLITE RADIO DIAGNOSIS

M1544004700372

ERROR CODE (SIRIUS SATELLITE
RADIO)

The display displays the error codes if an abnormal-
ity related to the satellite radio is detected. (Refer to

P.54A-328

.)

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1544016500030

Refer to GROUP 00

− Troubleshooting contents

P.00-7

.

DIAGNOSIS FUNCTION

M1544013200397

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

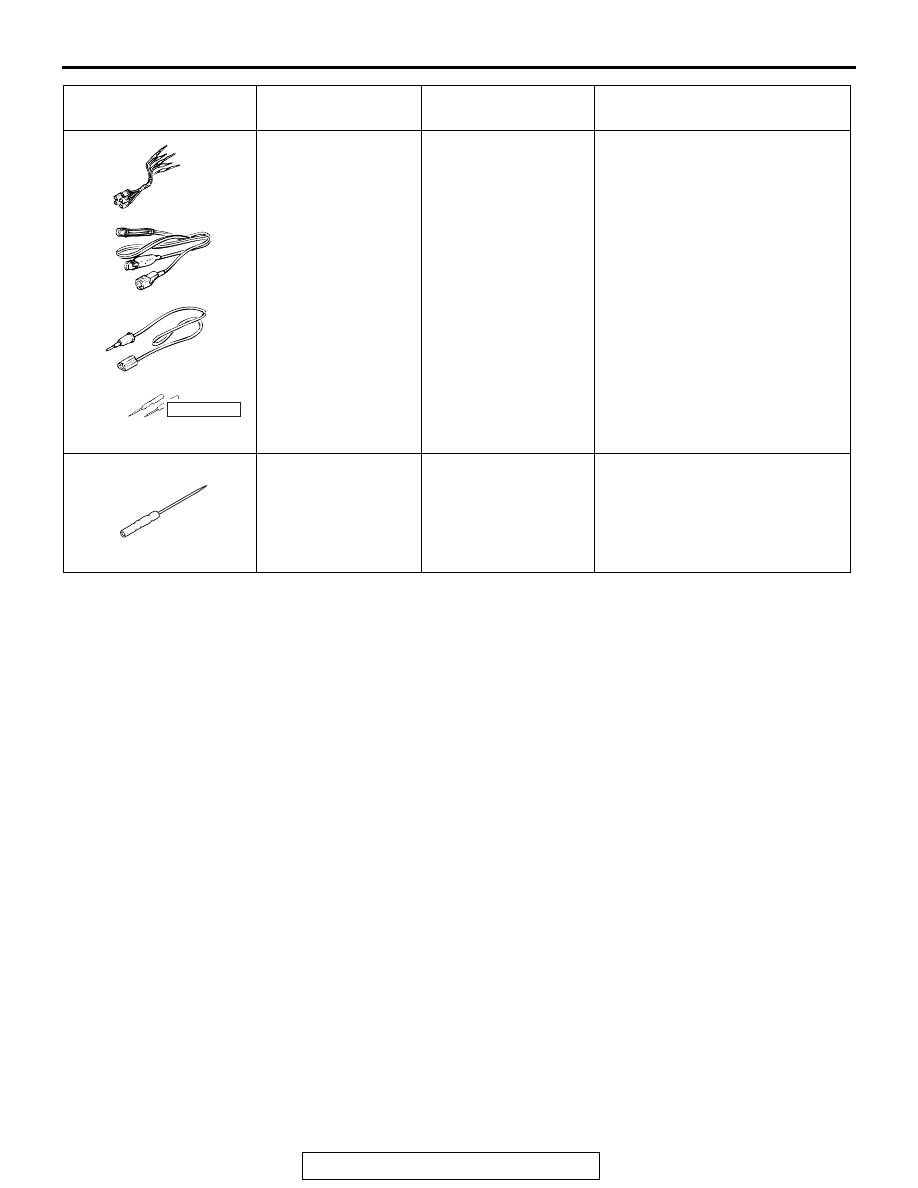

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

General service tool
(jumper)

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006
Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-656

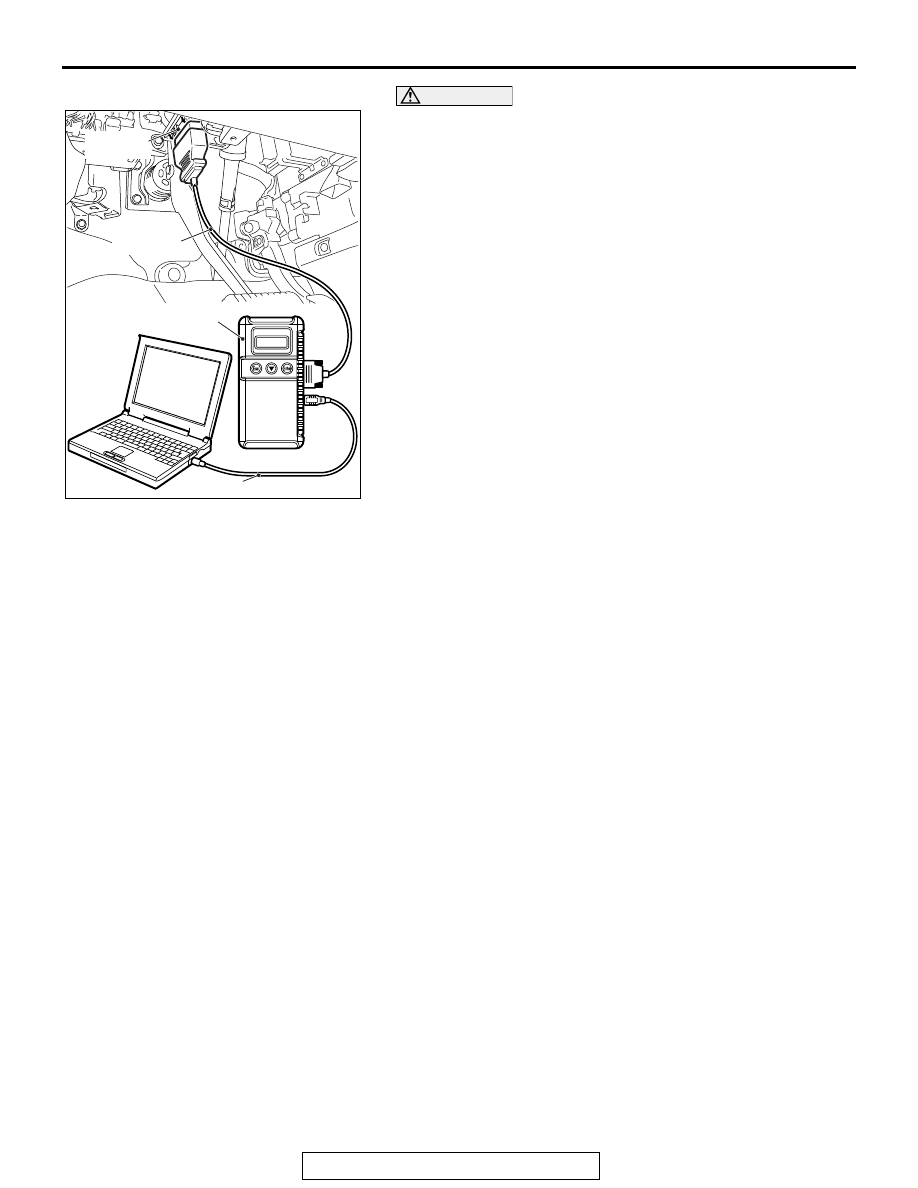

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "Meter" from "System List," and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code." to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

ZC501967

AC404789

AC606941AB

MB991824

MB991827

MB991910

Data link

connector
