DIAGNOSIS

TSB Revision

CVT

23A-93

STEP 2. Check for open circuit in power supply wiring
harness

• Between relay box and C-37 TCM backup power supply

connector (terminal No.31)

• Between relay box and A-18X CVT control relay (terminal

No.4)

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the wiring harness.

STEP 3. Symptom recheck after erasing diagnostic trouble
code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.

DTC P1706: Malfunction of Throttle Signal

.

DIAGNOSTIC FUNCTION

TCM detects the abnormality in the throttle position
signal sent from the ECM.

.

DESCRIPTIONS OF MONITOR METHODS

• The difference between the throttle position sig-

nal received from the ECM and the correspond-
ing turnover value is 1.37 V or more, and this
status continues for 1 second.

.

MONITOR EXECUTION

• Transmission range: D

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0705: Malfunction of transmission range switch

• P0715: Malfunction of primary pulley speed sen-

sor

• P0720: Malfunction of secondary pulley speed

sensor

• P0725: Malfunction of engine speed

• P0741: Abnormality in lockup function

• P0746: Abnormality in hydraulic control system

function

• P0841: Abnormality in line pressure sensor func-

tion

Sensor (The sensor below is determined to be

normal)

• Transmission range switch

• Primary pulley speed sensor

• Secondary pulley speed sensor

.

DIAGNOSIS

TSB Revision

CVT

23A-94

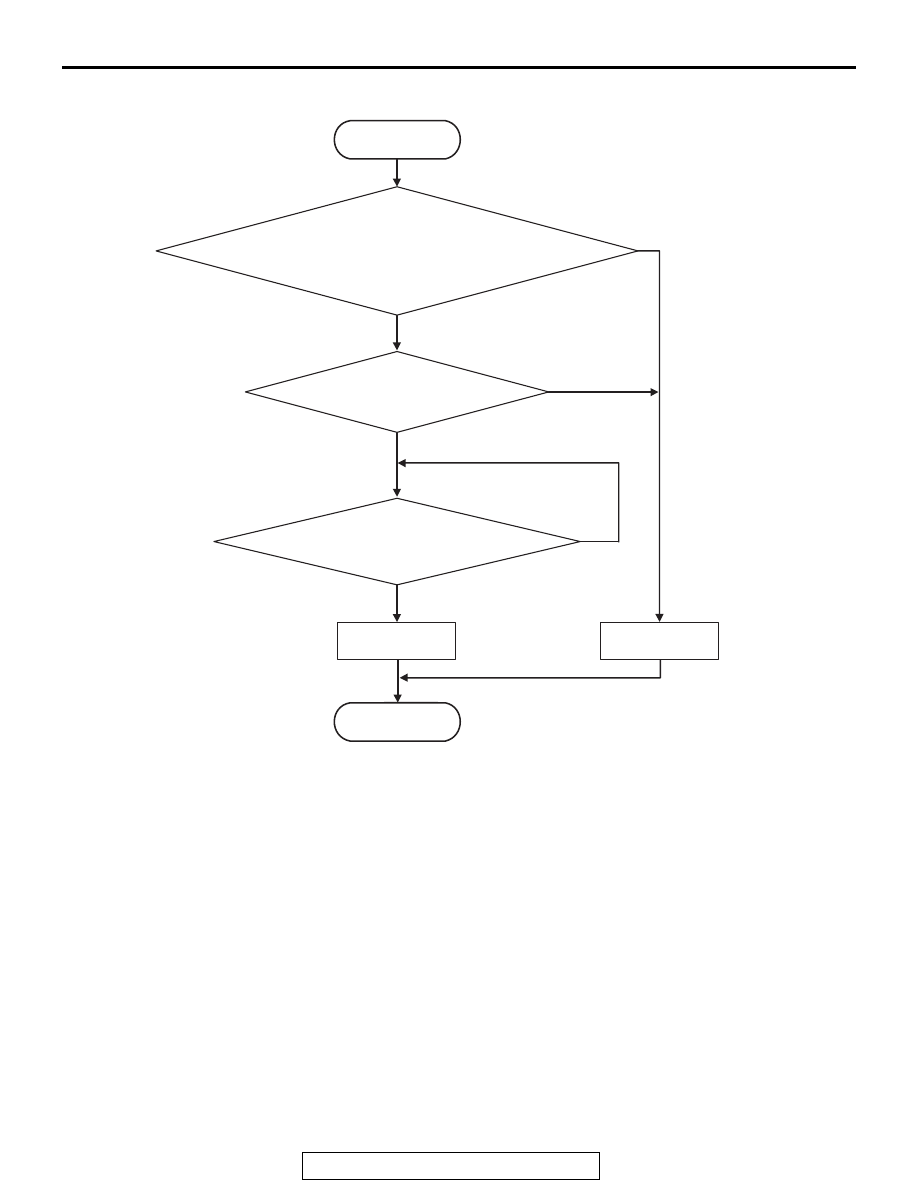

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Transmission range switch position: D.

• Voltage of battery: 9 volts or more.

• Voltage of battery: 16 volts or less.

JUDGMENT CRITERIA

• Throttle position toggle signal on CAN: not

change. (1 second)

.

OBD-II DRIVE CYCLE PATTERN

Ignition switch : ON (start the engine and keep it for
10 seconds or more)

.

PROBABLE CAUSES

• Malfunction of the CAN bus

• Malfunction of engine system

• Malfunction of TCM

AC710016

START

Yes

No

Throttle position toggle signal on CAN is not change

Yes

No

Yes

Good

Malfunction

END

No

Continuous failure for 1 sec

Secondary parameters are
in the enable condition.

DIAGNOSIS

TSB Revision

CVT

23A-95

DIAGNOSTIC PROCEDURE

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to perform the CAN bus diagnosis.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines (Refer to GROUP 54C

−

Troubleshooting, Diagnostic Trouble Code Chart

P.54C-19

).

STEP 2. Scan tool MB991958 diagnostic trouble code
Check if the engine-related diagnostic trouble code is set.
Q: Is diagnostic trouble code set?

YES : Diagnose the engine control system.
NO :  Go to Step 3.

STEP 3. Symptom recheck after erasing diagnostic trouble
code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.

DTC P1710: Malfunction of Vehicle Speed Signal

.

DIAGNOSTIC FUNCTION

TCM conducts fault detection by detecting the rapid
change in the estimated vehicle speed signal
received from the ABC-ECU.

.

JUDGMENT CRITERIA

• Difference between the estimated vehicle speed

and the one measured before 0.1 second is 29
km/h (18.0 mph) or more.

• The status with the vehicle speed of 10 km/h (6.2

mph) or more and with the estimated vehicle
speed of 2 km/h (1.2 mph) or less continues for
20 seconds.

.

PROBABLE CAUSES

• Malfunction of the CAN bus

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. Troubleshoot the CAN system if diagnosis code
U0121 is set.
Q: Is the diagnosis code U0121 set?

YES : Diagnose the CAN system.
NO :  Go to Step 2.

DIAGNOSIS

TSB Revision

CVT

23A-96

STEP 2. M.U.T.-III data list

• Item 21: Vehicle speed (inference)

• Item 22: Real vehicle speed

OK: Vehicle speed signal and vehicle speed do not dif-
fer greatly.

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 3.

STEP 3. Check ABS-related diagnosis codes.
Q: Is the ABS-related diagnosis code set?

YES : Carry out the appropriate troubleshooting.
NO :  Go to Step 4.

STEP 4. Symptom recheck after erasing diagnosis code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.
