Mitsubishi Outlander GS45X. Manual - part 1630





DIAGNOSIS

TSB Revision

CVT

23A-77

.

DIAGNOSTIC FUNCTION

TCM detects that the paddle shift UP switch is stuck
to ON.

.

JUDGEMENT CRITERIA

When the paddle shift UP switch being ON consecu-
tively for 60 seconds is detected.

.

PROBABLE CAUSES

• Malfunction of paddle shift switch

• Damaged wiring harness and connectors

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list
Item 54: Paddle switch (up)

OK: The service data changes in response to the pad-
dle shift operation.

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 2.

STEP 2. Check the following connector:

• C-38 TCM connector

• C-208 paddle shift switch connector

• C-34 intermediate connector

Check the terminals for a contact status problem and internal
short circuit.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the damaged connector.

STEP 3. Paddle shift switch single unit check
Refer to

P.23A-148

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the paddle shift switch.

STEP 4. Check for short to ground in the wiring harness
between the TCM connector and the paddle shift switch
connector
Between C-38 TCM connector (terminal No.22) and C-208
paddle shift switch connector (terminal No.1)
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness.

STEP 5. Symptom recheck after erasing diagnosis code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.

DIAGNOSIS

TSB Revision

CVT

23A-78

DTC P0816: Malfunction of Paddle Shift Down Switch

.

PADDLE SHIFT SWITCH SYSTEM
CIRCUIT

Refer to

P.23A-76

.

.

DIAGNOSTIC FUNCTION

TCM detects that the paddle shift DOWN switch is
stuck to ON.

.

JUDGEMENT CRITERIA

When the paddle shift DOWN switch being ON con-
secutively for 60 seconds is detected.

.

PROBABLE CAUSES

• Malfunction of paddle shift switch

• Damaged wiring harness and connectors

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list
Item 55: Paddle switch (down)

OK: The service data changes in response to the pad-
dle shift operation.

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 2.

STEP 2. Check the following connector:

• C-38 TCM connector

• C-208 paddle shift switch connector

Check the terminals for a contact status problem and internal
short circuit.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the damaged connector.

STEP 3. Paddle shift switch single unit check
Refer to

P.23A-148

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the paddle shift switch.

STEP 4. Check for short to ground in the wiring harness
between the TCM connector and the paddle shift switch
connector
Between C-38 TCM connector (terminal No.21) and C-208
paddle shift switch connector (terminal No.3)
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness.

STEP 5. Symptom recheck after erasing diagnosis code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.

DIAGNOSIS

TSB Revision

CVT

23A-79

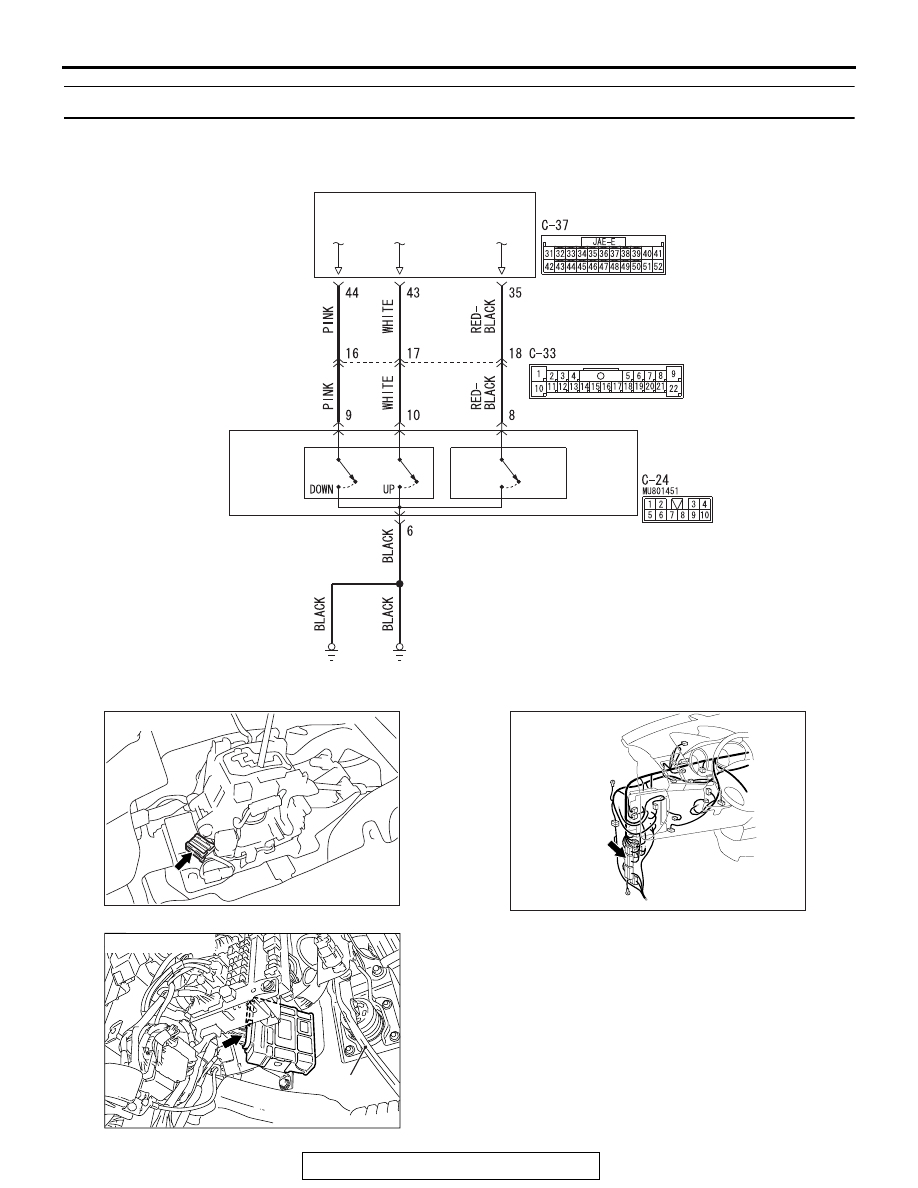

DTC P0826: Malfunction of Shift Switch Assembly

SHIFT
SWITCH

SPORT
MODE

AUTO
MODE

SELECT
SWITCH

SELECTOR
LEVER
ASSEMBLY

TRANSAXLE
CONTROL MODULE

Shift switch assembly system circuit

ACA03154

AC703257

Connector: C-24

AB

AC702815

Connector: C-33

AB

AC703253

Connector: C-37

Brake pedal

AC

DIAGNOSIS

TSB Revision

CVT

23A-80

.

DIAGNOSTIC FUNCTION

TCM detects the UP/DOWN operation of the shift
switch assembly. TCM determines that the malfunc-
tion is present if an abnormal value is input.

.

JUDGEMENT CRITERIA

Input to the shift switch assembly remains abnormal
for 1 second.

.

PROBABLE CAUSES

• Malfunction of selector lever assembly (Faulty

shift switch assembly)

• Damaged wiring harness and connectors

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list

• Item 52: Select switch (up)

• Item 53: Select switch (down)

(Refer to Data List Reference Table

P.23A-127

.)

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 2.

STEP 2. Check shift switch assembly
Refer to

P.23A-154

.

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Replace the selector lever assembly.

STEP 3. Check the following connector:

• C-37 TCM connector

• C-24 selector lever assembly connector

Check the terminals for a contact status problem and internal
short circuit.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair the defective connector.

STEP 4. Check for open circuit and short to ground in the
wiring harness between the TCM connector and the
selector lever assembly.

• Between C-37 TCM connector (terminal No.35) and C-24

selector lever assembly connector (terminal No.8)

• Between C-37 TCM connector (terminal No.43) and C-24

selector lever assembly connector (terminal No.10)

• Between C-37 TCM connector (terminal No.44) and C-24

selector lever assembly connector (terminal No.9)

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness.
