Mitsubishi Outlander GS45X. Manual - part 1528





GENERAL SPECIFICATIONS

TSB Revision

FRONT SUSPENSION

33-3

GENERAL SPECIFICATIONS

M1332000200493

COIL SPRING

NOTE: * : Heavyduty suspension for FWD

SERVICE SPECIFICATIONS

M1332000301824

LUBRICANT

M1333000400047

Strut assembly
Strut assembly self-locking nut

60

± 9 N⋅m (44 ± 6 ft-lb)

Strut assembly to body connection nut

45

± 7 N⋅m (33 ± 5 ft-lb)

Strut assembly to knuckle connection nut

110

± 11 N⋅m (81 ± 8 ft-lb)

Strut assembly to stabilizer link connection nut

39

± 6 N⋅m (29 ± 4 ft-lb)

Wheel speed sensor clamp nut

13

± 2 N⋅m (115 ± 17 in-lb)

Break hose clamp nut

13

± 2 N⋅m (115 ± 17 in-lb)

Item

Specification

Item

2.4L Engine

3.0L Engine

Wire diameter mm (in.)

14 (0.6)

14 (0.6)

Average diameter mm (in.)

159 (6.3)

159 (6.3)

Free length mm (in.)

339 (13.3), 326 (12.8)*

338(13.3)

Item

Standard value

Toe-in mm (in)

± 2 (0.04 ± 0.08)

Camber

0

°20' ± 30' (Left/right deviation within 0°30')

Caster

2

°35' ± 30' (Left/right deviation within 0°30')

Kingpin inclination

12

°45' ± 1°30'

Lower arm ball joint breakaway torque N

⋅m (in-lb)

2.2

− 4.1 (19 − 36)

Stabilizer link ball joint turning torque N

⋅m (in-lb)

0.5

− 2.9 (4.4 − 25.7)

Item

Specified lubricant

Quantity

Lower arm ball joint

Lip portion of dust cover

Multipurpose grease SAE J310,
NLGI No.2 or equivalent

As required

Inside of dust cover

9.0

± 1.0g (0.32 ±

0.04oz)

FRONT SUSPENSION DIAGNOSIS

TSB Revision

FRONT SUSPENSION

33-4

FRONT SUSPENSION DIAGNOSIS

INTRODUCTION TO FRONT SUSPENSION DIAGNOSIS

M1332009000344

If the front suspension is faulty, the vehicle will not
run straightforward or noise will occur. Incorrect
wheel alignment, malfunction of strut assembly, sta-
bilizer bar, coil spring, or worn or out-of-balance tires
can cause these problems.

FRONT SUSPENSION DIAGNOSIS TROUBLESHOOTING STRATEGY

M1332009100330

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
front suspension fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find and repair the malfunction by following the

Symptom Chart and Symptom Procedures.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1332009400375

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Steering Wheel Is Heavy, Vibrates or Pulls to One Side

DIAGNOSIS

STEP 1. Check the tires.
Refer to GROUP 31, Diagnosis

P.31-3

.

Q: Are the tires in normal condition?

YES :

Replace the tires as necessary, then go to

Step 2.

NO :

If out of balance, balance the tires as
necessary. If excessively worn, replace the
tires as necessary and go to Step 5.

STEP 2. Check the wheel alignment.
Refer to

P.33-8

.

Q: Is the wheel alignment correct?

YES :

Go to Step 3.

NO :

Adjust it (Refer to

P.33-8

), then go to Step 5.

STEP 3. Check the lower arm ball joint.

Q: Is the ball joint in good condition?

YES :

Go to Step 4.

NO :

Replace the lower arm assembly (Refer to

P.33-16

), then go to Step 5 .

STEP 4. Check the coil spring.

Q: Is the coil spring in good condition?

YES :

Go to Step 5.

NO :

Replace it (Refer to

P.33-12

), then go to

Step 5 .

STEP 5. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

Symptom

Inspection procedure

Reference page

Steering wheel is heavy, vibrates or pulls to one side

1



P.33-4

Excessive body rolling

2



P.33-5

Poor ride

3



P.33-5

Unequal ride height

4



P.33-5

Noise

5



P.33-6

FRONT SUSPENSION DIAGNOSIS

TSB Revision

FRONT SUSPENSION

33-5

INSPECTION PROCEDURE 2: Excessive Body Rolling

DIAGNOSIS

STEP 1. Check for broken or deteriorated
stabilizer bar.

Q: Is the stabilizer bar in good condition?

YES :

Go to Step 2.

NO :

Replace it (Refer to

P.33-20

), then go to

Step 3.

STEP 2. Check the strut assembly for damage.

Q: Is the strut assembly in good condition?

YES :

Go to Step 3.

NO :

Replace it (Refer to

P.33-10

), then go to

Step 3.

STEP 3. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Poor Ride

DIAGNOSIS

STEP 1. Check for improper tire inflation
pressure.
Refer to GROUP 31, On-vehicle Service

− Tire Infla-

tion Pressure Check

P.31-8

.

Q: Is the tire inflation correct?

YES :

Go to Step 2.

NO :

Adjust it, then go to Step 4.

STEP 2. Check for broken or deteriorated coil
spring(s).

Q: Are the coil spring(s) broken or deteriorated?

YES :

Replace the coil spring(s) (Refer to

P.33-12

), then go to Step 4.

NO :

Go to Step 3.

STEP 3. Check for strut assembly damage.

Q: Is the strut assembly damaged?

YES :

Replace it (Refer to

P.33-10

), then go to

Step 4.

NO :

Go to Step 4.

STEP 4. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 4: Unequal Ride Height

DIAGNOSIS

STEP 1. Check for broken or deteriorated coil
spring(s).

Q: Is the coil spring(s) broken or deteriorated?

YES :

Replace it (Refer to

P.33-12

), then go to

Step 2.

NO :

Go to Step 2.

STEP 2. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

SPECIAL TOOLS

TSB Revision

FRONT SUSPENSION

33-6

INSPECTION PROCEDURE 5: Noise

DIAGNOSIS

STEP 1. Check for lack of lubrication.

Q: Is lubrication inadequate?

YES :

Lubricate it, then go to Step 5.

NO :

Go to Step 2.

STEP 2. Check the tightened parts for looseness
as well as the bushings for wear.

Q: Are the tightened parts and bushings in good

condition?
YES :

Go to Step 3.

NO :

Replace it (Refer to

P.33-18

), then go to

Step 5.

STEP 3. Check for broken coil spring.

Q: Is the coil spring broken?

YES :

Replace it (Refer to

P.33-12

), then go to

Step 5.

NO :

Go to Step 4.

STEP 4. Check for strut assembly damage.

Q: Is the strut assembly damaged?

YES :

Replace it (Refer to

P.33-10

), then go to

Step 5.

NO :

Go to Step 5.

STEP 5. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

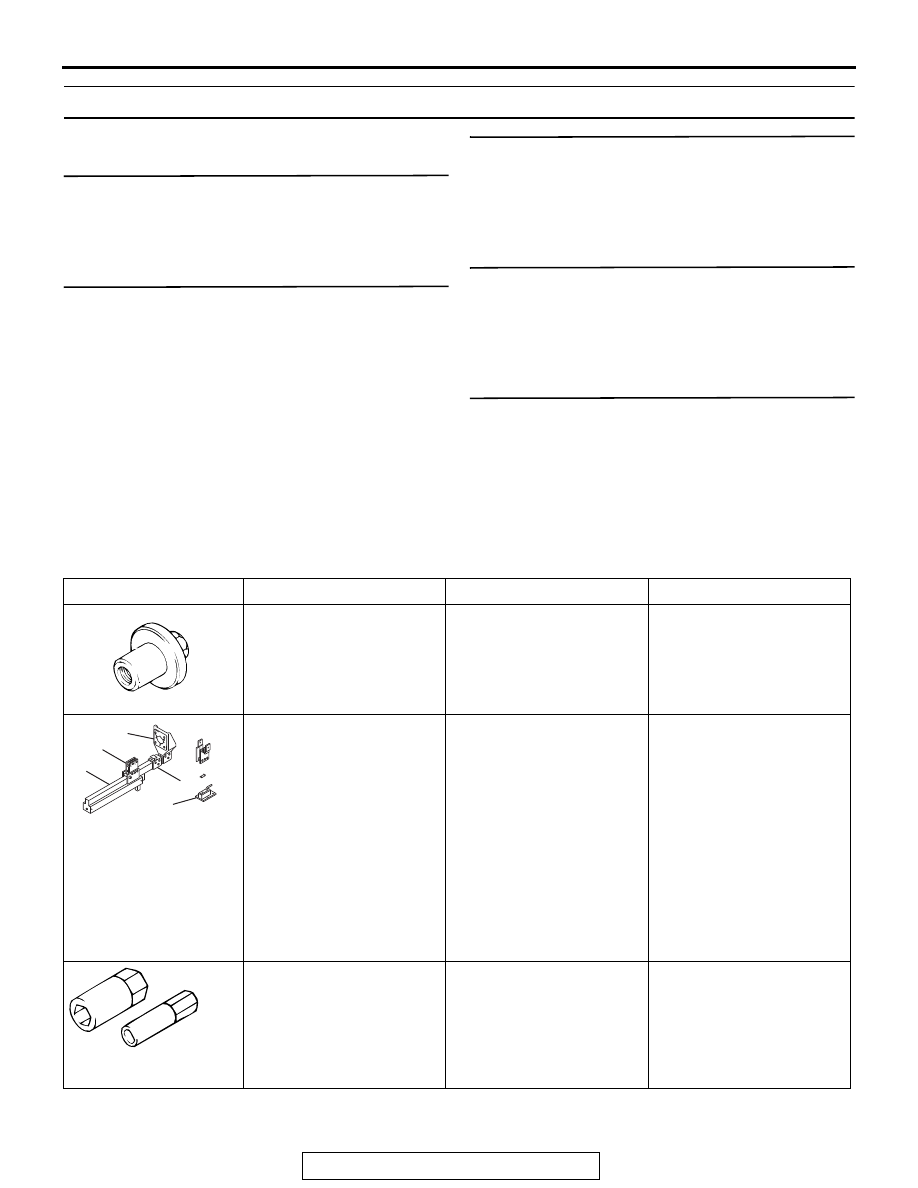

SPECIAL TOOLS

M1332000600952

Tool

Tool number and name

Supersession

Application

MB991004
Wheel alignment gauge
attachment

MB991004-01 or General
service tool

Wheel alignment
measurement

MB991832
Spring compressor set
A: MB991793
Spring compressor
B: MB991795
Attachment A
C: MB991794
Upper plate
D: MB991829
Arm bracket
E: MB991830
Fixture

General service tool

Front coil spring
compression
NOTE: The coil spring can
not be compressed by
following conventional
special tools.

.

MB991237
Spring compressor
body

MB991238
Arm set

MB991680
Wrench set

a. MB991681

Wrench

b. MB991682

Socket

Strut assembly
disassembly and
reassembly

MB991004

MB991832

A

B

C

D

E

MB991680

A

B

a

b
