Mitsubishi Outlander GS45X. Manual - part 150





HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-597

STEP 5. Check the wiring harness between hands free
module connector C-141 (terminal 1) and fusible link (36).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check ETACS-ECU connector C-307, C-317 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connector C-307, C-317
is damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between hands free module

connector C-141 (terminal 1) and fusible link (36) in
good condition?
YES :
The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

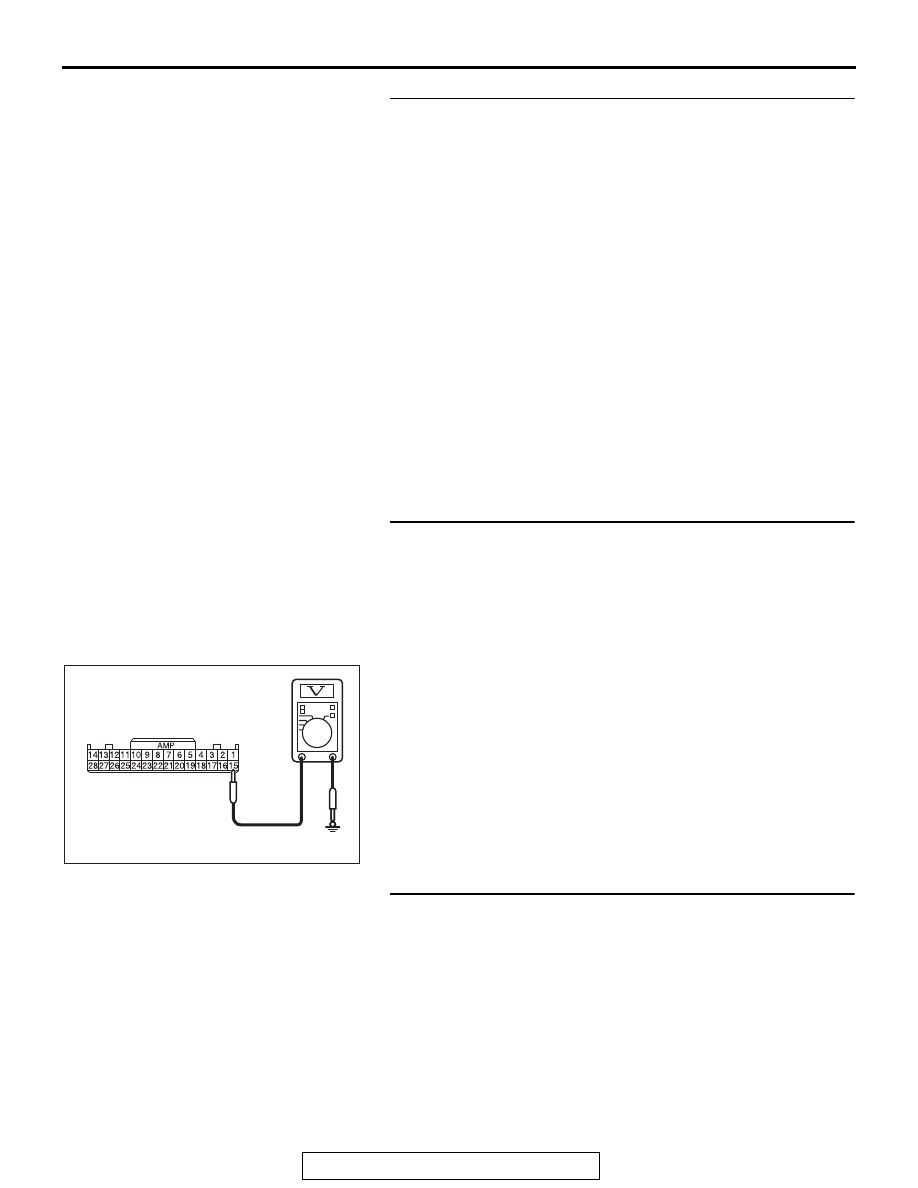

STEP 6. Check the power supply circuit to the hands free
module. Measure the voltage at hands free module
connector C-141.
(1) Disconnect hands free module connector C-141, and

measure the voltage available at the wiring harness side of
the connector.

(2) Turn the ignition switch to "ACC" position.
(3) Measure the voltage between terminal 15 and ground.

OK: 1 voltage or less.

Q: Is the measured voltage 1 voltage or less?

YES : Replace the hands free module.
NO :  Go to Step 7.

STEP 7. Check radio and CD player connector C-14
<Vehicles with radio and CD player> or multivision display
connector C-06 <Vehicles with MMCS> for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Is radio and CD player connector C-14 <Vehicles with

radio and CD player> or multivision display connector
C-06 <Vehicles with MMCS> in good condition?
YES :
Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC702831DN

Harness side: C-141

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-598

STEP 8. Check the wiring harness between hands free
module connector C-141 terminal (terminal 15) and radio
and CD player connector C-14 terminal(terminal 17)
<vehicles with radio and CD player> or multivision display
connector C-06 terminal (terminal 82) <vehicles with
MMCS>.

• Check the signal line for open circuit and short circuit.

NOTE: Also check intermediate connector C-15 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-15 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

. <Vehicles with MMCS>

Q: Is the check result normal?

YES : Replace the radio and CD player or multivision

display

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

INSPECTION PROCEDURE 2: The USB adapter data cannot be replayed. <Vehicles with radio and CD
player>

CAUTION

Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and
the communication circuit are normal.

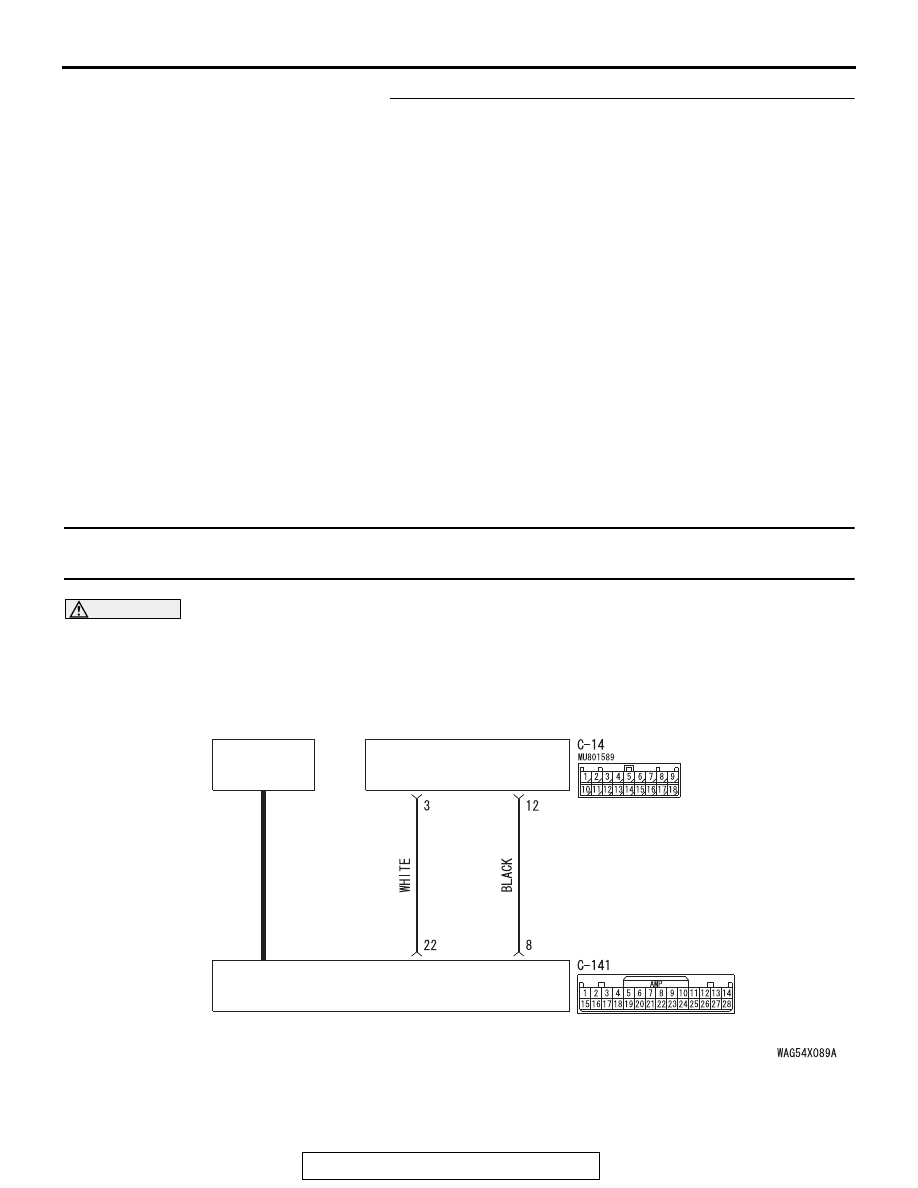

Hands Free Module Communication Circuit

HANDS FREE MODULE

USB
ADAPTER

RADIO AND CD PLAYER

USB CABLE

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-599

.

TECHNICAL DESCRIPTION (COMMENT)

If the sound replay is impossible with the USB mode,
the USB adapter, USB cable, hands free module, or
radio and CD player may be defective, or a commu-
nication error between the radio and CD player and
hands free module may have occurred.

NOTE: Before troubleshooting, check that the music
file (the customer tried to replay) can be replayed.

.

TROUBLESHOOTING HINTS

• The radio and CD player may be defective.

• The hands free module may be defective.

• The USB adapter may be defective.

• The USB cable may be defective.

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

STEP 1. Check the radio and CD player operation.
Check if the radio and CD player work normally and the sound
is output.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Troubleshoot the radio and CD player (Refer to

P.54A-363

).

STEP 2. Check the diagnosis mode
Check if the hands free module can be switched to the diagno-
sis mode.(Refer to

P.54A-584

.)

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Perform Inspection Procedure 5 "DIAGNOSIS MODE

cannot be made an entry."(Refer to

P.54A-614

.)

STEP 3. Check the USB adapter.
Check that the continuity exists between the front side termi-
nals of USB adapter and rear side terminals of USB adapter.
(Refer to

P.54A-635

)

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the USB adapter.

ACA02654

AC

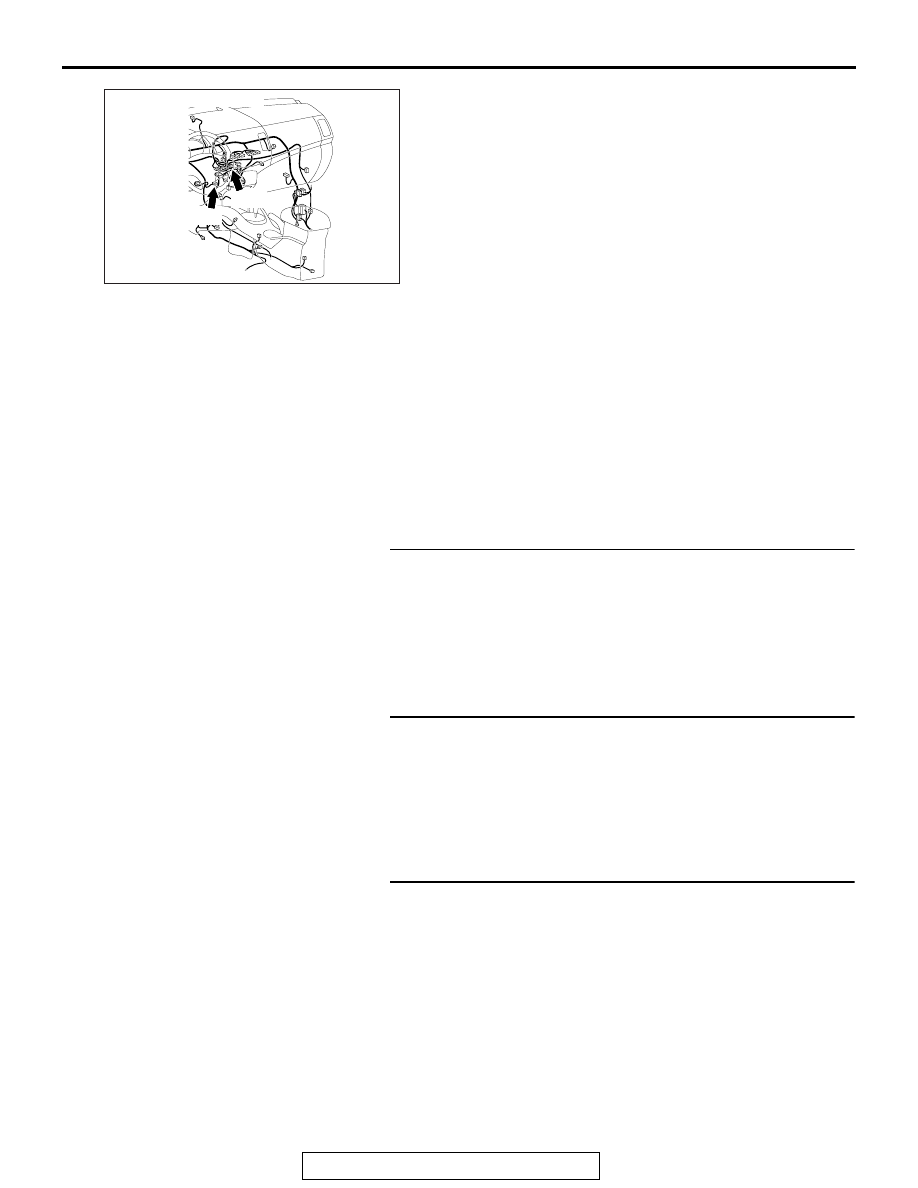

Connectors: C-14, C-141

C-14

C-141

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-600

STEP 4. Check the USB cable.
Check that the USB cable is connected to the USB adapter or
hands free module normally. Or check the USB cable for dam-
age such as bend.
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Replace or repair the USB cable.

STEP 5. Check hands free module connector C-141 and
radio and CD player C-14 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are hands free module connector C-141 and radio and

CD player C-16 in good condition?
YES :
Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 6. Check the wiring harness between hands free
module connector C-141 (terminal 22, 8) and radio and CD
player connector C-14 (terminal 3, 12).

• Check the signal lines for open circuit and short circuit.

Q: Is the wiring harness between hands free module

connector C-141 (terminal 22, 8) and radio and CD
player C-14 (terminal 3, 12) in good condition?
YES :
Go to Step 7.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 7. Replace the hands free module temporarily, and
check the trouble symptom.
Replace the hands free module temporarily, and check that the
sound is output from the speaker.
Q: Is the check result normal?

YES : Replace the hands free module.
NO :  Replace the radio and CD player.
