POST-COLLISION DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-427

AIR BAG MODULES

1. Check the pad cover for dents, cracks or deformation.
2. Check the connector for damage, terminal deformities, and

the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformities.

4. Install the air bag module (driver's side) to the steering

wheel to check installation or alignment with the steering
wheel.

5. Install the air bag module (front passenger's side) to the

instrument panel and front deck crossmember to check
installation or alignment.

.

FRONT SEATBACK ASSEMBLY (SIDE-AIR BAG
MODULE)

1. Check the air bag module deployment section for dents or

deformation.

2. Check that there is no connector damage, bent terminals or

harness crimping.

.

CLOCK SPRING

1. Check the clock spring connectors and protective tube for

damage, and the terminals for deformation.

2. Visually check the case for damage.

.

ZC601274

AC506240

AC701920

Squib connectors

Inflator case

Squib connectors

Inflator case

AB

<Driver's side>

<Passenger's side>

AC507151AB

Side-airbag module
deployment section

AC306766AH

Protective tubes

Case

POST-COLLISION DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-428

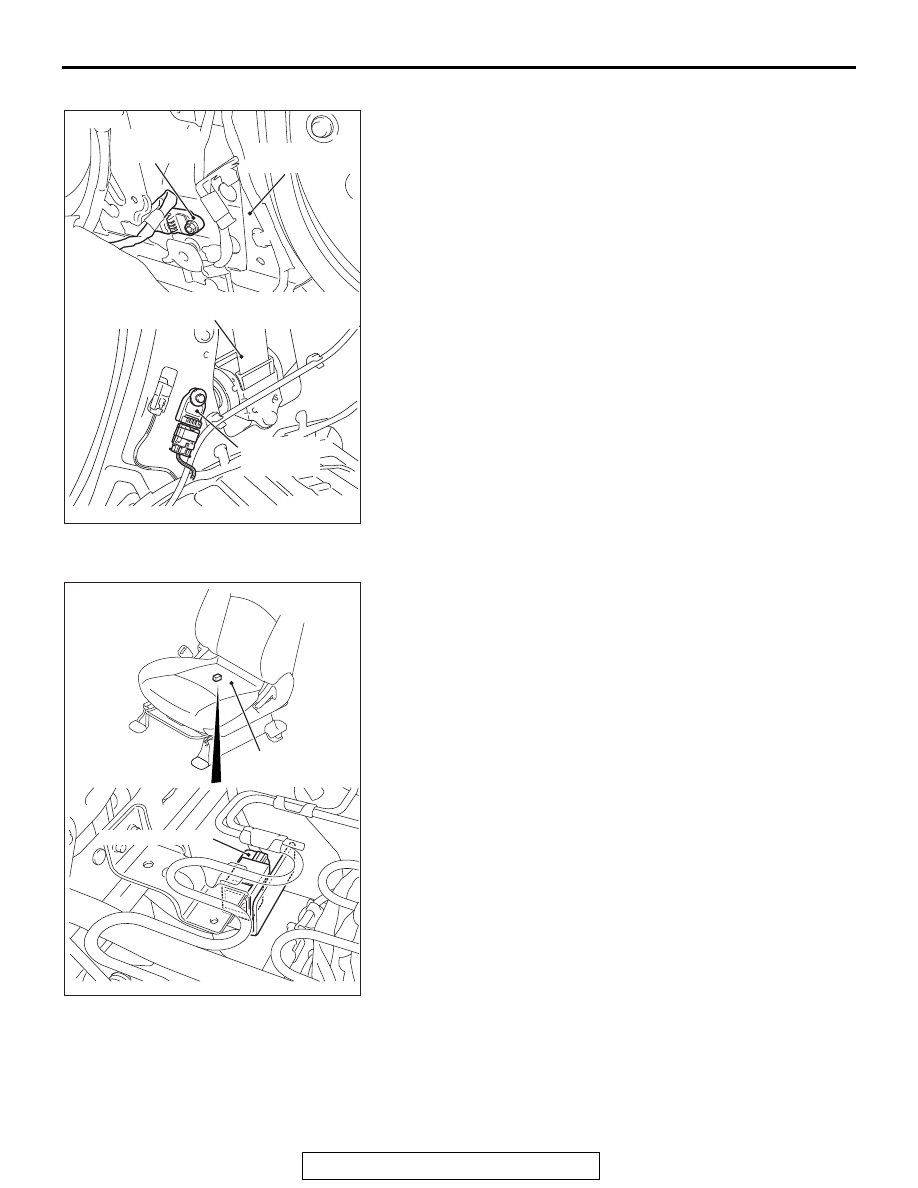

SIDE IMPACT SENSOR

1. Check that there is no bending or corrosion in the center

pillar and quarter panel.

2. Check that there is no denting, breakage or bending of the

side impact sensor.

3. Check that there is no harness crimping, connector damage

or bent terminals.
NOTE:  The illustration shows the side impact sensor (RH).
The position of the side impact sensor (LH) is symmetrical to
this.

.

SEAT SLIDE SENSOR

1. Check that there is no connector damage, bent terminals or

harness crimping.

2. Check the installation of the seat slide sensor.

.

AC506366

AC506827

AC506883

AB

Center pillar

Second seat belt

<Rear>

Side impact
sensor (front)

Side impact
sensor (rear)

<Front>

AC701921

Front seat (LH)

Seat slide sensor

AB

POST-COLLISION DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-429

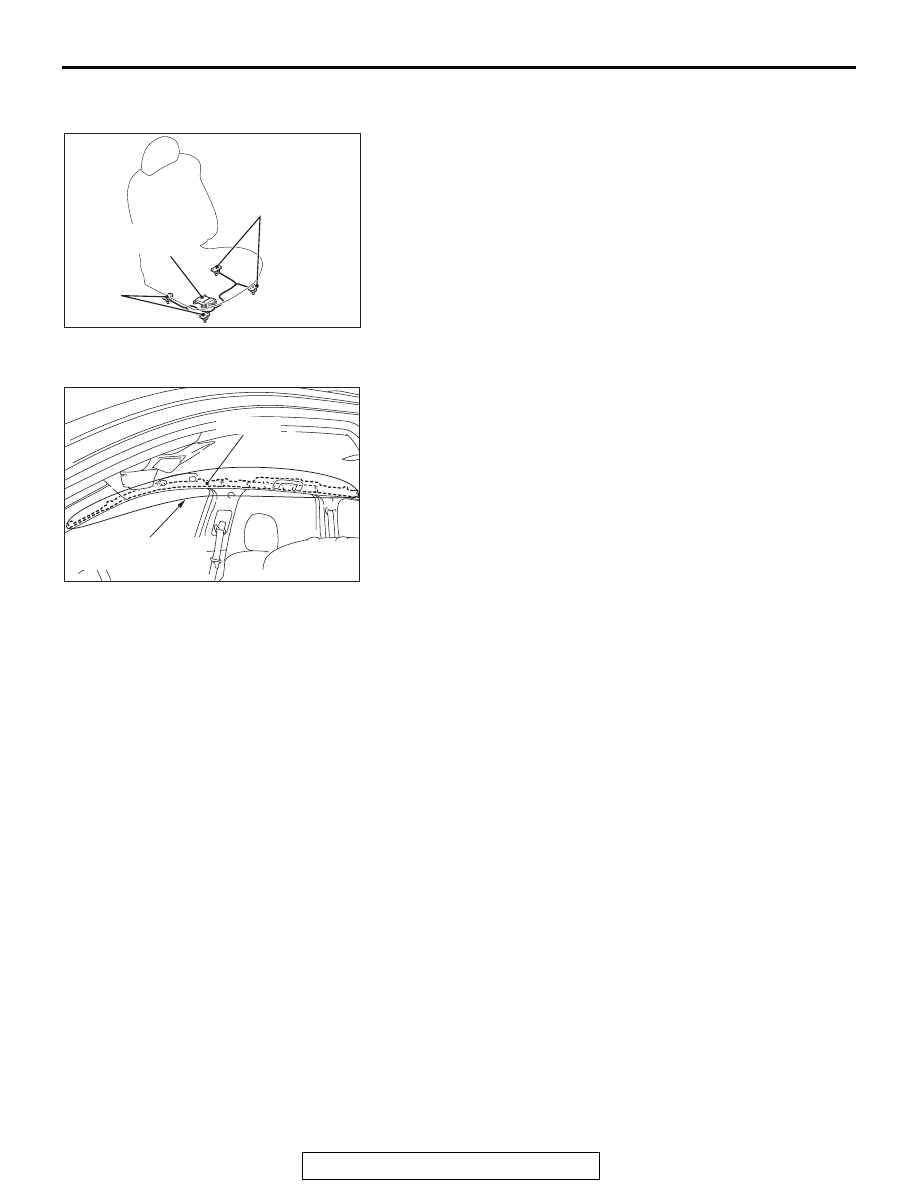

OCCUPANT CLASSIFICATION-ECU AND WEIGHT
SENSOR

1. Check the occupant classification-ECU case and weight

sensor for dents, cracks or deformation.

2. Check the connector for damage, and the terminals for

deformation.

3. Check the installation of the occupant classification-ECU

and weight sensor.

4. Check the diagnostic trouble code of occupant

classification-ECU and replace the seat cushion frame
assembly <passenger’s side> if DTC B1BA7 is set.

.

CURTAIN AIR BAG MODULE

1. Check that the curtain air bag deployment part of the

headlining is normal.

2. Check the inflator surface for cracks, dents or deformations.
3. Check the connector for damage, the terminal for

deformation, and the harness for binding.

.

STEERING WHEEL, STEERING COLUMN AND
SHAFT ASSEMBLY

1. Check the wiring harness (built into the steering wheel) and

the connectors for damage, and the terminals for
deformation.

2. Install the air bag module to check fit or alignment with the

steering wheel.

3. Check the steering wheel for noise, binding or difficult

operation and excessive free play.

4. Check the steering column shaft shock absorbing

mechanism (Refer to GROUP 37, On-Vehicle Service

−

Steering Column Shaft Assembly Shock Absorbing
Mechanism Check

P.37-29

).

.

SEAT BELT WITH PRE-TENSIONER

1. Check the seat belt for damage or deformation.
2. Check the seat belt with pre-tensioner for cracks or

deformation.

3. Check that the unit is installed correctly to the vehicle body.

.

HARNESS CONNECTOR (FRONT WIRING
HARNESS, INSTRUMENT PANEL WIRING
HARNESS, AND FLOOR WIRING HARNESS)

Check the harnesses for binding, the connectors for damage,
poor connection, and the terminals for deformation (Refer to

P.52B-25

).

AC701992



Weight sensor

Occupant

classification-ECU

AB

Weight
sensor

AC506894AB

Curtain air bag module
deployment section

Inflator

INDIVIDUAL COMPONENT SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-430

INDIVIDUAL COMPONENT SERVICE

M1524002900765

WARNING

•

If heat damage occurs during paint work, remove
the SRS-ECU, the air bag modules, the clock
spring, front seats, impact sensor and the seat belt
with pre-tensioner. Recheck the SRS system oper-
ability after reinstalling them.

•

SRS-ECU, air bag module, clock spring, front
seats, impact sensor: 93

°

 C (200

°

 F) or more

•

Seat belt with pre-tensioner: 90

°

C (194

°

 F) or

more

•

If the SRS components are removed for the pur-
pose of inspection, sheet metal repair, painting,
etc., they should be stored in a clean, dry place
until they are reinstalled.

If the SRS components are to be removed or replaced as a
result of maintenance, diagnosis, etc., follow the appropriate
procedure in this section. (Front impact sensor: refer to

P.52B-433

, SRS-ECU: refer to

P.52B-436

, Air bag modules

and clock spring: refer to

P.52B-439

, Side-air bag module: refer

to GROUP 52A, Front Seat Assembly

P.52A-17

, Side impact

sensor: refer to

P.52B-450

, Curtain air bag module: refer to

P.52B-453

, Seat belt with pre-tensioner: refer to

P.52B-457

).
