SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-359

DTC B1B8C: Driver Seat Slide Sensor Circuit Performance

CAUTION

If DTC B1B8C is set in the occupant classifica-
tion-ECU, always diagnose the CAN main bus
lines.

.

CIRCUIT OPERATION

• The seat slide sensor sets the current value Hi or

Low determined by the seat position.

• The occupant classification-ECU determines the

seat position according to the current value from
the seat slide sensor.

.

DTC SET CONDITION

The DTC is set when the seat slide sensor output
current is not within the specified range.

.

TROUBLESHOOTING HINTS

• The seat slide sensor may be defective.

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• Malfunction of the occupant classification-ECU

D7G52M031A00

AC701825

HALL IC

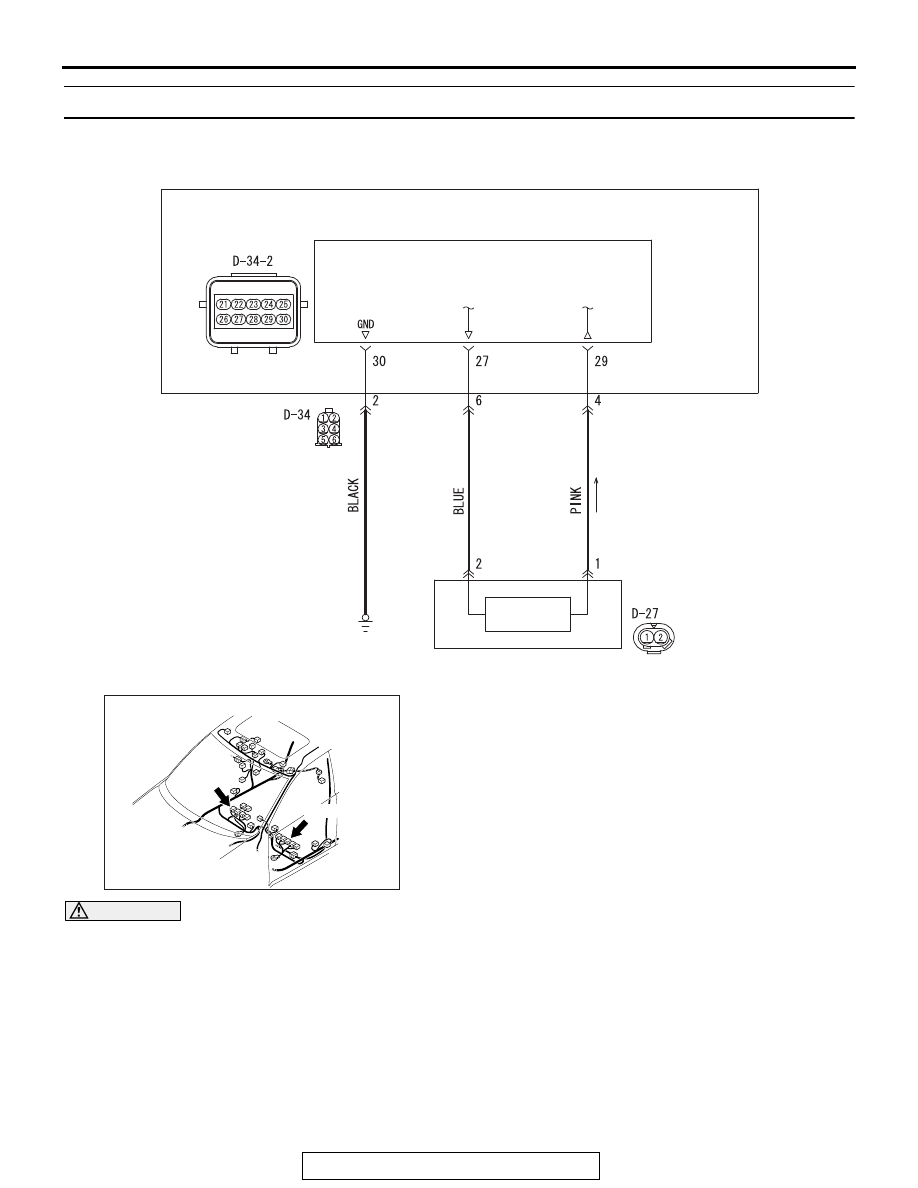

Seat Slide Sensor Circuit

OCCUPANT
CLASSIFICATION-
ECU

FRONT SEAT
ASSEMBLY (RH)

SEAT SLIDE
SENSOR

AB

AC901079

Connectors: D-27, D-34, D-34-2

AN

D-34,
D-34-2

D-27 (GR)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-360

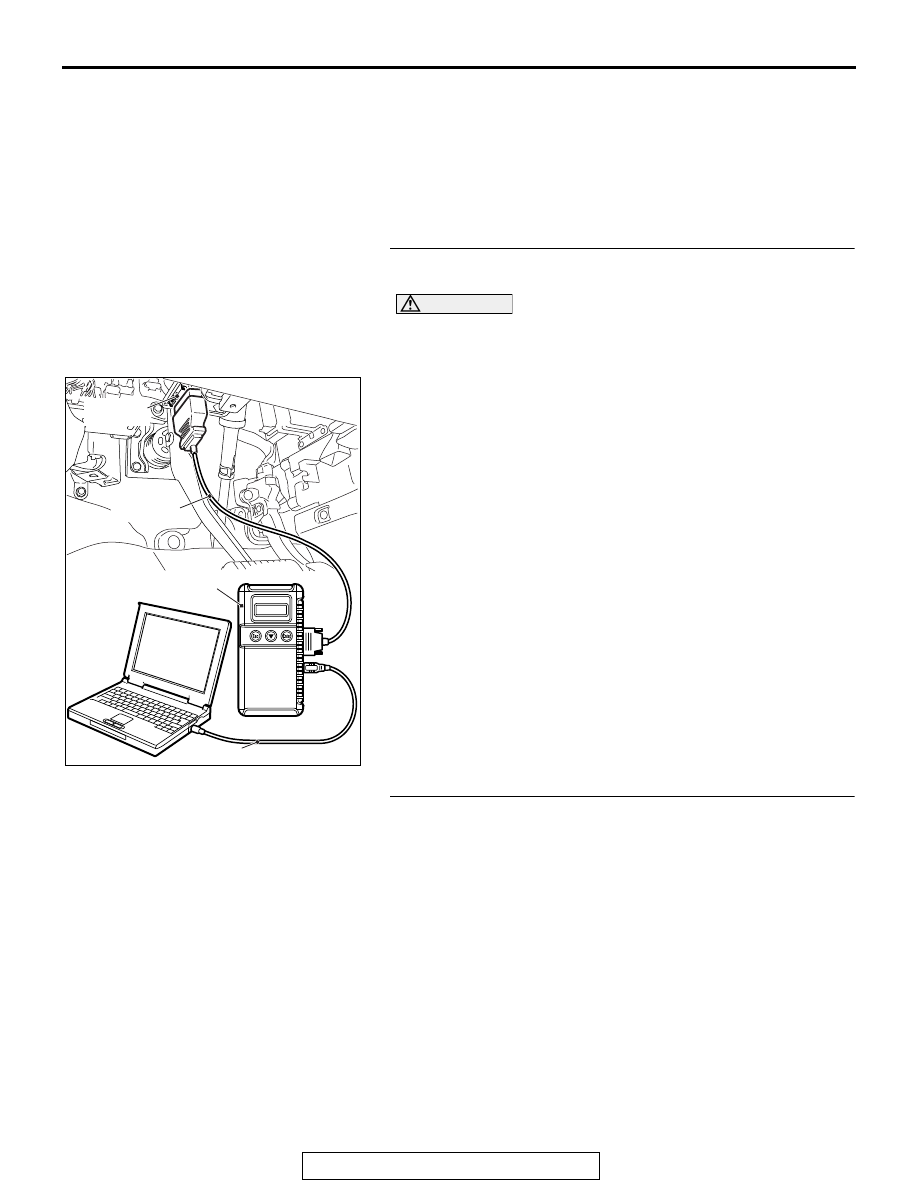

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-361

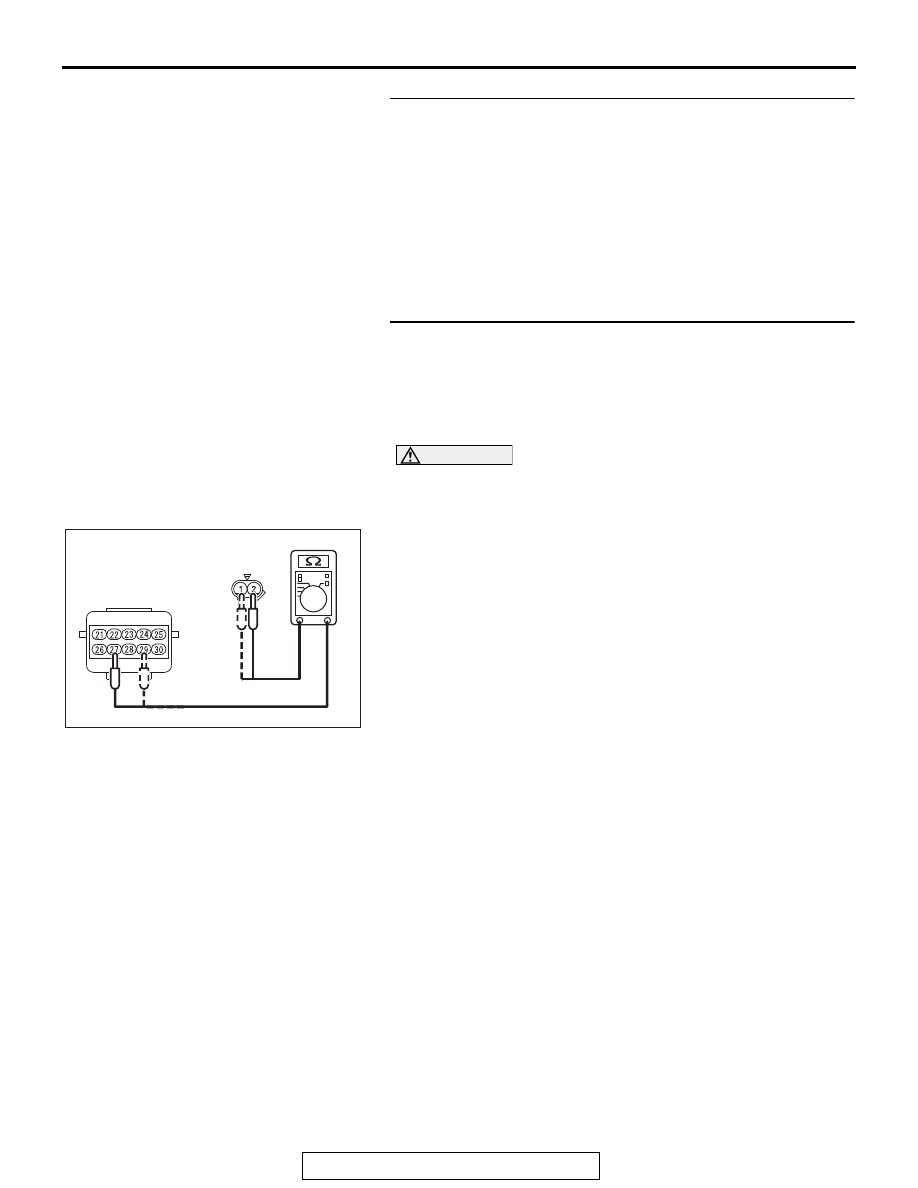

STEP 3. Check the occupant classification-ECU connector
D-34-2, front seat assembly connector D-34 and seat slide
sensor connector D-27 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Is the occupant classification-ECU connector D-34-2,

front seat assembly connector D-34 and seat slide
sensor connector D-27 in good condition?
YES : Go to Step 4.
NO :  Replace the component(s) (Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

).

STEP 4. Check the harness for open circuit between
occupant classification-ECU connector D-34-2 (terminal
No.27 and 29) and the seat slide sensor connector D-27
(terminal No.2 and 1).
(1) Disconnect occupant classification-ECU connector D-34-2

and seat slide sensor connector D-27.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(2) Check for continuity between the following terminals. It

should be less than 2 ohms.

• Occupant classification-ECU connector D-34-2 (terminal

No.27) and the seat slide sensor connector D-27 (termi-
nal No.2)

• Occupant classification-ECU connector D-34-2 (terminal

No.29) and the seat slide sensor connector D-27 (termi-
nal No.1)

Q: Does continuity exist?

YES : Go to Step 5.
NO :  Repair the harness wires between occupant

classification-ECU connector D-34-2 and seat slide
sensor connector D-27.

AC608812

D-27 Harness side
connector (rear view)

IY

D-34-2 Harness side
connector (

rear

 view)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-362

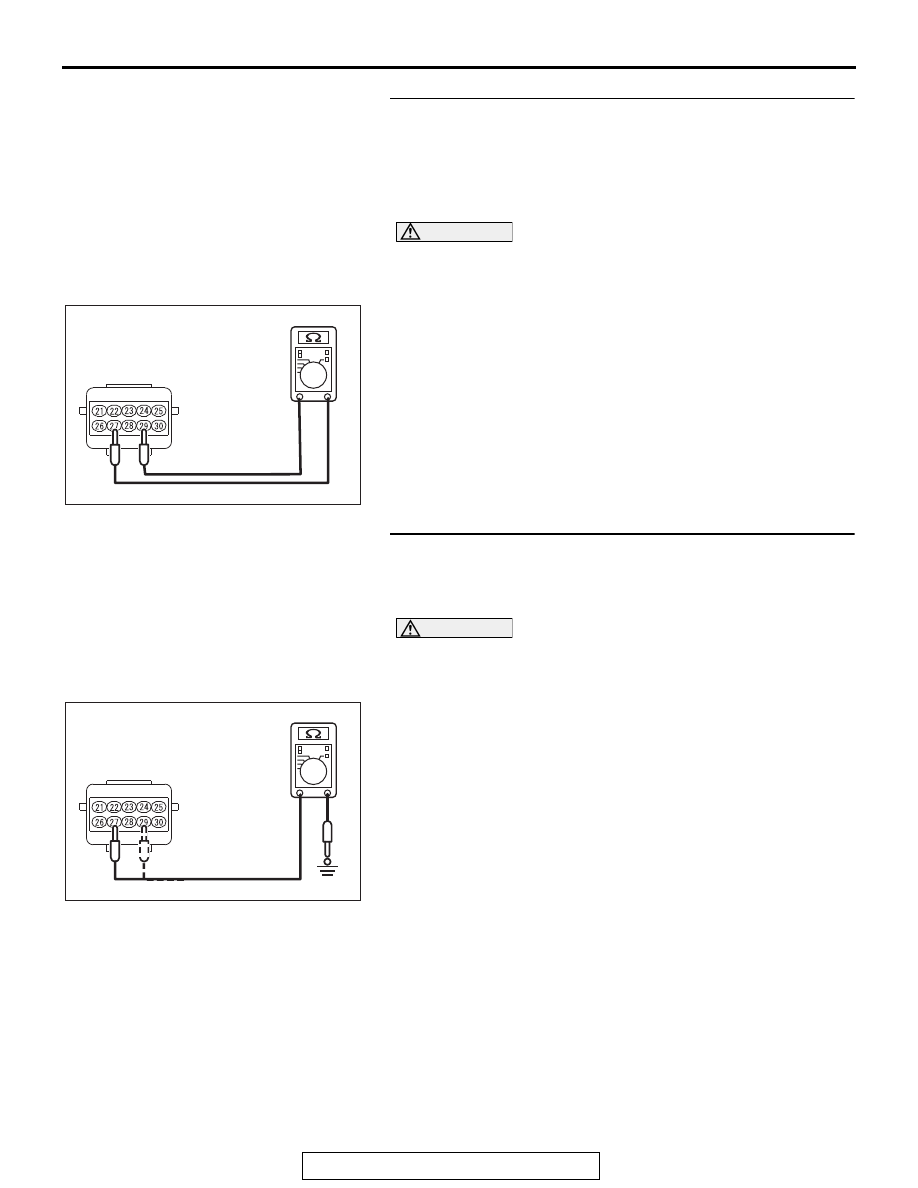

STEP 5. Check the seat slide sensor circuit. Measure the
resistance at occupant classification-ECU connector
D-34-2.
(1) Disconnect occupant classification connector-ECU

connector D-34-2.

(2) Disconnect seat slide sensor connector D-27.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(3) Check for continuity between D-34-2 harness side

connector terminals 27 and 29.
It should be open circuit.

Q: Is it open circuit?

YES : Go to Step 6.
NO :  Repair the harness wires between occupant

classification-ECU connector D-34-2 and seat slide
sensor connector D-27.

STEP 6. Check the harness for open circuit between
occupant classification-ECU connector D-34-2.
(1) Disconnect occupant classification-ECU connector D-34-2

and seat slide sensor connector D-27.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(2) Check for continuity between D-34-2 Occupant

classification-ECU connector terminals No.27, 29 and body
ground.
It should be open circuit.

Q: Is it open circuit?

YES : Go to Step 7
NO :  Repair the harness wires between occupant

classification-ECU connector D-34-2 and seat slide
sensor connector D-27.

AC608812IX

D-34-2 Harness side
connector (

rear

 view)

AC608812IZ

D-34-2 Harness side
connector (

rear

 view)
