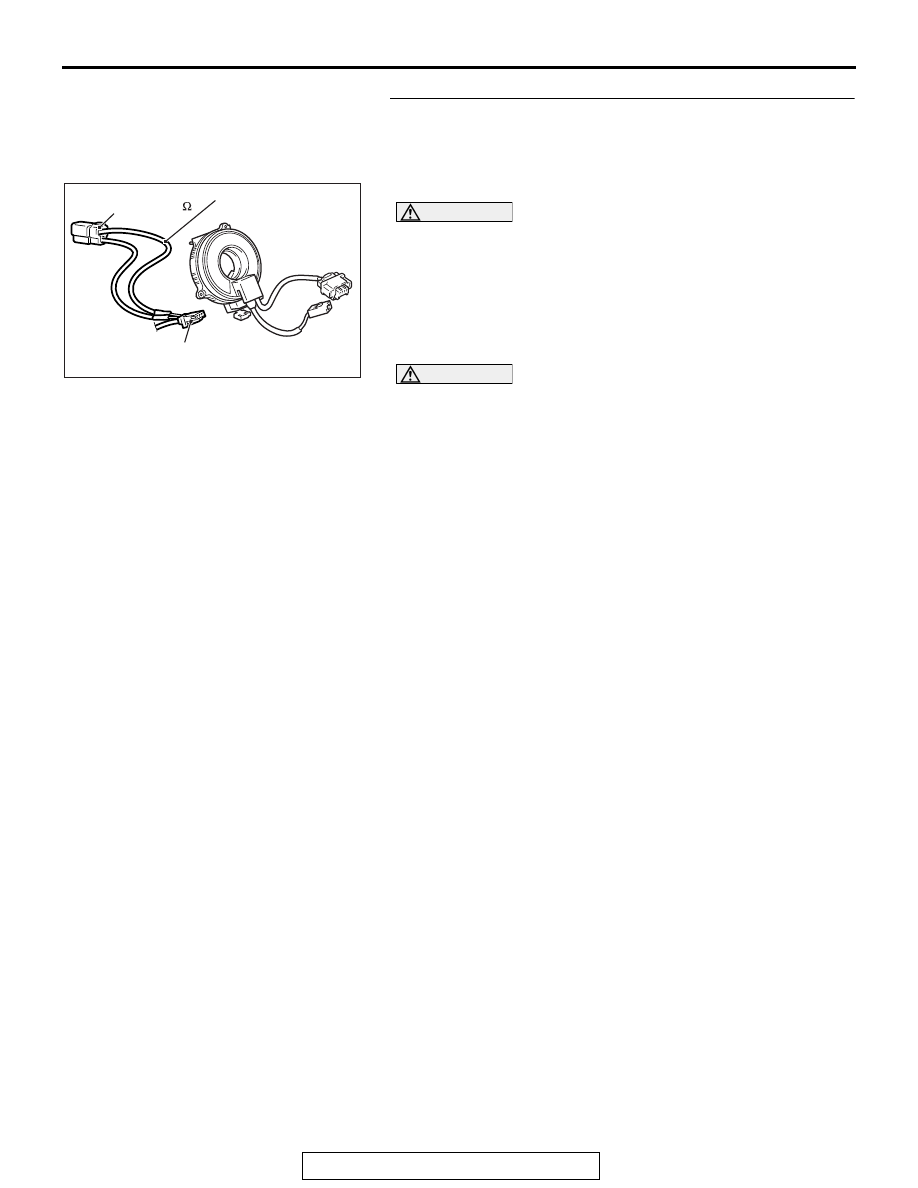

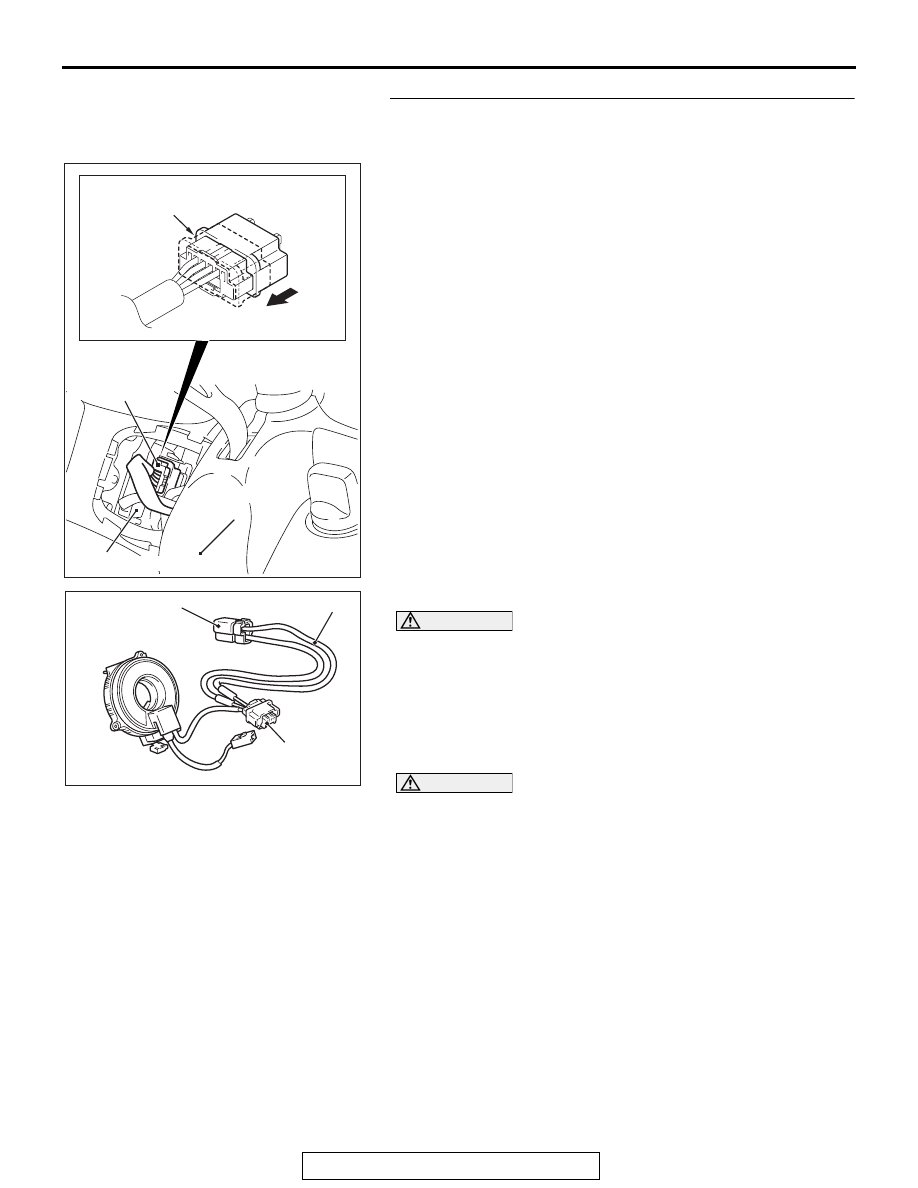

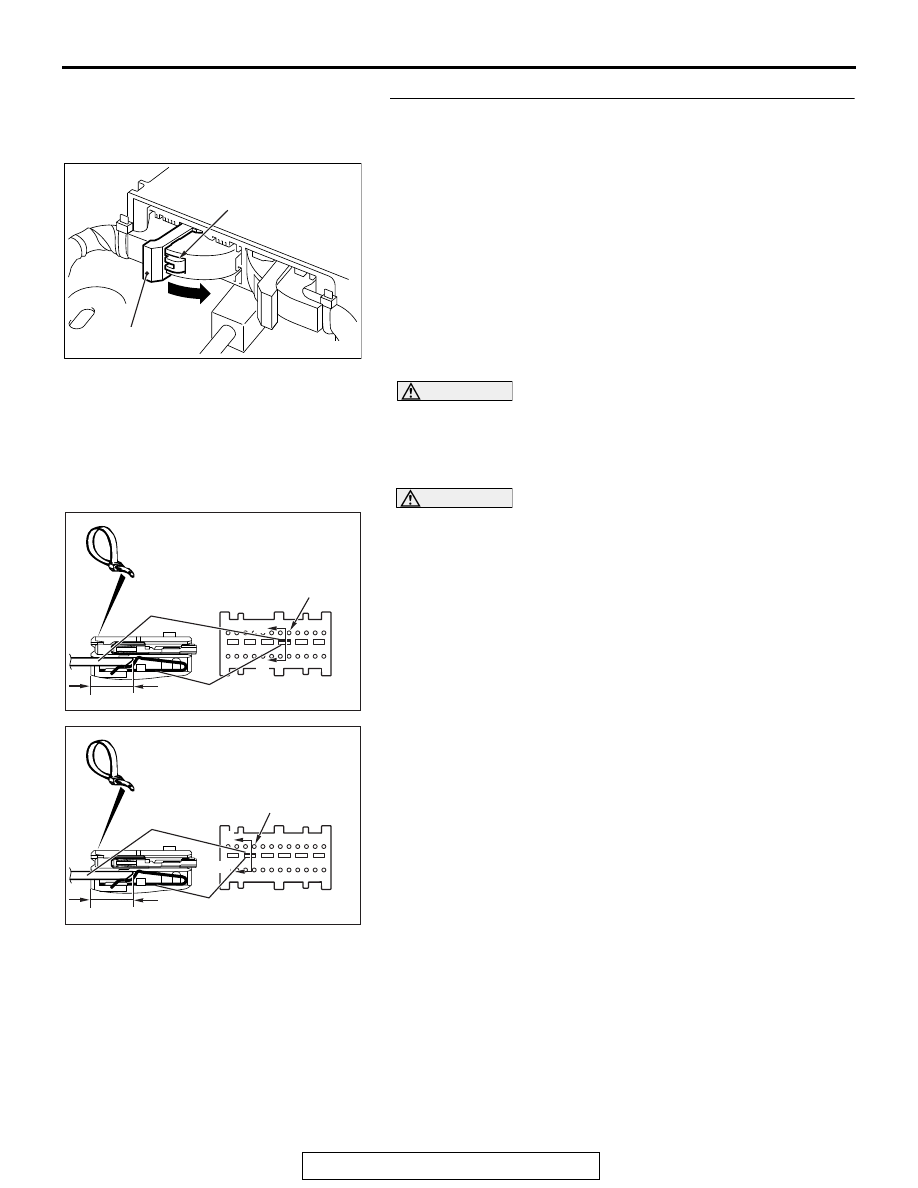

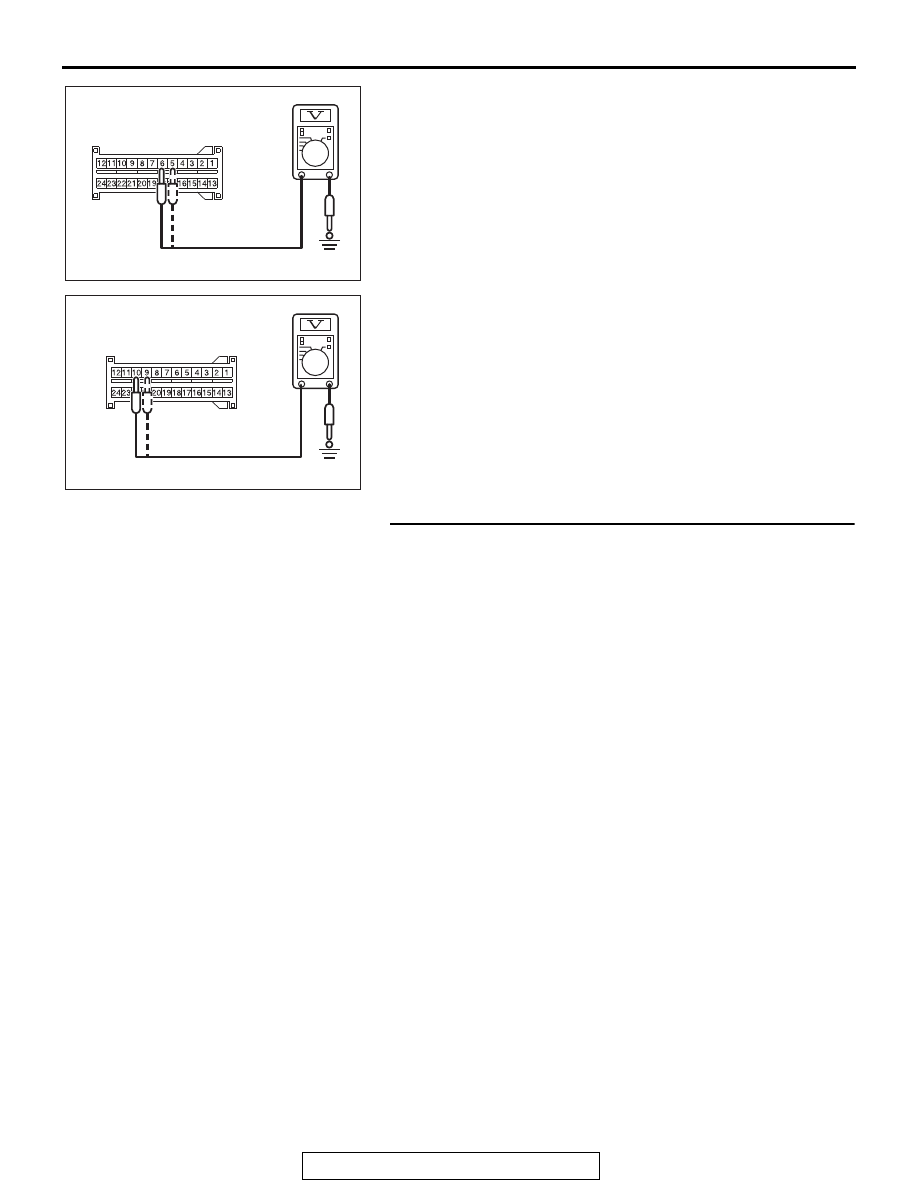

SRS AIR BAG DIAGNOSIS TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-55 STEP 3. Check the driver's air bag module. (Using scan s air bag module connector C-205 in the arrow direction (3) Connect special tool MB991865 to special tool MB991866. CAUTION Do not insert a probe into the terminal from its front side module connector C-205 (terminal No.1 and 2 <1st squib> (5) Connect the negative battery terminal. CAUTION Always DTC B1B06 is set when checking DTC B1B01. This diagnostic trouble code. Q: Is the checked DTC set? YES : Go to Step 4. ). Then go to Step 7. AC607302 AC600868 Outer housing of the driver's air bag Horn connector Lower column Driver's air bag AB AC701512 C-205 Air bag MB991866 (Resistor MB991865 (Dummy Ω AB |
