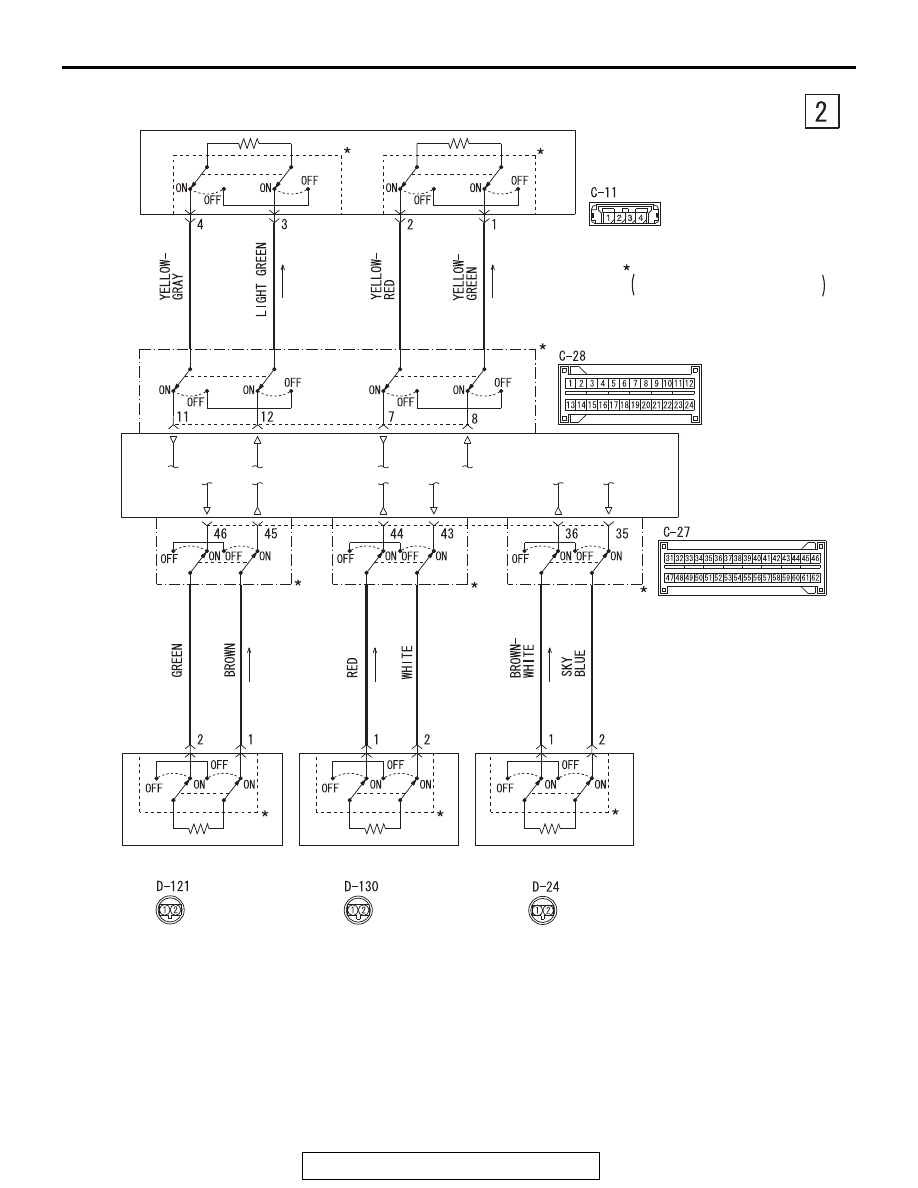

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

ACCELERO
METER

ACCELERO
METER

FRONT IMPACT
SENSOR (LH)

SRS-ECU

CLOCK
SPRING

DRIVER'S AIR BAG
MODULE (SQUIB)

FRONT IMPACT
SENSOR (RH)

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

AC704175 AB

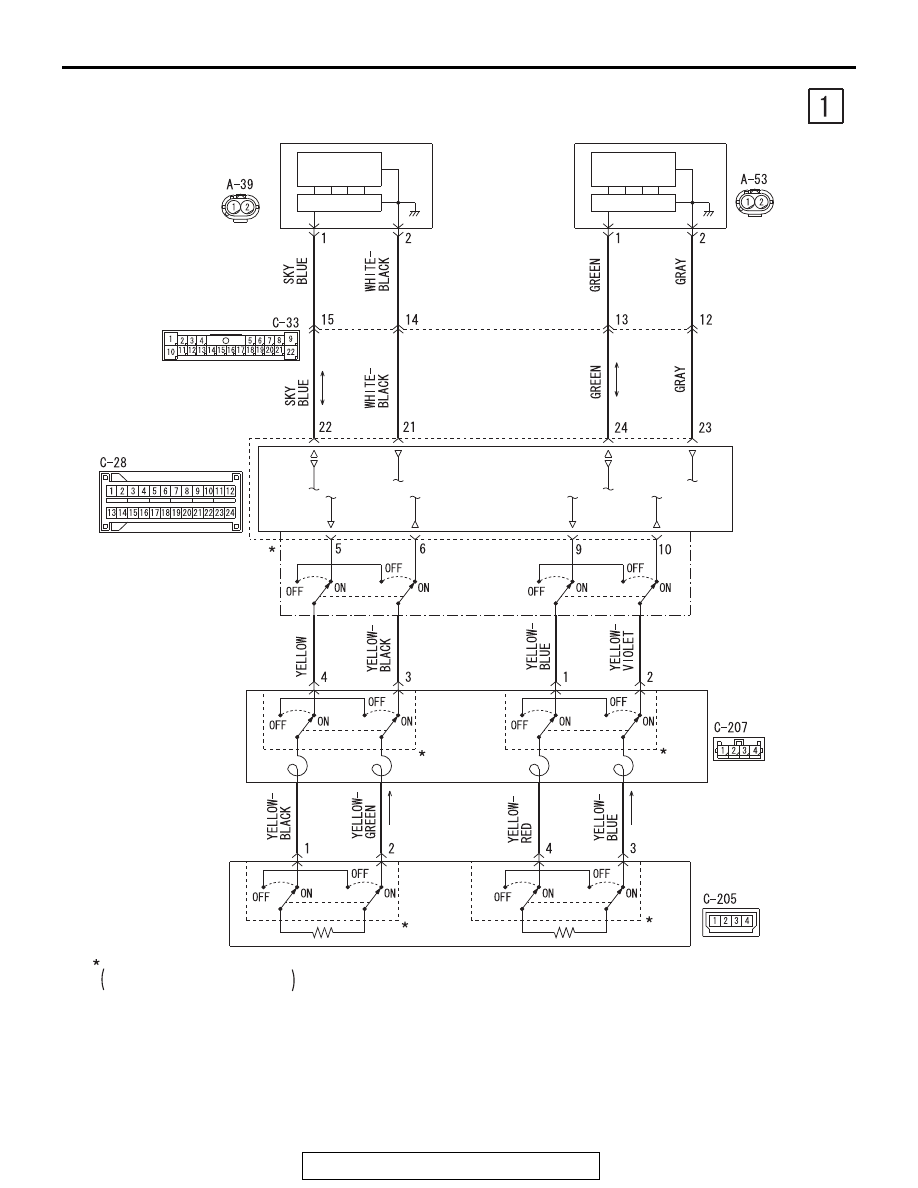

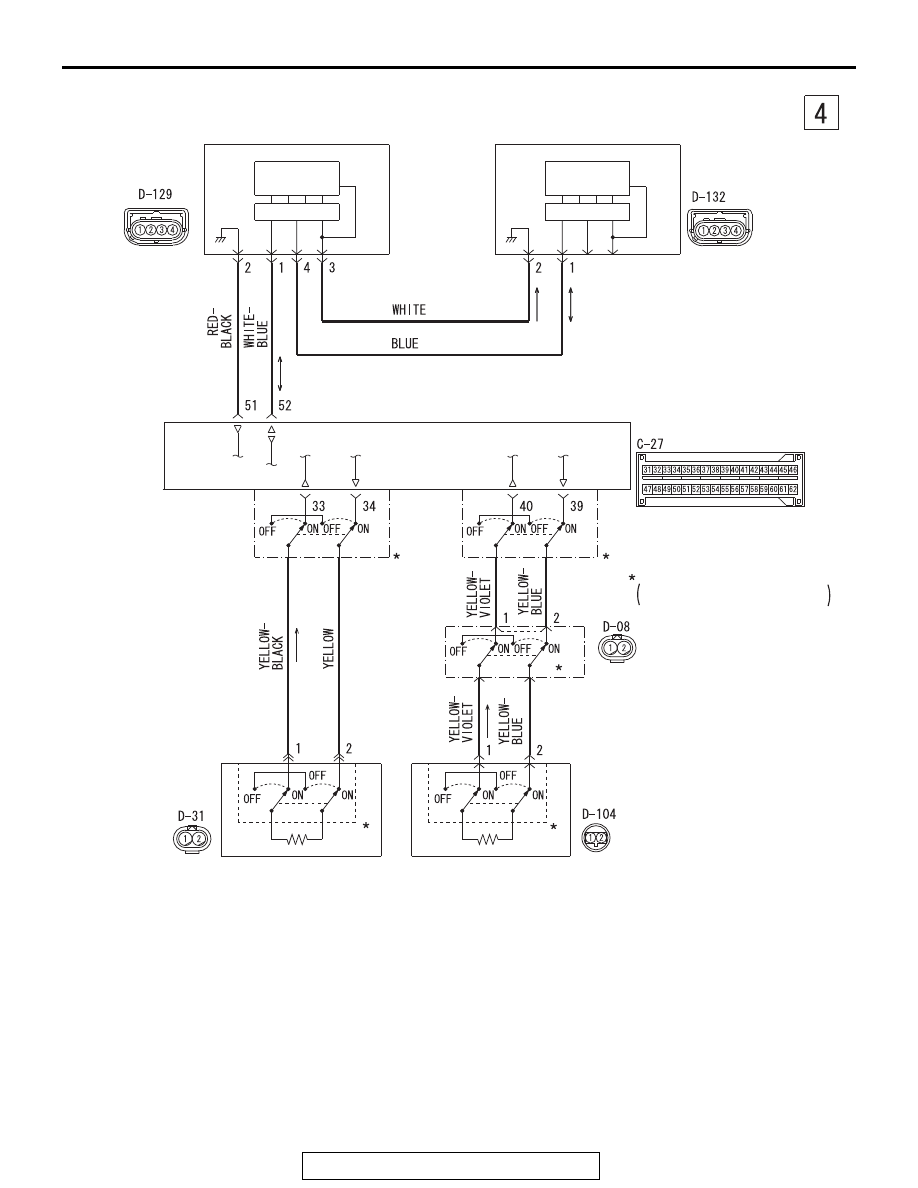

GENERAL INFORMATION

TSB Revision

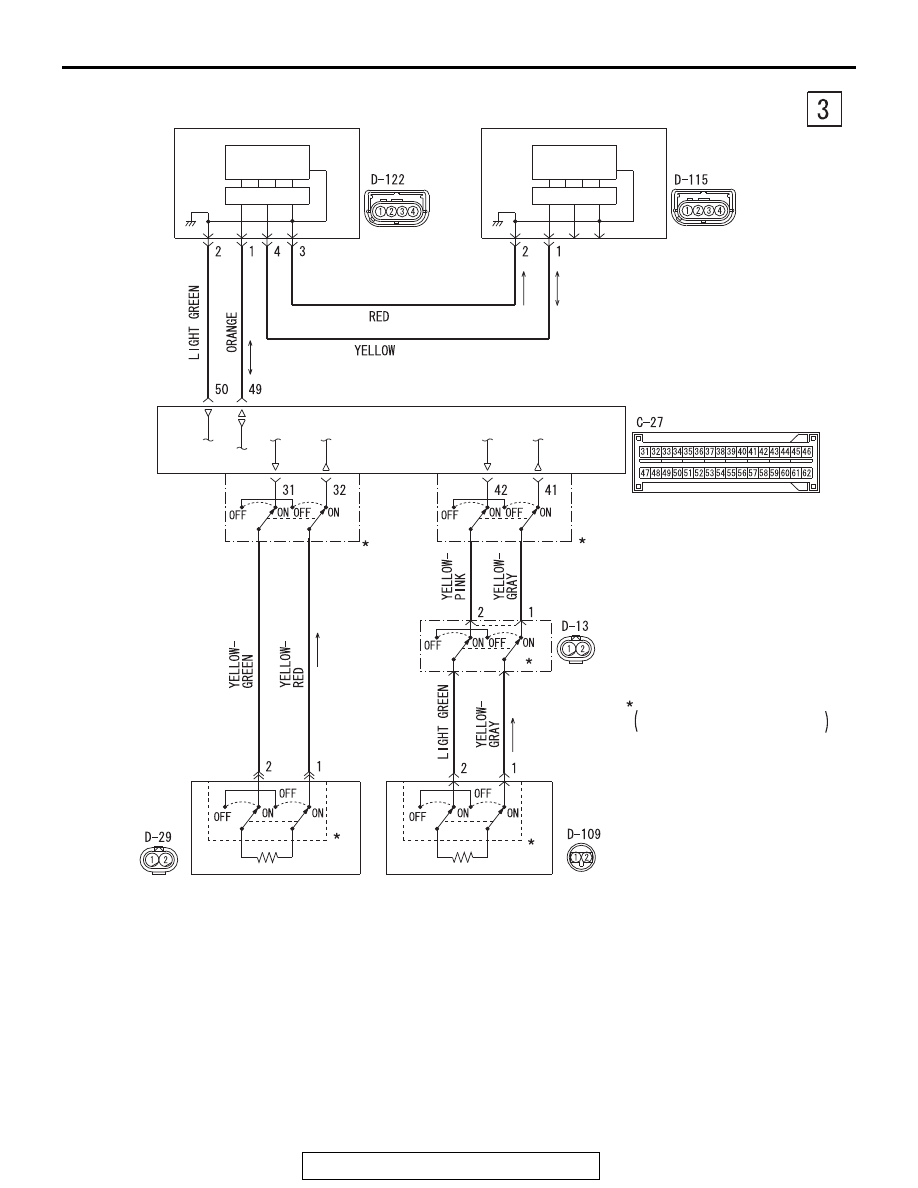

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-16

AC704176 AC

SEAT BELT
PRE-TENSIONER (LH)

SEAT BELT
PRE-TENSIONER (RH)

LAP
PRE-TENSIONER

PASSENGER'S
(FRONT)
AIR BAG MODULE
(SQUIB)

SRS-ECU

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-17

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

SIDE IMPACT
SENSOR
(FRONT : LH)

ACCELERO
METER

CPU

CPU

SIDE IMPACT
SENSOR
(REAR : LH)

SIDE-AIR BAG
MODULE
(SQUIB) (LH)

CURTAIN AIR BAG
MODULE
(SQUIB) (LH)

ACCELERO
METER

SRS-ECU

AC704177AE

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-18

CPU

CPU

SRS-ECU

SIDE IMPACT
SENSOR
(FRONT : RH)

SIDE IMPACT
SENSOR
(REAR : RH)

SIDE-AIR BAG
MODULE
(SQUIB) (RH)

CURTAIN AIR BAG
MODULE
(SQUIB) (RH)

ACCELERO
METER

ACCELERO
METER

NOTE

: CONNECTOR LOCK SWITCH

  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF
