Mitsubishi Outlander GS45X. Manual - part 1330





DIAGNOSIS

TSB Revision

ELECTRONIC CONTROL AWD

27C-43

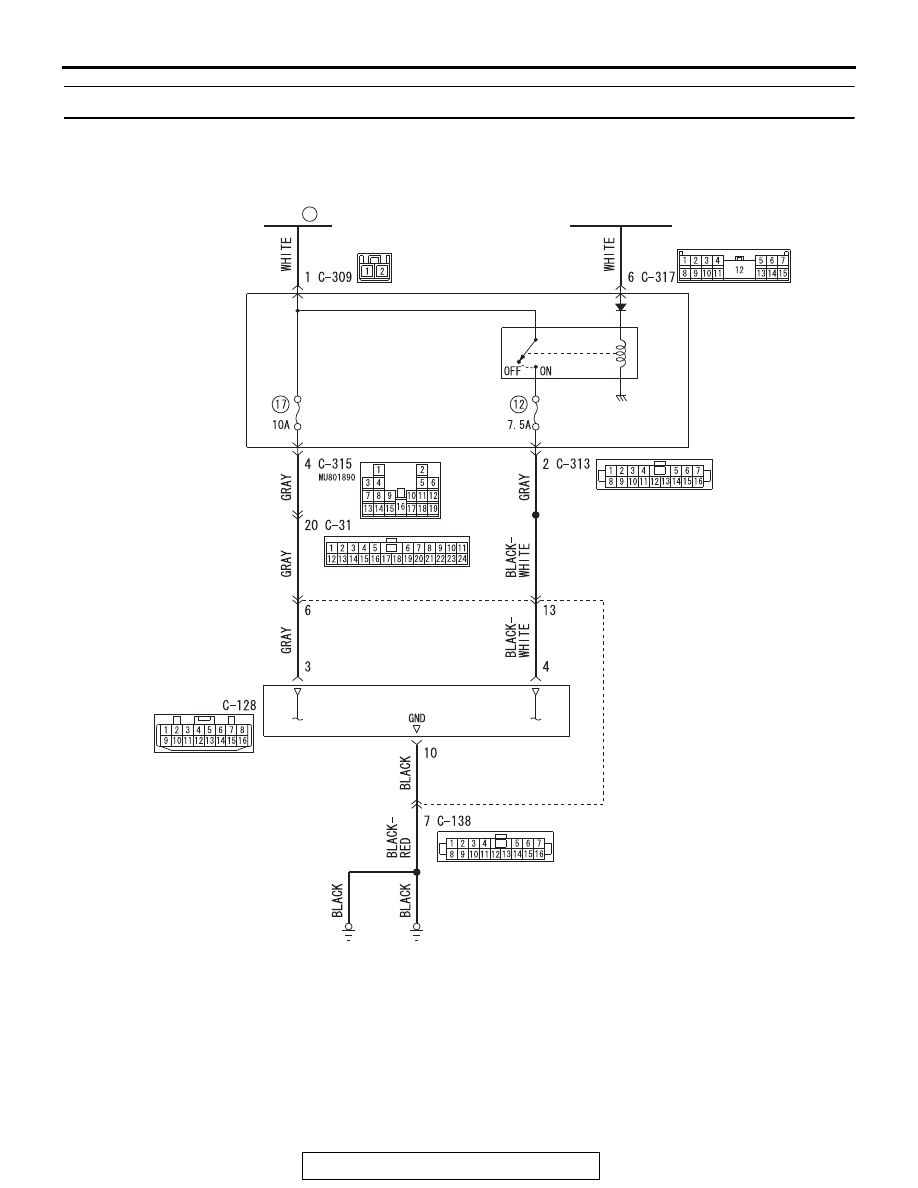

DTC C211C: Abnormal IG1 power supply low voltage

ETACS-ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

AWD-ECU

ACA02791

DIAGNOSIS

TSB Revision

ELECTRONIC CONTROL AWD

27C-44

CAUTION

If there is any problem in the CAN bus lines, an
incorrect DTC may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

.

OPERATION

AWD-ECU detects an IG1 power supply voltage
abnormal drop, and if any abnormality occurs, it
interrupts the system.

.

DTC SET CONDITIONS

If the following conditions are met when the system
is activated, AWD-ECU gradually switches the con-
trol from AWD to FWD, flashes the AWD/LOCK indi-
cators alternately, and sets the DTC C211C.

• IG1 voltage: Less than 8 V

• Battery voltage: More than 9 V

.

PROBABLE CAUSES

Current trouble

• Malfunction of IG1 relay in ETACS-ECU

• Damaged wiring harness and connectors

• Short to ground or open circuit between the bat-

tery and AWD-ECU

TROUBLESHOOTING HINTS

• Intermittent wiring harness or connector failure

NOTE: For diagnosis procedures, refer to "How
to treat past trouble" (Refer to GROUP 00

 How

to Use Troubleshooting/How to Treat Past Trou-
ble

P.00-17

).

• Intermittent malfunction of ETACS-ECU (mal-

function of IG1 relay)

DIAGNOSIS

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Scan tool MB991958 CAN bus diagnostics
Use scan tool MB991958 to diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line (Refer to GROUP 54C

−

Troubleshooting/CAN Bus Diagnostics Table

P.54C-17

). On completion, go to Step 2.

STEP 2. Check whether the DTC is reset after repairing the
CAN bus line.
(1) Erase the DTC.
(2) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(3) Check if the DTC is set.
Q: Is the DTC C211C set?

YES : Go to Step 3.
NO :  The procedure is complete.

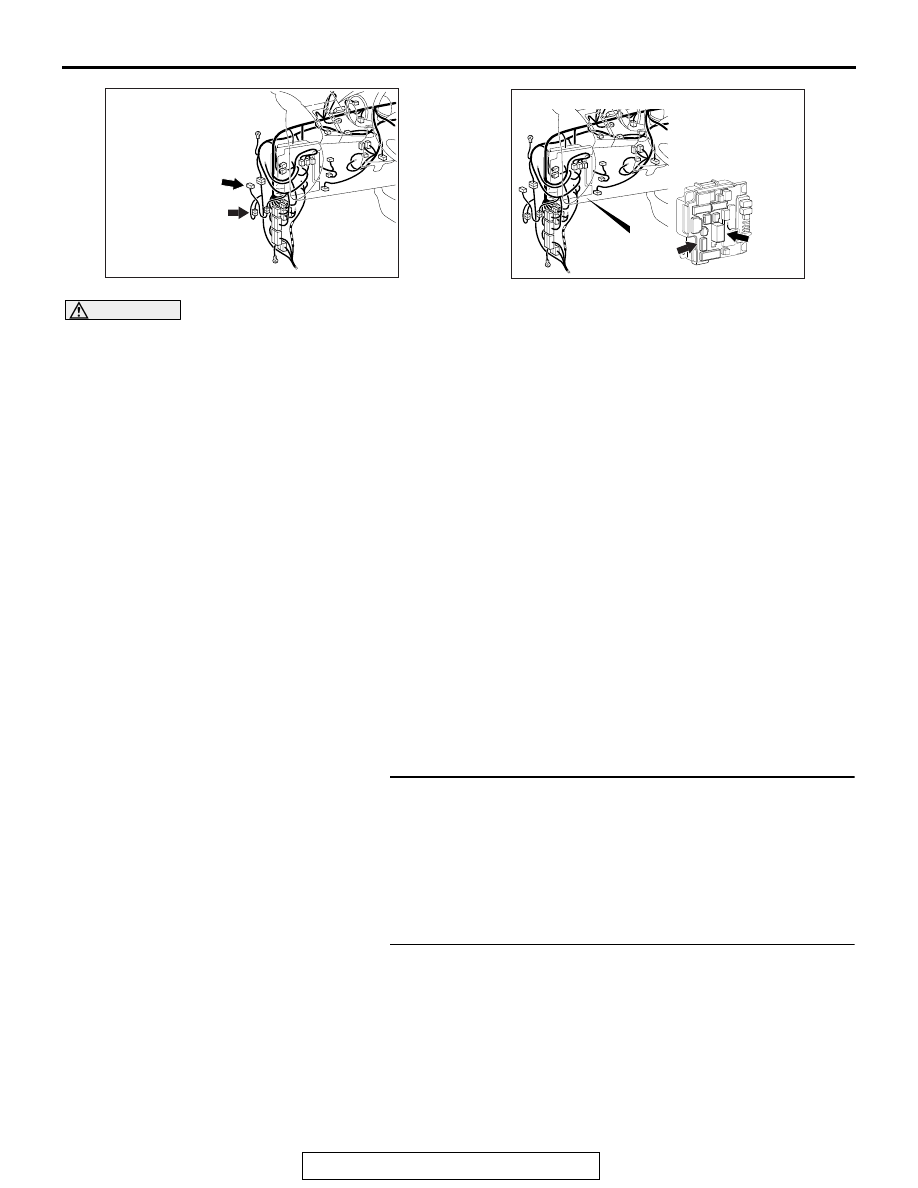

AC901227AC

C-128

C-138

Connectors: C-128, C-138

AC901228AC

C-313
(BR)

C-309
(B)

ETACS-ECU
(front view)

Connectors: C309, C-313

DIAGNOSIS

TSB Revision

ELECTRONIC CONTROL AWD

27C-45

STEP 3. Check the following connector:
Check the connectors below for improper engagement, termi-
nal damage or terminal drawn in the connector case.

• C-128 AWD-ECU connector

• C-309, C-313 ETACS-ECU connector

• C-138 intermediate connector

Q: Are the connectors and terminals in good condition?

YES : Go to Step 4.
NO :  Repair the connector(s) or terminal(s). Then go to

Step 8.

STEP 4. Voltage measurement at the AWD-ECU connector
(1) Disconnect the C-128 AWD-ECU connector.
(2) Measure the voltage between the C-128 wiring harness

side connector terminals No. 4 (Ignition switch "ON") and
the body ground.

OK: System voltage

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Go to Step 6.

STEP 5. Wiring harness check
Check the wiring harness between the C-128 AWD-ECU con-
nector (terminal No.10) and the body ground for damage or
other problem.
Q: Is the wiring harness in good condition?

YES : Go to Step 7.
NO :  Repair the wiring harness. Then go to Step 8.

STEP 6. Wiring harness check
Check the wiring harness between the C-128 AWD-ECU con-
nector (terminal No.4) and the C-313 ETACS-ECU connector
(terminal No.2) for damage or other problem.
Q: Is the wiring harness in good condition?

YES : Go to Step 7.
NO :  Repair the wiring harness. Then go to Step 8.

STEP 7. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(3) Check if the DTC is set.
Q: Is the DTC C211C set?

YES : Replace AWD-ECU (Refer to

P.27C-95

). Then go to

Step 8 .

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to Use Troubleshooting/How to

Cope with Intermittent Malfunctions

P.00-15

).

DIAGNOSIS

TSB Revision

ELECTRONIC CONTROL AWD

27C-46

STEP 8. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(3) Check if the DTC is set.
Q: Is the DTC C211C set?

YES : Diagnose again from Step 1.
NO :  The procedure is complete.
