DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-153

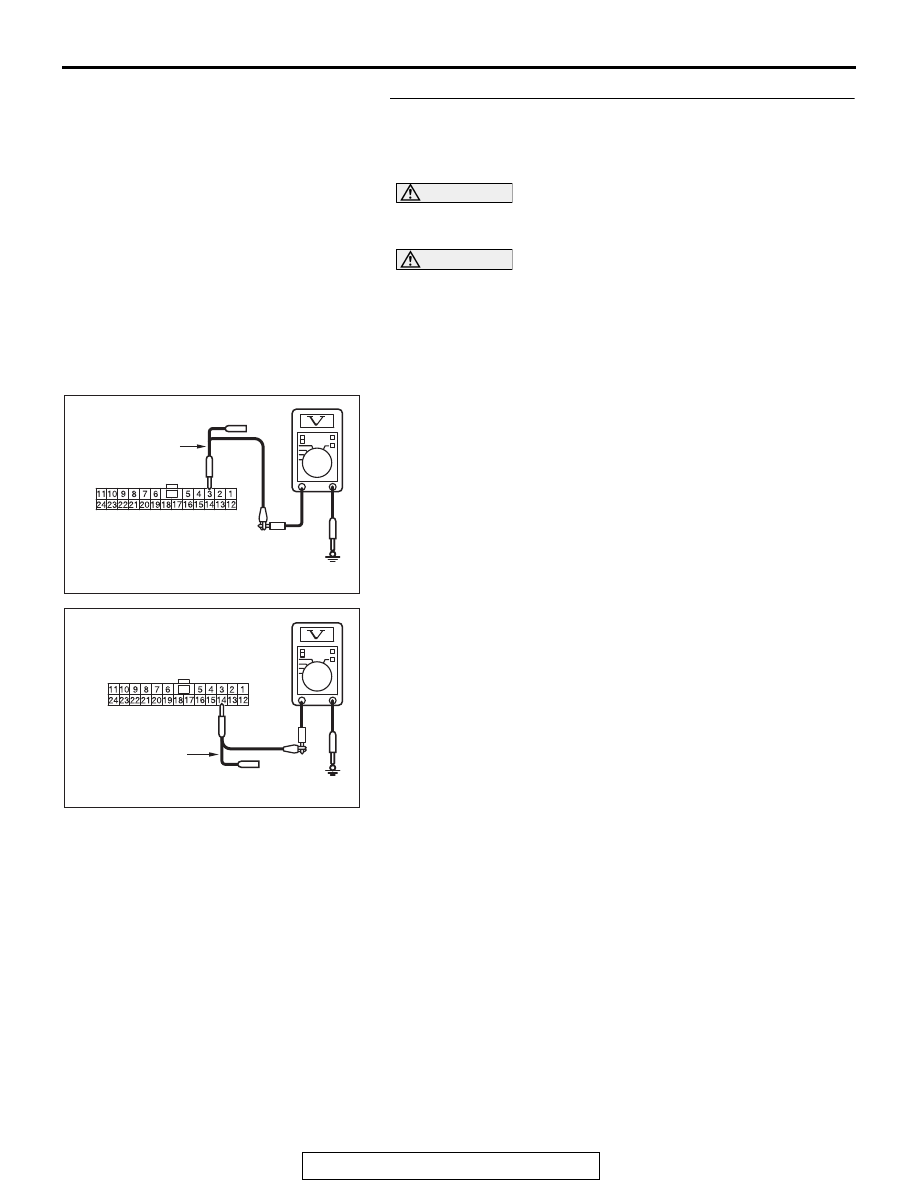

STEP 18. Check the wiring harness between joint
connector (CAN1) C-103 and radio and CD player or radio
and CD changer connector C-16 for a short to power
supply. Measure the voltage at joint connector (CAN1)
C-103.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 10 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN1)

terminal 23 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES (vehicles without satellite radio)  : Go to Step 21.
YES (vehicles with satellite radio)  : Go to Step 20.
NO  :  Go to Step 28.

AC702831CF

Harness side: C-103

Test harness

AC702831CG

Harness side: C-103

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-154

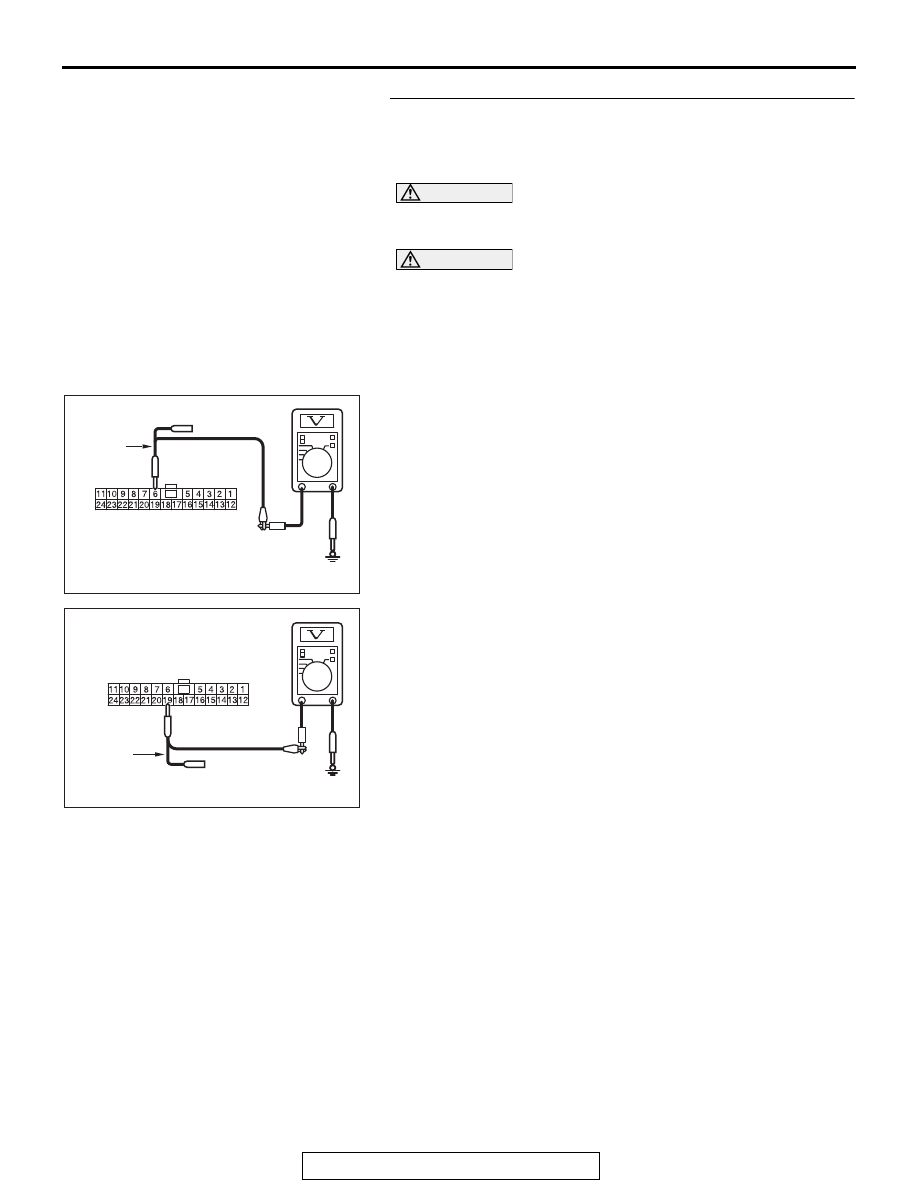

STEP 19. Check the wiring harness between joint
connector (CAN1) C-103 and CAN box unit connector C-13
for a short to power supply. Measure the voltage at joint
connector (CAN1) C-103.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 10 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN1)

terminal 23 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES (vehicles without satellite radio)  : Go to Step 21.
YES (vehicles with satellite radio)  : Go to Step 20.
NO  :  Go to Step 29.

AC702831CF

Harness side: C-103

Test harness

AC702831CG

Harness side: C-103

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-155

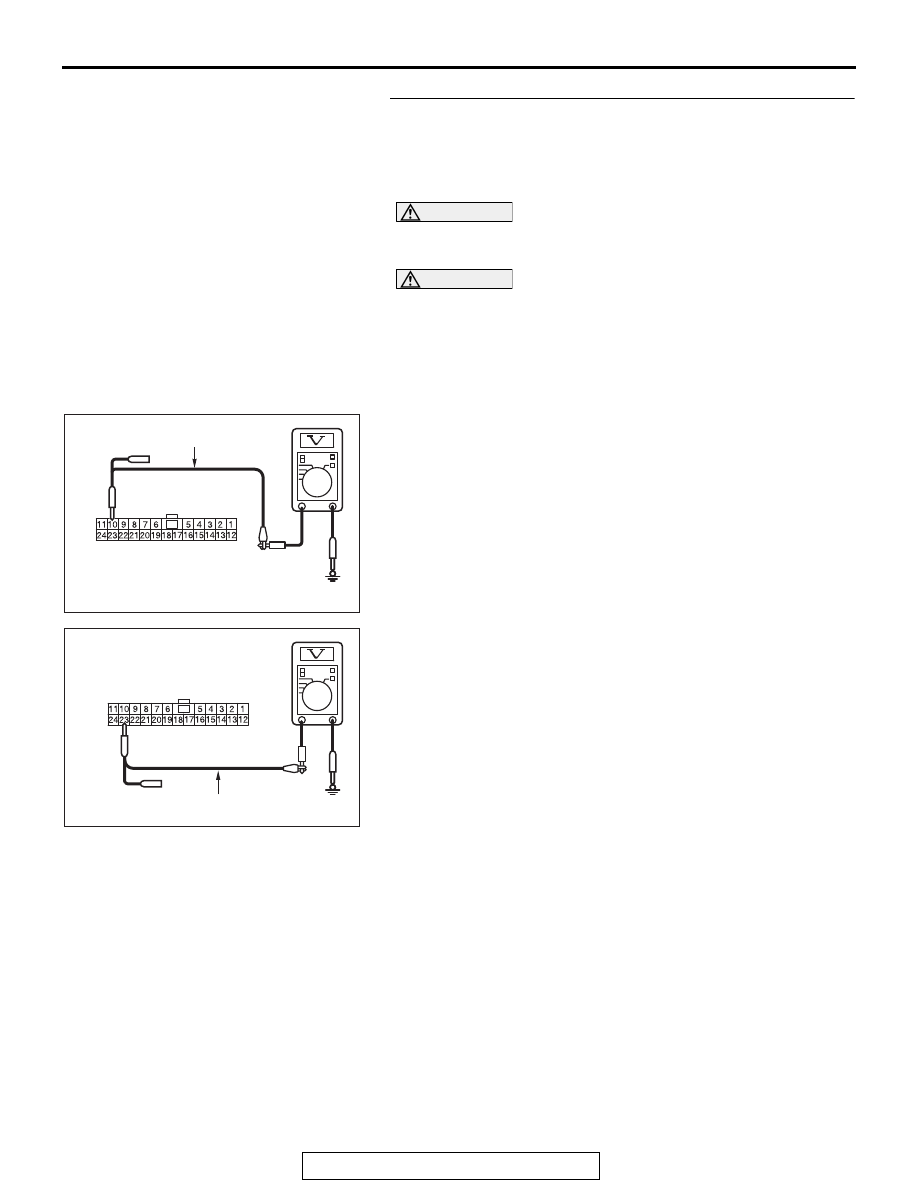

STEP 20. Check the wiring harness between joint
connector (CAN1) C-103 and satellite radio tuner
connector C-111 for a short to power supply. Measure the
voltage at joint connector (CAN1) C-103.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 3 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN1)

terminal 14 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES : Go to Step 21.
NO :  Go to Step 30.

AC702831 BR

Harness side: C-103

Test
harness

AC702831BS

Harness side: C-103

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-156

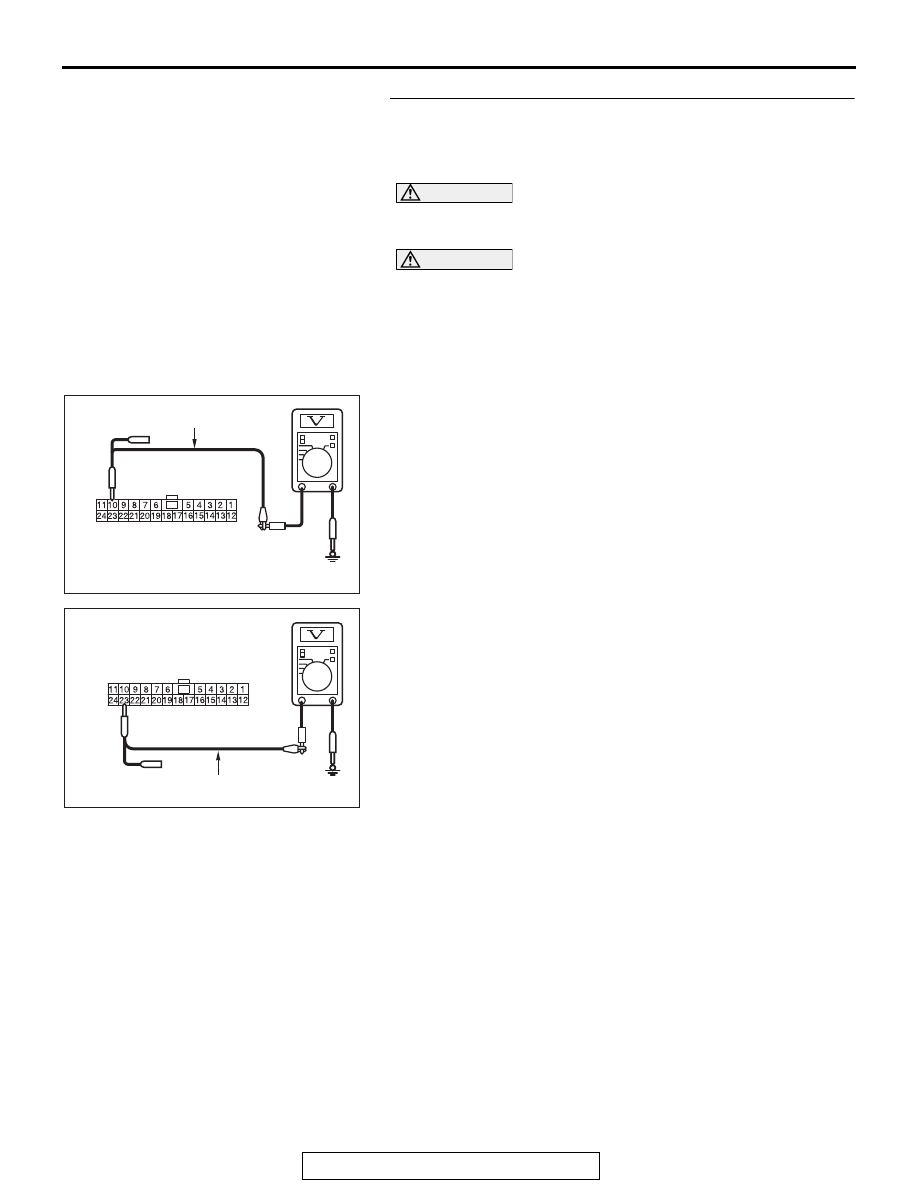

STEP 21. Check the wiring harness between joint
connector (CAN1) C-103 and ETACS-ECU connector C-301
for a short to power supply. Measure the voltage at joint
connector (CAN1) C-103.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1) and ETACS-ECU

connector C-301, and measure the voltage at the wiring
harness side of joint connector (CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 6 and body ground.

OK: 1.0 volts or less

(4) Measure the voltage between joint connector (CAN1)

terminal 19 and body ground.

OK: 1.0 volts or less

Q: Do all the voltages measure 1.0 volts or less?

YES : Go to Step 31.
NO :  Repair the wiring harness between joint connector

(CAN1) C-103 and ETACS-ECU connector C-301.

AC702831CJ

Harness side: C-103

Test
harness

AC702831CK

Harness side: C-103

Test
harness
