CHASSIS ELECTRICAL

54A-513

STEP 18. Check multivision display connector C-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multivision display connector C-10 in good

condition?
YES : Go to Step 19.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 19. Check the wiring harness between multivision
display connector C-10 (terminal 8, 16) and rear door
speaker (RH) connector E-10 (terminal 2, 1).
NOTE: Also check intermediate connectors C-17, C-20 and
D-36 for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector C-17,
C-20 or D-36 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between multivision display

connector C-10 (terminal 8, 16) and rear door speaker
(RH) connector E-10 (terminal 2, 1) in good condition?
YES : Check the trouble symptom, and go to Step 32.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 20. Check rear door speaker (LH) connector E-24 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear door speaker (LH) connector E-24 in good

condition?
YES : Go to Step 21.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-514

STEP 21. Check the rear door speaker (LH).
(1) Remove the rear door speaker (LH). Refer to

P.54A-692

.

(2) Check that the rear door speaker (LH) outputs the noise

when the voltage of five volts is applied to the rear door
speaker (LH) connector terminal.

Q: Does the rear door speaker (LH) output the noise?

YES : Go to Step 22.
NO :  Replace the rear door speaker (LH).

STEP 22. Check multivision display connector C-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multivision display connector C-10 in good

condition?
YES : Go to Step 23.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 23. Check the wiring harness between multivision
display connector C-10 (terminal 2, 11) and rear door
speaker (LH) connector E-24 (terminal 2, 1).
NOTE: Also check intermediate connectors C-17, C-32 and
D-21 for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector C-17,
C-32 or D-21 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between multivision display

connector C-10 (terminal 2, 11) and rear door speaker
(LH) connector E-24 (terminal 2, 1) in good condition?
YES : Check the trouble symptom, and go to Step 32.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

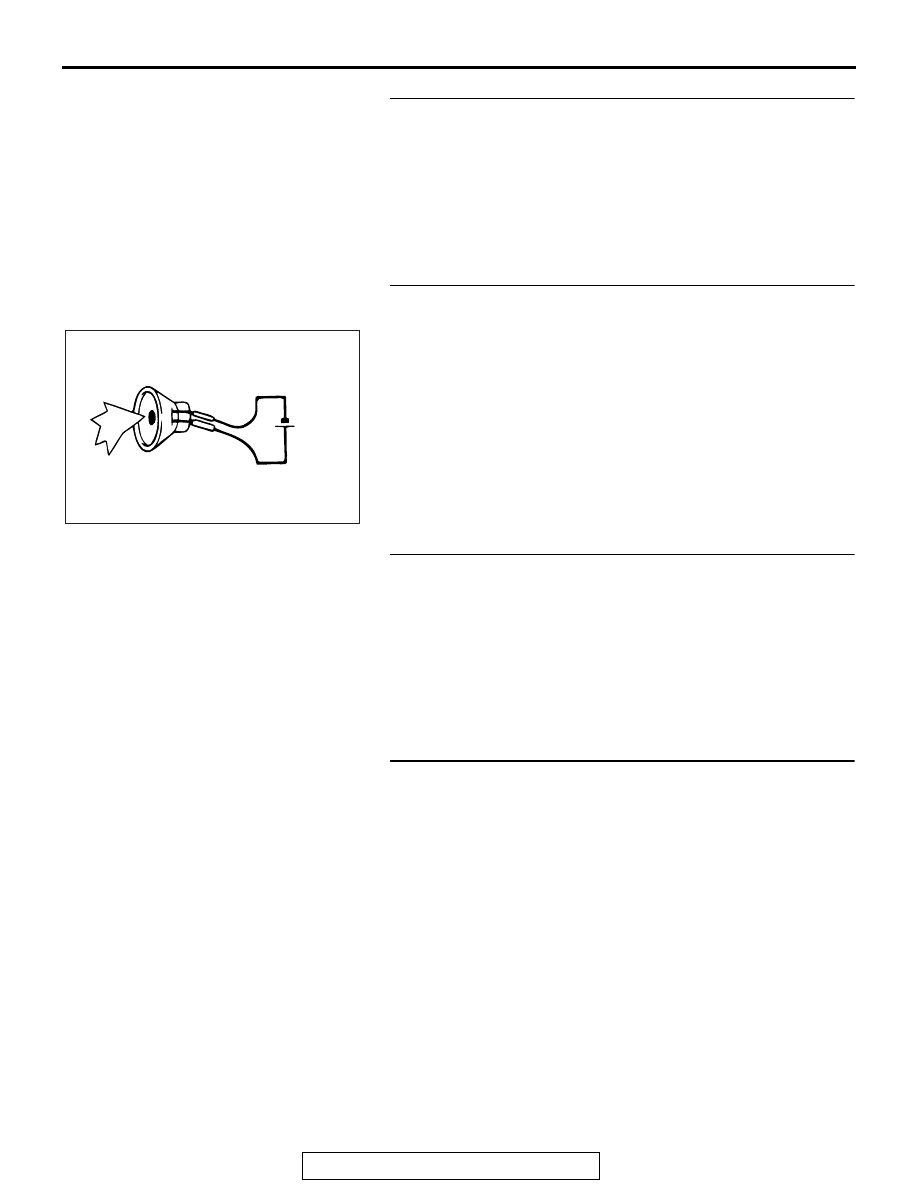

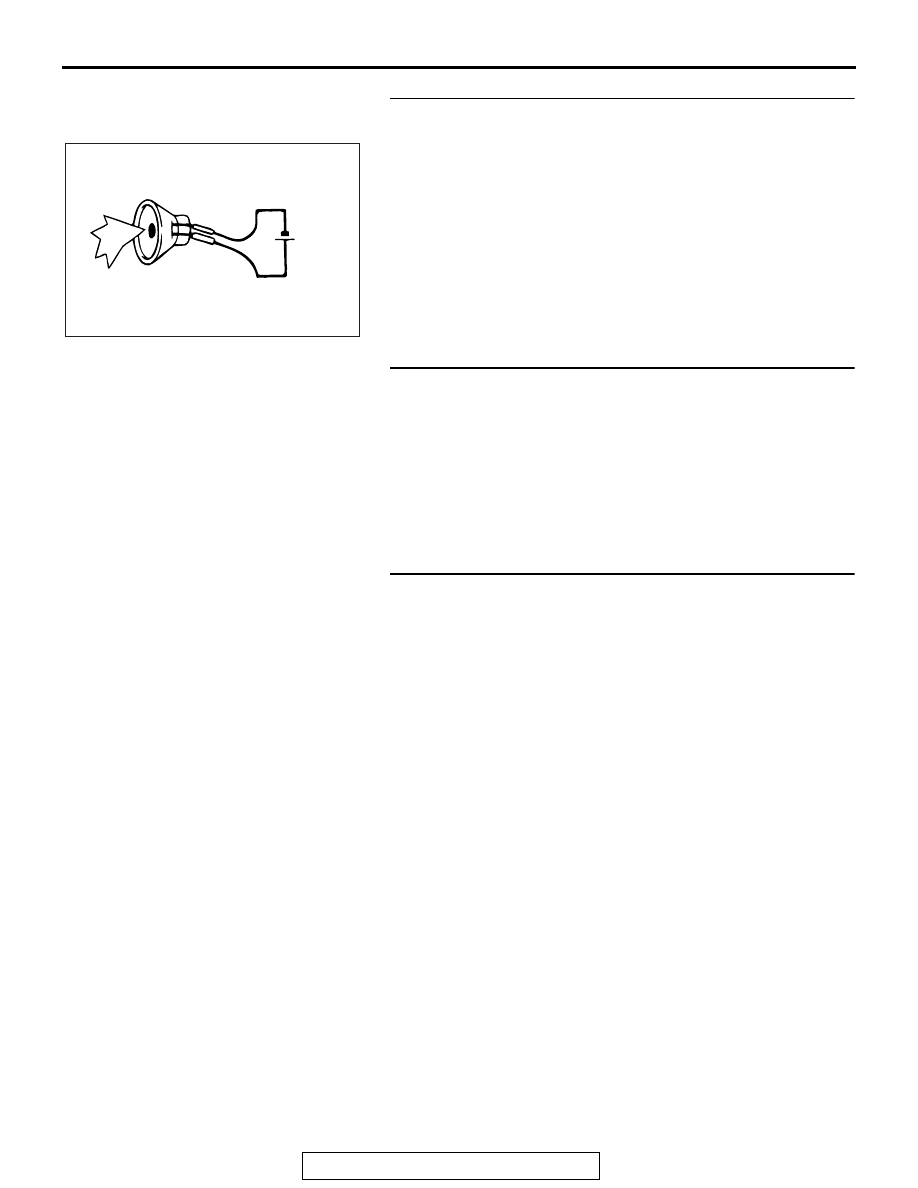

AC703723AB

5 volts

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-515

STEP 24. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (RH) connector E-02 in good condition?

YES : Go to Step 25.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 25. Check the tweeter (RH).
(1) Remove the tweeter (RH). Refer to

P.54A-692

.

(2) Check that the tweeter (RH) outputs the noise when the

voltage of five volts is applied to the tweeter (RH) connector
terminal.

Q: Does the tweeter (RH) output the noise?

YES : Go to Step 26.
NO :  Replace the tweeter (RH).

STEP 26. Check multivision display connector C-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multivision display connector C-10 in good

condition?
YES : Go to Step 27.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 27. Check the wiring harness between multivision
display connector C-10 (terminal 7, 15) and tweeter (RH)
connector E-02 (terminal 1, 2).
NOTE: Also check intermediate connectors C-17 and C-113 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-17 or C-113
is damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between multivision display

connector C-10 (terminal 7, 15) and tweeter (RH)
connector E-02 (terminal 1, 2) in good condition?
YES : Check the trouble symptom, and go to Step 32.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-516

STEP 28. Check tweeter (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (LH) connector E-14 in good condition?

YES : Go to Step 29.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 29. Check the tweeter (LH).
(1) Remove the tweeter (LH). Refer to

P.54A-692

.

(2) Check that the tweeter (LH) outputs the noise when the

voltage of five volts is applied to the tweeter (LH) connector
terminal.

Q: Does the tweeter (LH) output the noise?

YES : Go to Step 30.
NO :  Replace the tweeter (LH).

STEP 30. Check multivision display connector C-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multivision display connector C-10 in good

condition?
YES : Go to Step 31.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 31. Check the wiring harness between multivision
display connector C-10 (terminal 3, 12) and tweeter (LH)
connector E-14 (terminal 1, 2).
NOTE: Also check intermediate connectors C-17 and C-127 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-17 or C-127
is damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between multivision display

connector C-10 (terminal 3, 12) and tweeter (LH)
connector E-14 (terminal 1, 2) in good condition?
YES : Check the trouble symptom, and go to Step 32.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts
