PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-51

NOTE:

.

•

*1

: TPMS is an abbreviation of Tire Pressure Monitoring

System, DRL of Daytime Running Light and AFS of Adap-
tive Front lighting System.

•

*2

: The setting can be changed by the option coding. Refer

to   .

Trailer turn detection

present

Shift Lever

Not present

AFS/ACL/Leveling

Not present

Satellite radio

*2

Not present or Present

Auto Stop & Go (AS&G)

Not present

Display opening type

MMC

GSI system

Not present

DRL function

*2

Present/Chg Ng or NotPresent/ChgOk

FACU

Not present

S-AWC control display

Not available or Available

Diesel particulate filter

Not present

Language mode

Available

WSS

Not present

Door Unlock Mode Customize

*2

Disabled

RLS overwipe type

Type 2

RLS WS type

Type 2 (Green)

Launch gear block alarm

Not present

Theft sensor gain setting

Type 1 or Type 3 or Type 4

Item name

Initial value

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-52

OPTION CODING

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

If there is any item indicated by the option coding after
equipment change, set ETACS-ECU so that the option cod-
ing data corresponds with the equipment content. Func-
tions and systems do not work normally if the setting does
not correspond with the equipment.

CAUTION

With the ETACS functions being customized, if any of the
ETACS-ECU variant coding and option coding items are
changed, the customized contents are reset. In such case,
the functions need to be recustomized.
The ETACS-ECU option coding data can be checked or
changed by operating scan tool MB991958.

• How to check option coding data

1. Connect the scan tool MB991958. Refer to

P.00-45

.

2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" under "Model Year". Check that

"Vehicle Information" contents are correct.

5. Select "MP/GDI/DIESEL" or "ETACS" from "System

List", and then press "OK" button.
NOTE: If "Loading Option Setup" list is shown, click
appropriate box.

6. Select "Coding."
7. Select "Option Coding Information."
8. Check the displayed option coding information.

• How to change option coding data

1. Connect the scan tool MB991958. Refer to

P.00-45

.

2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" under "Model Year". Check that

"Vehicle Information" contents are correct.

5. Select "MP/GDI/DIESEL" or "ETACS" from "System

List", and then press "OK" button.
NOTE: If "Loading Option Setup" list is shown, click
appropriate box.

6. Select "Coding."
7. Select "Option Coding."
8. Change to correct option coding data.

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-53

LIST <ENGINE CONTROL MODULE>

LIST <ETACS-ECU>

INITIALIZATION PROCEDURE FOR LEARNING
VALUE IN MFI ENGINE

M1001011700848

When the following service is performed, initialize the learning
value.

• At replacing engine assembly*

• At replacing throttle body and at cleaning

• At replacing knock sensor

NOTE: *Initialize CVT-related learning value <2.4L> or
A/T-related learning value <3.0L>.

.

Item name

Cruise Control

Item name

Number of speaker

Seat material

AUDIO (CAN)

AND

HFM

Front fog light

Rear fog light

Horn type

Wiper washer check bulb

Compressor type

Satellite Radio

DRL function

Keyless

Door Unlock Mode Customize

Auto light CNTL

Rain Light Sensor

AUDIO/S.RADIO type

Manner switch

Remote engine starter

Front wiper

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-54

INITIALIZATION PROCEDURE

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the

ignition switch to the "LOCK" (OFF) position before con-

necting or disconnecting scan tool MB991958.

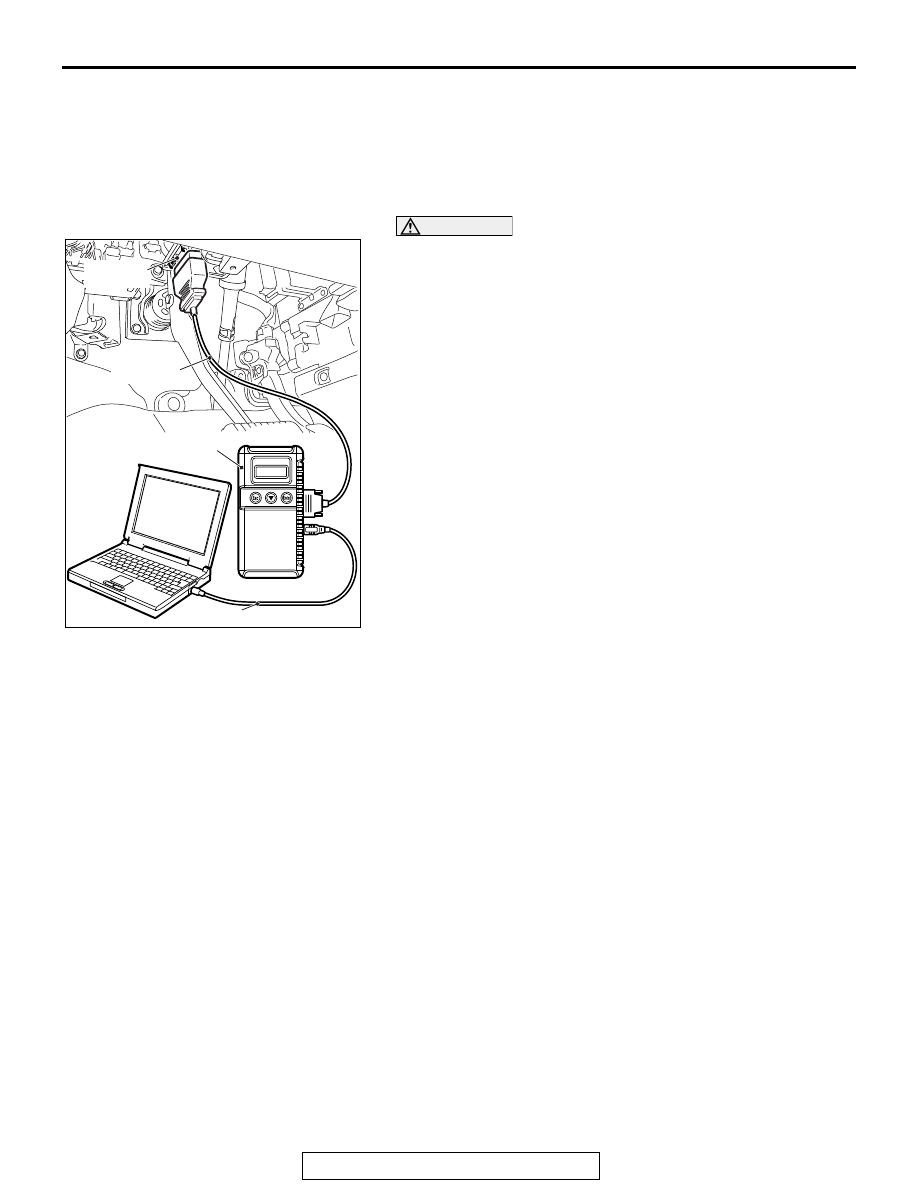

1. After the ignition switch is in "LOCK" (OFF) position, connect

scan tool MB991958 to the data link connector.

2. Turn the ignition switch to the "ON" position.
3. Select "MFI " from System select Screen of scan tool

MB991958.

4. Select "Special Function" from MFI Screen.
5. Select "Learned value reset" from Special Function Screen.
6. Select "All learned value" from Learned value reset Screen
7. Initialize the learning value by pressing the "OK" button.
8. After initializing the learning value, the learning value of MFI

engine idling is necessary. (Refer to LEARNING
PROCEDURE FOR IDLING IN MFI ENGINE

P.00-54

).

ENGINE IDLING LEARNING PROCEDURE

M1001011800942

PURPOSE

When the ECM is replaced, or when the learned value is initial-

ized, the idle may not be stabilized. Carry out the learning

method by following the procedures below.

LEARNING PROCEDURE

1. Start the engine and warm to reach 80

°C (176°F) or more.

NOTE: When the engine coolant temperature is 80

°

C

(176

°

F) or more, the warm-up is not needed if the ignition

switch is in "ON" position once.

2. Turn the ignition switch to "LOCK" (OFF) position.
3. After 10 seconds or more, start the engine again.
4. For 10 minutes, carry out the idling under the condition

shown below and then confirm the engine has the normal

idling.

• Transaxle: P range

• Operation in ignition-related, fan and attachments: Not to be

operated

• Engine coolant temperature: 80°C (176°F) or more

NOTE: If the engine stalls while idling, check for a dirty (on

the throttle valve) of the throttle body and clean if needed.

Then perform the service from Procedure 1 again.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
