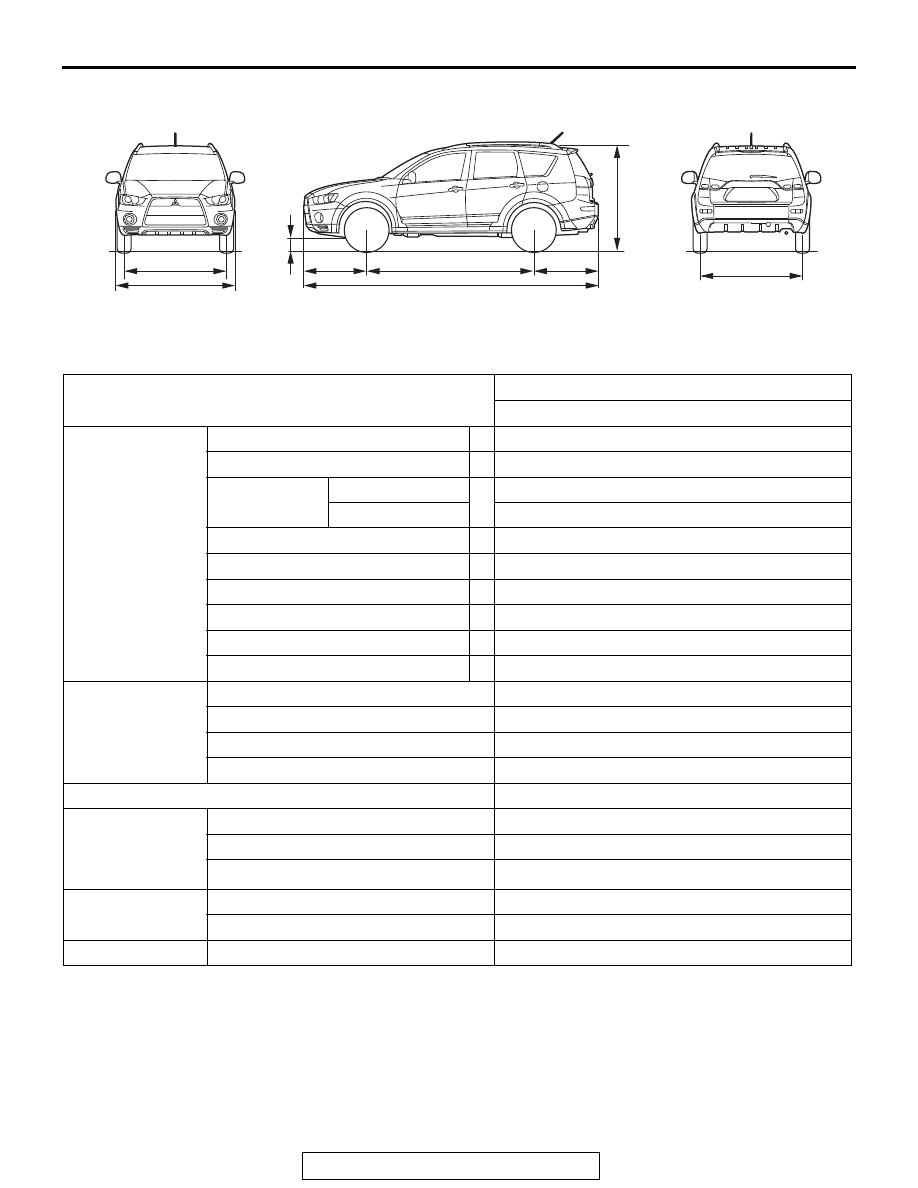

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-35

Item

CW6WX
LUYZL2M

LUYZL3M

Vehicle dimension
mm (in)

Overall length

1 4,665 (183.7)

4,665 (183.7)

Overall width

2 1,800 (70.9)

1,800 (70.9)

Overall height
(unladen)

Without roof rail

3 1,680 (66.1)

−

With roof rail

1,720 (67.7)

1,720 (67.7)

Wheelbase

4 2,670 (105.1)

2,670 (105.1)

Tread-front

5 1,540 (60.6)

1,540 (60.6)

Tread-rear

6 1,540 (60.6)

1,540 (60.6)

Overhang-front

7 990 (39.0)

990 (39.0)

Overhang-rear

8 1,005 (39.6)

1,005 (39.6)

Ground clearance

9 215 (8.5)

215 (8.5)

Vehicle weight kg
(lb)

Curb weight

1,715 (3,780)

1,715 (3,780)

Gross vehicle weight rating

2,350 (5,181)

2,350 (5,181)

Gross axle weight rating-front

1,090 (2,403)

1,090 (2,403)

Gross axle weight rating-rear

1,270 (2,800)

1,270 (2,800)

Seating capacity

7

7

Engine

Model No.

6B31

6B31

Type

SOHC MIVEC

SOHC MIVEC

Piston displacement cm

3

 (cu in)

2,998 (182.9)

2,998 (182.9)

Transaxle

Model No.

W6AJA

W6AJA

Type

AWD, INVECS-II 6A/T
with sport mode

AWD, INVECS-II 6A/T
with sport mode

Fuel system

Fuel supply system

MFI

MFI

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-36

VEHICLES FOR MEXICO

.

2.4L ENGINE

.

AC901145

5
2

9

7

4

8

1

3

6

AB

Item

CW5WX
TSHL2CS

Vehicle dimension
mm (in)

Overall length

1 4,665 (183.7)

Overall width

2 1,800 (70.9)

Overall height
(unladen)

Without roof rail

3 1,680 (66.1)

With roof rail

1,720 (67.7)

Wheelbase

4 2,670 (105.1)

Tread-front

5 1,540 (60.6)

Tread-rear

6 1,540 (60.6)

Overhang-front

7 990 (39.0)

Overhang-rear

8 1,005 (39.6)

Ground clearance

9 215 (8.5)

Vehicle weight kg
(lb)

Curb weight

1,535 (3,384)

Gross vehicle weight rating

2,070 (4,564)

Gross axle weight rating-front

1,090 (2,403)

Gross axle weight rating-rear

1,050 (2,315)

Seating capacity

5

Engine

Model No.

4B12

Type

DOHC MIVEC

Piston displacement cm

3

 (cu in)

2,359 (143.9)

Transaxle

Model No.

F1CJA

Type

FWD, INVECS-III CVT with sport mode

Fuel system

Fuel supply system

MFI

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-37

3.0L ENGINE

Item

CW6WX
LXYL2CS

Vehicle dimension
mm (in)

Overall length

1 4,665 (183.7)

Overall width

2 1,800 (70.9)

Overall height
(unladen)

Without roof rail

3 −

With roof rail

1,720 (67.7)

Wheelbase

4 2,670 (105.1)

Tread-front

5 1,540 (60.6)

Tread-rear

6 1,540 (60.6)

Overhang-front

7 990 (39.0)

Overhang-rear

8 1,005 (39.6)

Ground clearance

9 215 (8.5)

Vehicle weight kg
(lb)

Curb weight

1,645 (3,626)

Gross vehicle weight rating

2,300 (5,071)

Gross axle weight rating-front

1,090 (2,403)

Gross axle weight rating-rear

1,270 (2,800)

Seating capacity

7

Engine

Model No.

6B31

Type

SOHC MIVEC

Piston displacement cm

3

 (cu in)

2,998 (182.9)

Transaxle

Model No.

F6AJA

Type

FWD, INVECS-II 6A/T with sport mode

Fuel system

Fuel supply system

MFI

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-38

PRECAUTIONS BEFORE SERVICE

CAUTIONS FOR WORKING IN ENGINE
COMPARTMENT

M1001016800044

WARNING

Just after the ignition switch is turned to "LOCK"
(OFF) position, the adjustments must always be made
with the cooling fan stopped. After the ignition switch
is turned to "LOCK" (OFF) position, the cooling fun
might be driven for a few minutes by the after run fan
control. If the adjustments are made with the cooling
fun driven, injury or damage may occur.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

M1001011601781

1. Items to review when servicing SRS:

(1) Be sure to read GROUP 52B, Supplemental Restraint

System (SRS). For safe operation, please follow the
directions and heed all warnings.

(2) Wait at least 60 seconds after disconnecting the battery

cable before doing any further work. The SRS system is
designed to retain enough voltage to deploy the air bag
even after the battery has been disconnected. Serious
injury may result from unintended air bag deployment if
work is done on the SRS system immediately after the
battery cable is disconnected.

(3) Warning labels must be heeded when servicing or

handling SRS components. Warning labels can be found
in the following locations (Refer to GROUP 52B

P.52B-3

,

Warning/Caution Labels).

(4) Always use the designated special tools and test

equipment.

(5) Store components removed from the SRS in a clean and

dry place. The air bag module should be stored on a flat
surface and placed so that the pad surface is facing
upward.

(6) Never attempt to disassemble or repair the SRS

components (SRS-ECU, air bag module and clock
spring). If there is a defect, replace the defective part.

(7) Whenever you finish servicing the SRS, check the SRS

warning light operation to make sure that the system
functions properly.

(8) Be sure to deploy the air bag before disposing of the air

bag module or disposing of a vehicle equipped with an air
bag (Refer to GROUP 52B

P.52B-461

, Air Bag Module

Disposal Procedures).
