DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-51

DTC B2101: IG SW start POS.circuit low



DTC B2102: IG SW start POS.circuit high

CAUTION

• If the DTC B2101 or B2102 is set in KOS-ECU,

always diagnose the CAN bus lines.

• Before replacing the ECU, ensure that the

communication circuit is normal.

.

DTC SET CONDITION

If the actual ignition switch status is different from the

ignition switch status information received from
ETACS-ECU via CAN, KOS-ECU sets the diagnostic
trouble code No. B2101 or B2102.

ACA02750

34

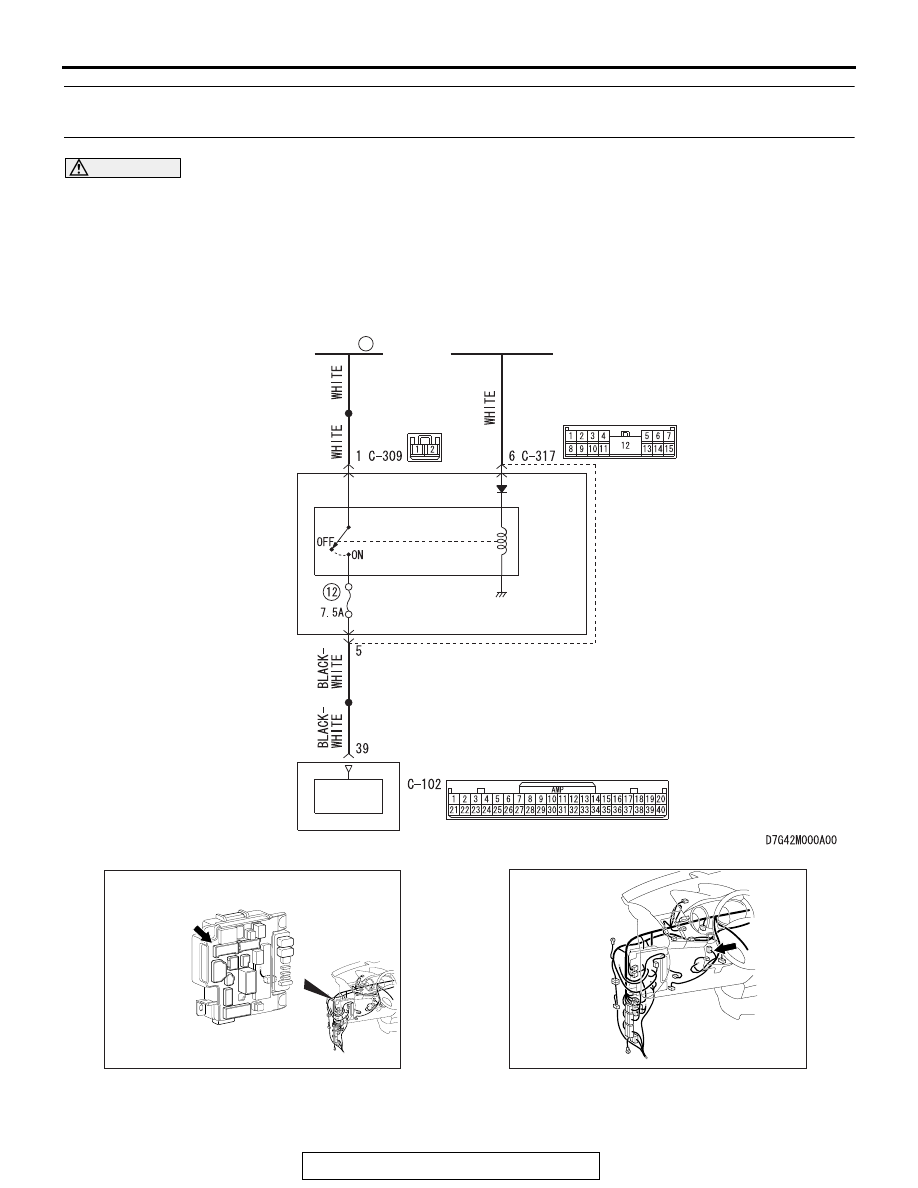

KOS-ECU Communication Circuit

ETACS-
ECU

IG1
RELAY

KOS-ECU

POWER
SUPPLY

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

AB

AC701632AD

Connector: C-317

AC702145

Connector: C-102

AB

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-52

.

TECHNICAL DESCRIPTION (COMMENT)

If the difference in the ignition switch level shown
below occurs consecutively 10 times with the ignition
switch being the ON position or START position,
when the CAN message (ignition switch position
information) from ETACS-ECU, KOS-ECU deter-
mines that there is a problem.

B2101

• Status of ignition switch: ON position

• Ignition switch position information: OFF

B2102

• Status of ignition switch: OFF position

• Ignition switch position information: ON

.

TROUBLESHOOTING HINTS

• Malfunction of CAN bus line

• Malfunction of the KOS-ECU

• Malfunction of the ignition switch

• Damaged wiring harness and connectors

• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool (MB991958), always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool (MB991958).

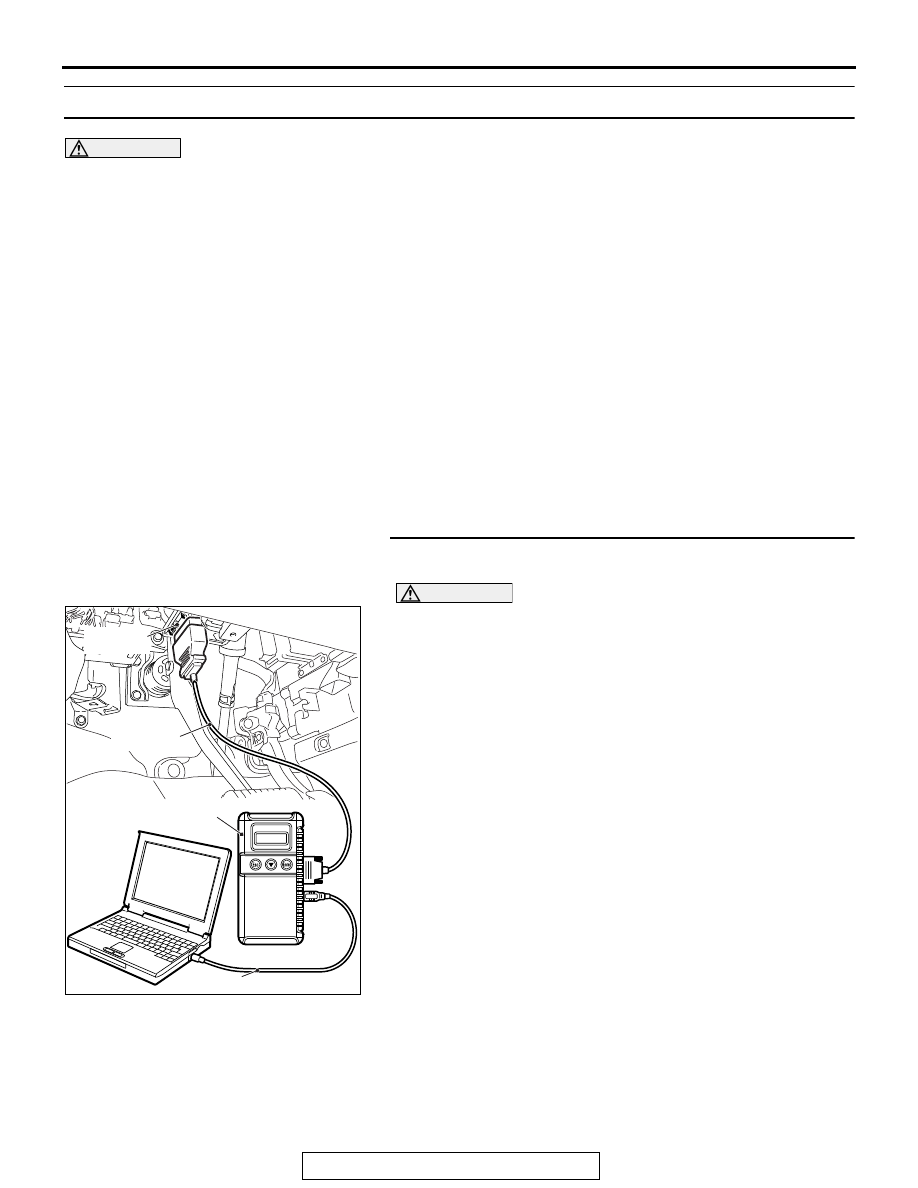

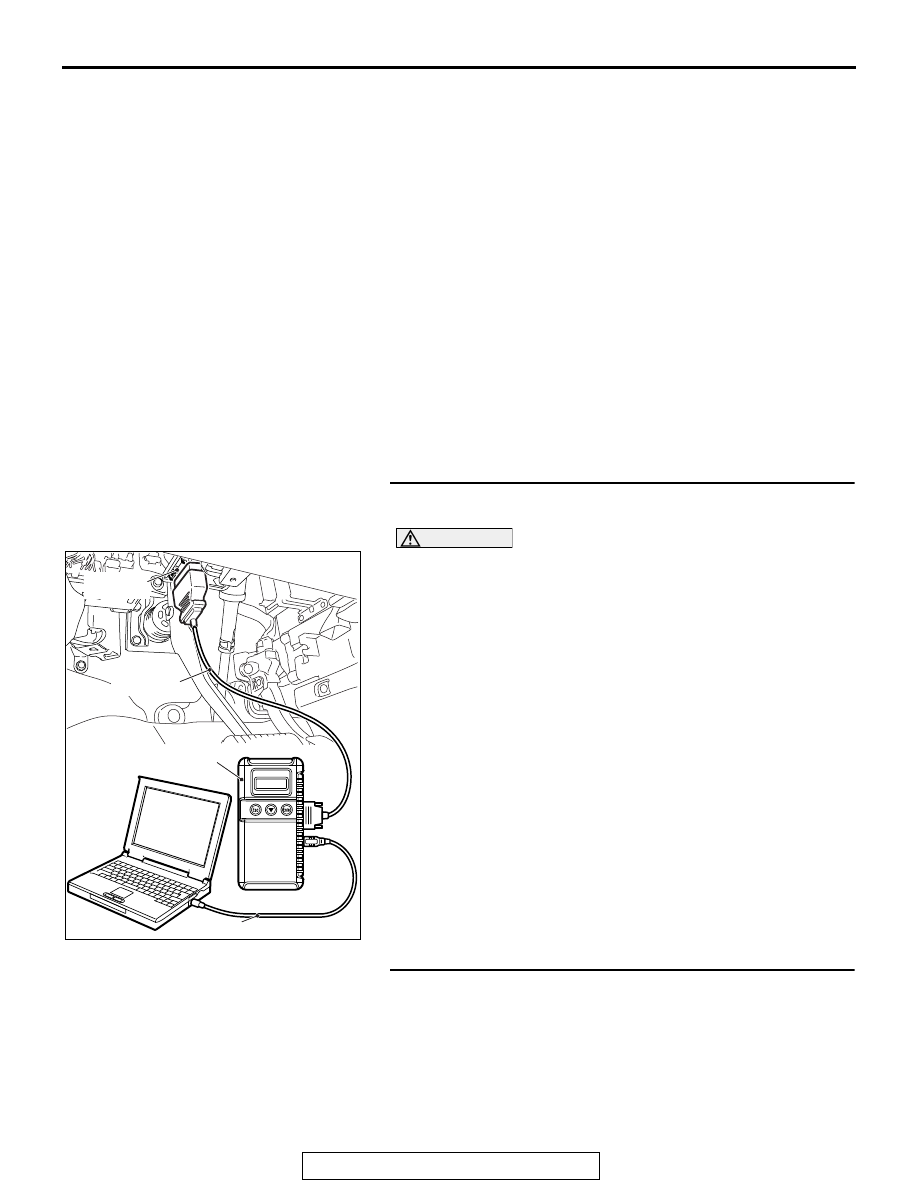

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Check ETACS-ECU connector C-317 and
KOS-ECU connector C-102 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is ETACS-ECU connector C-317 and KOS-ECU

connector C-102 in good condition?
YES : Go to Step 3.
NO :  Repair the defective connector.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-53

STEP 3. Check the wiring harness between KOS-ECU
connector C-102 (terminal No.39) and ETACS-ECU
connector C-317 (terminal No.5).

• Check the power supply line for open circuit.

Q: Is the wiring harness between KOS-ECU connector

C-102 (terminal No. 39) and ETACS-ECU connector
C-317 (terminal No. 5) in good condition?
YES : Go to Step 4.
NO :  Repair the wiring harness.

STEP 4. Using scan tool MB991958, check data list.
Use the ETACS-ECU data list to check the signals related to
the ignition voltage.
Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

Q: Does scan tool MB991958 display the item "IG voltage"

as normal condition?
YES : Go to Step 5.
NO :  Diagnose the ETACS-ECU. Refer to GROUP 54A,

Diagnosis

P.54A-733

.

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes. (Refer

to

P.42B-15

.)

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

Item No.

Item name

Normal
conditions

Item 254

IG voltage

Battery
positive
voltage

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-54

DTC B2204: Coding data mismatch

CAUTION

• When the DTC B2204 is set, be sure to diag-

nose the CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DTC SET CONDITION

If the vehicle information data transmitted from the
ETACS-ECU via the CAN bus lines is different from
that registered in the KOS-ECU, the KOS-ECU sets
DTC No. B2204.

.

TECHNICAL DESCRIPTION (COMMENT)

KOS-ECU determines that the abnormality is present
when the vehicle information registered in it does not
match the vehicle information on the CAN bus lines.

.

TROUBLESHOOTING HINTS

• Malfunction of KOS-ECU

• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool (MB991958), always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool (MB991958).
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
