RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-405

STEP 3. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check again if the DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

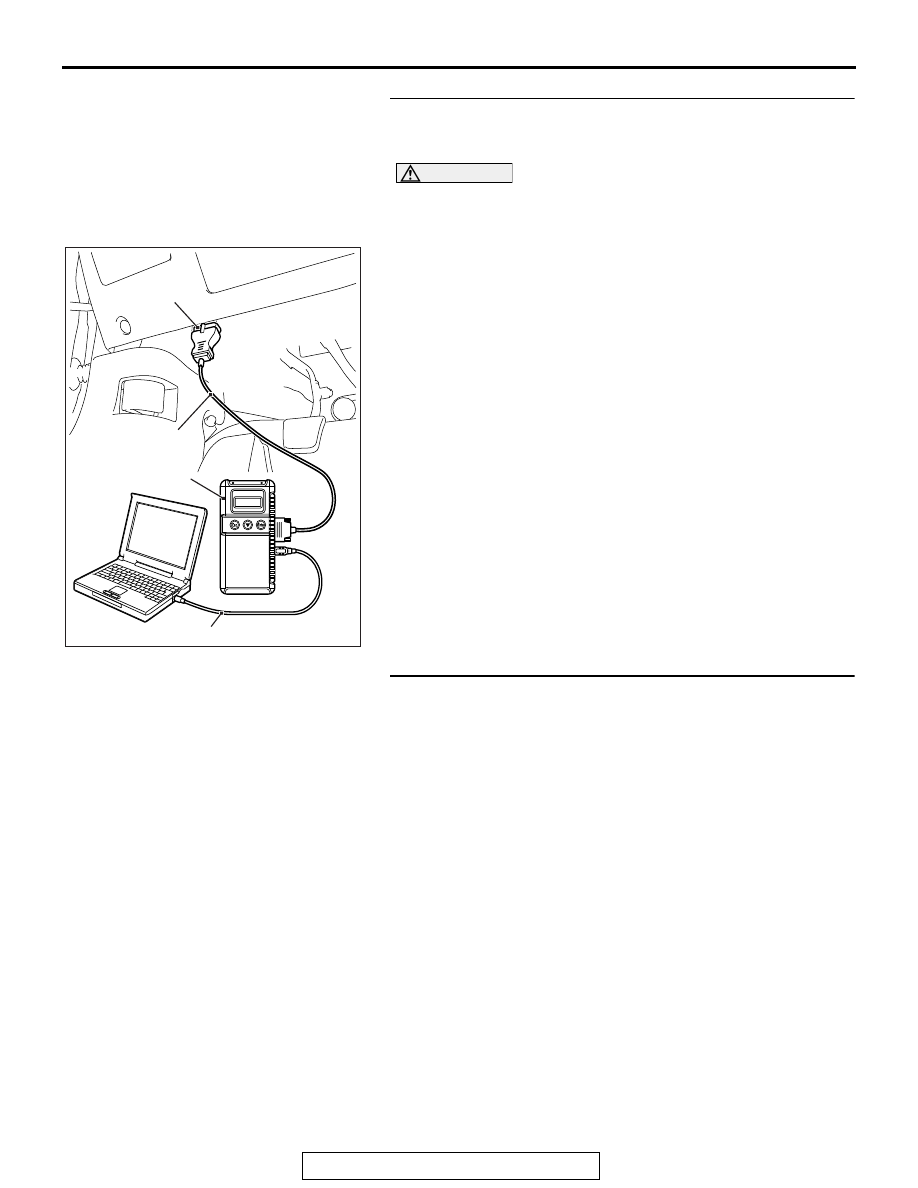

(1) Connect scan tool MB991958. Refer to "How to connect

scan tool

P.54A-331

".

(2) Turn the ignition switch to the "ON" position.
(3) Check for combination meter DTCs.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the combination meter (Refer to

P.54A-34

).

NO :  Go to Step 4.

STEP 4. Check center panel unit connector C-104 and
combination meter connector C-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are center panel unit connector C-104 and combination

meter connector C-03 in good condition?
YES :
Go to Step 5.
NO :  Repair the connector concerned.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-406

STEP 5. Check the wiring harness between center panel
unit connector C-104 (terminal 16) and combination meter
connector C-03 (terminal 23).

• Check the communication line for open circuit and short cir-

cuit.

NOTE: Also check A/C control panel connector C-119 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If iA/C control panel connector C-119 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between center panel unit

connector C-104 (terminal 16) and combination meter
connector C-03 (terminal 23) in good condition?
YES :
Go to Step 6.
NO :  Repair the wiring harness.

STEP 6. Check A/C control panel C-119 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Is A/C control panel C-119 in good condition?

YES : Go to Step 7.
NO :  Repair the connector concerned.

STEP 7. Check the wiring harness between A/C control
panel C-119 (terminal 8) and combination meter connector
C-03 (terminal 22).

• Check the wiring harness for open circuit and short circuit.

Q: Is the wiring harness between A/C control panel C-119

(terminal 8) and combination meter connector C-03
(terminal 22) in good condition?
YES :
Go to Step 8.
NO :  Repair the wiring harness.

STEP 8. Check the wiring harness between A/C control
panel C-119 (terminal 10) and center panel unit connector
C-104 (terminal 10).

• Check the wiring harness for open circuit and short circuit.

Q: Is the wiring harness between A/C control panel C-119

(terminal 10) and center panel unit connector C-104
(terminal 10) in good condition?
YES :
Go to Step 9.
NO :  Repair the wiring harness.

STEP 9. Check radio and CD player connector C-14 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is radio and CD player connector C-14 in good

condition?
YES :
Go to Step 10.
NO :  Repair the connector concerned.

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-407

STEP 10. Check the wiring harness between center panel
unit connector C-104 (terminal 4) and radio and CD player
connector C-14 (terminal 9).

• Check the communication line for open circuit and short cir-

cuit.

Q: Is the wiring harness between center panel unit

connector C-104 (terminal 4) and radio and CD player
connector C-14 (terminal 9) in good condition?
YES :
Go to Step 11.
NO :  Repair the wiring harness.

STEP 11. Replace the A/C control panel temporarily, and
check the trouble symptom.
Replace the A/C control panel temporarily, and check that the
audio illumination works normally.
Q: Is the check result normal?

YES : Replace the A/C control panel.
NO :  Go to Step 12.

STEP 12. Replace the center panel unit temporarily, and
check the trouble symptom.
Replace the center panel unit temporarily, and check that the
audio illumination works normally.
Q: Is the check result normal?

YES : Replace the center panel unit.
NO :  Replace the radio and CD player.

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-408

INSPECTION PROCEDURE 6: The sound of external input are not played. <Vehicles with audio
adapter)>

CAUTION

Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and
the communication circuit are normal.

.

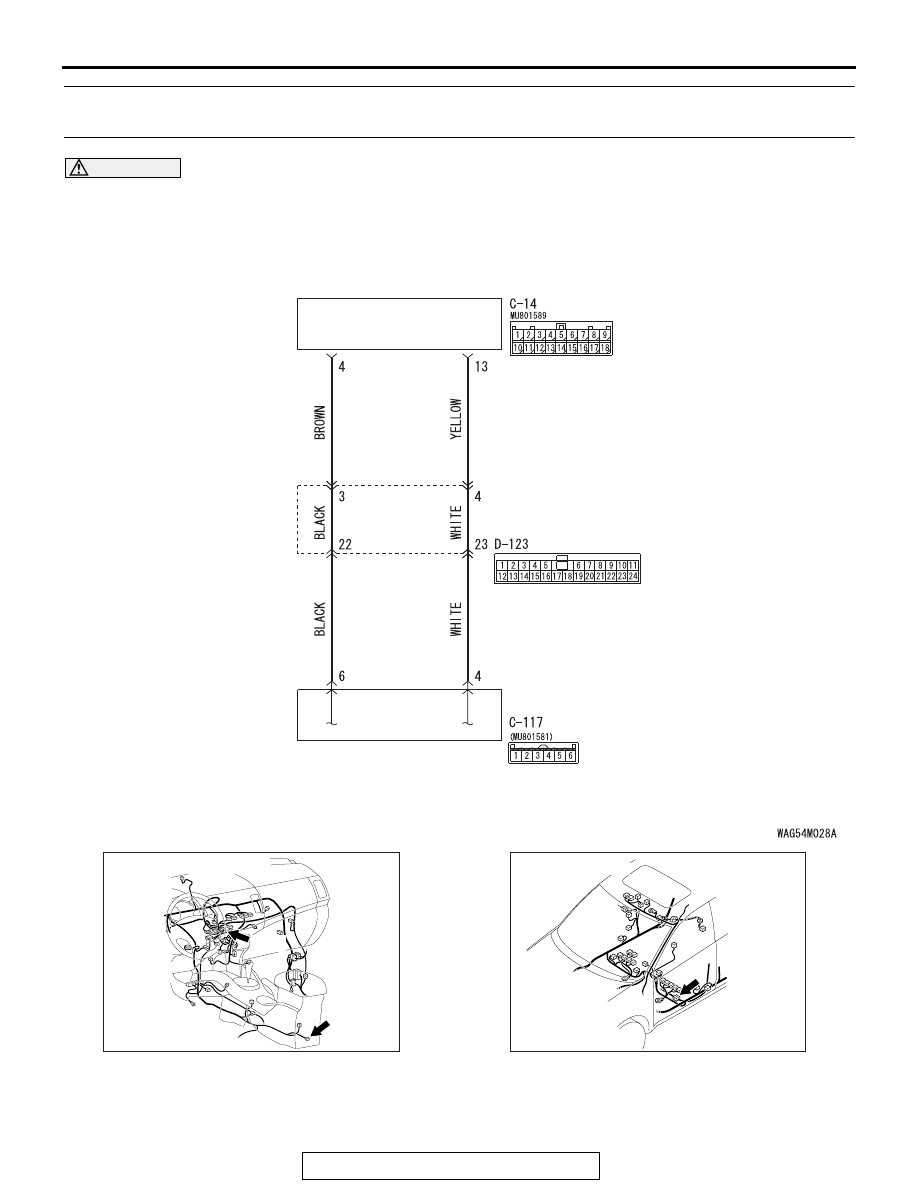

Audio Adapter Communication Circuit

AUDIO AND
VIDEO ADAPTER

RADIO AND CD PLAYER

AC703148 BC

Connector: C-117, C-14

C-117 (B)

C-14

AC702816 AL

Connector: D-123
