MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-103

26

Motor for air outside/inside
air circulation switching
damper

−

−

27

Motor for air outside/inside
air circulation switching
damper

−

−

28

Air mix damper motor

−

−

29

Motor power supply

−

−

30

Air outlet changeover
damper motor

−

−

31

Air outlet changeover
damper motor

−

−

32

Air outlet changeover
damper motor

−

−

33

Air outlet changeover
damper motor

−

−

34

Air mix damper motor

−

−

35

Air mix damper motor

−

−

36

Air mix damper motor

−

−

Terminal
No.

Check items

Check conditions

Normal conditions

SPECIAL TOOLS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-104

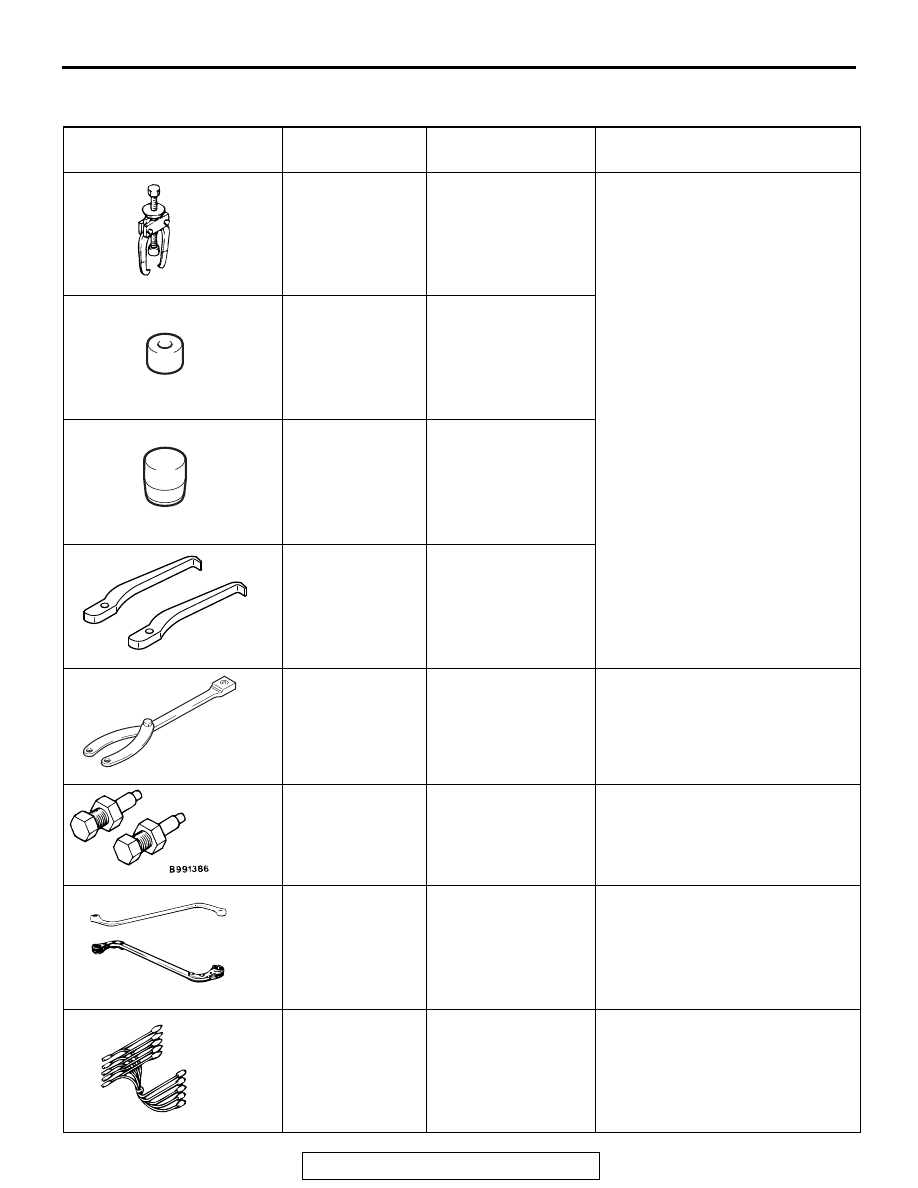

SPECIAL TOOLS

M1552000600839

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB990810
Side bearing
puller

A/C compressor rotor removal and
installation

MB992623
Guide

MB992624
Pusher

MD999566
Claw

MB991367
Special spanner

MB991367-01

Armature mounting nut of
compressor removal and
installation

MB991386 Pin

MIT217213

Armature mounting nut of
compressor removal and
installation

MB990900 or
MB991164 Door
adjusting wrench

MB990900-01

Removal and installation of the
heater unit and front deck
crossmember assembly

MB991658
Test harness set

Tool not available

Inspection of A/C pressure sensor

MB990810

MB992623

MB992624

B991367

MB990900

MB991658

SPECIAL TOOLS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-105

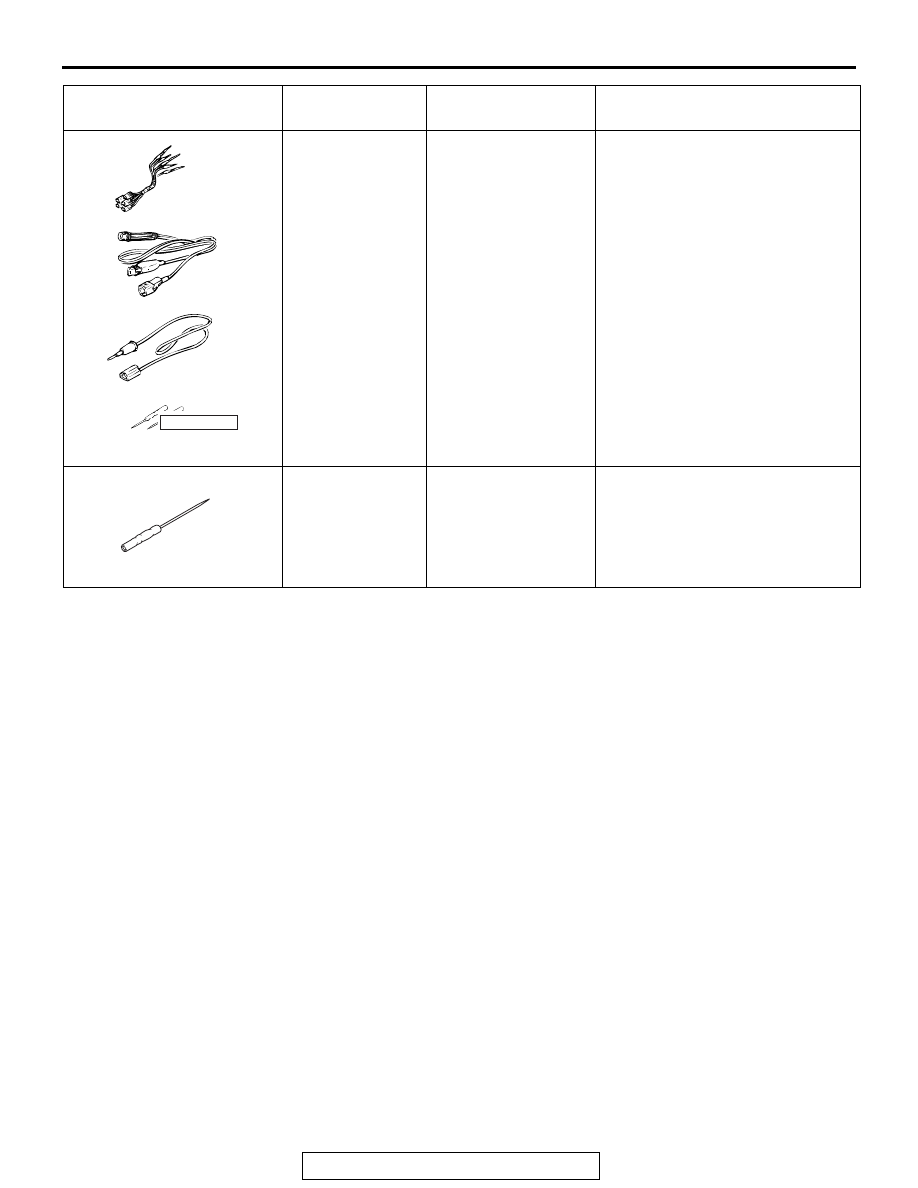

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adaptor

D: Probe

General service tools Making voltage and resistance

measurement during
troubleshooting

A: Connector pin contact pressure

inspection

B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester connection

MB992006
Extra fine probe

General service tool

Making voltage and resistance
measurement during
troubleshooting

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991223

A

D

C

B

AZ

DO NOT USE

MB992006

SPECIAL TOOLS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-106

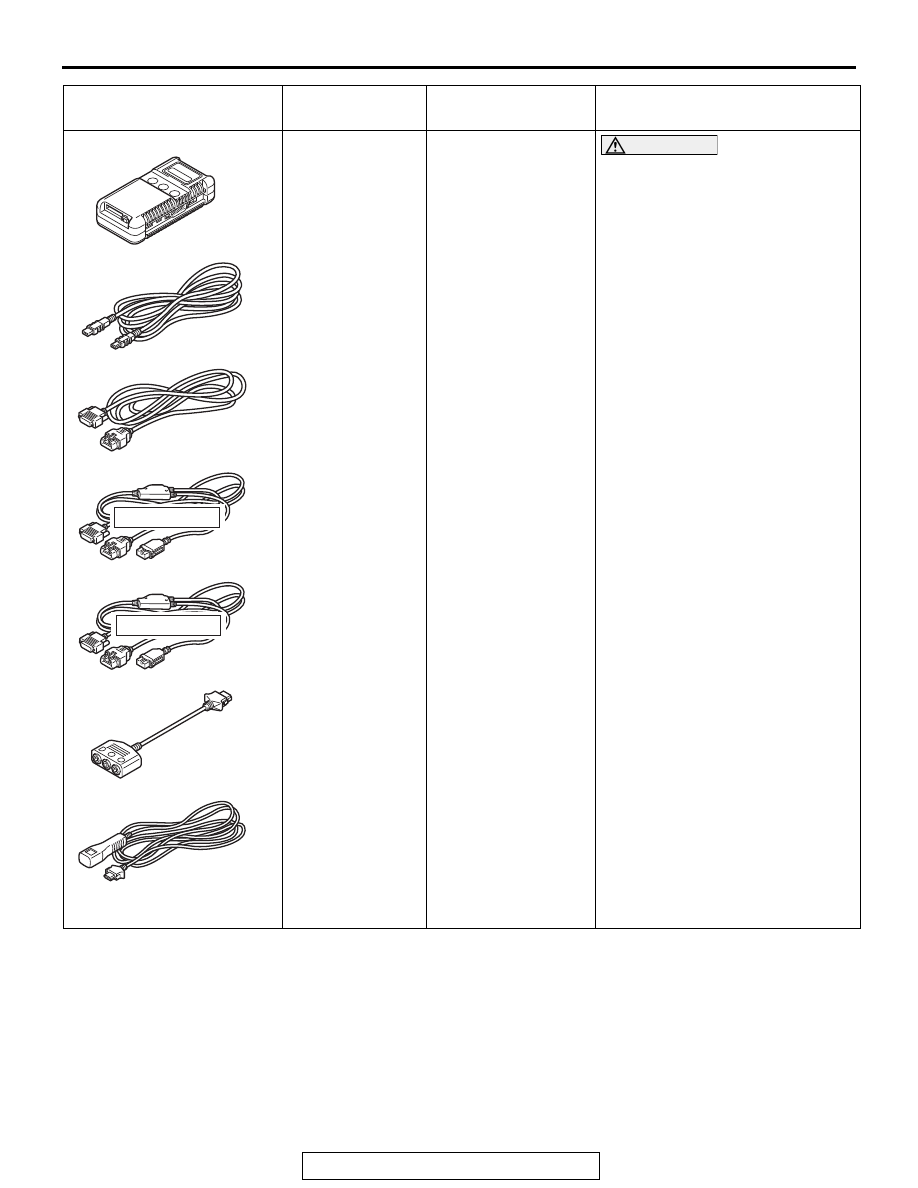

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

M.U.T.-III Sub
Assembly

A: Vehicle

communication
interface
(V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

E: M.U.T.-III main

harness C (for
Chrysler
models only)

F: M.U.T.-III

measurement
adapter

G: M.U.T.-III

Trigger
Harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Checking diagnostic trouble codes

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE
