HORN

TSB Revision

CHASSIS ELECTRICAL

54A-313

INSTALLATION SERVICE POINT

.

>>A<< HORN (FOR THEFT-ALARM)/HORN
BRACKET/HORN (LO)/HORN (HI) INSTALLATION

Use the earth bolts as the mounting bolts for horn (for
theft-alarm), horn bracket, horn (LO) and horn (HI). The earth
bolts have "E" mark on the bolt heads.

INSPECTION

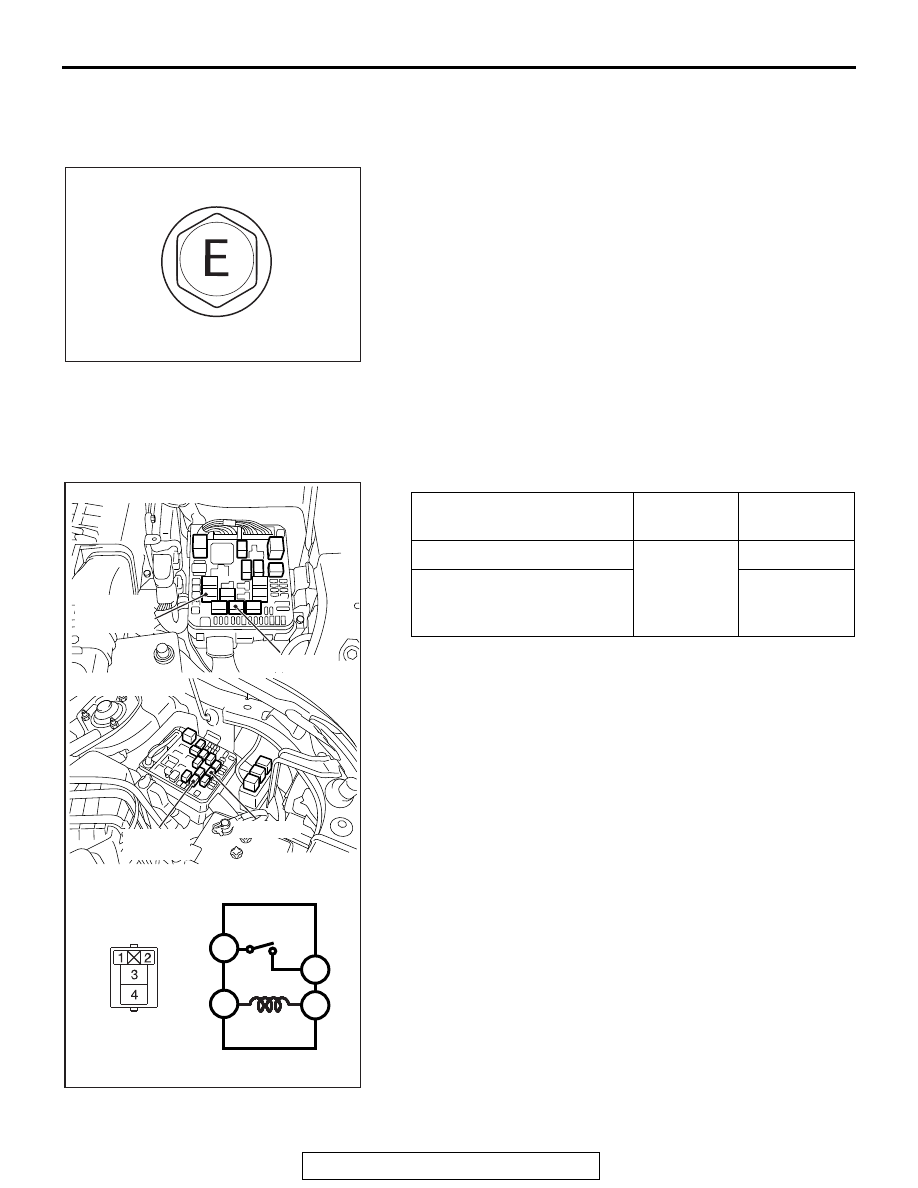

HORN RELAY CHECK

M1542100400325

AC805322

Battery voltage

Tester
connection

Specified
condition

Not energized

3

− 4

No continuity

With current supply [terminal
2 (+), terminal 1 (

−)]

Continuity
exists (2 ohms
or less)

2

3

4

1

AC709347

<2.4 L Engine>

<3.0L Engine>

Horn relay

Theft-alarm
horn relay

Horn relay

Theft-alarm
horn relay

1

2

3

4

ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54A-314

ACCESSORY SOCKET

GENERAL INFORMATION

M1542300500229

The plug-in type accessory socket has been installed
for the convenient use of accessories.

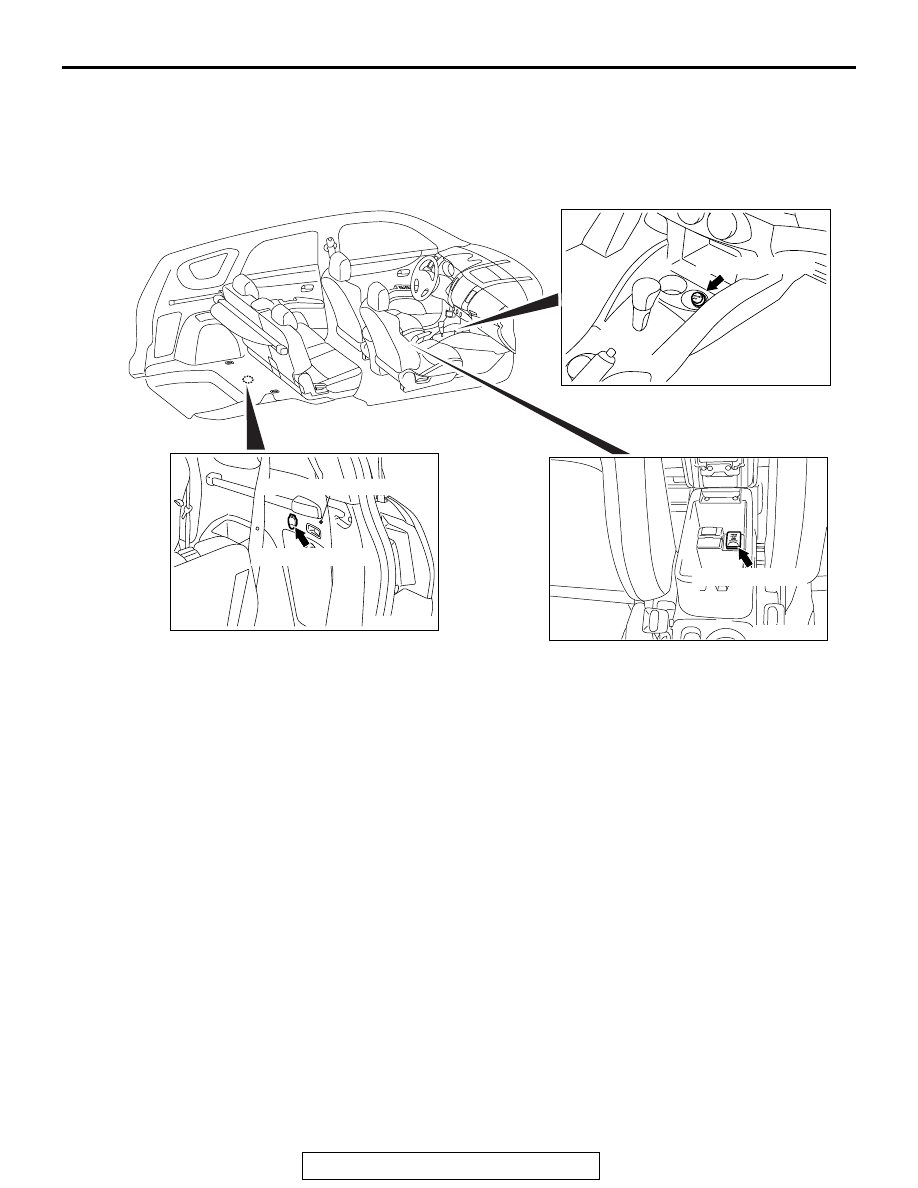

• Accessory sockets have been added to the front

floor console. if so equipped rear floor console
<standard: 3.0L engine-High, Option: except 3.0L
engine-High> and lower quarter trim (RH).

• The maximum load is 120 W when a single

accessory socket is used. When three accessory
sockets are used simultaneously, the combined
maximum load for three sockets is 120 W.

AC900187

AC809502

AF

Lower quarter trim (RH)

Accessory socket

Accessory socket

Accessory socket

ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54A-315

REMOVAL AND INSTALLATION

M1542300200262

<REAR FLOOR CONSOLE>

<FRONT FLOOR CONSOLE>

AC506901AC

2

1

3

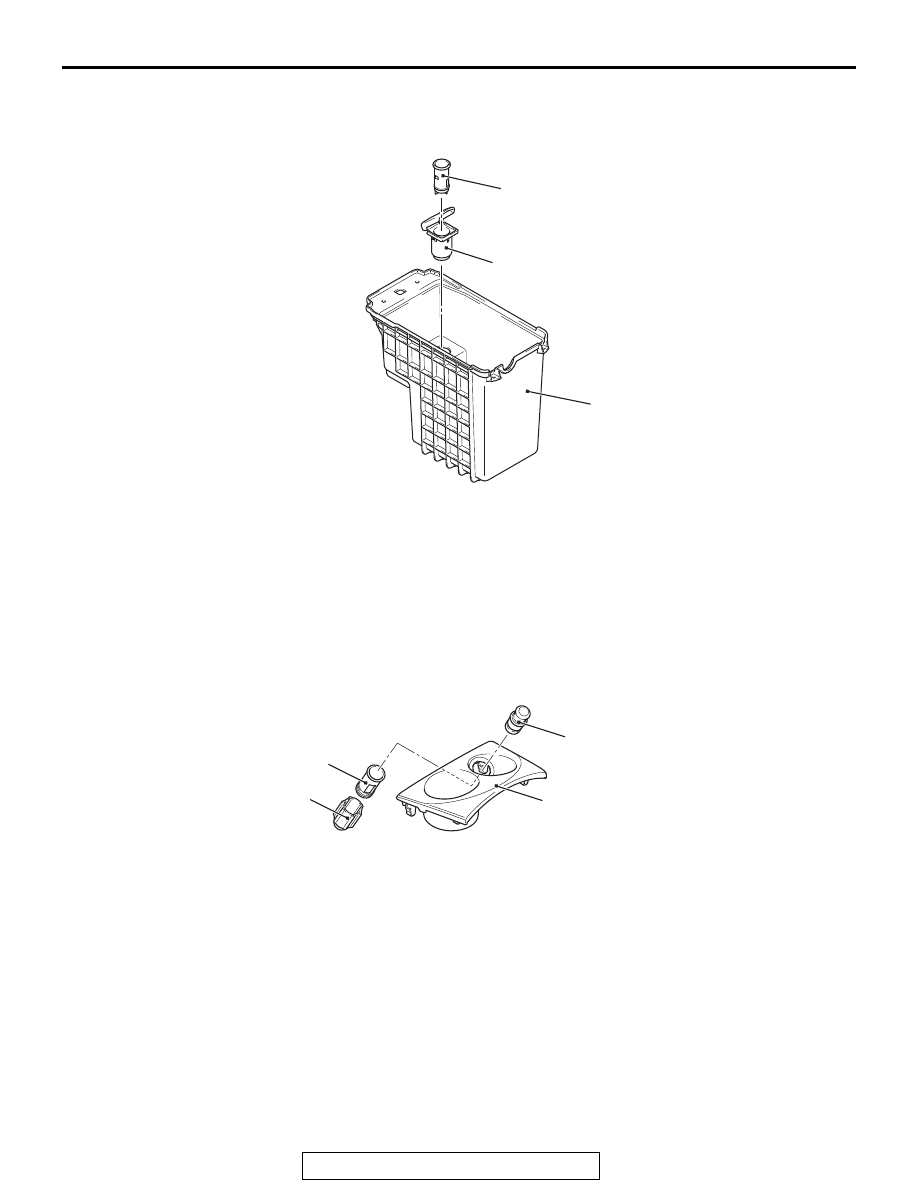

Removal Steps

1.

Rear floor console box (Refer to
GROUP 52A, Rear Floor Console
Assembly

P.52A-8

.)

 <<A >>

2.

Accessory socket

3.

Accessory socket cover

Removal Steps (Continued)

AC605509AH

2

3

4

1

Removal Steps

1

Front floor console panel (Refer to
GROUP 52A, Front Floor Console
Assembly

P.52A-7

.)

2.

Accessory socket case

3.

Accessory socket cap

4.

Accessory socket

Removal Steps (Continued)

ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54A-316

<LOWER QUARTER TRIM (RH)>

REMOVAL SERVICE POINT

.

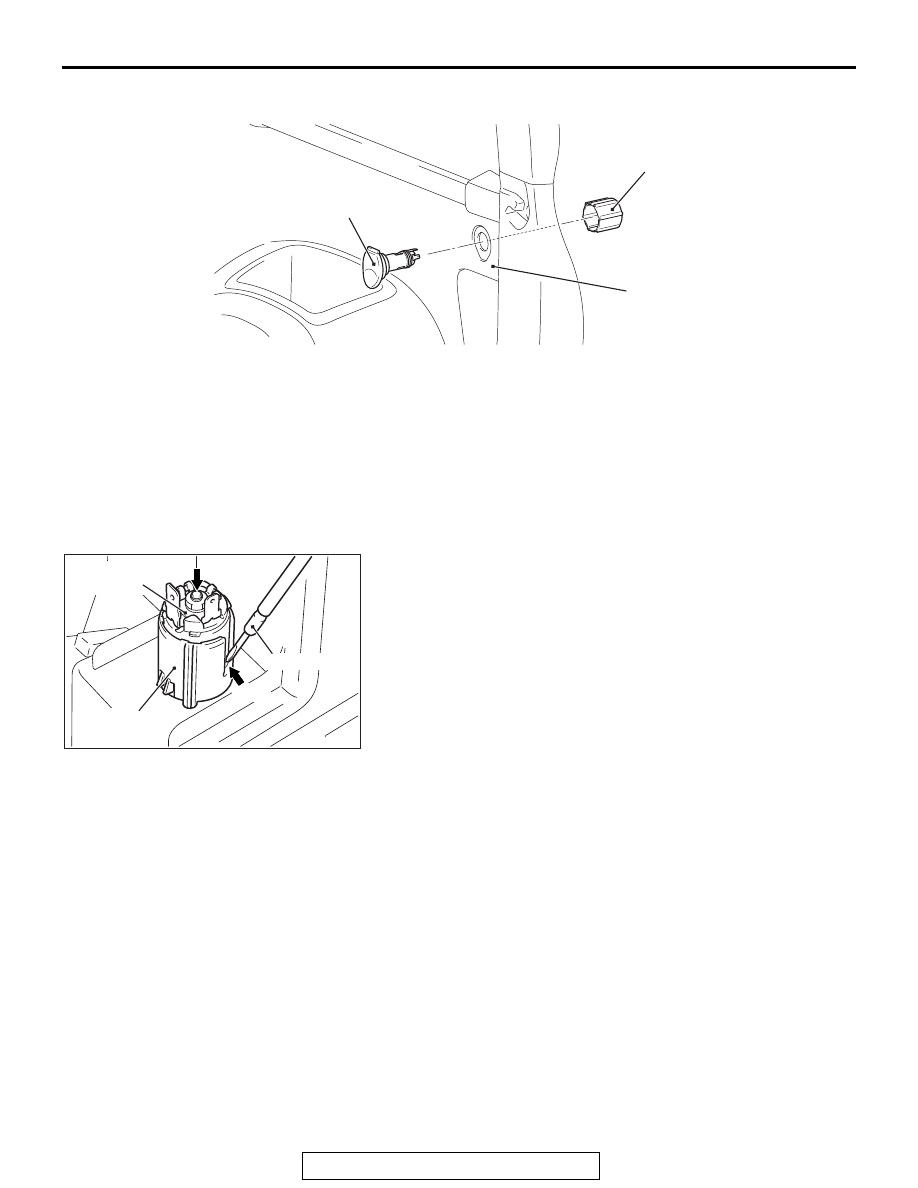

 <<A>> ACCESSORY SOCKET REMOVAL

Lift the accessory socket cover tab, then remove by pressing
down the accessory socket.

AC506903AC

2

1

3

Removal Steps

1.

Lower quarter trim (RH) (Refer to
GROUP 52A, Interior Trim

P.52A-10

.)

2.

Accessory socket case

3.

Accessory socket

Removal Steps (Continued)

AC506902

Screwdriver (-)

AC

Claw

Push

Accessory
socket cover

Accessory
socket
