HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-141

STEP 2. Check headlight assembly (RH) connector A-56,
side turn-signal light (RH) connector A-60 <fender type>,
door mirror assembly (RH) connector E-28 <door mirror
type>, rear combination light (RH) connector D-09 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are headlight assembly (RH) connector A-56, side

turn-signal light (RH) connector A-60 <fender type>,
door mirror assembly (RH) connector E-28 <door mirror
type>, rear combination light (RH) connector D-09 in
good condition?
YES : Go to Step 3.
NO  :  Repair the damaged parts.

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-142

STEP 3. Resistance measurement at headlight assembly
(RH) connector A-56, side turn-signal light (RH) connector
A-60 <fender type>, door mirror assembly (RH) connector
E-28 <door mirror type>, rear combination light (RH)
connector D-09.

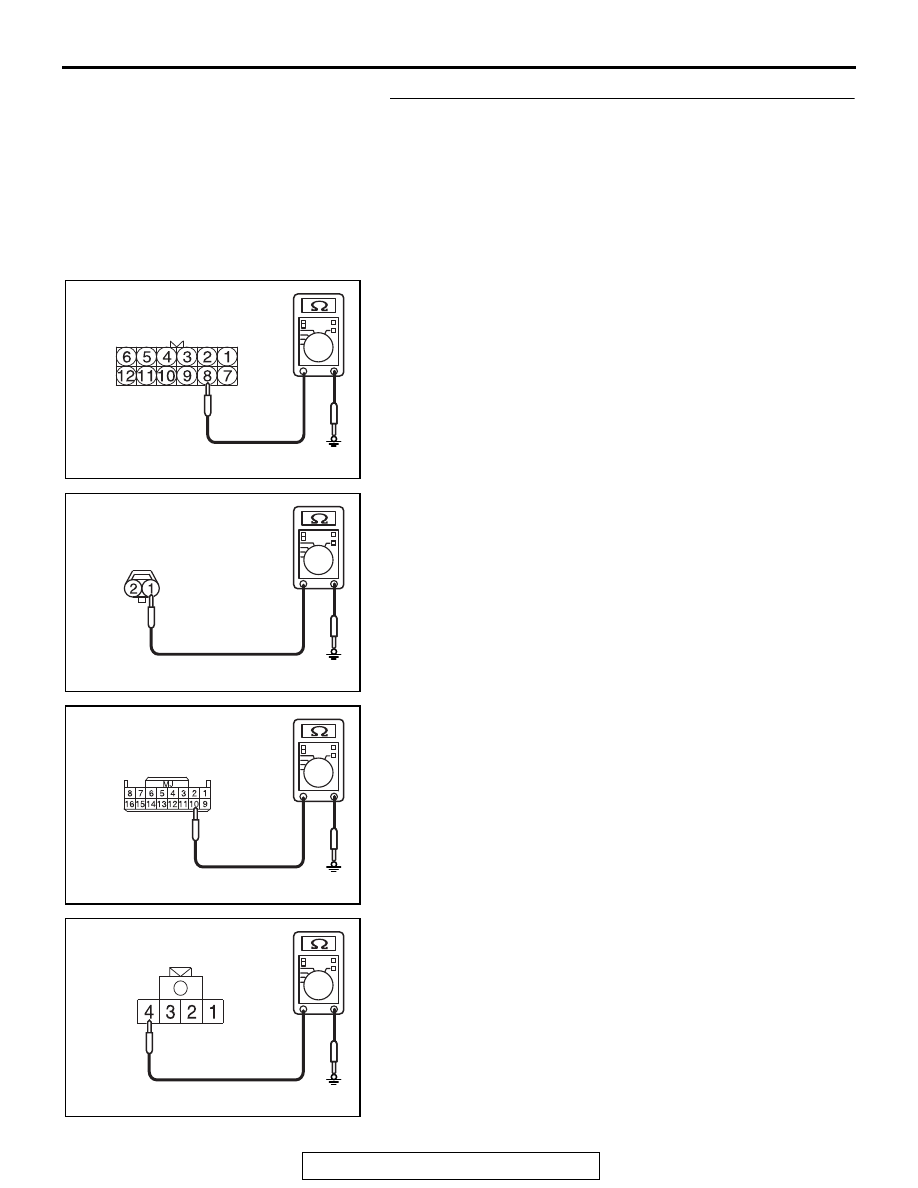

(1) Disconnect the connector, and measure at the wiring

harness side.

(2) Measure the resistance between the connector terminal of

light which does not illuminate and body ground.

•

Measure the resistance between the headlight assem-
bly (RH) connector A-56 (terminal No. 6) and body
ground.

•

Measure the resistance between the side turn-signal
light (RH) connector A-60 (terminal No. 1) and body
ground.

•

Measure the resistance between door mirror assembly
(RH) connector E-28 (terminal No. 10) and body ground.
<door mirror type>

•

Measure the resistance between the rear combination
light (RH) connector D-09 (terminal No. 4) and body
ground.

The measured value should be continuity exists (2
Ω or less).

Q: Does the measured resistance value correspond with

this range?
YES : Go to Step 5.
NO :  Go to Step 4.

AC702818

Connector A-56
(Harness side)

AH

AC702818

Connector A-60
(Harness side)

CX

AC702818

Connector E-28
(Harness side)

DW

AC702818

Connector D-09
(Harness side)

AJ

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-143

STEP 4. Check the wiring harness between headlight
assembly (RH) connector A-56 (terminal No. 6), side
turn-signal light (RH) connector A-60 (terminal No. 1)
<fender type>, door mirror assembly (RH) connector E-28
(terminal No. 10) <door mirror type>, rear combination
light (LH) connector D-09 (terminal No. 4) and ground.
Check the ground wires for open circuit.
NOTE: Also check intermediate connector C-112 <door mirror
type> for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector C-112
<door mirror type> is damaged, repair or replace the connector
as described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the wiring harness between headlight assembly

(RH) connector A-56 (terminal No. 6), side turn-signal
light (RH) connector A-60 (terminal No. 1) <fender type>,
door mirror assembly (RH) connector E-28 (terminal No.
10) <door mirror type>, rear combination light (LH)
connector D-09 (terminal No. 4) and ground in good
condition?
YES : Go to Step 7.
NO :  Repair the wiring harness.

STEP 5. Check ETACS-ECU connectors C-304, C-311 and
C-317 <door mirror type> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are ETACS-ECU connectors C-304, C-311 and C-317 in

good condition?
YES : Go to Step 6.
NO :  Repair the damaged parts.

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-144

STEP 6. Check the wiring harness between headlight
assembly (RH) connector A-56 (terminal No. 3), side
turn-signal light (RH) connector A-60 (terminal No. 2)
<fender type>, door mirror assembly (RH) connector E-28
(terminal No. 2) <door mirror type>, rear combination light
(RH) connector D-09 (terminal No. 3) and ETACS-ECU
connector C-304 (terminal No. 16), ETACS-ECU connector
C-311 (terminal No. 19) or ETACS-ECU connector C-317
(terminal No. 11).
Check the communication line for open circuit.
NOTE: Also check intermediate connector C-113 <door mirror
type> for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector C-113
<door mirror type> is damaged, repair or replace the connector
as described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Are the wiring harness between headlight assembly

(RH) connector A-56 (terminal No. 3), side turn-signal
light (RH) connector A-60 (terminal No. 2) <fender type>,
door mirror assembly (RH) connector E-28 (terminal No.
2) <door mirror type>, rear combination light (RH)
connector D-09 (terminal No. 3) and ETACS-ECU
connector C-304 (terminal No. 16), ETACS-ECU
connector C-311 (terminal No. 19) or ETACS-ECU
connector C-317 (terminal No. 11) in good condition?
YES : Go to Step 7.
NO :  Repair the wiring harness.
