Mitsubishi Outlander GS45X. Manual - part 29





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-113

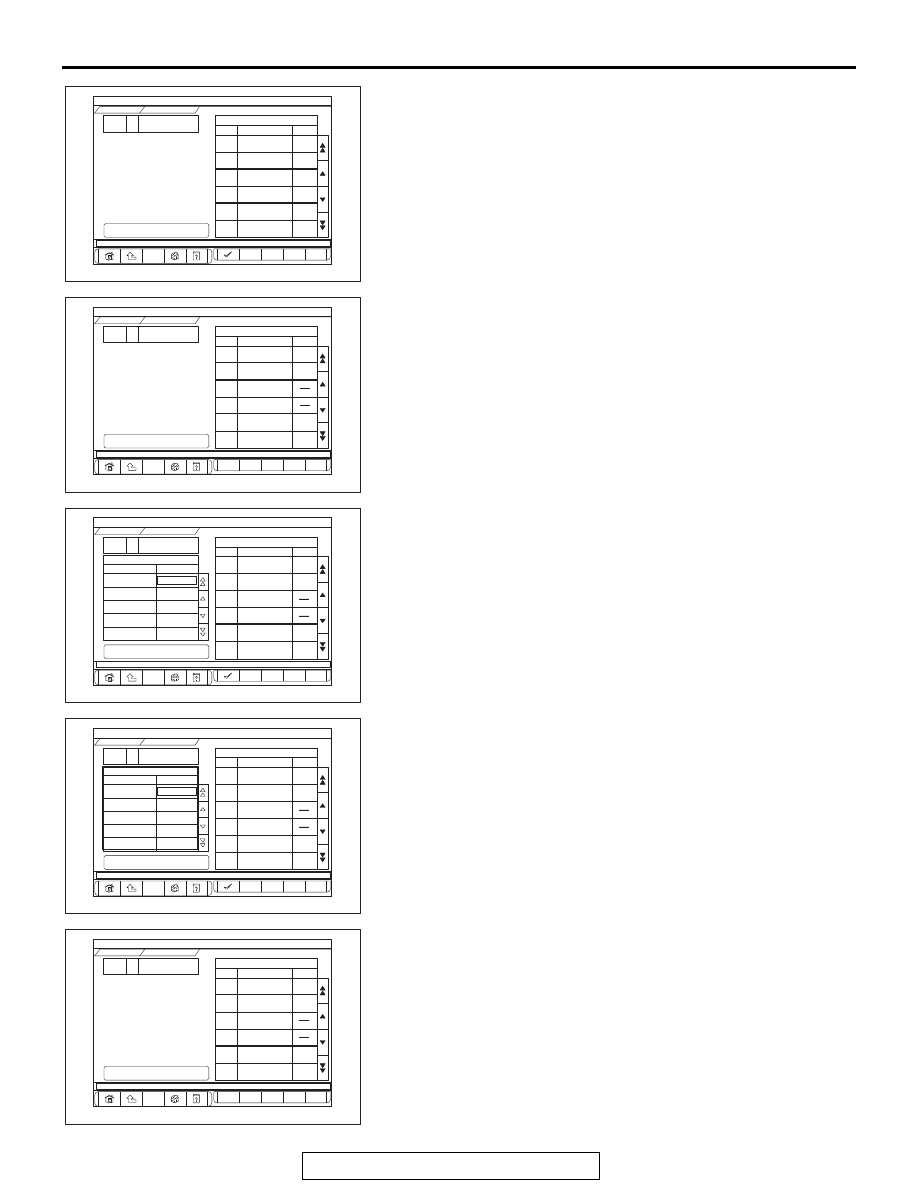

1. On the "Service Reminder" screen, select "4 Extra reminder

cancel."
NOTE: The screen indicates that "3000 mile" and "2 month"
have been set to the temporary warning period (Nos. 4 and
5 in the data list).

2. Press the "OK" button.

3. The temporary warning period is cancelled.

NOTE: The screen indicates that the temporary warning
period (Nos. 4 and 5 in the data list) has been cancelled.

.

5. PERIODIC REMINDER SCHEDULE SET

The service reminder schedule can be changed.
NOTE: In addition to the operation of the scan tool MB991958,
the schedule can be changed by operating the meter informa-
tion switch on the combination meter. Refer to .

1. On the "Service Reminder" screen, select "5 Periodic

reminder schedule set."
NOTE: The screen indicates that the current schedule (No.
7 in the data list) has been set to "NAS 10."

2. Set the schedule to be changed from "Set value."
3. Press the "OK" button.

4. The schedule is changed.

NOTE: The screen indicates that the current schedule (No.
7 in the data list) has been changed to "NAS 11."

.

6. INTEGRATED VALUE ADJUSTMENT

At the combination meter replacement or for the vehicle with its
battery being removed for a long period (15 days or more), this
adjustment is used to reset the mileage and elapsed days for
check warning.

AC602558

7500 mile

6 month

3000 mile

2 month

1

4

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Extra reminder cancel

Press the OK button to execute.

AP

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602558

7500 mile

6 month

1

4

2

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Extra reminder cancel

Check the result.

AQ

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602556

-Select the value-

Schedule Spec.

7500 mile

6 month

1

5

2

NAS 10

Current Schedule

7

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Name

Value

Set value

Periodic reminder
schedule set

Select the value and press the OK button.

BT

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602556

NAS 11

Schedule Spec.

7500 mile

6 month

1

5

2

NAS 10

Current Schedule

7

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Name

Value

Set value

Periodic reminder
schedule set

Select the value and press the OK button.

BU

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602558

3750 mile

3 month

1

5

2

NAS 11

Current Schedule

7

4

5

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A6

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Periodic reminder
schedule set

Check the result.

CO

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-114

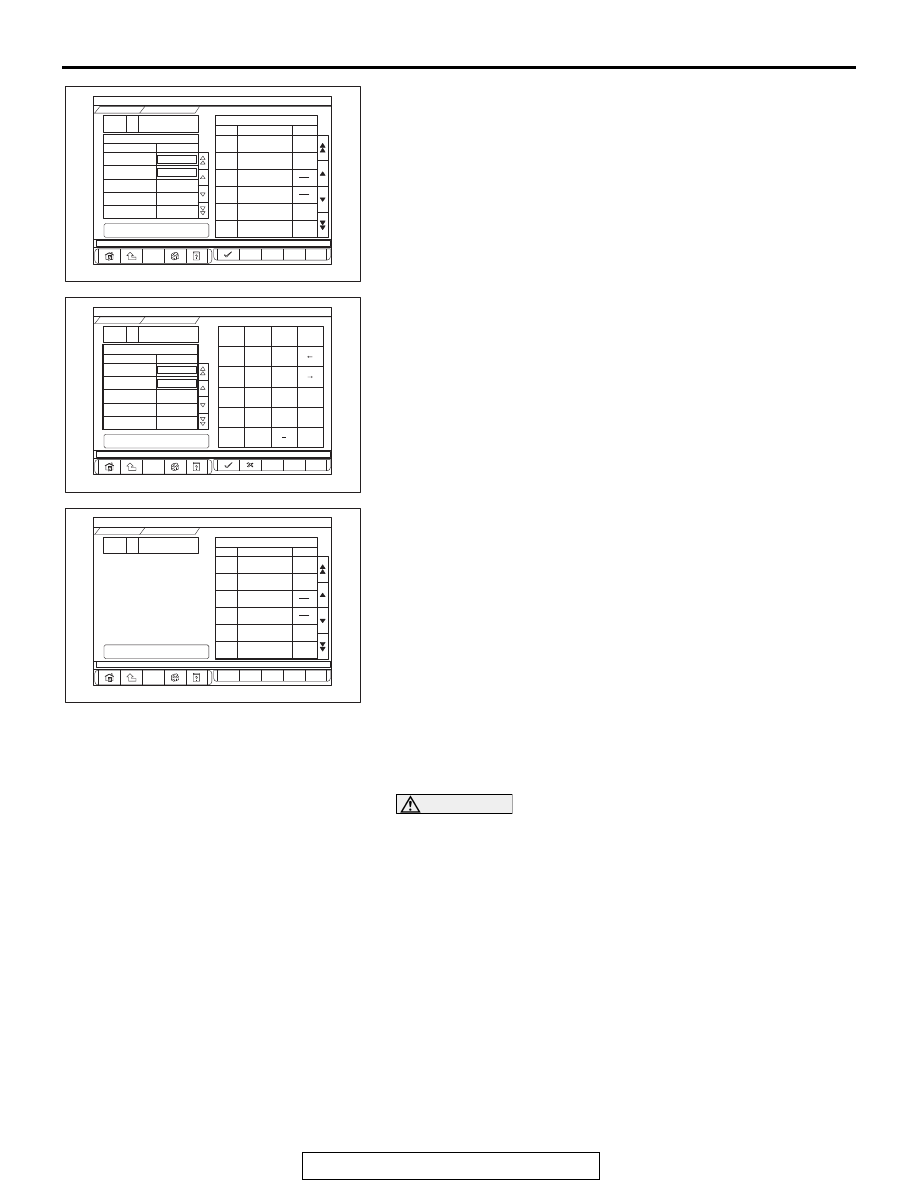

1. On the "Service Reminder" screen, select "6 Integrated

value adjustment."
NOTE: The screen indicates that the current mileage and
elapsed days (Nos. 8 and 9 in the data list) are "26 mile" and
"0 day."

2. To "Set value," input the mileage and elapsed days to be

reset.
NOTE: Always input both the mileage and elapsed days.

3. Press the "OK" button.

4. The mileage and elapsed days are changed. The

combination meter automatically recalculates the distance
and days to the nearest next check from the settings of
mileage and elapsed days for check warning, and then
displays them in "Data List."
NOTE:

.

•

The screen indicates that the current mileage and
elapsed days (Nos. 8 and 9 in the data list) have been
changed to "100 mile" and "30 day."

•

Set the elapsed days for check warning to "0 day" by the
above resetting method, thereby the timer is reset indi-
rectly.

.

7. OPTIONAL INT SCHEDULE SETTING

CAUTION

If the current schedule is set to the "Optional INT" by exe-
cuting "5. Periodic reminder schedule set," the "set value"
cannot be input. Therefore, set it to the schedule other
than the "Optional INT" once, and then execute "7.
Optional INT schedule setting."
In addition to the existing schedule, the optional service
reminder schedule can be set.

AC602556

-Input the value-

-Input the value-

Running Distance

Elapsed Days

7500 mile

6 month

26 mile

0 day

1

6

2

4

5

8

9

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Name

Value

Set value

Integrated value
adjustment

Input the value to both items, and press the
OK button.

AP

Integrated mileage for
reminder

Integrated days for
reminder

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

AC602557

30

100

6

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A5

Meter

Selected

Item

Special Function

Service Reminder

Name

Value

0

1

2

3

Back

Space

Clear

Tab

6

5

4

7

8

9

Set value

Range: 0-32767, Unit: day,

Input the value to both items, and press the
OK button.

AF

Running Distance

Elapsed Days

Integrated value
adjustment

AC602558

7400 mile

5 month

100 mile

30 day

1

6

2

4

5

Integrated mileage for
reminder

Integrated days for
reminder

8

9

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Integrated value
adjustment

Check the result.

BA

Mileage until reminder

Months until reminder

Mileage until Extra
reminder

Months until Extra
reminder

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-115

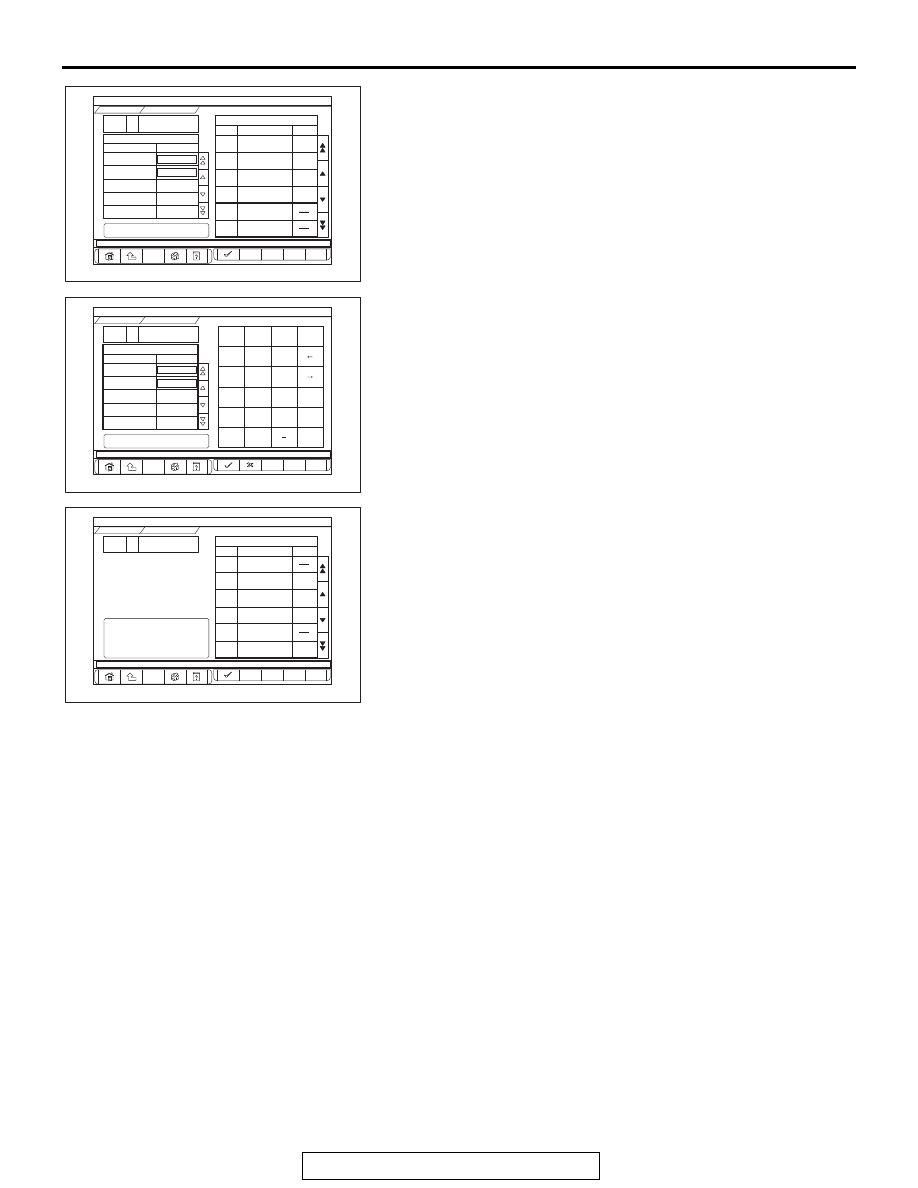

1. On the "Service Reminder" screen, select "7 Optional INT

schedule setting."
NOTE: The screen indicates that the optional schedule
(Nos. 12 and 13 in the data list) has not been set.

2. Set the optional schedule (distance or month) of the "Set

value."
NOTE: Either input of distance or month can execute the
setting.

3. Press the "OK" button.

4. The optional schedule is set. The set schedule becomes

effective by executing "5 Periodic reminder schedule set"
and setting the schedule to "Optional INT."
NOTE: The screen indicates that "2 month" has been added
to the optional schedule (No. 13 in the data list). (The dis-
tance of No. 12 in the data list has not been set).

.

AC602556

-Input the value-

-Input the value-

Optional INT for mileage

Optional INT for month

7500 mile

6 month

26 mile

0 day

Optional interval for
mileage

Optional interval for
month

1

7

2

12

13

8

9

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Name

Value

Set value

Optional INT schedule
setting

AK

Integrated mileage for
reminder

Integrated days for
reminder

Input the value for the item that you want to
set up, and press the OK button.

Mileage until reminder

Months until reminder

AC602557

2

7

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A5

Meter

Selected

Item

Special Function

Service Reminder

Name

Value

0

1

2

3

Back

Space

Clear

Tab

6

5

4

7

8

9

Set value

Range: 0-254, Unit: month,

AG

Optional INT schedule
setting

-Input the value-

Optional INT for mileage

Optional INT for month

Input the value for the item that you want to
set up, and press the OK button.

AC604401

2 month

2 month

26 mile

0 day

Optional interval for
mileage

Optional interval for
month

1

7

2

12

13

8

9

DBA-CW5WXTHHZ1 2006MY - Service Reminder - 4014308A4

Meter

Selected

Item

Special Function

Name

Value

No.

Service Reminder

Data List

Optional INT schedule
setting

AC

Integrated mileage for
reminder

Integrated days for
reminder

Check the result.
Please set up "Optional INT" in "Periodic
inspection schedule set" function.
When you start the service reminder at this
interval setting.

Mileage until reminder

Months until reminder

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-116

Relationship between the elapsed months and the elapsed days which are used by
the service reminder function

NOTE:

.

•

When the number of elapsed days is 0 to 29, the
number of elapsed months is 0.

•

The combination meter performs calculation
using 365.25 days for one year and 30.4375 days
for one month.

HOW TO SET BY SPECIAL OPERATION
OF SWITCH

By operating the meter information switch of the
combination meter, the service reminder warning
cancellation and the schedule setting can be per-
formed.

.

HOW TO CANCEL THE SERVICE
REMINDER WARNING

CAUTION

• Be careful not to execute the service reminder

warning cancellation by operating the switch
again after erasing the service reminder warn-
ing indicator which is currently output,
because the next warning period will be can-
celled.

• If the next warning period is cancelled by mis-

take, the cancelled warning period can be
restored by setting a schedule different from
the current one once, and then returning it to
the previous schedule.

1. Turn the ignition switch to the "OFF" position.

2. By operating the meter information switch, the

warning period is displayed on the multi
information display.

3. Press the meter information switch once for 1.2

seconds or longer.

4. The service reminder indicator flashes.
5. While the service reminder indicator flashes,

press the meter information switch once for less
than 1.2 seconds.

6. The service reminder indicator is turned ON, and

"CLEAR" is displayed on the multi information
display for 3 seconds.

7. After "CLEAR" is displayed for 3 seconds, the

warning period to the next time is displayed.

.

HOW TO SET THE SCHEDULE

1. Turn the ignition switch to the "OFF" position.
2. By operating the meter information switch, the

warning period is displayed on the multi
information display.

3. Press the meter information switch once for 1.2

seconds or longer.

4. The service reminder indicator flashes.
5. While the service reminder indicator flashes,

press the meter information switch for 1.2
seconds or longer and 3 times consecutively.

6. The service reminder indicator is turned ON, and

the current schedule is displayed on the multi
information display.

Numb
er of
month
s

Number of days Numb

er of
month
s

Number of days Numb

er of
month
s

Number of days Numb

er of
month
s

Number of days

1

30

− 60

13

396

− 425

25

761

− 790

37

1,126

− 1,156

2

61

− 90

14

426

− 456

26

791

− 821

38

1,157

− 1,186

3

91

− 121

15

457

− 486

27

822

− 851

39

1,187

− 1,217

4

122

− 151

16

487

− 516

28

852

− 882

40

1,218

− 1,247

5

152

− 182

17

517

− 547

29

883

− 912

41

1,248

− 1,277

6

183

− 212

18

548

− 577

30

913

− 943

42

1,278

− 1,308

7

213

− 243

19

578

− 608

31

944

− 973

43

1,309

− 1,338

8

244

− 273

20

609

− 638

32

974

− 1,003

44

1,339

− 1,369

9

274

− 303

21

639

− 669

33

1,004

− 1,034

45

1,370

− 1,399

10

304

− 334

22

670

− 699

34

1,035

− 1,064

46

1,400

− 1,430

11

335

− 364

23

700

− 730

35

1,065

− 1,095

47

1,431

− 1,460

12

365

− 395

24

731

− 760

36

1,096

− 1,125

48

1,461

− 1,491















Content   ..  27  28  29  30   ..
