Mitsubishi Outlander GS45X. Manual - part 12





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-45

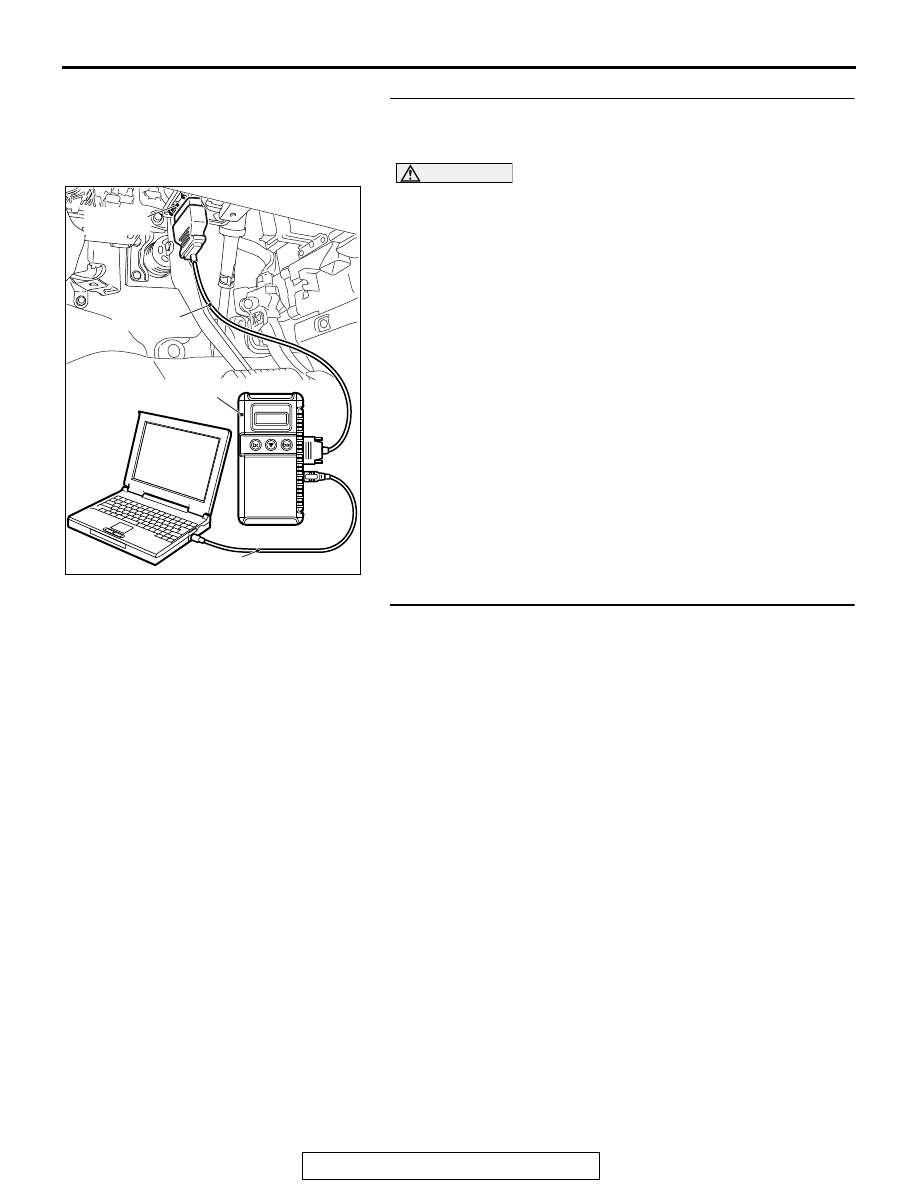

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTC.
(4) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(5) Check if diagnostic trouble code is set.
Q: Is the DTC set?

YES : Replace the combination meter, and then go to Step

3.

NO :  The procedure is complete.

STEP 3. Recheck for diagnostic trouble code.
Check if DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if diagnostic trouble code is set.
Q: Is the DTC set?

YES : Go to Step 1.
NO :  The procedure is complete.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-46

DTC B2464: The sticking of meter information switch

CAUTION

Whenever the ECU is replaced, ensure that the communication circuit is normal.

.

TROUBLE JUDGMENT

If the combination meter detects the meter informa-
tion switch pressed state for 60 seconds or more
continuously, DTC B2464 is stored.

.

TROUBLESHOOTING HINTS

• The meter information switch may be defective

• The combination meter may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

AC702819

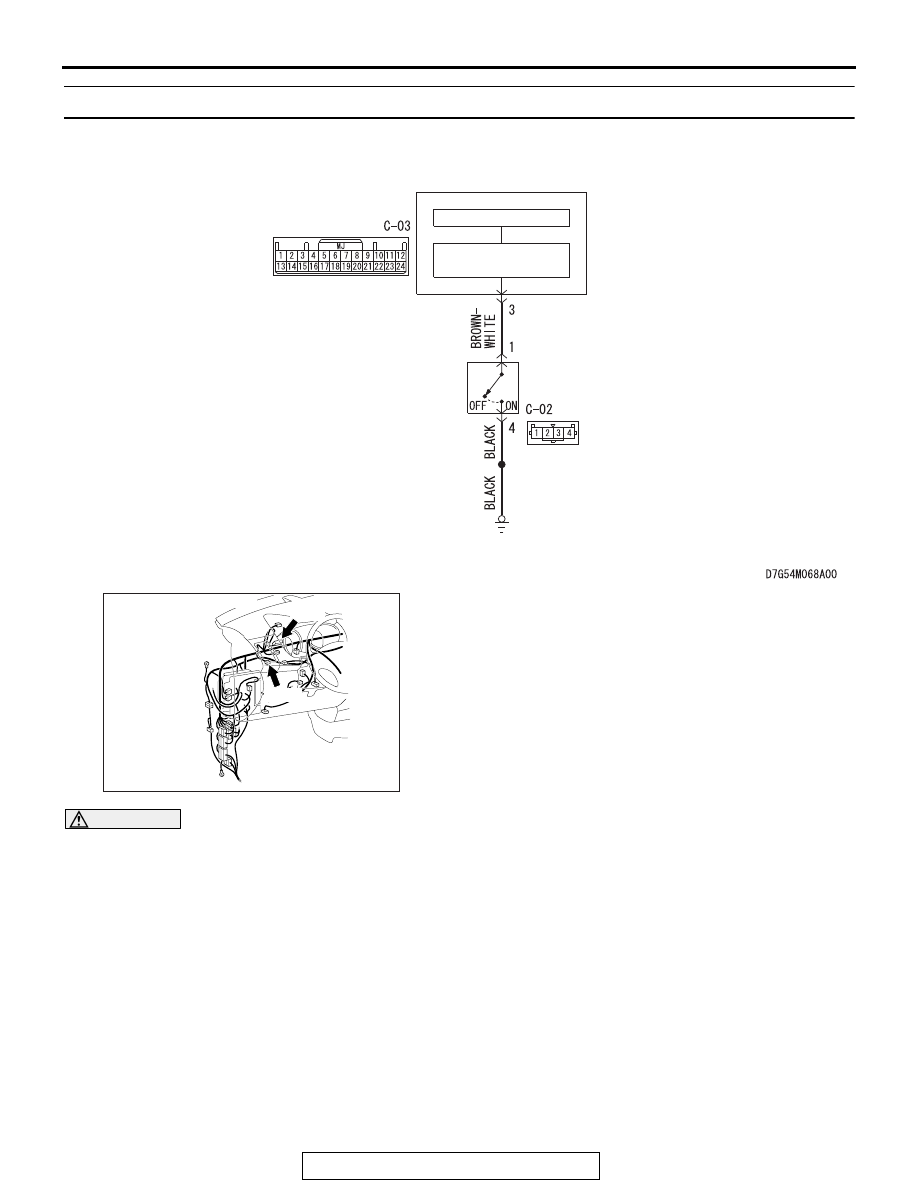

Meter Information Switch Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

CPU

METER
INFORMATION
SWITCH

AC

AC702815AC

Connectors: C-02, C-03

C-03

C-02

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-47

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Check meter information switch connector C-02
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is meter information switch connector C-02 in good

condition?
YES :
Go to Step 2.
NO :  Repair the connector.

STEP 2. Check the meter information switch.
Check the meter information switch. Refer to

P.54A-109

.

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Replace the meter information switch.

STEP 3. Measure at meter information switch connector
C-02 in order to the ground circuit to the meter information
switch.
(1) Disconnect meter information switch connector C-02, and

measure at the wiring harness side.

(2) Measure the resistance value between terminal 4 and

ground.

• The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with

this range?
YES :
Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between meter
information switch connector C-02 (terminal 4) and
ground.

• Check the ground wire for open circuit.

Q: Is the wiring harness between fuel meter information

switch connector C-02 (terminal 4) and ground in good
condition?
YES :
Go to Step 7.
NO :  Repair the wiring harness, and then go to Step 7.

STEP 5. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES :
Go to Step 6.
NO :  Repair the connector, and then go to Step 7.

AC702818AC

Harness side: C-02

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-48

STEP 6. Check the wiring harness between meter
information switch connector C-02 (terminal 1) and
combination meter connector C-03 (terminal 3).

• Check the communication line for open circuit and short cir-

cuit.

Q: Are the wiring harness between meter information

switch connector C-02 (terminal 1) and combination
meter connector C-03 (terminal 3) in good condition?
YES :
Go to Step 7.
NO :  Repair the wiring harness, and then go to Step 7.

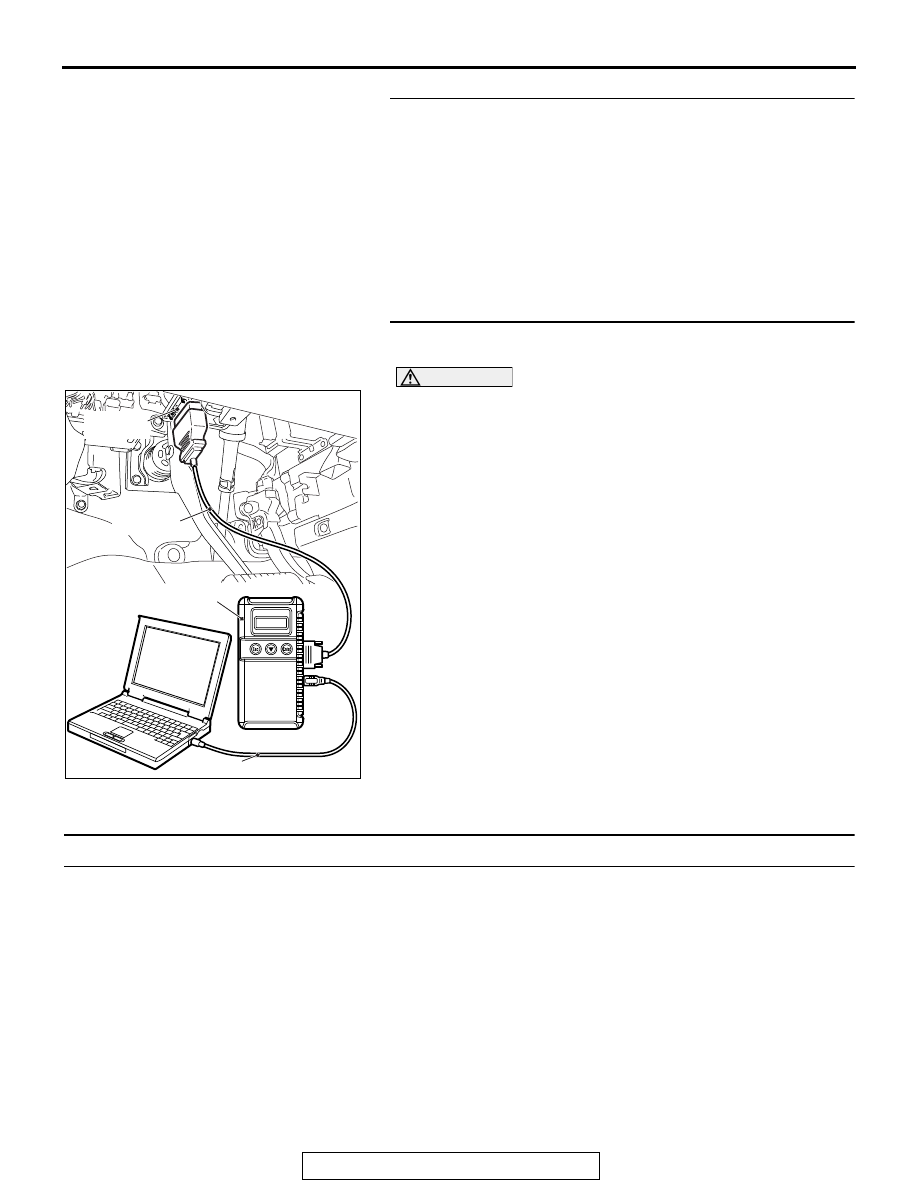

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTC.
(4) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(5) Check if DTC is set.
Q: Is the DTC set?

YES : Go to Step 1.
NO :  The procedure is complete.

DTC B2465: Ignition switch signal error

.

TROUBLE JUDGMENT

If 5 seconds or more elapses with the ignition switch
state and the data from the CAN communication con-
tradicted, the combination meter stores the DTC
B2465.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The ETACS-ECU may be defective

• The combination meter may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
