CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-12

No.

Power supply circuit Name

Rated
capacity (A)

Housing
colour

Load circuit

1

Fusible link No.2 in
engine compartment

Fusible
link

30

Pink

Front power window motor (LH, RH),
power window main switch and rear
power window motor (LH, RH)

2

Fusible link No.5 in
engine compartment

30

Pink

Fuse No.21 in passenger
compartment and rear window
defogger

3

Fuse

30

Green

Blower motor

4

ETACS-ECU (ACC
relay 3)

30

Green

ETACS-ECU, ETACS-ECU (Rear
window washer relay, windshield
washer relay, windshield wiper
automatic stop relay, windshield wiper
speed switching relay), washer motor
and windshield wiper motor

5

Fusible link No.5 in
engine compartment

20

Yellow

ETACS-ECU (Door lock relay, door
mirror fold relay, door mirror unfold
relay, door unlock relay, driver's door
unlock relay, tailgate unlock relay
<Vehicles without KOS>), door mirror
assembly (LH, RH), front door lock
actuator (LH, RH), rear door lock
actuator (LH, RH) and tailgate door
lock actuator

6

10

Red

Rear fog lamp

7

15

Blue

8

ETACS-ECU (ACC
relay 3)

15

Blue

ETACS-ECU, ETACS-ECU (Rear
wiper relay) and rear wiper motor

9

Fusible link No.2 in
engine compartment

20

Yellow

Sunroof motor assembly

10

10

Red

Electrical handle lock, engine switch,
ETACS-ECU, ETACS-ECU (IG1
relay) and OSS-ECU

11

10

Red

Diagnosis connector

12

15

Blue

ETACS-ECU

13

10

Red

4WD-ECU

14

15

Blue

ETACS-ECU and OSS-ECU

15

ETACS-ECU (IG1
relay)

10

Red

A/C-ECU, 4WD-ECU, ABS-ECU,
ASC-ECU, column switch,
combination meter, corner
sensor/back sensor-ECU, CVT
control relay, electric tailgate control
unit, EPS-ECU, ETACS-ECU, hazard
indicator assembly, heated seat relay,
KOS-ECU, selector lever assembly,
sonar switch, steering wheel sensor
and sunroof motor assembly

16

7.5

Brown

SRS-ECU

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-13

17

Fuse No.BF3 in
engine compartment

15

Blue

CAN box unit, hands free-ECU,
multivision display, radio and CD
player, spare connector (for audio,
rear monitor) and USB box

18

7.5

Brown

Column switch, combination meter,
electric tailgate control unit, heater
controller assembly (A/C-ECU),
KOS-ECU, lighting control sensor and
OSS-ECU

19

15

Blue

Combination meter and ETACS-ECU

20

ETACS-ECU (IG1
relay)

7.5

Brown

Back-up lamp, CVT-ECU,
ETACS-ECU, radio and CD player
and spare connector (for switch box)

21

ETACS-ECU (Rear
window defogger
relay)

7.5

Brown

Door mirror assembly (LH, RH) and
wiper deicer relay

22

ETACS-ECU (ACC
relay 2)

10

Red

CAN box unit, door mirror assembly
(LH, RH), multivision display, radio
and CD player, selector lever
assembly, spare connector (for audio,
rear monitor) and steering lock
solenoid

23

15

Blue

Accessory socket and cigarette lighter

24

Fusible link No.2 in
engine compartment

Fusible
link

30

Pink

Power seat assembly

25

Fuse

30

Green

Heated seat (LH, RH) and heated
seat switch

No.

Power supply circuit Name

Rated
capacity (A)

Housing
colour

Load circuit

ACB04404

1

2

3

4

5 6

7 8

9 10 11 12

13 14 15 16

17 18 19 20

21 22 23

AC

ETACS-ECU

ACB04405

Relay box connected directly to ETACS-ECU

AB

25

24

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-14

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-15

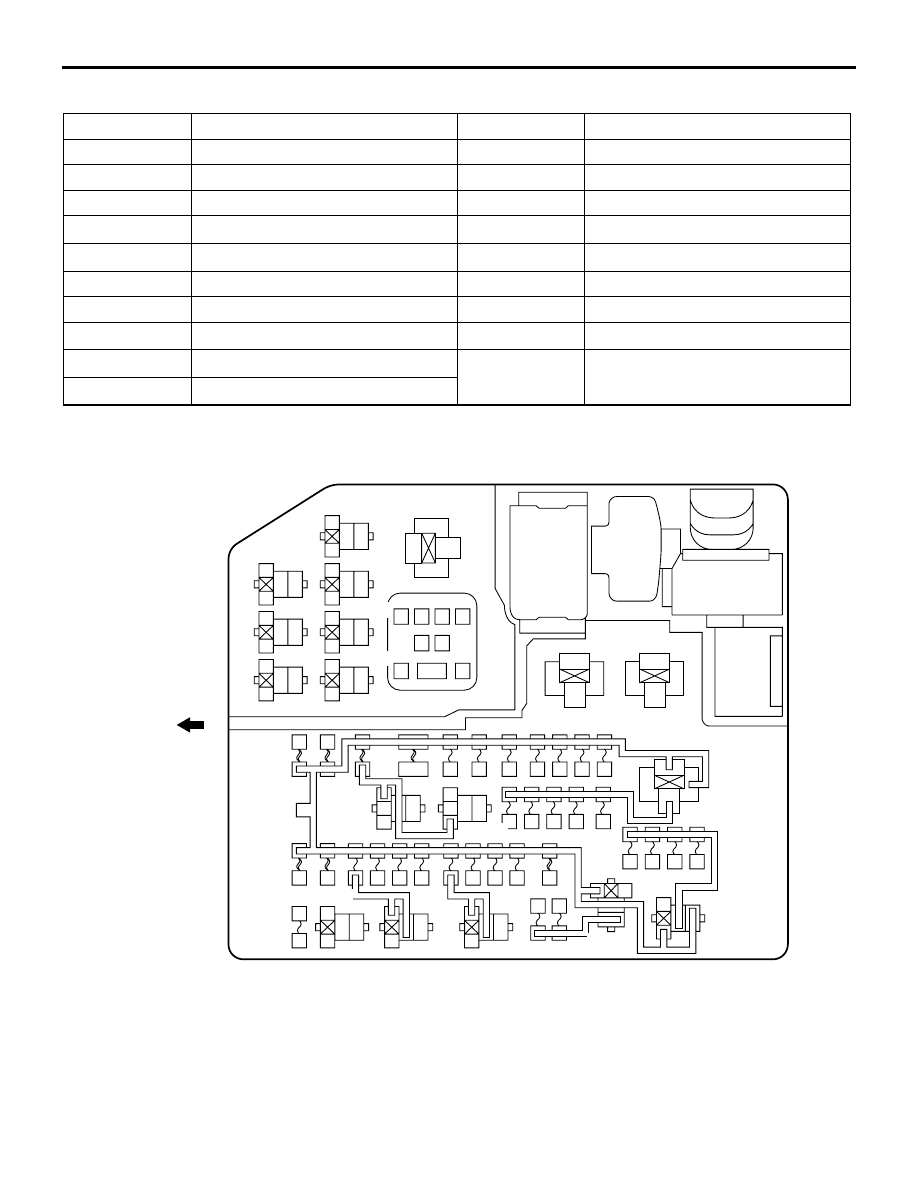

CENTRALIZED RELAY

Connector No. Name

Connector No. Name

A-06X

Throttle valve control servo relay

A-16X

Radiator fan relay

A-07X

CVT control relay

A-17X

Condenser fan relay

A-08X

Starter relay

A-18X

Fan control relay

A-09X

A-19X

Engine control relay

A-10X

A-20X

A/C compressor relay

A-11X

Headlamp washer relay

A-21X

Front fog lamp relay

A-12X

Wiper deicer relay

A-22X

Horn relay

A-13X

A-23X

Headlamp relay (HI)

A-14X

A-24X

Headlamp relay (LO)

A-15X

ACB04403

AC

Front of
vehicle

Relay box in engine compartment

A-06X

A-07X

A-08X

A-09X

A-10X

A-11X

A-12X

A-13X

A-14X

A-15X

A-16X

A-19X

A-17X

A-18X

A-20X

A-21X

A-22X

A-23X

A-24X
