54A-321

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

 Inspection Procedure 11: The column switch signal is not received.

COMMENTS ON TROUBLE SYMPTOM

The ETACS-ECU receives the column switch signal
via the LIN communication. If there is an abnormality
to column switch or LIN bus line, the lights and
wiper/washer do not work normally.

PROBABLE CAUSES

• Malfunction of column switch

• Faulty LIN bus line

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check if diagnosis code is set to the ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Refer to Diagnosis code chart

P.54A-281

.

NO :

Go to Step 2.

STEP 2. Column switch check

• Check the continuity for wiper switch. Refer to

P.54A-206

.

• Check the continuity for column switch (switch

body part). Refer to

P.54A-207

.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the column switch.

Inspection Procedure 12: The stop lamp switch signal is not received.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

− How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

The stop lamp switch input signal is used for the
operation judgment of the functions below. If the sig-
nal is abnormal, these functions will not work.

• ABS, ASC

• Shift lock mechanism

• OSS

• Cruise control system

PROBABLE CAUSES

• Malfunction of stop lamp switch
• Malfunction of stop lamp relay

*

• Malfunction of ETACS-ECU

• Damaged harness wires and connectors

NOTE:

*

: The stop lamp relay cannot be inspected

because it is a semiconductor relay.

DIAGNOSIS PROCEDURE

STEP 1. Check the stop lamp switch.
Check the stop lamp switch. Refer to GROUP 35A

−

Brake Pedal .

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the stop lamp switch.

STEP 2. Voltage measurement at ETACS-ECU
connector (BKLP terminal).
(1) Measure by backprobing without disconnecting

the ETACS-ECU connector and stop lamp switch

ETACS

CHASSIS ELECTRICAL

54A-322

connector.

(2) Check the voltage between the ETACS-ECU

connector (BKLP terminal) and body earth.

OK:

When the brake pedal is released: Approxi-

mately 0 V

− 5 V (pulse)

When the brake pedal is depressed:

Approximately system voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 3.

STEP 3. Check of short to power supply, short to
earth, and open circuit in BKLP line between
ETACS-ECU connector and stop lamp switch
connector.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector(s) or wiring harness

STEP 4. Check of short to power supply, short to
earth, and open circuit in STP line between
ETACS-ECU connector and stop lamp switch
connector.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector(s) or wiring harness

STEP 5. M.U.T.-III data list
Temporarily replace the stop lamp relay, and then
depress the brake pedal.

Item No.

Item name

Normal
condition

Item 290

Stop lamp switch

ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

Inspection Procedure 13: The remote controlled mirror switch (fold switch) signal is not received.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

− How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

Input signal from the remote controlled mirror switch
(fold switch) is used to operate the functions below. If
the signal is abnormal, these functions will not work
normally.

• Electric-folding door mirrors

PROBABLE CAUSES

• Malfunction of the remote controlled mirror switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the remote controlled mirror
switch.
Refer to GROUP 51

− Door Mirror .

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the remote controlled mirror switch.

STEP 2. Resistance measurement at remote
controlled mirror switch connector (earth
terminal)
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the remote

controlled mirror switch connector (earth
terminal) and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

ETACS

CHASSIS ELECTRICAL

54A-323

STEP 3. Check of open circuit in earth line
between remote controlled mirror switch
connector and body earth

Q: Is the check result normal?

YES :

Intermittent malfunction is suspected (Refer

to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 4. Check of short to power supply, short to
earth, and open circuit in MRR line between
ETACS-ECU connector and remote controlled
mirror switch connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector(s) or wiring harness.

STEP 5. M.U.T.-III data list
Check the input signals from the remote controlled
mirror switch (fold switch).

•

Item
No.

Item name

Normal condition

267

Mirror switch

OFF to ON (only
when switch is
operated)

Operate the remote controlled mirror switch (fold
switch).

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

Inspection Procedure 14: The ASC OFF switch signal is not received.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

− How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

If there is an error to the ASC OFF switch input sig-
nal, the ASC OFF switch signal is no longer output to
the communication line.

PROBABLE CAUSES

• Malfunction of the ASC OFF switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the ASC OFF switch.
Refer to GROUP 35C

− ASC OFF switch .

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the ASC OFF switch.

STEP 2. Resistance measurement at ASC OFF
switch connector (earth terminal)
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the ASC OFF

switch connector (earth terminal) and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Check of open circuit in earth line
between ASC OFF switch connector and body
earth

Q: Is the check result normal?

YES :

Intermittent malfunction is suspected (Refer

to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.

ETACS

CHASSIS ELECTRICAL

54A-324

STEP 4. Check of short to power supply, short to
earth, and open circuit in ASCS line between
ETACS-ECU connector and ASC OFF switch
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector(s) or wiring harness.

STEP 5. M.U.T.-III data list
Check the input signals from the ASC OFF switch.

•

Item
No.

Item name

Normal condition

281

ASC/TCL OFF switch OFF to ON (only

when switch is
operated)

Operate the ASC OFF switch.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

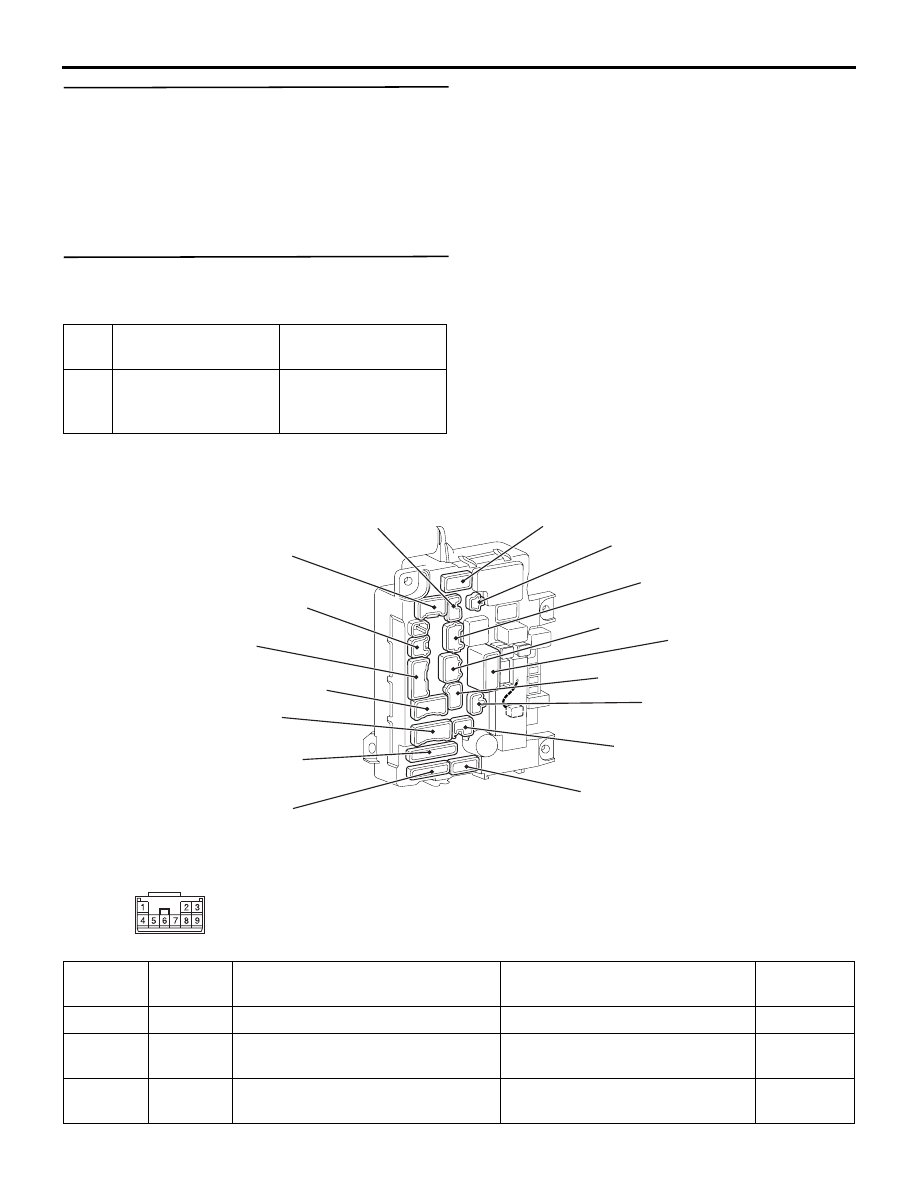

CHECK WITH TERMINAL VOLTAGE

M1545004800606

ACB05919

C-401

C-402

C-403

C-404

C-405

C-410

C-412

C-413

C-414

C-415

C-416

C-417

C-419

C-418

C-422

C-421

C-420

AB

CONNECTOR: C-401

ACB05920AB

Terminal
No.

Terminal
code

Check item

Check condition

Normal
condition

1

−

−

−

−

2

DUL2

Output to central door locking (for
unlocking the passenger's door)

When the door lock actuators
unlock the passenger's door

System
voltage

3

LP+3

Ignition key cylinder illumination
lamp output (high side)

When the ignition key cylinder
illumination lamp is ON

System
voltage
