TROUBLESHOOTING <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-49

TROUBLESHOOTING <OSS-ECU>

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1429604400119

Refer to GROUP 00

− Contents of troubleshooting .

DIAGNOSIS FUNCTION

M1429605400305

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
M.U.T.-III.
When detecting fault and storing the diagnosis code,
the ECU connected to CAN bus line obtains the data
before the determination of the diagnosis code and
the data when the diagnosis code is determined, and
then stores the ECU status of that time. By analysing
each data from M.U.T.-III, the troubleshooting can be
performed more efficiently. The displayed items are
as the table below.

Display item list

Item No.

Item name

Data item

Unit

Odometer

Total driving distance after the diagnosis code
is generated

Ignition cycle

Number of times the power supply mode is
turned "ON" or "OFF" after the past trouble
transition.

Number of counts
is displayed.

Current trouble
accumulative time

Cumulative time for current malfunction of
diagnosis code

min

INFP

Inside transmission antenna
assembly (front) power supply

• At the door switch operation

• At the engine switch

operation

• At door open/close

0 to 8 V (pulse
signal)

EDRP

Outside transmission antenna
assembly (driver’s side) power
supply

• At the door switch operation

• At the engine switch

operation

• At door open/close

0 to 8 V (pulse
signal)

DRVP

Output to buzzer (-)

Buzzer is sounding

0 to 10 V (pulse
signal)

− 39

−

EGTG

Outside transmission antenna
assembly (tailgate) earth

Always

1 V or less

INRG

Inside transmission antenna
assembly (rear) earth

Always

1 V or less

EASG

Outside transmission antenna
assembly (passenger’s side)
earth

Always

1 V or less

INFG

Inside transmission antenna
assembly (front) earth

Always

1 V or less

EDRG

Outside transmission antenna
assembly (driver’s side) earth

Always

1 V or less

Terminal
number

Terminal
code

Check item

Check condition

Normal condition

TROUBLESHOOTING <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-50

TROUBLESHOOTING PROCEDURE
WHEN VEHICLE POWER DOES NOT
TURN ON

M1429628300042

When the power does not turn ON, open and close
the driver's door several times. Then, check the com-
munication between OSS-ECU and M.U.T.-III and
others as shown in the flowchart below. (OSS-ECU
can communicate with the M.U.T.-III even when the
power supply is OFF.)

AC905152

Is the communication with
M.U.T.-III possible?

· Battery failure
· Malfunction of the CAN-C/CAN-C-Mid bus line
· Malfunction of ETACS-ECU (power supply, earth system)
· Malfunction of OSS-ECU (power supply, earth system)

Is the diagnosis code
set?

Carry out the OSS-ECU check by
diagnosis code.
(With the forcible power supply
output using the M.U.T.-III,
distinction from failure of another
systems is possible.)

Is it possible to turn ON the
power when the keyless operation
key is placed in the key box?

Diagnose the KOS-ECU.
· Low battery voltage of
keyless operation key, etc.

Carry out the OSS-ECU check
by trouble symptom.
· Power does not turn on.
(not possible with both of power
supply mode ACC and ON)

Yes

Simplified troubleshooting flow chart

FORCED POWER SUPPLY OUTPUT
PROCEDURE

M1429627400013

With OSS, the power supply cannot be turned ON
until the certification communication with KOS and
electrical steering lock is complete. However, using
the M.U.T.-III, the power can be forced ON even
when the certification communication with KOS and
electrical steering lock is not completed. (However,
locking/unlocking of the electrical steering lock is not
performed.) Through this process, the error in certifi-
cation with KOS or electrical steering lock can be dis-
tinguished from the malfunction in power supply. In
addition, the process allows the CAN bus diagnosis
as well as the reading of diagnosis code, belonging
to systems other than OSS, to be performed.

FORCED POWER SUPPLY OUTPUT
PROCEDURE

1. Connect the M.U.T.-III to the diagnosis connector.

2. On the M.U.T.-III system selection screen, select

"OSS."

3. Select "Special Function" from OSS screen.

4. Select "Forced power supply output" from Special

Function screen.

5. From the forced power supply output screen,

select the status with which the control is desired.
(Selection can be made from IG-ACC, IG-ON, and
IG-ST.)

6. On the execution confirmation screen, select OK.

7. While the process is executed, the selected

control status is maintained.

NOTE: During the forced power supply output, the

indicator flashes in orange.

TROUBLESHOOTING <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-51

8. To cancel the forced power supply output, select

"Forced power supply output (stop)" on the
Special Function screen, or operate the engine
switch.

WARNING AND WARNING INDICATOR
LIST <Standard meter>

M1429612300645

When OSS failed or operated improperly, OSS-ECU
warns the driver to that effect by displaying the
one-touch start system warning indicator on the com-
bination meter.

Item

Indicator

Factor

Warning operation

Immobilizer error

AC904253

• Displayed when the

certification
communication fails with
KOS, electrical steering
lock, or engine-ECU.

• Displayed when the power

supply mode is turned ON
while the keyless operation
key is judged to be brought
outside the vehicle with the
power supply mode in
ACC, or when the engine
starting operation is
performed after such a
status.

• Displayed when the

electrical steering lock
cannot be locked because
there is a P detection
switch malfunction.

• The warning indicator

illuminates.

Steering turn
indication

AC904253

Displayed when the steering
lock is not unlocked because
the steering force is applied.

• The warning indicator

flashes.

• Buzzer sounds.

Electrical steering
lock malfunction

AC809615

Displayed when a malfunction
occurs to the steering lock
system.

• The warning indicator

illuminates.

• Buzzer sounds.

Steering lock not
locked

−

The door is open with the
steering lock not locked.

Buzzer sounds.

Power supply
system error

AC809615

Displayed when an error
occurs to the power supply
system.

• The warning indicator

illuminates.

• Buzzer sounds.

Power OFF
indication

−

The door is open with the
power supply mode in ON or
in ACC.

Buzzer sounds.

TROUBLESHOOTING <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-52

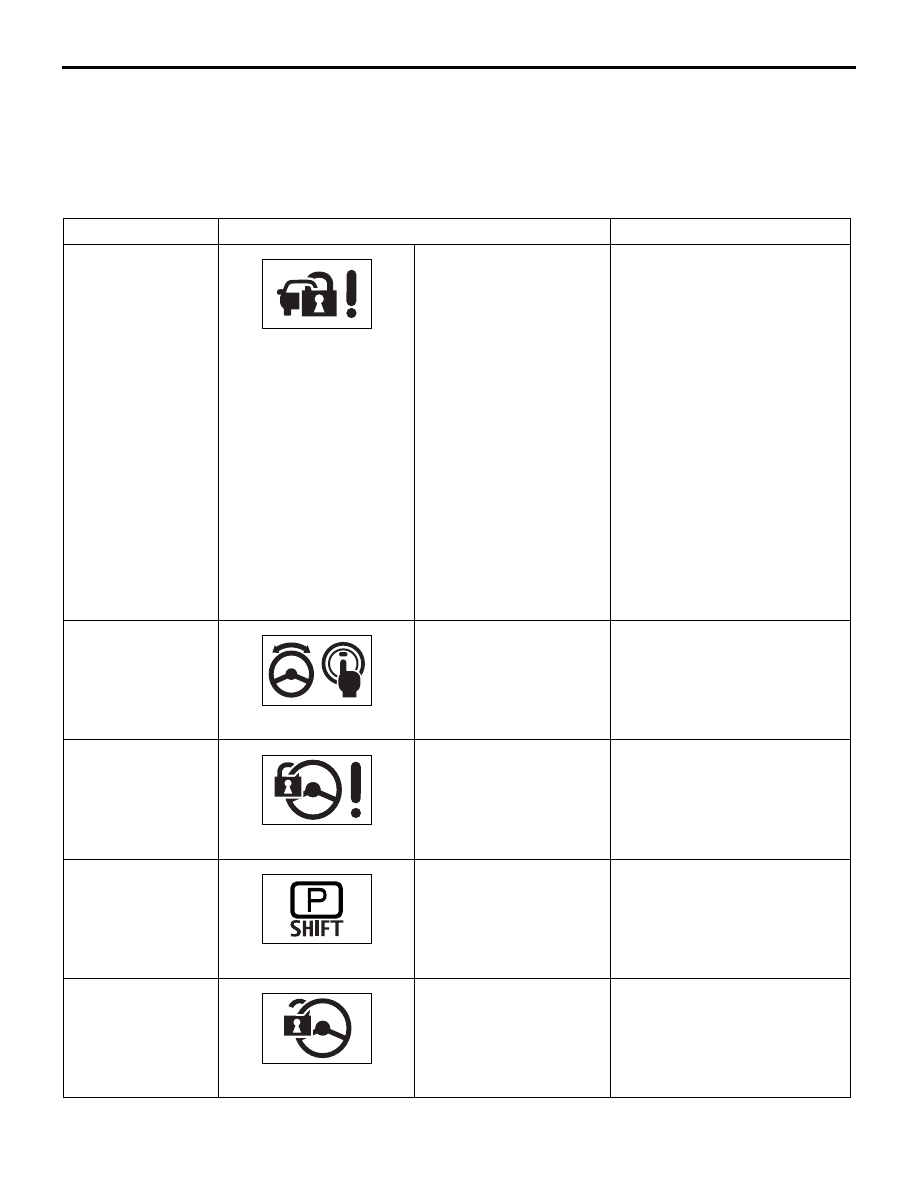

WARNING AND WARNING INDICATOR
LIST <High contrast meter>

M1429612300656

When OSS failed or operated improperly, KOS-ECU
warns the driver to that effect by displaying the
one-touch start system warning on the multi informa-
tion display in the combination meter.

Item

Display contents

Factor

Immobilizer error

AC904253

IMMOBILIZER SYSTEM
SERVICE REQUIRED

• Displayed when the

certification communication
fails with KOS, electrical
steering lock, or
engine-ECU.

• Displayed when the power

supply mode is turned ON
while the keyless operation
key is judged to be brought
outside the vehicle with the
power supply mode in ACC,
or when the engine starting
operation is performed after
such a status.

• Displayed when the

electrical steering lock
cannot be locked because
there is a P detection switch
malfunction.

Steering turn
indication

AC904254

PUSH ENGINE SWITCH
WHILE TURNING
STEERING WHEEL

Displayed when the steering
lock is not unlocked because
the steering force is applied.

Electrical steering
lock malfunction

AC904255

STEERING LOCK
SERVICE REQUIRED

Displayed when a malfunction
occurs to the steering lock
system.

Shift P indication

AC904256

SHIFT TO P POSITION

Displayed if the shift lever is in
other than "P" range when the
engine is not running.

Steering lock not
locked

AC904257

STEERING WHEEL
UNLOCKED

Displayed when the door is
open with the steering lock not
locked.
