TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-23

STEP 5. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1041, C1042, C1043 or

C1044 set?
YES :

Replace the wheel speed sensor (Refer to

P.35B-63

 <front> or

P.35B-65

 <rear>).

Then go to Step 6.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/How to

Cope with Intermittent Malfunctions ).

STEP 6. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1041, C1042, C1043 or

C1044 set?
YES :

Replace the hydraulic unit (integrated with

ABS-ECU) (Refer to

P.35B-61

). Then go to

Step 7.

NO :

This diagnosis is complete.

STEP 7. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1041, C1042, C1043 or

C1044 set?
YES :

Return to Step 1.

NO :

This diagnosis is complete.

Code No. C1046 FL wheel speed sensor phase



Code No. C1047 FR wheel speed sensor phase



Code No. C1048 RL wheel speed sensor phase



Code No. C1049 RR wheel speed sensor phase

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnosis code may be set. Prior to this
diagnosis, diagnose the CAN bus lines (Refer to
GROUP 54C

 CAN Bus Diagnostics Table ).

OPERATION

• The wheel speed sensor is a kind of a pulse gen-

erator. It consists of encoders (a plate on which
north and south pole sides of the magnets are
arranged alternately) for detecting the wheel
speed which rotates at the same speed of the
wheels and wheel speed sensors. This sensor
outputs frequency pulse signals in proportion to
the wheel speed.

• The pulse signals, which the wheel speed sensor

creates, are sent to ABS-ECU. ABS-ECU uses
the frequency of the pulse signals to determine
the wheel speed.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if any malfunction below is
found:

• When the brake fluid pressure is decreased for a

long time.

• When the brake fluid pressure is held for a long

time.

PROBABLE CAUSES

• Damaged wiring harness and connectors

• External noise interference

• Malfunction of wheel speed sensor

• ABS-ECU malfunction

• Excessive gap between the wheel speed sensor

and the magnetic encoder for wheel speed detec-
tion

• Adhesion of foreign materials on the wheel speed

sensor

• Adhesion of foreign materials on the magnetic

encoder for wheel speed detection

• Wheel bearing malfunction

• Improper installation of the wheel speed sensor

• Deformation of the magnetic encoder for wheel

speed detection

• Disturbance of magnetization pattern for mag-

netic encoder for wheel speed detection

• Missing teeth of the magnetic encoder for wheel

speed detection

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-24

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnosis
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− CAN Bus Diagnostics Table ). On

completion, go to Step 2.

STEP 2. Diagnosis code recheck after resetting
CAN bus lines

Q: Is the diagnosis code No.C1046, 1047, 1048 or 1049

set?
YES :

Go to Step 3.

NO :

This diagnosis is complete.

STEP 3. M.U.T.-III diagnosis code

Code No.C1046 is set

• Check that the diagnosis codes No.C100A,

C1011, C1014, and C1041 are also set.

Code No.C1047 is set

• Check that the diagnosis codes No.C1015,

C101C, C101F, and C1042 are also set.

Code No.C1048 is set

• Check that the diagnosis codes No.C1020,

C1027, C102A, and C1043 are also set.

Code No.C1049 is set

• Check that the diagnosis codes No.C102B,

C1032, C1035, and C1044 are also set.

Q: Are the diagnosis codes set?

YES :

Carry out the diagnosis for the relevant

diagnosis codes.

NO :

Go to Step 4.

STEP 4. M.U.T.-III data list
Check the following data list (Refer to

P.35B-54

).

• Item No.01: FL wheel speed sensor

• Item No.02: FR wheel speed sensor

• Item No.03: RL wheel speed sensor

• Item No.04: RR wheel speed sensor

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between the
ABS-ECU connector terminal and the wheel
speed sensor connector terminal

Code No.C1046 is set

• Check of short to power supply, short to earth,

and open circuit in FL+, FL

− line between

ABS-ECU connector and front wheel speed sen-
sor (LH) connector.

Code No.C1047 is set

• Check of short to power supply, short to earth,

and open circuit in FR+, FR

− line between

ABS-ECU connector and front wheel speed sen-
sor (RH) connector.

Code No.C1048 is set

• Check of short to power supply, short to earth,

and open circuit in RL+, RL

− line between

ABS-ECU connector and rear wheel speed sen-
sor (LH) connector.

Code No.C1049 is set

• Check of short to power supply, short to earth,

and open circuit in RR+, RR

− line between

ABS-ECU connector and rear wheel speed sen-
sor (RH) connector.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector(s) or wiring harness.
Then go to Step 12.

STEP 6. Check for wheel speed sensor
installation
Check how the wheel speed sensor is installed (Dis-
connection of wheel speed sensor, loose mounting
bolt, etc.).

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Reinstall the wheel speed sensor correctly
(Refer to

P.35B-63

 <front> or

P.35B-65



<rear>). Then go to Step 7.

STEP 7. Check for wheel speed sensor output
current
Refer to

P.35B-58

.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the wheel speed sensor (Refer to

P.35B-63

 <front> or

P.35B-65

 <rear>).

Then go to Step 11.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-25

STEP 8. Check for wheel bearing looseness

NOTE: Loose wheel bearing may increase the gap
between the wheel speed sensor and the wheel
speed detection magnet encoder. Check the wheel
bearing for looseness. <Refer to GROUP 26

 Wheel

Bearing Axial Play Check . (front), GROUP 27A



Wheel Bearing Axial Play Check  (rear-2WD) or
GROUP 27B

 Wheel Bearing Axial Play Check

(rear-4WD)>

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Replace the wheel bearing <front> or rear
wheel hub assembly <rear>. <Refer to
GROUP 26

− Front Axle Hub Assembly

(front), GROUP 27A

− Rear Axle Hub

Assembly  (rear-2WD) or GROUP 27B

−

Rear Axle Hub Assembly  (rear-4WD)>
Then go to Step 12.

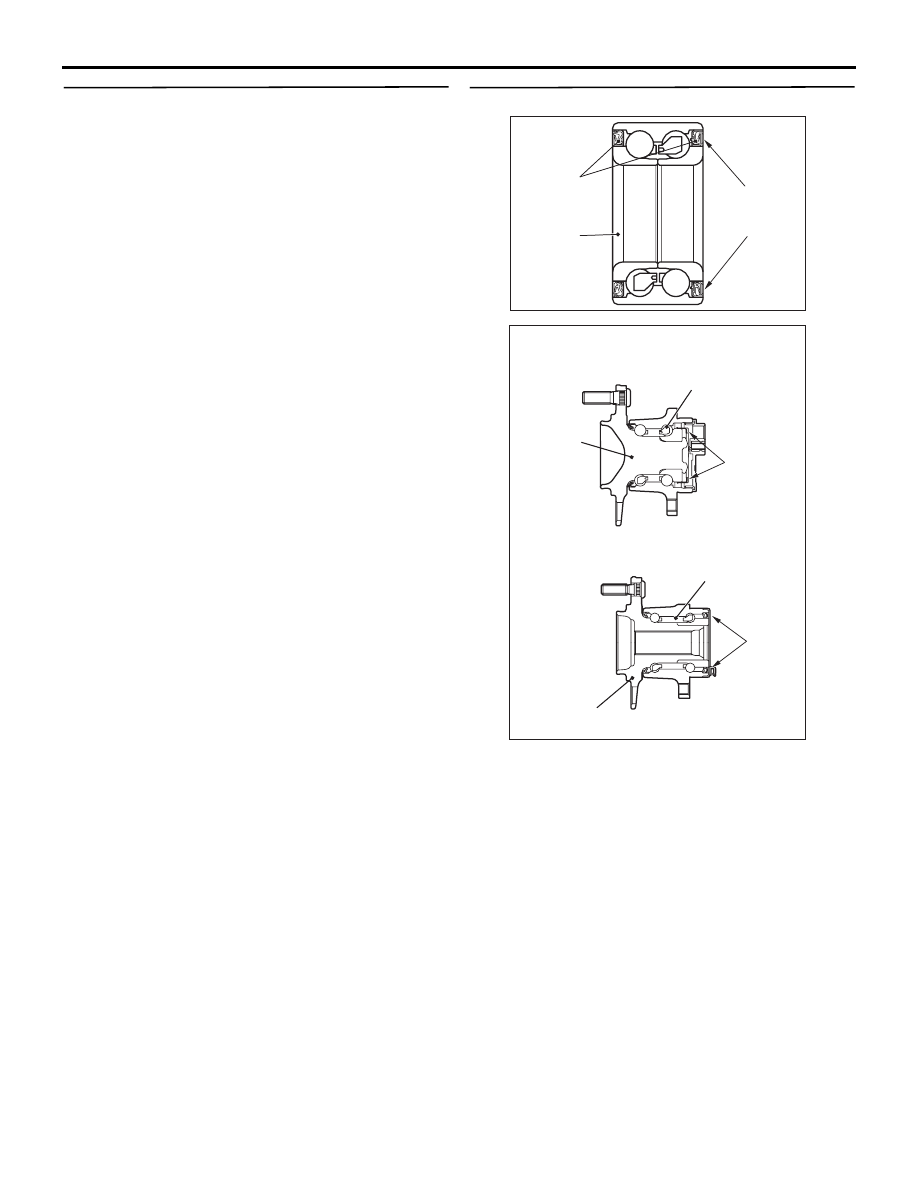

STEP 9. Check of wheel speed detection encoder

AC504925

Oil seal

Magnetic
encoder

AD

Wheel
bearing

<Front>

AC808708

Ball bearing

Rear hub
assembly

Magnetic
encoder

<2WD>

<Rear>

<4WD>

Rear wheel bearing

Rear hub
assembly

Magnetic
encoder

AC

Check the encoder for adhesion of foreign materials
or deformation.

Q: Is the check result normal?

YES :

Go to Step 10.

NO (Adhesion of foreign materials) :

Remove the

foreign materials and clean the encoder so
as not to disturb the magnetization pattern
on it while taking care of the magnet,
magnetic substance, and magnetic
attraction. Then go to Step 12.

NO (Deformation) :

Replace the wheel bearing

<front> or rear wheel hub assembly <rear>.
<Refer to GROUP 26

− Front Axle Hub

Assembly  (front), GROUP 27A

− Rear Axle

Hub Assembly  (rear-2WD) or GROUP 27B
− Rear Axle Hub Assembly  (rear-4WD)>
Then go to Step 12.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-26

STEP 10. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1046, 1047, 1048 or 1049

set?
YES :

Replace the wheel speed sensor (Refer to

P.35B-63

 <front> or

P.35B-65

 <rear>).

Then go to Step 11.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/How to

Cope with Intermittent Malfunctions ).

STEP 11. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1046, 1047, 1048 or 1049

set?
YES :

Replace the hydraulic unit (integrated with

ABS-ECU) (Refer to

P.35B-61

). Then go to

Step 12.

NO :

This diagnosis is complete.

STEP 12. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 20 km/h or higher.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 20 km/h
or higher.

Q: Is the diagnosis code No.C1046, 1047, 1048 or 1049

set?
YES :

Return to Step 1.

NO :

This diagnosis is complete.

Code No. C104B FL inlet valve



Code No. C104F FR inlet valve



Code No. C1053 RL inlet valve



Code No. C1057 RR inlet valve



Code No. C105F FL outlet valve



Code No. C1063 FR outlet valve



Code No. C1067 RL outlet valve



Code No. C105B RR outlet valve

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnosis code may be set. Prior to this
diagnosis, diagnose the CAN bus lines (Refer to
GROUP 54C

 CAN Bus Diagnostics Table ).

OPERATION

• ABS-ECU contains the power supply circuit (+ BV

terminal) for the solenoid valve. The solenoid
valve is energised by the valve relay, which is
incorporated in ABS-ECU.

• The valve relay, which is incorporated in

ABS-ECU, is always energising the solenoid
valve unless the initial check is in progress when
the ignition switch is turned on, and the recurrent
system check is in progress.

• ABS-ECU activates the solenoid valve by turning

on its driving transistor.

DIAGNOSIS CODE SET CONDITIONS

These diagnosis codes will be set under the cases
below:

• The solenoid valve is not energized even after

ABS-ECU has turned on the driving transistor
(Open circuit is present in the power supply cir-
cuit to the ABS-ECU solenoid valve, or the valve
relay has failed).

• The solenoid valve is not energised even after

ABS-ECU has turned on the driving transistor
(Open circuit is present in the solenoid valve cir-
cuit in ABS-ECU, or the valve relay has failed).

• After ABS-ECU has turned off the driving transis-

tor, the solenoid valve still remains energized
(short in the solenoid valve circuit).

• When a solenoid valve failure is detected

PROBABLE CAUSES

• ABS-ECU malfunction















Content   ..  443  444  445  446   ..
