GENERAL INFORMATION

MULTIPOINT FUEL INJECTION (MPI)

13A-9

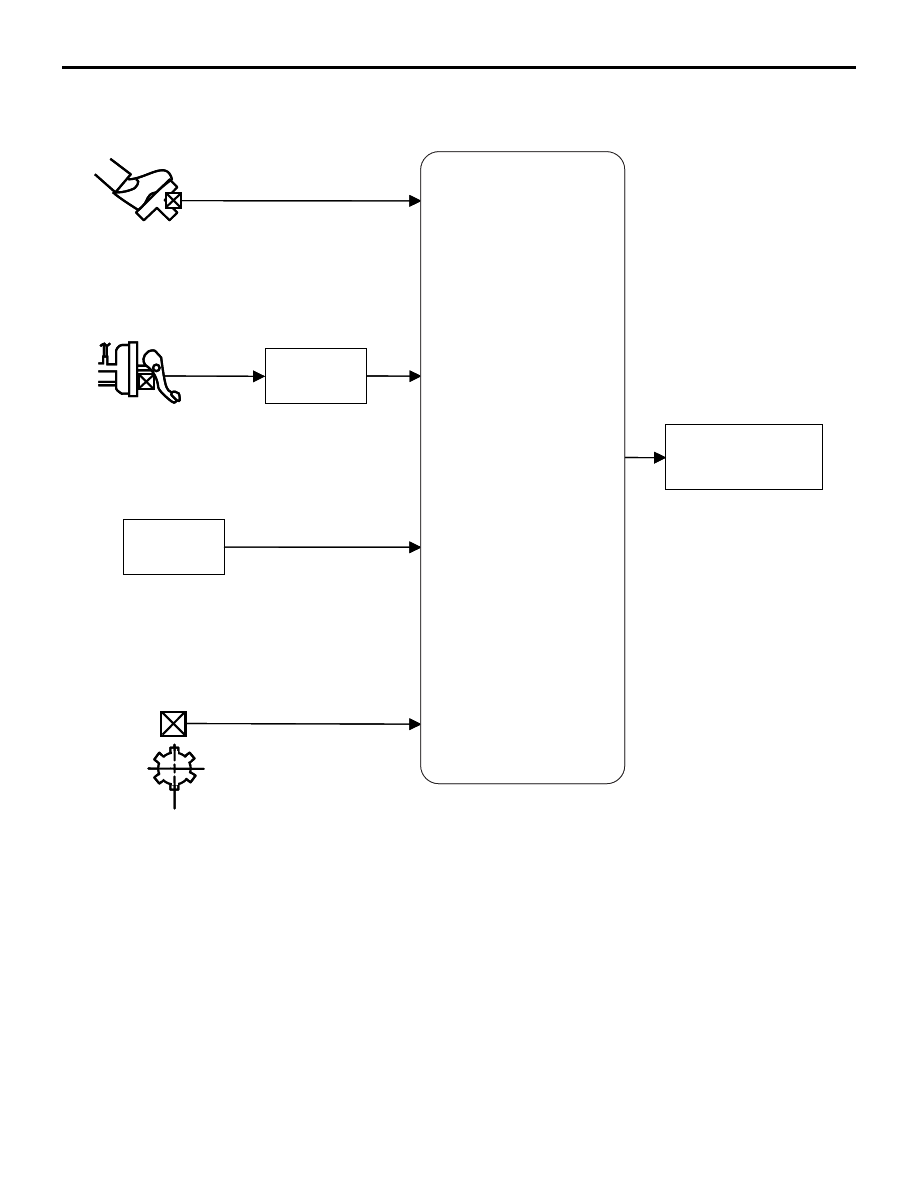

System schematic diagram

ACB00255

ACB00255

ETACS-ECU

CVT-ECU

Throttle valve
opening angle will
be reduced

Engine control module

CAN input (ETACS-ECU)

CAN input (CVT)

Direct input (M/T)

Vehicle speed

Accelerator pedal position sensor (APS)

Brake pedal (Stop lamp switch)

Control by substituting
lower value for actual
accelerator opening angle.

AB

Operation condition

Control will be activated when all of the following
conditions are satisfied.

• Voltage at the accelerator pedal position sensor

(APS main) is 1.3 V or more, and the stop lamp
switch remains on

• Vehicle speed is 5 km/h or more

Control will be deactivated when any of the following
conditions is satisfied.

• Voltage at the accelerator pedal position sensor

(APS main) is less than 1.3 V

• The stop lamp switch remains off

SERVICE SPECIFICATION(S)

MULTIPOINT FUEL INJECTION (MPI)

13A-10

SERVICE SPECIFICATION(S)

M1131000303306

Item

Specifications

Intake air temperature sensor
resistance k

Ω

at

−20°C

13

− 18

at 0

°C

5.3

− 6.7

at 20

°C

2.3

− 3.0

at 80

°C

0.30

− 0.45

Engine coolant temperature
sensor resistance k

Ω

at

−20°C

14

− 17

at 0

°C

5.1

− 6.5

at 20

°C

2.1

− 2.7

at 40

°C

0.9

− 1.3

at 60

°C

0.48

− 0.68

at 80

°C

0.26

− 0.36

Fuel pressure kPa

Approximately 324

Injector coil resistance (at 20

°C) Ω

10.5

− 13.5

Oxygen sensor output voltage (during racing) V

0.6

− 1.0

Oxygen sensor heater resistance (at 20

°C) Ω

4.5

− 8.0

Throttle valve control servo coil resistance (at 20

°C) Ω

0.3

− 80

Inlet oil feeder control valve resistance (at 20

°C) Ω

6.9

− 7.9

SEALANT(S) OR ADHESIVE(S)

M1131000501962

Points of application

Specified sealant

Engine coolant temperature sensor threaded
portion

LOCTITE 262, Three bond 1324N or equivalent

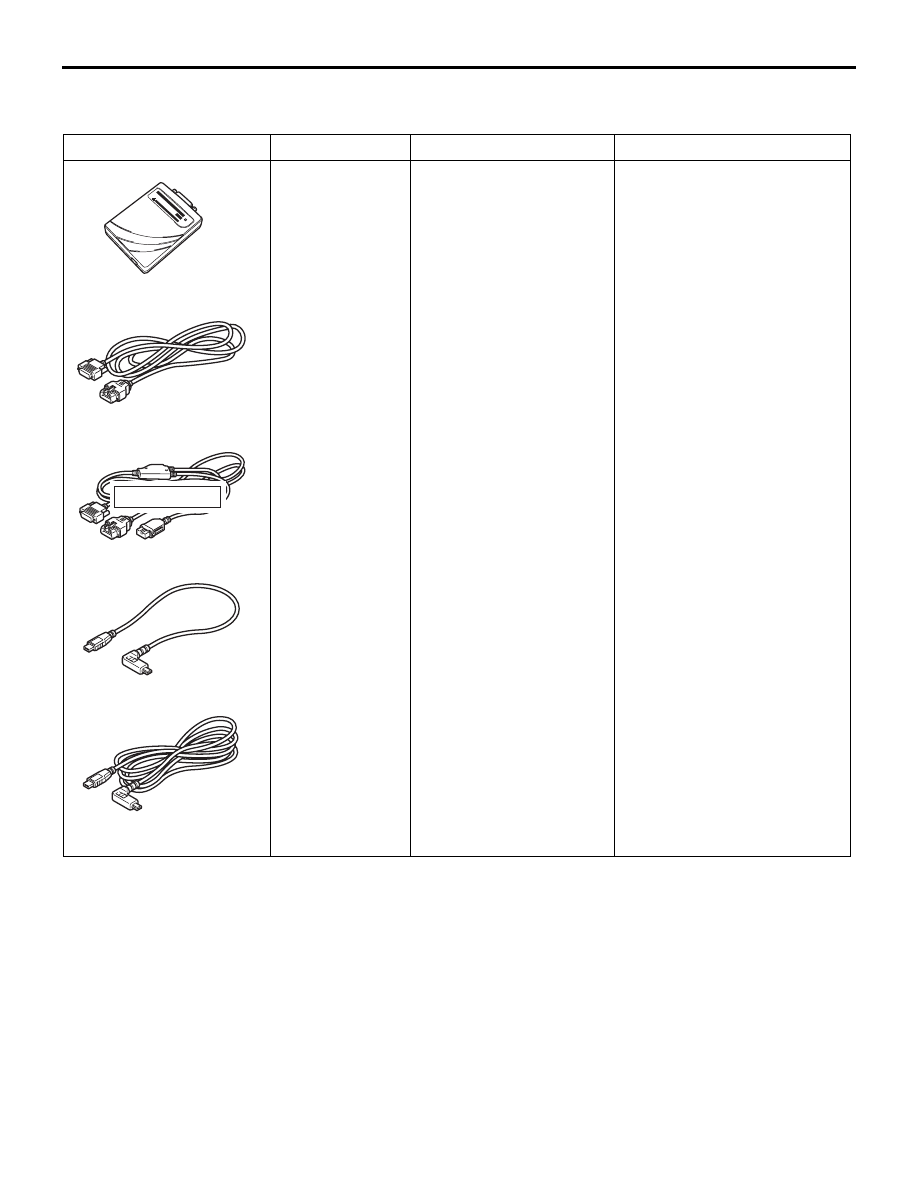

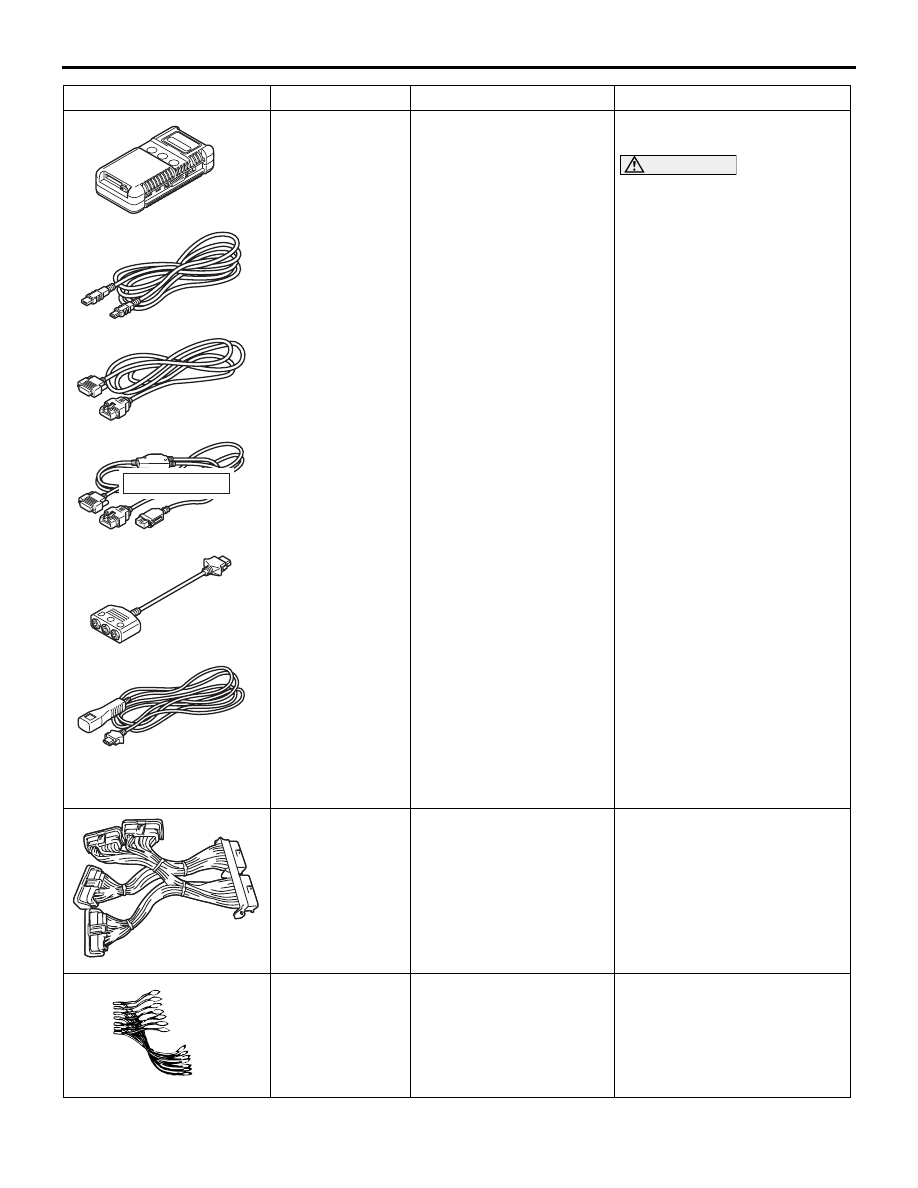

SPECIAL TOOLS

MULTIPOINT FUEL INJECTION (MPI)

13A-11

SPECIAL TOOLS

M1131000604195

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle communication

interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for vehicles
with CAN
communication)

c. V.C.I.-Lite main

harness B (for vehicles
without CAN
communication)

d. V.C.I.-Lite USB cable

short

e. V.C.I.-Lite USB cable

long

• MPI system inspection

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

SPECIAL TOOLS

MULTIPOINT FUEL INJECTION (MPI)

13A-12

MB991955
a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991825
f: MB991826

M.U.T.-III sub assembly
a: Vehicle communication

interface (V.C.I.)

b: USB cable
c: M.U.T.-III main harness

A (Vehicles with CAN
communication system)

d: M.U.T.-III main harness

B (Vehicles without
CAN communication
system)

e: Adapter for

measurement

f: Trigger harness

• MPI system inspection

• Fuel pressure test

CAUTION

For vehicle with CAN
communication, use
M.U.T.-III main harness A to
send simulated vehicle
speed. If you connect
M.U.T.-III main harness B
instead, the CAN
communication does not
function correctly.

MB992110

MB992110

Power plant ECU check
harness

• Measurement of voltage

during troubleshooting

• Measure engine-ECU

terminal voltage.

• Inspection using an

oscilloscope

MB991709

Test harness

• Measurement of voltage

during troubleshooting

• Inspection using an

oscilloscope

Tool

Number

Name

Use
