Mitsubishi Outlander (2013+). Manual - part 92





WIPER DEICER <OPTIONAL>

EXTERIOR

51-17

WIPER DEICER <OPTIONAL>

M2510008200184

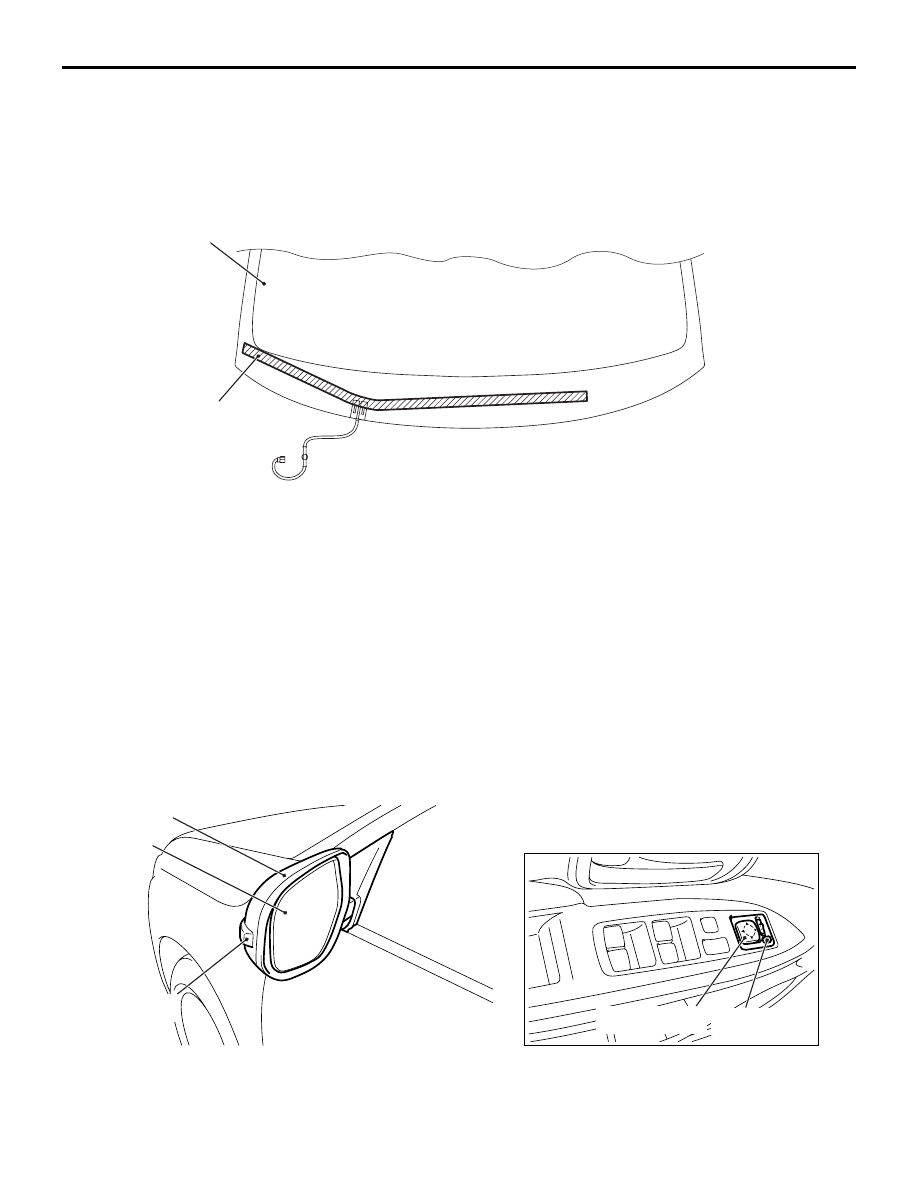

CONSTRUCTION DIAGRAM

For the prevention measures for the wiper freeze-up
at the stop position, the wiper deicer has been
installed. The wiper is deiced by the heater element
integrated in the windshield to perform its operation.
In addition, the wiper deicer is linked with the rear
window defogger.

OUTSIDE MIRROR

M2510008101005

CONSTRUCTION DIAGRAM

Door mirrors have the following features:

• Electric folding remote-controlled door mirrors

have been adopted <Some models>.

• Heated mirrors have been adopted.

• Door mirrors with built-in side turn-signal lamps

have been adopted <Some models>.

• Low air resistance door mirror shape has been

introduced.

ACB05706AB

Windshield glass

Heated print

ACC00012 AB

Door mirror assembly

Mirror glass

Mirror folding/
unfolding switch

Side turn-signal
lamp

Remote controlled
mirror switch

OUTSIDE MIRROR

EXTERIOR

51-18

• One of the optional functions, such as the vehicle

speed-dependent automatic unfolding function*,
ignition switch-linked function* or keyless
entry-linked function*, can be selected.

NOTE: *: Using the customise function, the vehicle
speed-dependent automatic unfolding function, igni-
tion switch-linked function or the keyless entry-linked
function can be selected (Refer to ).

DESCRIPTION OF CONSTRUCTION AND OPERATION

Electric retractable remote controlled door mirror

When the folding/unfolding switch on the electric
remote control mirror switch is turned ON while the
ignition switch is in ACC or ON position, ETACS
turns either of the door mirror fold relay or unfold
relay ON for 16 seconds to fold or unfold the door
mirrors. Even after the ignition switch is turned OFF,
the door mirrors remain operable for 30 seconds.
If the folding/unfolding switch on the remote control
mirror switch is turned ON while one of the door mir-
ror relays (fold/unfold) is in operation, the other oper-
ating relay is turned ON after 0.1 second.

NOTE: Whether the door mirrors are at the folding or
unfolding position is determined by ETACS accord-
ing to the memory of the door mirror relay position
(fold/unfold) operated previously. For this reason, if
the mirrors are manually folded, they may not move
when the folding/unfolding switch is pressed next
time.

Automatic unfolding function <Initial condition: Keyless entry-linked
folding/unfolding function)

1. Vehicle speed-dependent unfolding

1.

AC506503

Ignition switch
(ACC)

AB

t: 0.1 second
T1: 30 seconds
T2: 16 seconds

ON

OFF

T2

T2

T2

T2

T2

T2

t

t

t

T1

T1

OFF

ON

OFF

ON

Remote controlled
mirror switch (folding/
unfolding switch)

OFF

ON

Electric retractable remote
controlled mirror
(Unfolding)

Electric retractable remote
controlled mirror
(Folding)

AC207002AB

ON

OFF

ON

OFF

ON

OFF

ON

OFF

T

T

Ignition switch

30 km/h

0 km/h

Unfolding

Folding

Vehicle speed

Remote controlled mirror switch
(folding/unfolding switch)

Door mirror position

Door mirror unfold relay

Door mirror fold relay

T : 16 seconds

OUTSIDE MIRROR

EXTERIOR

51-19

When the vehicle speed reaches 30 km/h with the

ignition switch ON and the mirrors folded, ETACS
turns the door mirror unfold relay (ON) for 16 sec-
onds to unfold the door mirrors. However, the
door mirrors do not return to their unfolded posi-
tions automatically if the ignition switch is turned
from OFF to ON, and then the folding/unfolding
switch on the remote control mirror switch is
operated.

2. Ignition switch-linked folding/unfolding function

1.

When the ignition switch is turned ON with the mir-

rors folded, ETACS turns the door mirror unfold
relay (ON) to unfold the door mirrors. When the
door is opened with the ignition switch OFF
(LOCK), ETACS turns the door mirror fold relay
(ON) to fold the door mirrors.

3. Keyless entry-linked folding/unfolding function

1.

Linked with the keyless entry transmitter locking

operation,

*

 ETACS turns the door mirror fold relay

ON to fold the door mirrors, and linked with the
keyless entry transmitter unlocking operation,
ETACS turns the door mirror unfold relay ON to
unfold the door mirrors.

AC707463AB

T

T

T

T

ON

OFF

ON

OFF

ON

OFF

ON

OFF

Ignition switch

T: 16 seconds

Driver's door switch

Unfolding

Folding

Door mirror position

Door mirror unfold relay

Door mirror fold relay

AC707464 AB

T

T

T

T

ON

OFF

ON

OFF

ON

OFF

ON

OFF

Unfolding

Folding

Door mirror position

Door mirror unfold relay

Keyless entry transmitter
unlock switch

Keyless entry transmitter
lock switch

Door mirror fold relay

T: 16 seconds

CUSTOMISATION FUNCTION

EXTERIOR

51-20

NOTE:

.

*

: For vehicles with KOS, the door mirrors are

folded linked with lock operation of KOS, and
unfolded linked with unlock operation.

Using the customise, the functions 1, 2, and 3
can be selected or disabled (Refer to ).

Whether the door mirrors are at the folding or
unfolding position is memorised and determined
by the previously operated door mirror relay
(fold/unfold). For this reason, if the mirrors are
manually folded, they are not unfolded automati-
cally.

CUSTOMISATION FUNCTION

M2510001400820

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Front wiper
operation

Adjustment of the
intermittent
windshield wiper
operation <vehicles
without lighting
control sensor>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed (initial
condition).

Adjustment of the
intermittent
windshield wiper
operation <vehicles
with lighting control
sensor>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed.

Rain Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and lighting control sensor (initial
condition).

Front /rear
wiper washer

Disabling or
enabling
washer-linked wiper
function

Only Washer

No function

Washer & Wiper

With function: Without delayed finishing
wipe function <Initial condition>

With after wipe

With function: With delayed finishing wipe
function
