SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-13

• When the registered keyless operation key

receives the exterior data only, KOS-ECU trans-
mits the unlock request (request to unlock the
applicable position) to ETACS-ECU.

• Even after the specified time has elapsed, if

KOS-ECU receives no response that satisfies the
unlock, it performs a retry once. (When no
response after the retry, KOS-ECU terminates
the unlocking operation.)

• When the unlocking operation is performed on

the driver's side, the priority order of keyless
operation key is updated.

UNLOCKING OPERATION INHIBITION
TIME (WHEN THE TAILGATE IS
OPERATED)

Considering that the customer operates the lock
switch of tailgate lock release handle to make sure
the doors are locked, the unlocking operation is pro-
hibited for 3 seconds after the locking operation is
performed by the lock switch of tailgate lock release
handle. Using the customisation function, the unlock
prohibition time can be changed.

UNLOCKING OPERATION INHIBITION
CONDITIONS

In the following cases, the unlocking operation is pro-
hibited.

• Any door or the tailgate is open (door switch is

ON). (including door ajar)

• Inside lock knob position of driver's side and front

passenger's side is set to Unlock.

• The engine switch is other than OFF.

• The lock and unlock signals are input at the same

time. (When the tailgate is operated)

• The exterior/interior transmitter antenna assem-

bly is being detected to be open, or it is open.

• The wiring of exterior/interior transmitter antenna

assembly is contacting against the power supply
line.

• During the unlocking operation inhibition time

(When the tailgate is operated)

• The door entry function is prohibited by the cus-

tomisation function.

ANSWERBACK FUNCTIONS

When KOS-ECU sends a signal to ETACS-ECU,
ETACS-ECU outputs the lock/unlock signal and acti-
vates the hazard warning lamp to notify the driver the
doors are locked/unlocked.

KOS TIMER LOCK FUNCTION

When none of the doors are opened within 30 sec-
onds after the doors are unlocked by KOS,
ETACS-ECU automatically outputs the door lock sig-
nal to lock the doors. This function prevents the
doors from being unlocked accidentally.

Lock signal received

Unlock signal received

ETACS-ECU

Lock signal output

Unlock signal output

Hazard warning lamp

Flashes once (initial setting)

Flashes twice (initial setting)

SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-14

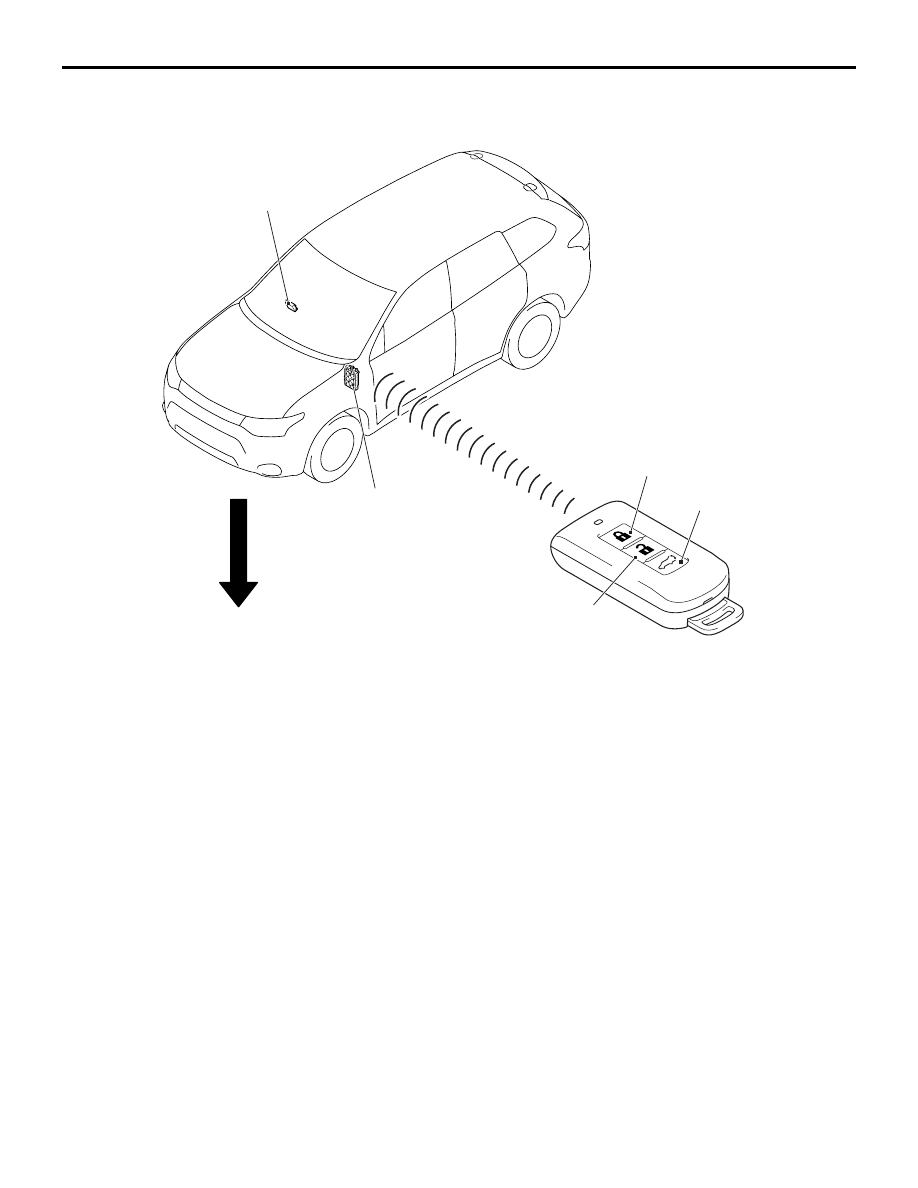

KEYLESS ENTRY FUNCTION

M2421000400512

This keyless entry function has the following fea-
tures:

• A two switches keyless operation key with lock

and unlock switches is adopted <Vehicles without
electric tailgate>.

• A three switches keyless operation key with lock,

unlock and electric tailgate switches is adopted
<Vehicles with electric tailgate>.

• The power door locks with selective unlocking

has been adopted.

• The KOS-ECU incorporates a receiver and a

receiving antenna.

• Up to 4 security codes can be registered using

M.U.T.-III.

• Answerback functions

NOTE: The answerback function can be enabled/dis-

abled using a customisation function (Refer to

P.42B-31

• Using the lock/unlock switches, all doors (includ-

ing tailgate) can be locked or unlocked, door mir-
rors can be retracted or opened <Vehicles with
electric-folding door mirrors>.

NOTE: Using the customisation function, a change

for multi-mode function (door mirrors) can be set.
(Refer to

P.42B-31

• Keyless entry timer lock

NOTE: Timer of the keyless entry timer lock can be

enabled/disabled using a customisation function
(Refer to

P.42B-31

ACC00257

AC608093

ACB05509

Electric signal

Radio frequency signal

ETACS-ECU

KOS-ECU
(incorporating receiver
and antenna)

Lock switch

Electric tailgate switch
<Vehicles with electric tailgate>

Unlock switch

Keyless operation key

Door lock actuators (lock/unlock)
Tailgate latch assembly

Door mirror assembly (unfolding/folding)

Electric tailgate control unit <Vehicles with electric tailgate>

The signal causes the hazard warning lamp to flash once when the doors are locked, or flash twice when unlocked (Initial setting).

The signal causes the room lamp to extinguish when the doors are locked, or come on for 15 seconds when unlocked.

SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-15

DESCRIPTION OF CONSTRUCTION AND
OPERATION

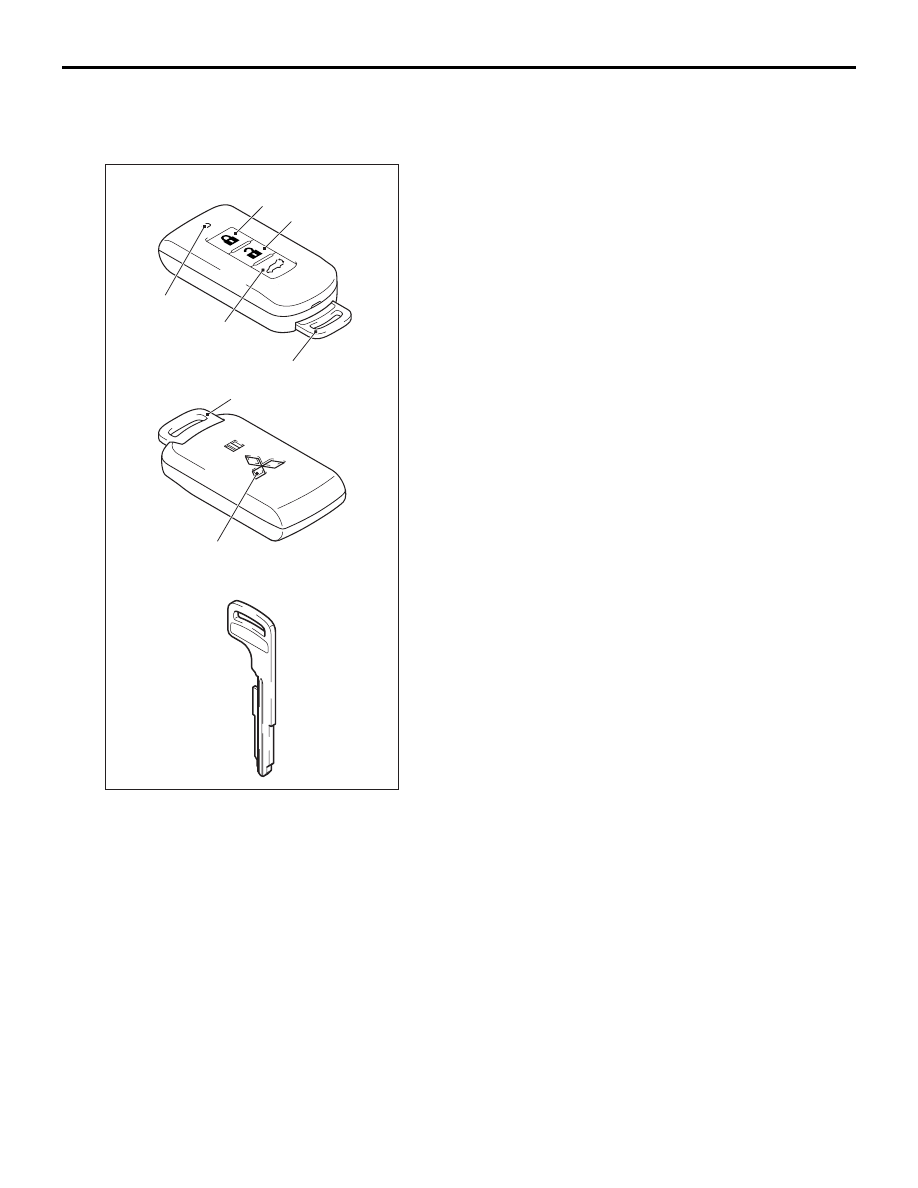

KEYLESS OPERATION KEY

• The two switches <vehicles without electric tail-

gate> and three switches <vehicles with electric
tailgate> have been adopted for keyless opera-
tion key, and the specific encrypted code is trans-
mitted as radio wave signal.

• A shining three-diamond mark on the back of the

keyless operation key gives it a classy look.

• Matt-plating is adopted for switches to improve

appearance.

• An indicator lamp, which illuminates when signals

are received, is added on the keyless operation
key. This indicator lamp informs you of the signal
transmission status and warns you of flat battery.

• The switch operation of the keyless operation key

allows the system to operate as follows:

ACB05934

AC610747

AC608093

AC608094

Lock switch

Electric tailgate switch
<Vehicles with electric tailgate>

Unlock switch

Emergency key

Indicator lamp

<Front view>

<Keyless operation key>

<Emergency key>

Three-diamond mark

<Rear view>

SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-16

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING

• Responding to the adoption of power door locks

with selective unlocking, the anti-theft feature has
been improved.

• When the lock/unlock switch of front door

(driver's side) is pressed once, only the driver's
door is unlocked. When the lock/unlock switch of
front door (driver's side) is pressed once again
within 2 seconds after the driver's door is
unlocked, the front passenger's door, rear doors,
and the tailgate are unlocked.

NOTE: When the lock/unlock switch of front door

(driver's side) is pressed once, only the driver's
door is unlocked. When the lock/unlock switch of
front door (driver's side) is pressed once again
more than 2 seconds after the driver's door is
unlocked, the driver's door only is unlocked.

• When the unlock switch on the keyless operation

key is pressed once, only the driver's door is
unlocked. When the keyless operation key unlock
switch is pressed once again within 2 seconds
after the driver's door is unlocked, the front pas-
senger's door, rear doors, and the tailgate are
unlocked.

NOTE: When the keyless operation key unlock

switch is pressed once, only the driver's door is
unlocked. When the keyless operation key unlock
switch is pressed once again more than 2 sec-
onds after the driver's door is unlocked, the
driver's door only is unlocked.

• Using a customisation function, the power door

locks with selective unlocking can be enabled or
disabled (Refer to

P.42B-31

ENCRYPTED CODE

Function

Keyless operation key operation

System operation

Standard function
(lock/unlock/electri
c tailgate <vehicles
with electric
tailgate>)

Press the lock switch once.

All doors (including the tailgate) are
locked.

NOTE: If the retracting function of the
electric folding mirrors is added using a
customisation function, it can be retracted
in synchronisation with a lock operation.

Press the unlock switch once.

All doors (including the tailgate) are
unlocked.

NOTE: If the opening function of the
electrical folding mirrors is added as an
adjustment function, it can be opened in
synchronisation with an unlock operation.

While the tailgate is unlocked, press the
electric tailgate switch twice within two
seconds.

The electric tailgate is opened or closed.
(Refer to GROUP 42A

− Electric Tailgate .)

Multi mode
function <Vehicles
with
electric-folding
door mirrors>

Press the lock switch once to lock all doors
(including the tailgate), and within 30
seconds press the lock switch twice
consecutively.

The door mirrors are retracted.

Press the unlock switch once to unlock all
doors (including the tailgate), and within
30 seconds press the unlock switch twice
consecutively.

The door mirrors return from the retracted
position.

Power door locks
with selective
unlocking

Press the unlock switch once to unlock the
driver’s door, and within 2 seconds, press
the unlock switch again to unlock the front
passenger’s door, rear doors and tailgate.

Power door locks with selective unlocking.

NOTE: Using a customisation function, the
power door locks with selective unlocking
can be enabled or disabled.
