SUNROOF
BODY
42A-35
The electric sliding glass sunroof with tilt-up mecha-
nism has been adopted as an option. This sunroof
has the following characteristics:
• A lightweight sunroofs has been adopted.
• The sunroof tilts up for approximately 30 mm to
improve ventilation performance.
• The integrated switch allows for all slide open-
ing/closing, tilt up/down, and stop operations. All
operations are available at one touch.
• If external force is applied during slide closing or
tilt down operations that obstructs operations, the
sunroof lid glass will move in the reverse direc-
tion.
DESCRIPTION OF CONSTRUCTION AND
OPERATION
SAFETY MECHANISM
• If any obstacle such as a hand or a head is
detected to be pinched during a sunroof lid glass
closing operation, the sunroof lid glass is opened
by approximately 200 mm or more.
• During the sunroof lid glass closing operation, by
continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating
the safety mechanism even when the obstacle is
detected to be pinched.
• During the safety mechanism activation, when
the sunroof close switch is operated, the sunroof
lid glass stops. By continuing the close switch
operation, the sunroof lid glass can be forcibly
closed without activating the safety mechanism
even when the obstacle is detected to be
pinched.

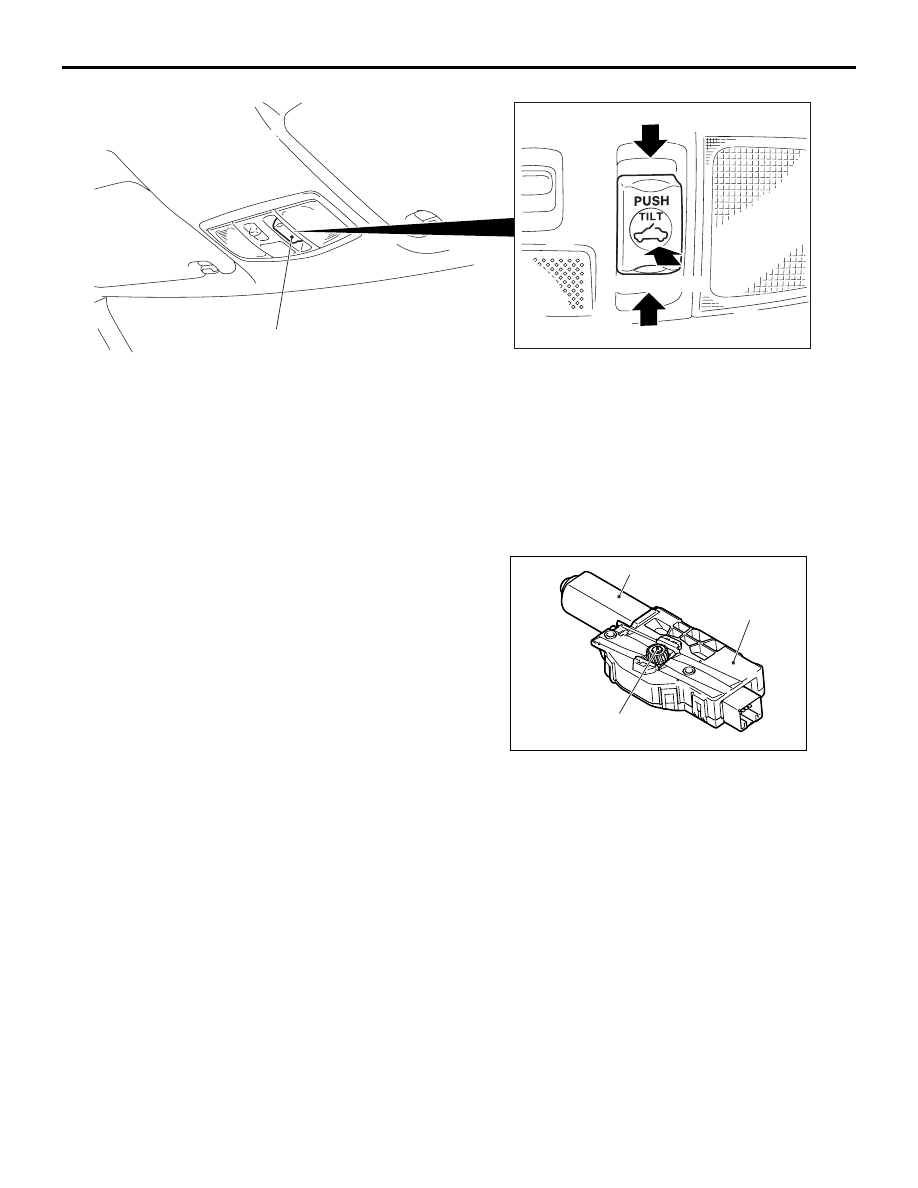

SUNROOF MOTOR ASSEMBLY
The sunroof motor assembly, which consists of the
motor main body, drive gear, and sunroof ECU, is
installed in front of the housing.
AC505239
AC505240

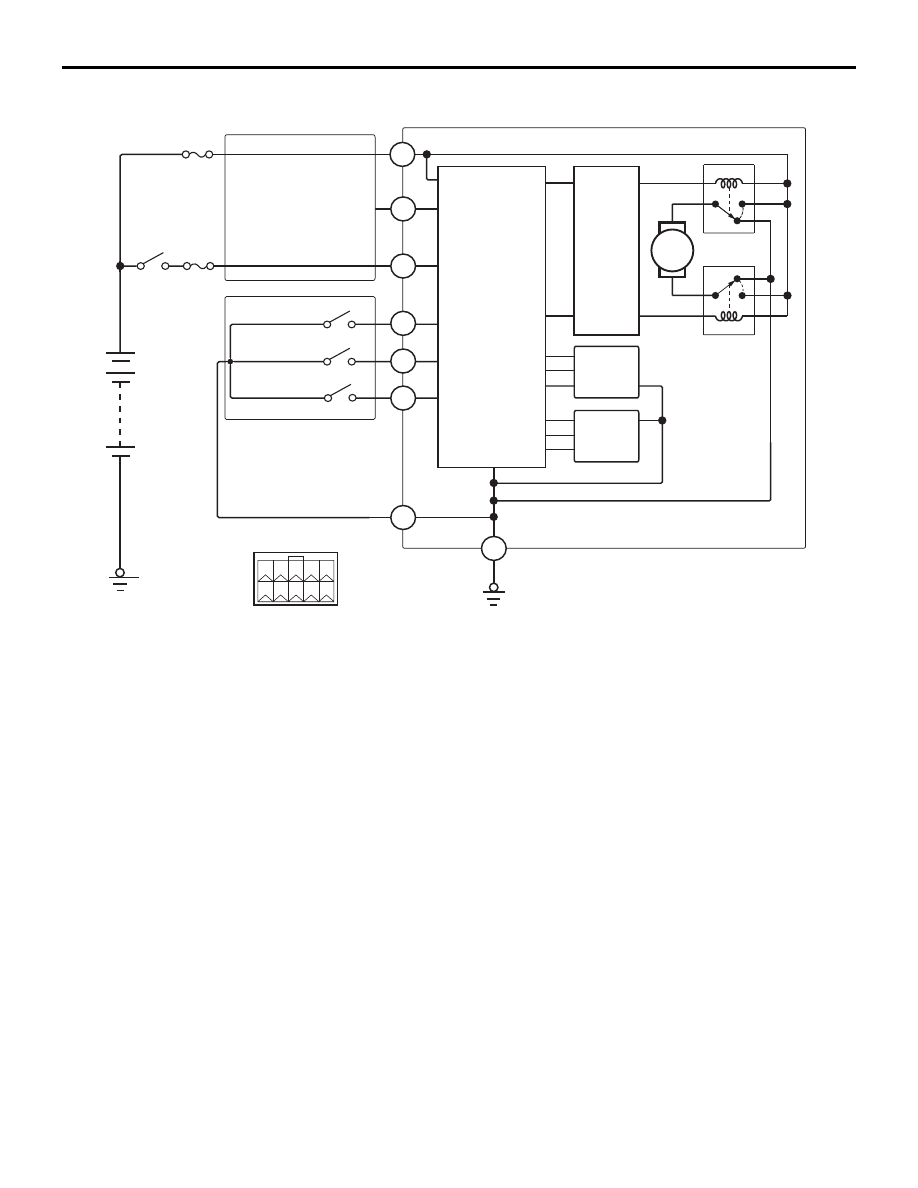

AC506511AB
Sunroof switch
Open switch
Close/down switch
Tilt-up switch
ACB05550AB
Sunroof ECU
Drive gear
Sunroof motor
