Mitsubishi Outlander (2013+). Manual - part 75





DOOR AND TAILGATE

BODY

42A-19

DESCRIPTION OF CONSTRUCTION AND
OPERATION

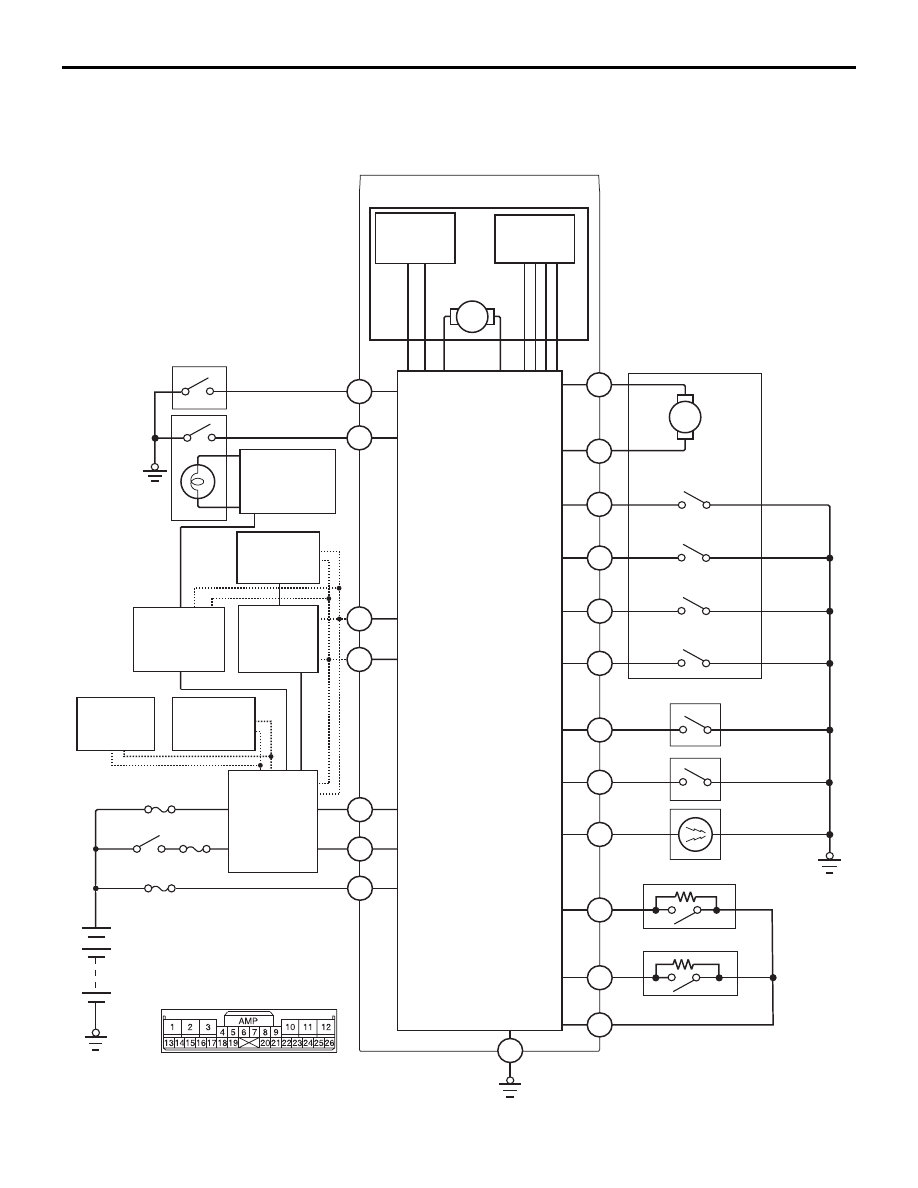

Electric tailgate control unit system circuit

The electric tailgate control unit uses input signals

from switches to control the electric tailgate motor.

ACC00139

M

M

AB

KOS-ECU

CVT-ECU

ABS-ECU

      or

ASC-ECU

ETACS-ECU

1

13

5

4

3

23

15

19

11

22

8

2

26

25

24

17

7

6

12

9

Pulse
sensor

Tailgate motor
assembly

Electro-
magnetic
clutch

Electric tailgate motor

Ignition switch

Electric tailgate
switch

Electric tailgate control unit

Door-ajar switch

Neutral switch

Full latch switch

Half latch switch

Latch
motor

Tailgate latch assembly

Tailgate lock
release handle

Electric tailgate
close switch

Electric tailgate
buzzer

Combination
meter

OSS-ECU

Electric tailgate

main switch

Tailgate sensor (RH)

Tailgate sensor (LH)

A/C-ECU

CPU

DOOR AND TAILGATE

BODY

42A-20

ELECTRIC TAILGATE CONTROL UNIT

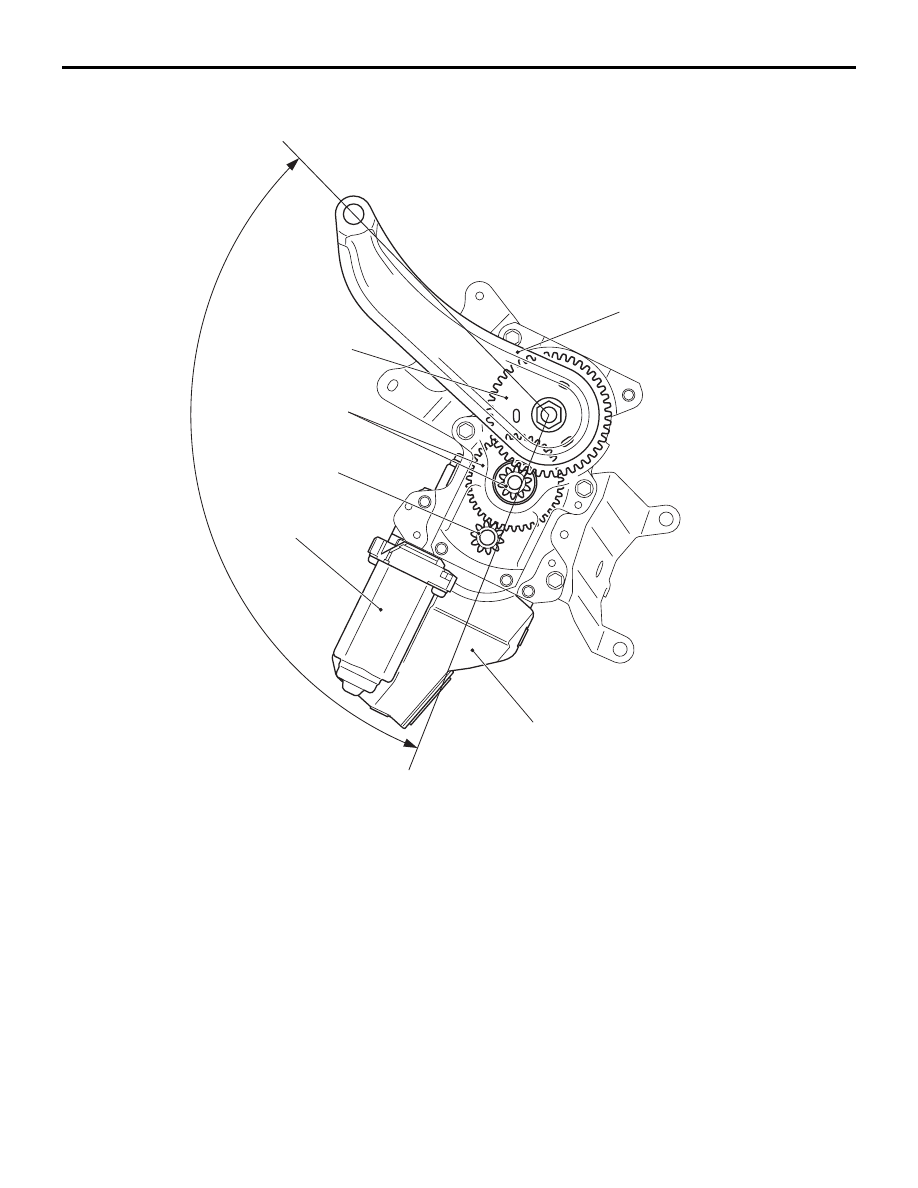

The electric tailgate motor consists of an electric
motor assembly (incorporating an electromagnetic
clutch and gears), gears and arms. It is integrated in
the electric tailgate control unit. As the motor runs to
the open or close direction, the gears (No.1, No.2,
and No.3) will rotate in that order, thus turning the
arm.

ACB05624AB

Arm

Open

No.1 gear

No.2 gear

No.3 gear

Electric tailgate
motor assembly

Close

Electric tailgate control unit

DOOR AND TAILGATE

BODY

42A-21

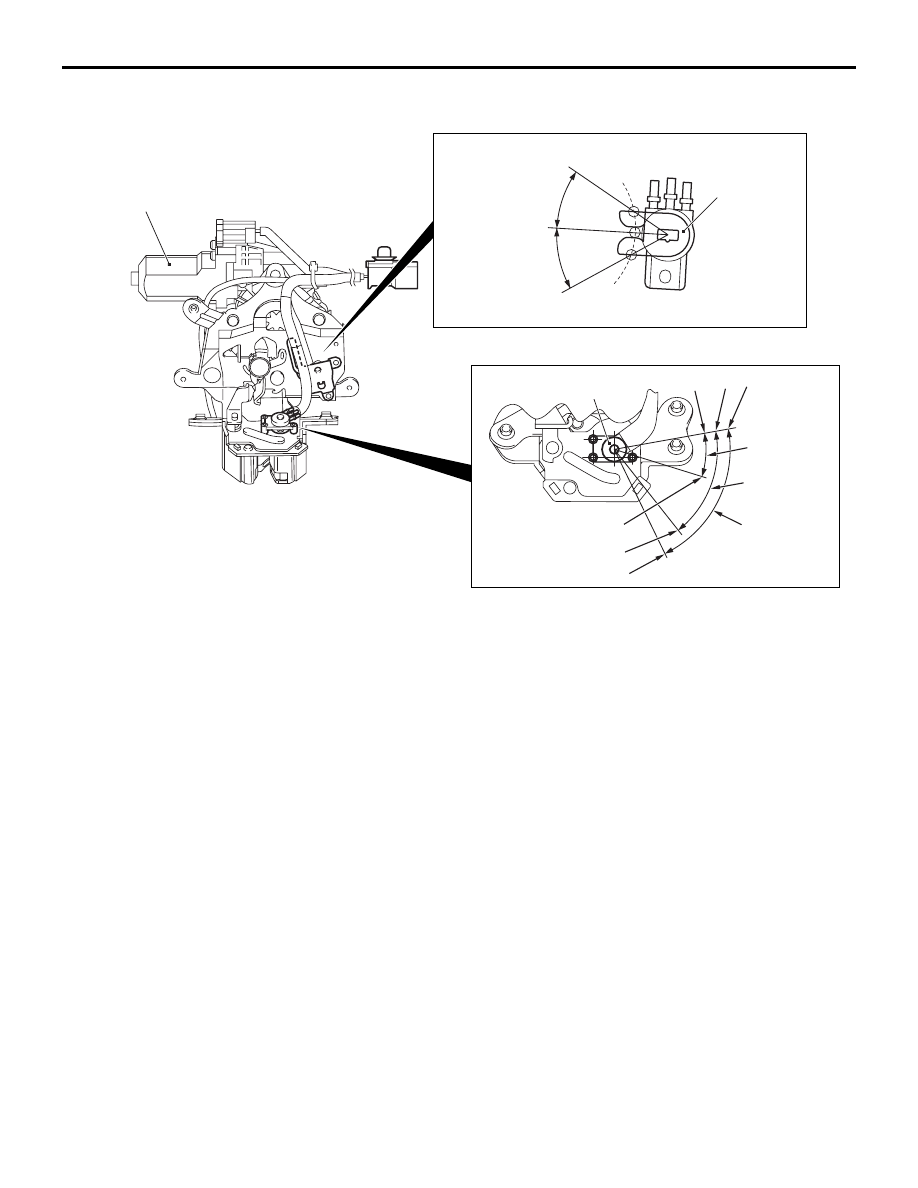

TAILGATE LATCH

The tailgate latch includes the latch motor and
switches. With each switch, ON and OFF is switched
by the lever movement.

• A half latch switch detects that the latch remains

ajar (not engaged fully). This prevents the electric
tailgate from opening unintentionally.

• A full latch switch detects that the electric tailgate

remains closed fully (overrun*).

NOTE: *: Overrun indicates that the striker is pulled

further to close side by the tailgate latch in order
to fully close the electric tailgate securely.

• A door-ajar switch detects the doors are closed

fully. In addition, the switch detects that the elec-
tric tailgate can be opened.

• A neutral switch detects the neutral position of

the latch motor.

AC610751

AC402603

AC402604

AC610260

Lever

AB

OFF

OFF

OFF

ON

ON

ON

Latch motor

Lever

Full latch
switch

Door-ajar
switch

Half latch
switch

Neutral switch
ON area
(Disengaged side)

Neutral switch
OFF area
(Engaged side)

DOOR AND TAILGATE

BODY

42A-22

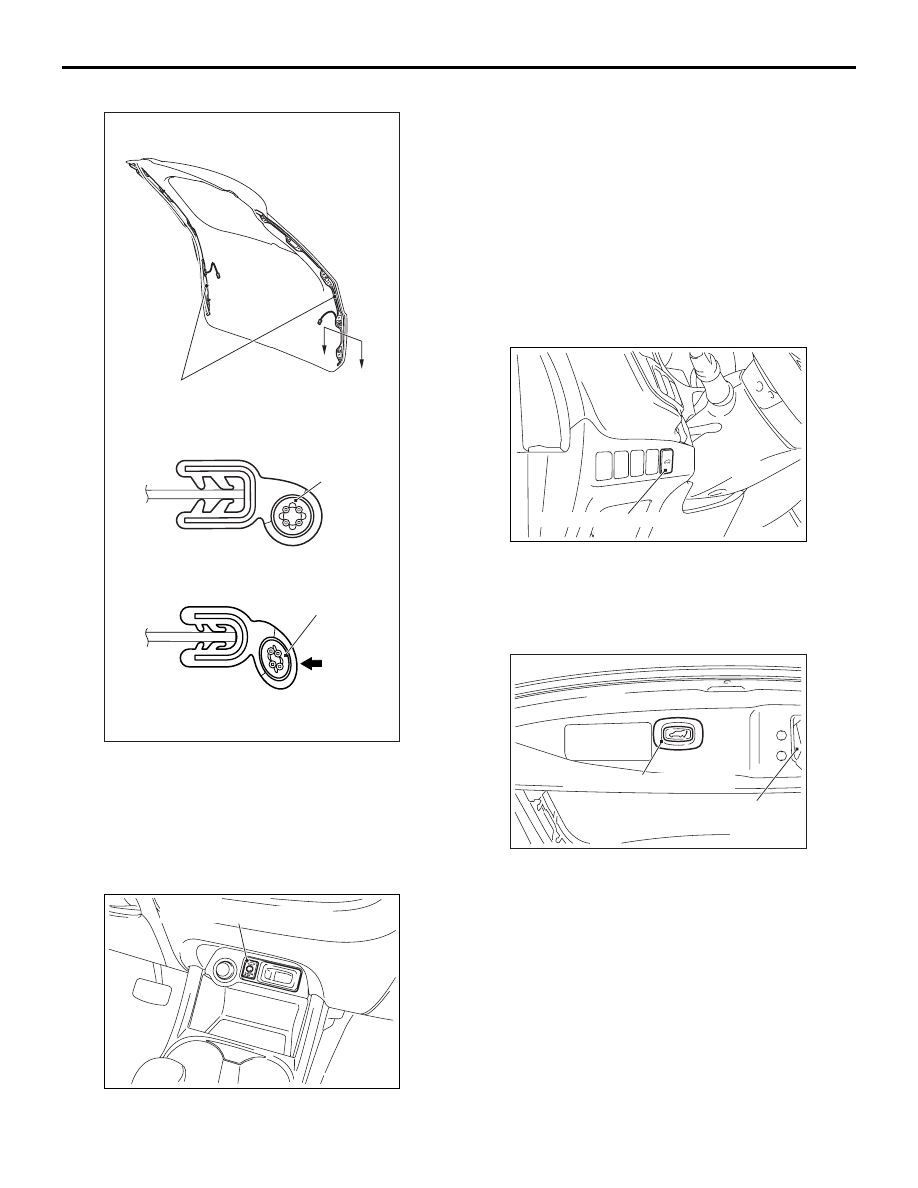

TAILGATE SENSOR

While the electric tailgate is being closed automati-
cally, if pressure is applied to the tailgate sensors
located at the both sides of electric tailgate, the sys-
tem determines that something is caught by the com-
pression of pressure detection sensor.

ELECTRIC TAILGATE MAIN SWITCH

When the electric tailgate main switch in the instru-
ment panel is OFF, the electric tailgate cannot be
opened or closed automatically. This prevents the
electric tailgate from an unintentional operation
caused by the accidental pressing of electric tailgate
switch or electric tailgate close switch of the keyless
operation key.

NOTE: If you attempt to open or close the tailgate
automatically while the electric tailgate main switch is
off, the warning buzzer will sound four times to warn
that the electric tailgate cannot be operated.

ELECTRIC TAILGATE SWITCH

When you press and hold the electric tailgate switch
on the instrument panel, the electric tailgate is auto-
matically opened or closed to its full position.

ELECTRIC TAILGATE CLOSE SWITCH

If you turn on the electric tailgate close switch inside
the tailgate while the tailgate is fully opened, it will be
closed automatically to its full position.

TAILGATE LOCK RELEASE HANDLE

The electric tailgate lock release handle which
requires a small operating force and has no tempera-
ture dependency has been adopted to improve the
opening operation. When the handle is operated, the
switch is turned ON or OFF. Refer to

P.42A-9

.

AC500572

ACC00272

AC402600

ACB05468

AB

Tailgate sensor

Section A – A

Normal state

Pressure sensor

Pressure sensor

Pressure

Section A – A

Jammed state

A

A

ACB05028AB

Electric tailgate main switch

ACB05029AB

Electric tailgate switch

ACB05027AB

Tailgate latch

Electric tailgate close switch
