TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-39

STEP 19. Check the wiring harness between
B-18X A/C compressor relay connector terminal
No.1 and C-26 A/C-ECU connector terminal
No.33.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-104, and repair if
necessary.

•

Check the A/C compressor relay output line for
open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

STEP 20. Check the magnetic clutch operation.

 Refer to

P.55A-51

.

Q: Can the sound of the magnetic clutch (click) be

heard?

YES :

Go to Step 21.

NO :

Replace the compressor magnet clutch.

STEP 21. Check the refrigerant temperature
switch.

 Refer to

P.55A-73

.

Q: Is the refrigerant temperature switch operating

properly?

YES :

Go to Step 22.

NO :

Replace the refrigerant temperature switch.

STEP 22. Check the refrigerant level.

 Refer to

P.55A-51

.

Q: Is the refrigerant level correct?

YES :

Go to Step 23.

NO :

Correct the refrigerant level (Refer to
On-vehicle Service

P.55A-52

).

STEP 23. Check the A/C pressure sensor
operation.

Refer to

P.55A-51

.

Q: Is the A/C pressure sensor operating properly?

YES :

Go to Step 24.

NO :

Replace the A/C pressure sensor.

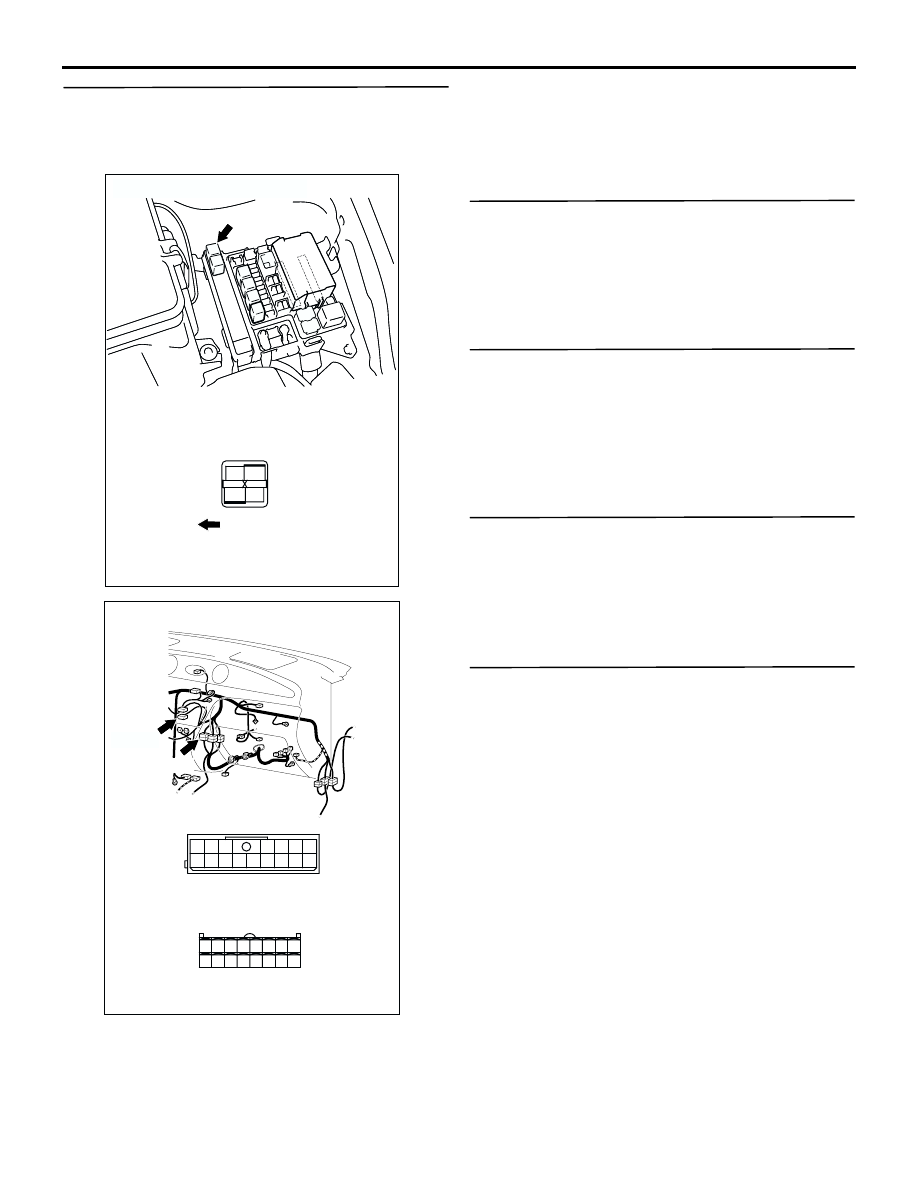

AC301483AG

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC301398

Connectors: C-26, C-104

C-104

C-26

AQ

Harness side

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

C-104(B)

C-26(B)

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-40

STEP 24. Connector check: A-02 A/C pressure
sensor connector and C-27 A/C-ECU connector

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the connector.

STEP 25. Check the wiring harness between A-02
A/C pressure sensor connector terminal No.2
and C-27 A/C-ECU connector terminal No.11.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-116, and repair if
necessary.

•

Check the A/C pressure sensor signal line for
open circuit.

Q: Is the check result normal?

YES :

Go to Step 26.

NO :

Repair the wiring harness.

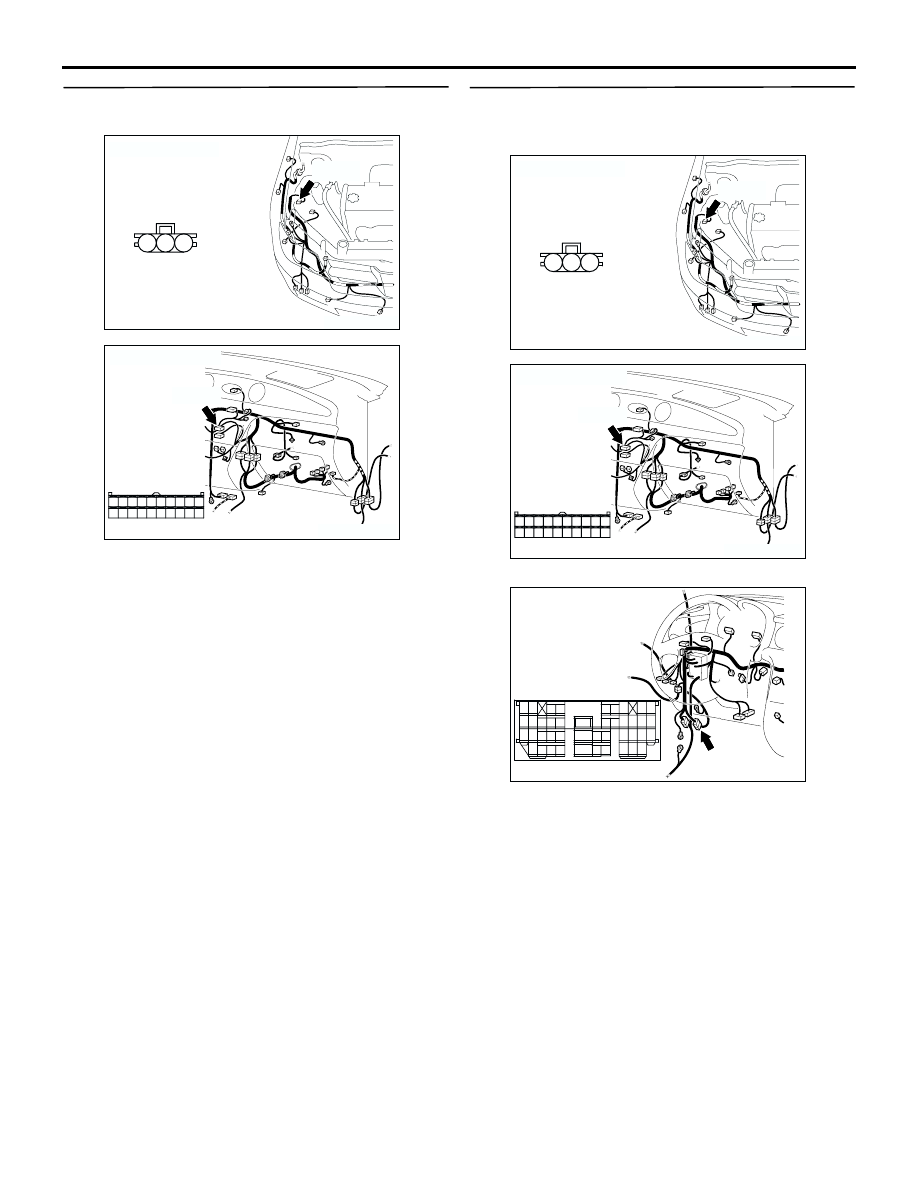

AC301656

Connector: A-02

AB

Harness side

3 2 1

A-02(B)

AC301397

Connector: C-27

AS

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

AC301656

Connector: A-02

AB

Harness side

3 2 1

A-02(B)

AC301397

Connector: C-27

AS

C-27(B)

Harness side

8

2

10 9

1

5

3

4

6

7

20191817161514131211

AC301395AG

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

Connector: C-116

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-41

STEP 26. Connector check: C-134 engine-ECU
connector and C-26 A/C-ECU connector

Q: Is the check result normal?

YES :

Go to Step 27.

NO :

Repair the connector.

STEP 27. Check the wiring harness between
C-134 engine-ECU connector terminal No.24 and
C-26 A/C-ECU connector terminal No.32.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-104, and repair if
necessary.

•

Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 28.

NO :

Repair the wiring harness.

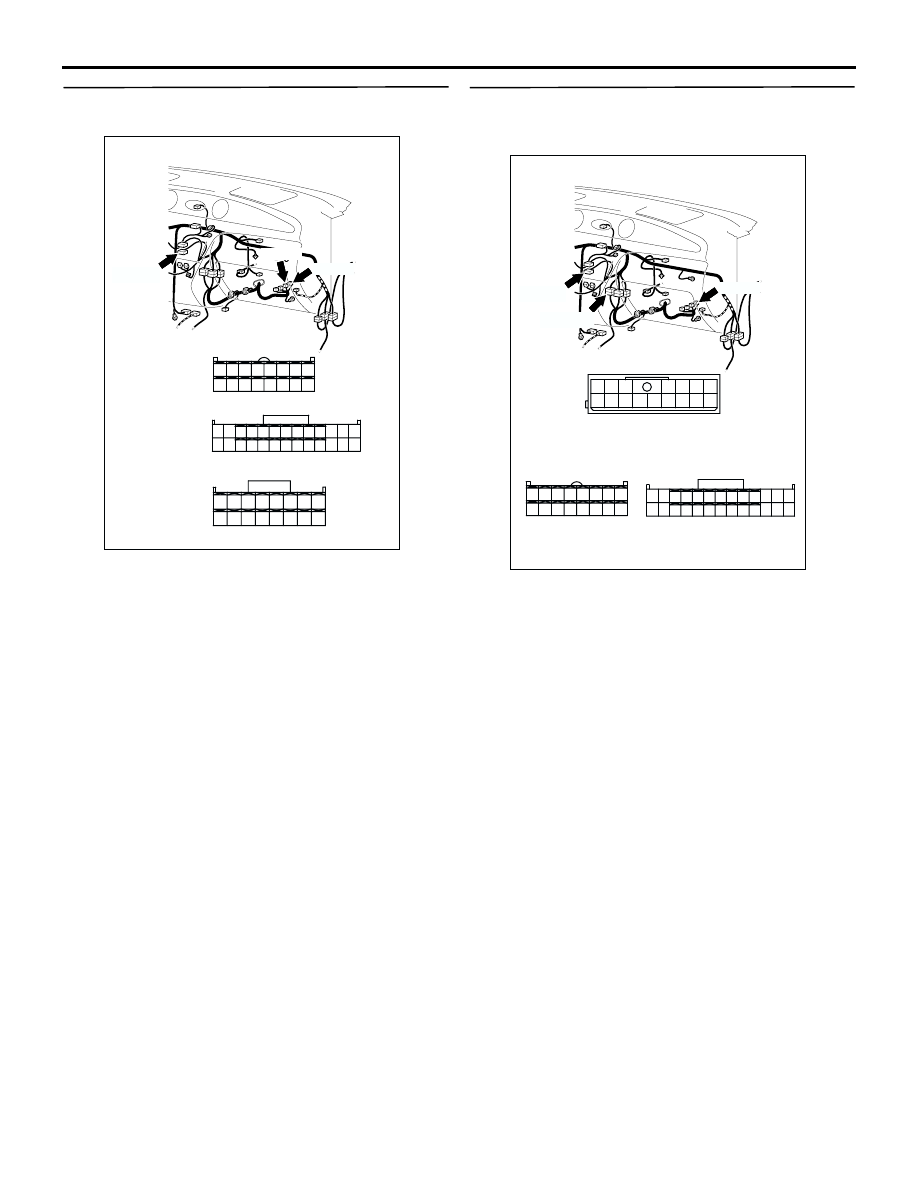

AC301398

Connectors: C-26, C-134, C-135

C-134

C-135

AR

C-135

Harness side

22

9

14

15

2 1

3

16

1918

5 4

17

6

21

7

20

8

25

12

10

23

11

24

26

13

JAE-E

39

31

45

37

42

34

40

41

32

33

4443

35

36

46

38

JAE-E

C-134

C-26(B)

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

C-26

AC301398

Connectors: C-26, C-104, C-134

C-134

BB

Harness side

22

9

14

15

2 1

3

16

1918

5 4

17

6

21

7

20

8

25

12

10

23

11

24

26

13

JAE-E

C-134

C-26(B)

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

C-26

C-104(B)

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

C-104

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-42

STEP 28. Check the wiring harness between
C-135 engine-ECU connector terminal No.45 and
C-26 A/C-ECU connector terminal No.34.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-104, and repair if
necessary.

•

Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Replace the A/C-ECU or engine-ECU.

NO :

Repair the wiring harness.

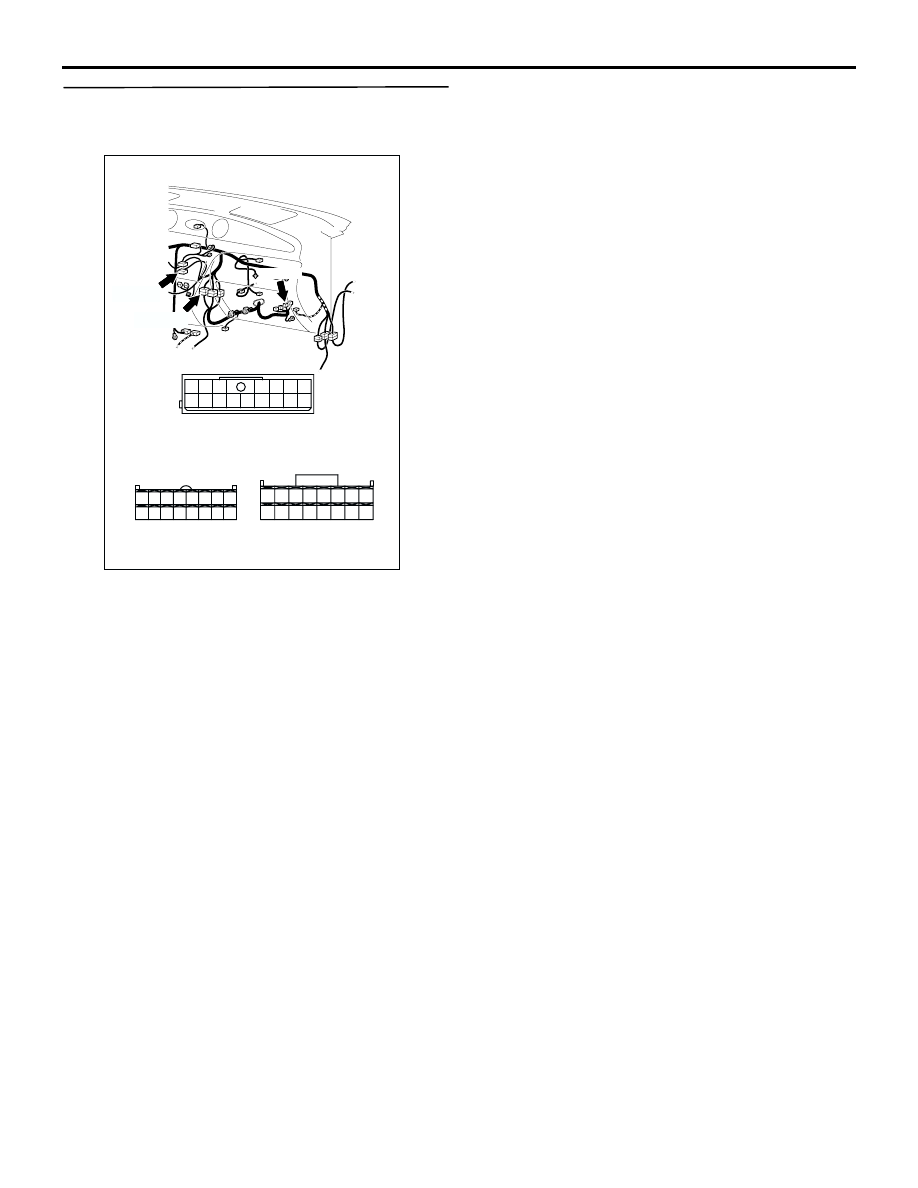

AC301398

Connectors: C-26, C-104, C-135

C-135

BC

C-135

Harness side

39

31

45

37

42

34

40

41

32

33

4443

35

36

46

38

JAE-E

C-26(B)

29

21

35

27

24

323130

22

23

33

25

34

26

36

28

C-26

C-104(B)

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

C-104
