TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-15

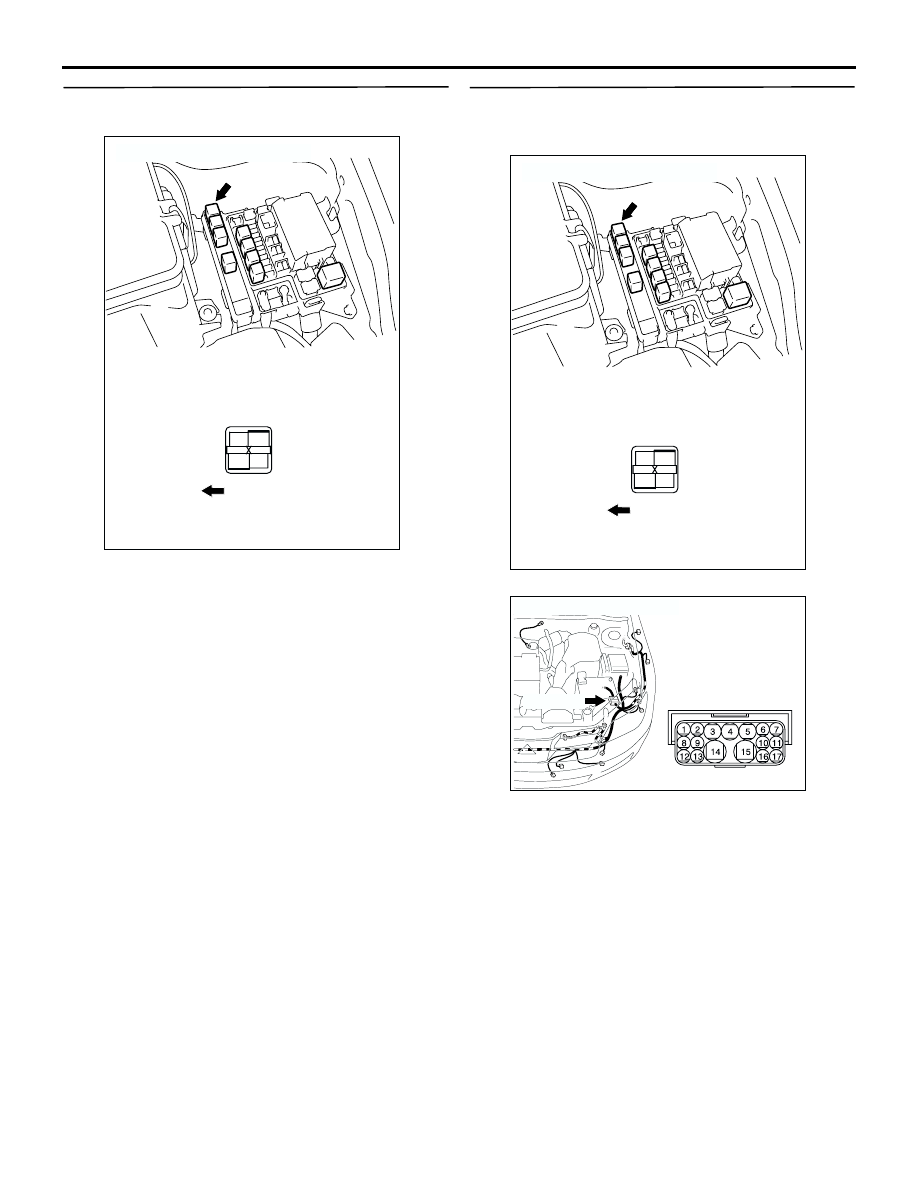

STEP 10. Connector check: B-18X A/C
compressor relay connector

Q:  Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the connector.

STEP 11. Check the wiring harness between
B-18X A/C compressor relay connector terminal
No.4 and the battery.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector A-14, and repair if necessary.

•

Check the A/C compressor relay power supply
line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC308679 AG

A-14(GR)

Connector: A-14 <LHD>

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-16

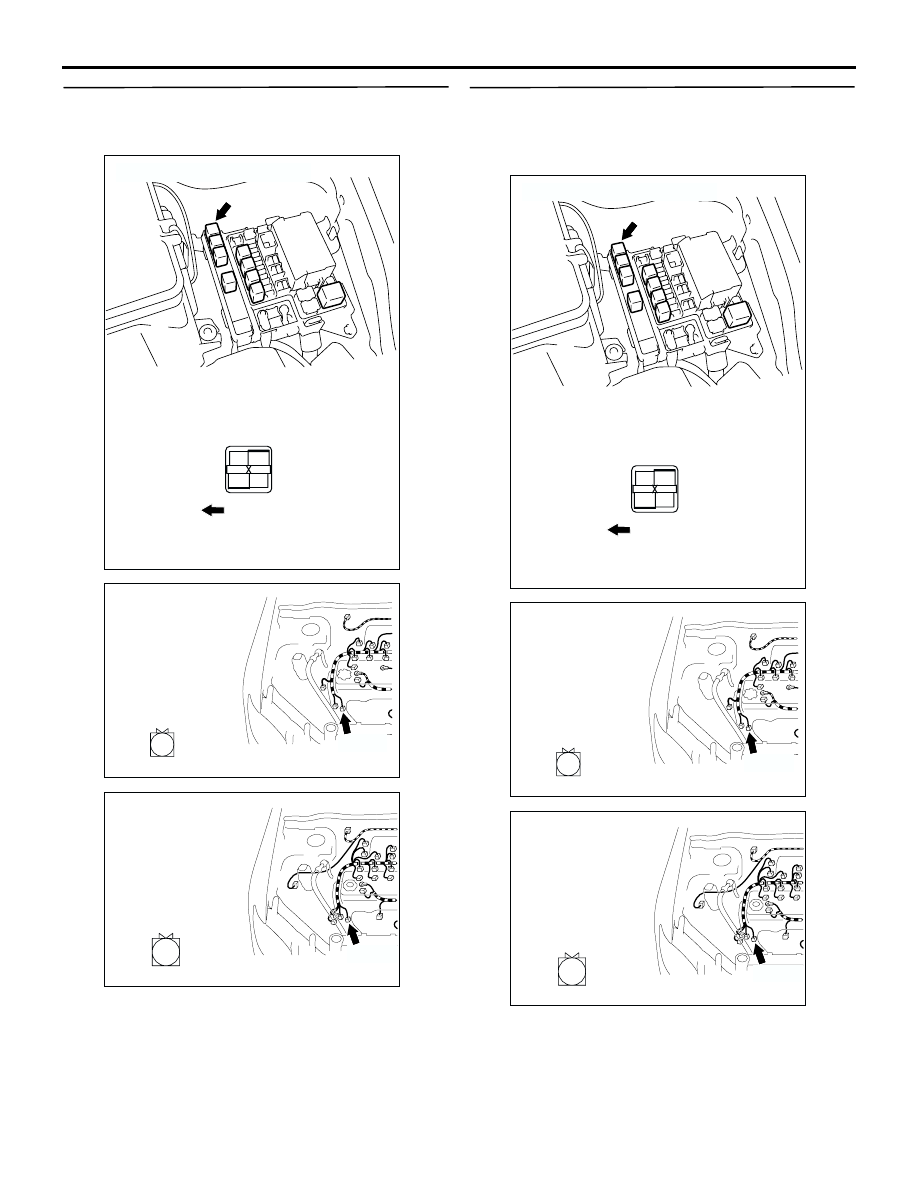

STEP 12. Connector check: B-18X A/C
compressor relay connector and B-27 A/C
compressor connector

Q:  Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the connector.

STEP 13. Check the wiring harness between
B-18X A/C compressor relay connector terminal
No.1 and B-27 A/C compressor connector
terminal No.1.

•

Check the A/C compressor power supply line for
open circuit.

Q: Is the check result normal?

YES <2000> :

Go to Step 14.

YES <2400> :

Go to Step 16.

NO :

Repair the wiring harness.

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC308688

Connector: B-27 <2000>

Harness side

1

B-27(B)

AB

AC308706

Connector: B-27
<2400-LHD>

Harness side

1

B-27(B)

AB

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC308688

Connector: B-27 <2000>

Harness side

1

B-27(B)

AB

AC308706

Connector: B-27
<2400-LHD>

Harness side

1

B-27(B)

AB

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-17

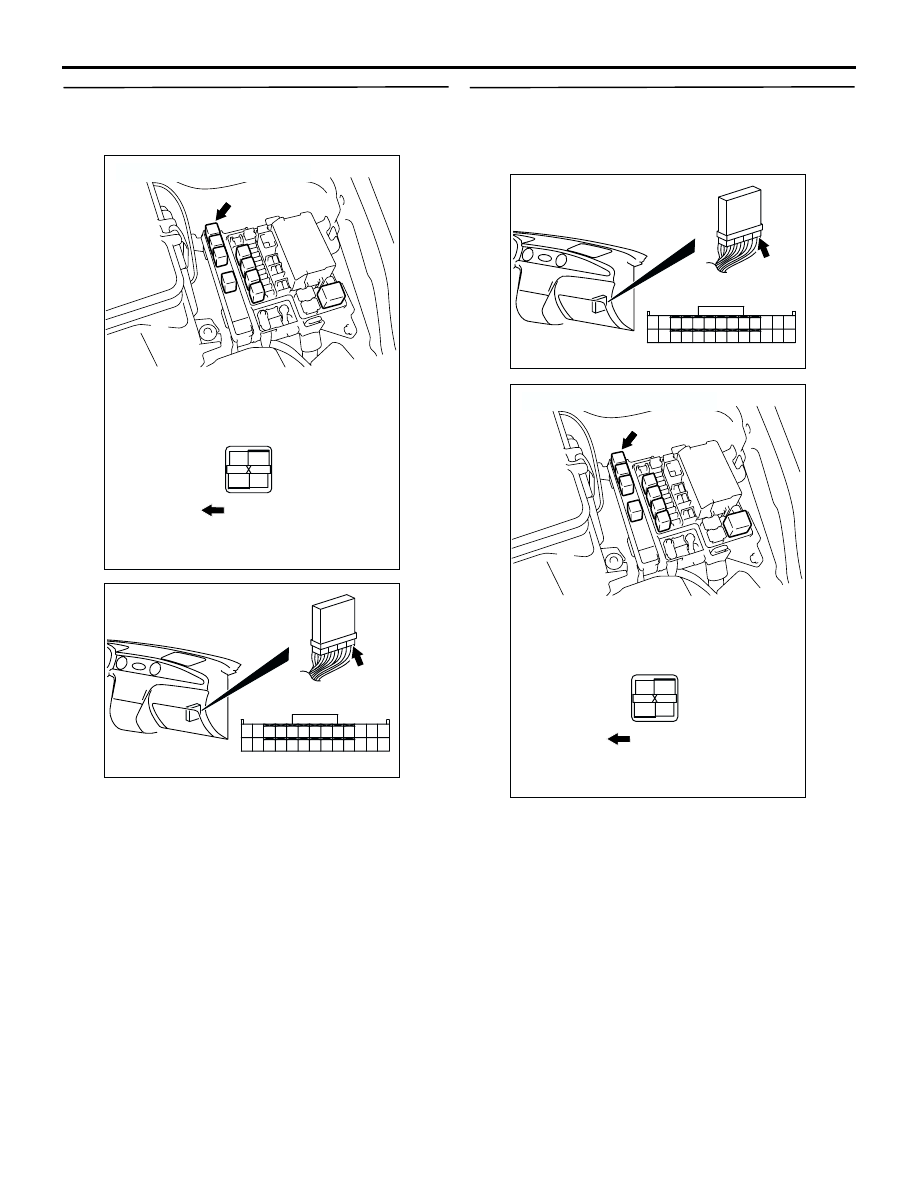

STEP 14. Connector check: C-134 engine-ECU
connector and B-18X A/C compressor relay
connector

Q:  Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the connector.

STEP 15. Check the wiring harness between
C-134 engine-ECU connector terminal No.8 and
B-18X A/C compressor relay connector terminal
No.2.

•

Check the A/C compressor relay earth line for
open or short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC309474AB

Connector: C-134 <2000>

Harness side

22

9

14

15

2 1

3

16

1918

5 4

17

6

21

7

20

8

25

12

10

23

11

24

26

13

JAE-E

AC309474AB

Connector: C-134 <2000>

Harness side

22

9

14

15

2 1

3

16

1918

5 4

17

6

21

7

20

8

25

12

10

23

11

24

26

13

JAE-E

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-18

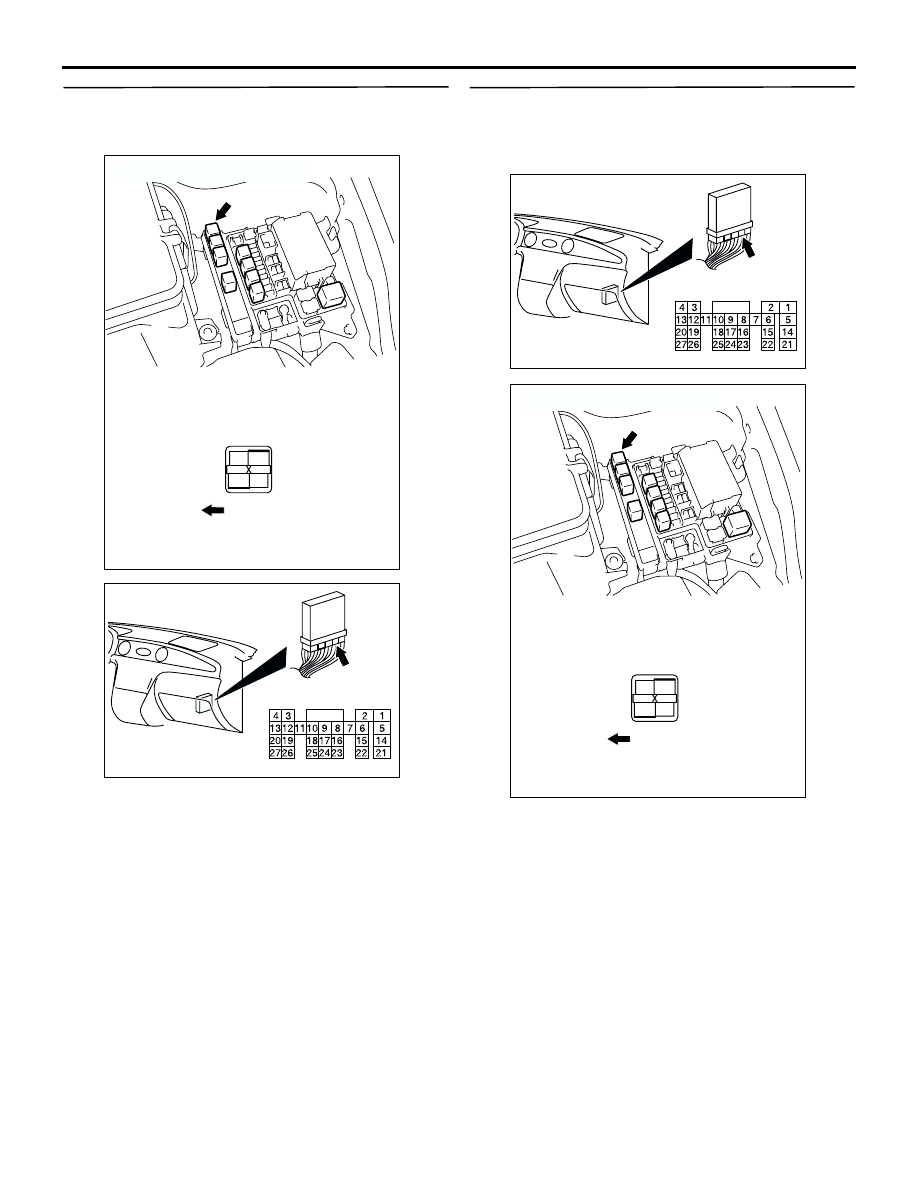

STEP 16. Connector check: C-139 engine-ECU or
engine-A/T-ECU connector and B-18X A/C
compressor relay connector

Q:  Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the connector.

STEP 17. Check the wiring harness between
C-139 engine-ECU or engine-A/T-ECU connector
terminal No.8 and B-18X A/C compressor relay
connector terminal No.2.

•

Check the A/C compressor relay earth line for
open or short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X

AC309486

Connector: C-139 <2400-LHD>

AC

Harness side

C-139 (GR)

AC309486

Connector: C-139 <2400-LHD>

AC

Harness side

C-139 (GR)

AC309476AB

Front of
vehicle

Relay box side

1

3

2

4

B-18X

-

Connector: B-18X
