Mitsubishi Outlander (2003+). Manual - part 455





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-109

COMMENTS ON TROUBLE SYMPTOM
If the front passenger's or rear power window does
not work by means of the respective power window
sub switch, the power window sub switch or the
power window motor may be defective.

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

ETACS-ECU

POWER
WINDOW
SUB SWITCH
(REAR: LH)

POWER
WINDOW
MOTOR
(REAR: LH)

POWER
WINDOW
SUB SWITCH
(REAR: RH)

POWER
WINDOW
MOTOR
(REAR: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

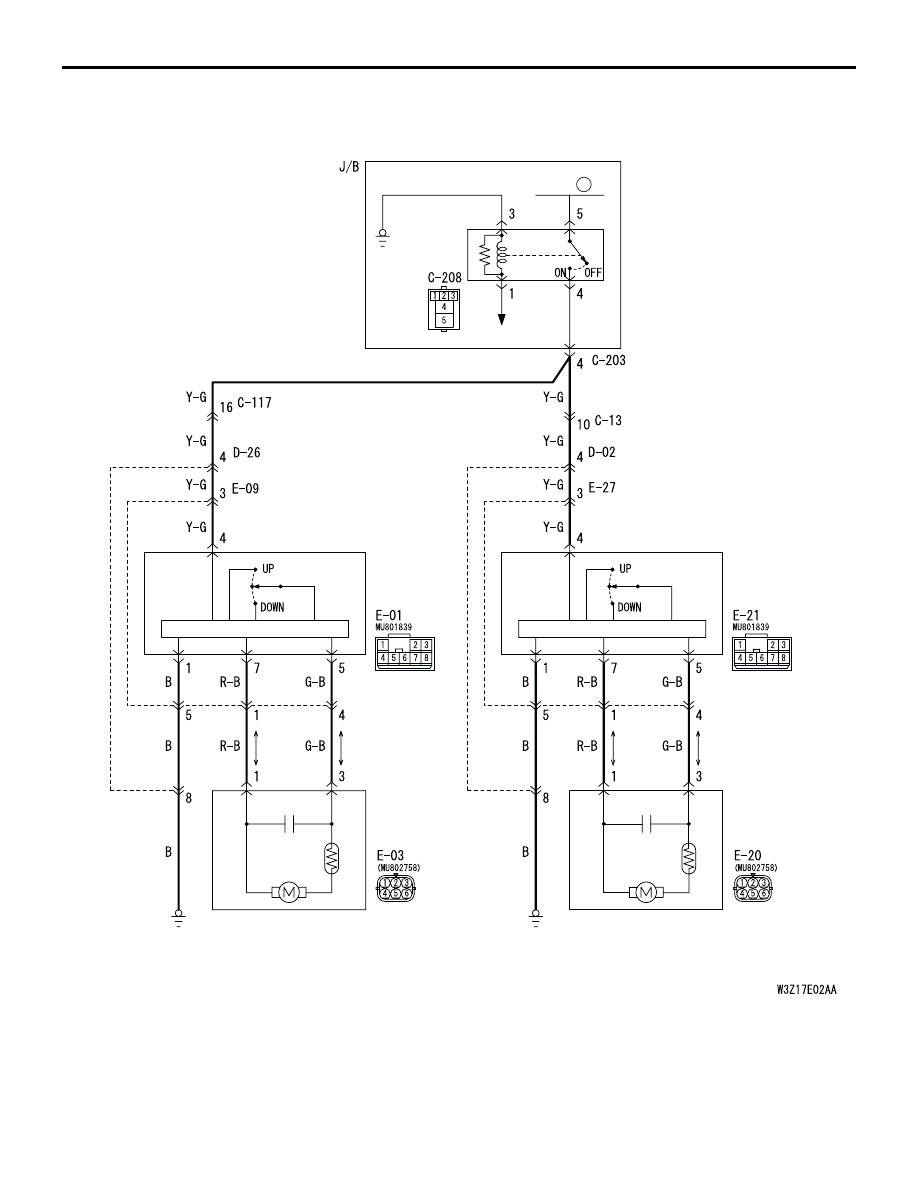

Power Window (rear) Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-110

POSSIBLE CAUSES

Malfunction of the power window sub switch
(front, RH), power window sub switch (rear, RH)
or power window sub switch (rear, LH)

Malfunction of the power window motor (front,
RH), power window motor (rear, RH) or power
window motor (rear, LH)

Damaged harness wires and connectors

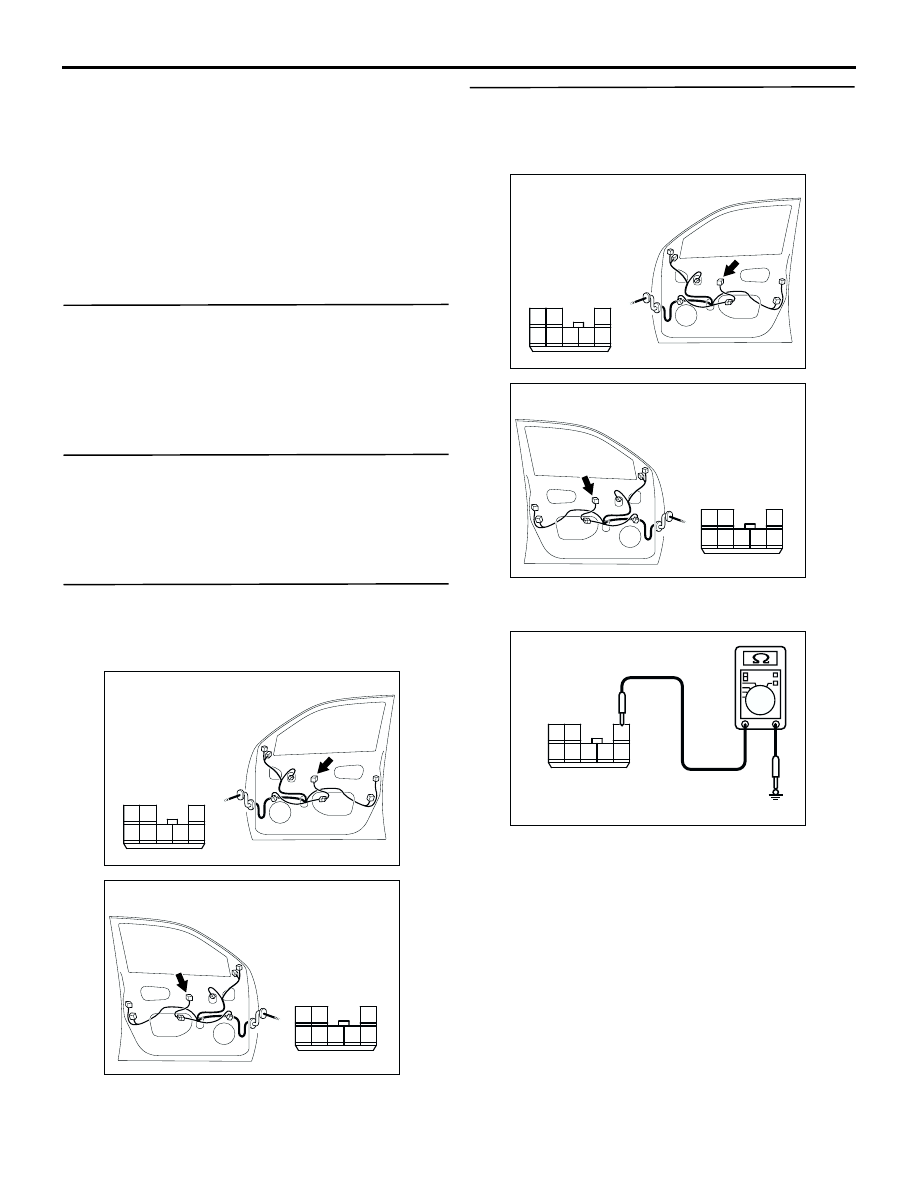

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.

Check that the power window lock switch is turned
off.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Turn off the power window lock switch.

Step 2. Determine a trouble spot.

Q: Which power window does not work?

Front passenger's door :

Go to Step 3.

Rear right door :

Go to Step 12.

Rear left door :

Go to Step 21.

Step 3. Connector check: E-17 power window
sub switch (front RH) connector <L.H. drive
vehicles> or E-31 power window sub switch
(front LH) connector <R.H. drive vehicles>

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

Step 4. Measure the resistance at E-17 power
window sub switch (front RH) connector <L.H.
drive vehicles> or E-31 power window sub switch
(front LH) connector <R.H. drive vehicles>.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 1 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC308793

Connector: E-17
<LHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308805

Connector: E-31
<RHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308793

Connector: E-17
<LHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308805

Connector: E-31
<RHD>

Harness side

AE

1

4

5

3 2

7 6

8

1

4

5

3 2

7 6

8

AC301474

Connector E-17 <LHD>, E-31 <RHD>
(Harness side)

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-111

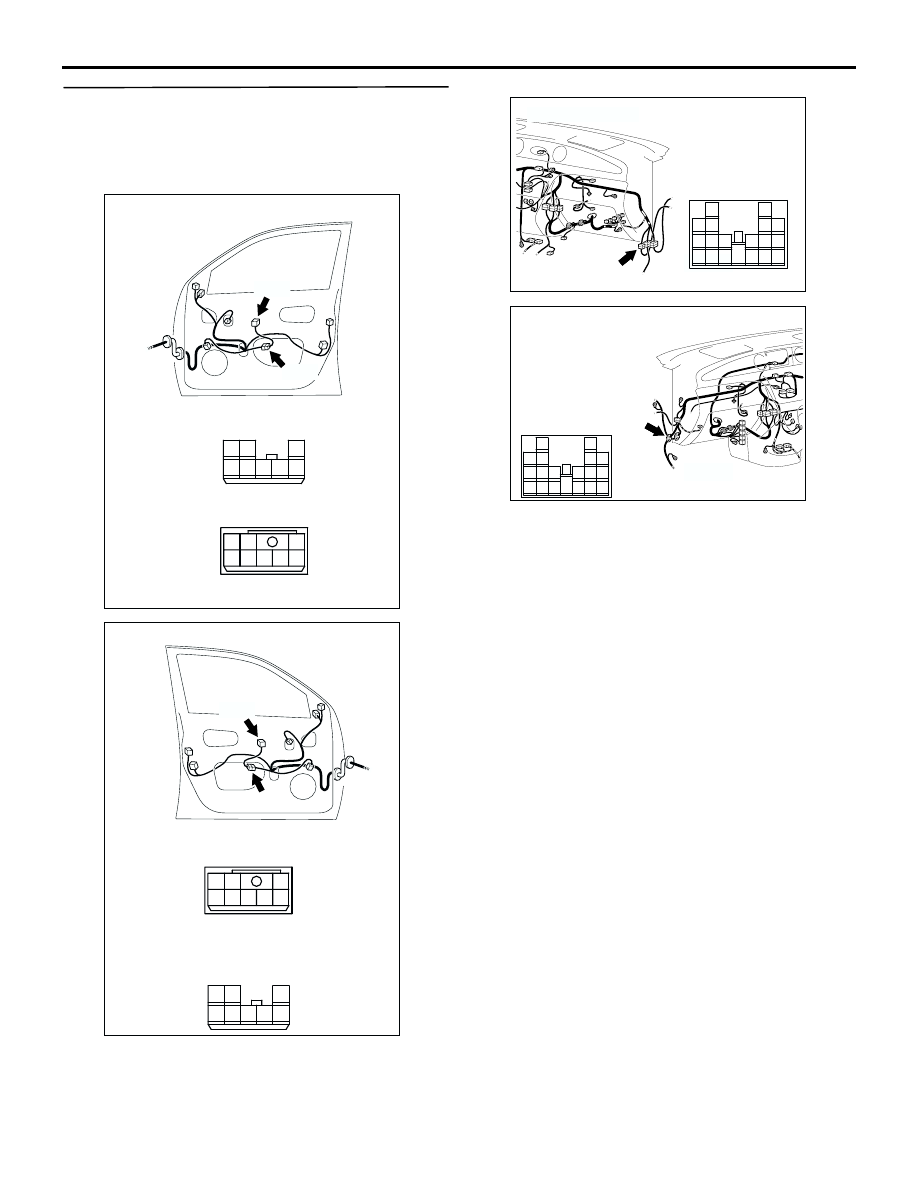

Step 5. Check the wiring harness from E-17
power window sub switch (front RH) connector
<L.H. drive vehicles> or E-31 power window sub
switch (front LH) connector <R.H. drive vehicles>
terminal No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15 <L.H. drive vehicles>,
C-34 <R.H. drive vehicles>, E-24 <L.H. drive
vehicles> and E-30 <R.H. drive vehicles>, and repair
if necessary.

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC308794

Connectors: E-17, E-24
<LHD>

AB

E-17

Harness side

E-24

E-17

E-24

1

4

5

3 2

7 6

8

4

1

5

2

7

6

8

3

AC308806

Connectors: E-30, E-31
<RHD

AD

E-30

E-31

Harness side

E-30

E-31

1

4

5

3 2

7 6

8

4

1

5

2

7

6

8

3

AC308718

Connector: C-15 <LHD>

AG

C-15(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC308735

Connector: C-34
<RHD>

AI

C-34(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-112

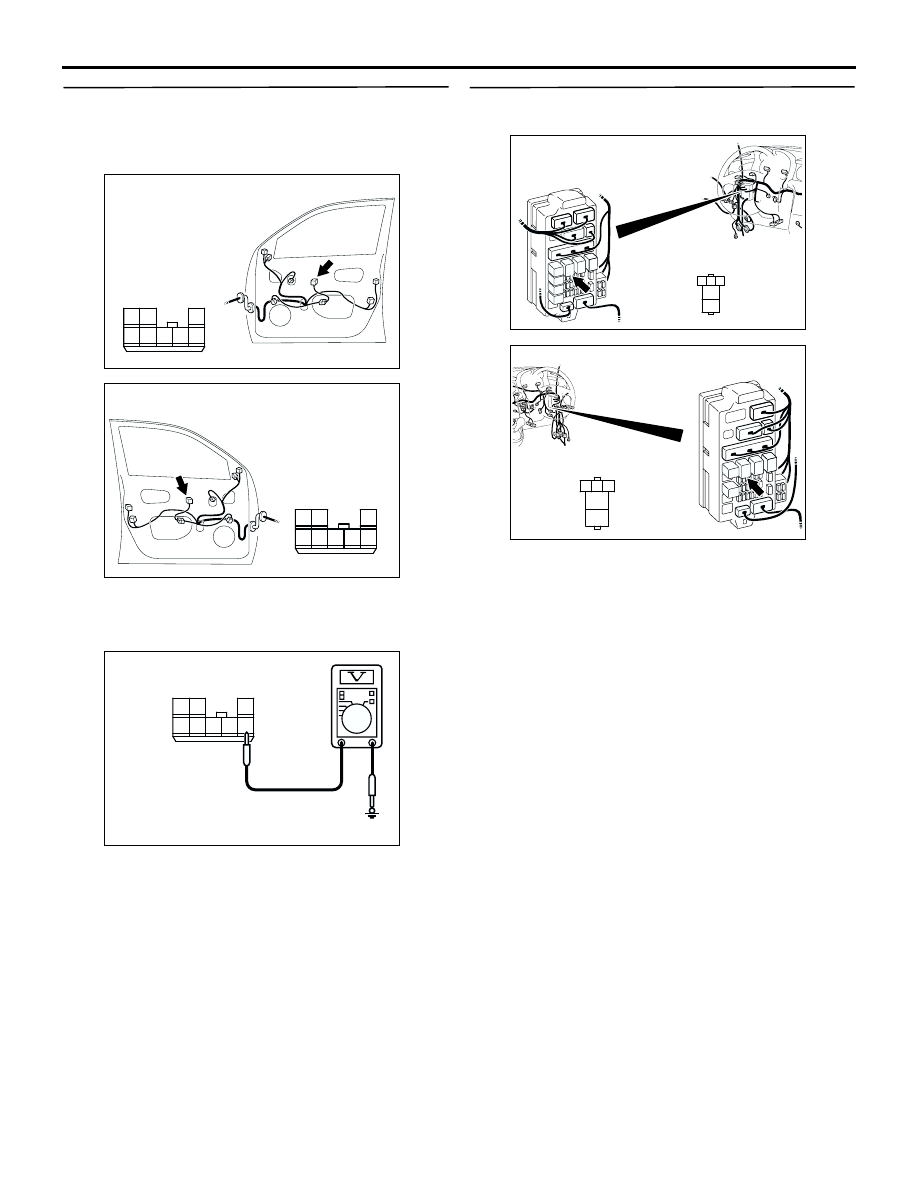

Step 6. Measure the voltage at E-17 power
window sub switch (front RH) connector <L.H.
drive vehicles> or E-31 power window sub switch
(front LH) connector <R.H. drive vehicles>.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 7.

Step 7. Connector check: C-208 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

AC308793

Connector: E-17
<LHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308805

Connector: E-31
<RHD>

Harness side

AE

1

4

5

3 2

7 6

8

1

4

5

3 2

7 6

8

AC301470

Connector E-17 <LHD>, E-31 <RHD>
(Harness Side)

AC

AC308720

Connector: C-208

AG

3

4

5

1

2

Junction block (Front view)

Junction block side

<LHD>

AC308772

Connector: C-208

AF

3

4

5

1

2

Junction block (Front view)

Junction block side

<RHD>
