Mitsubishi Outlander (2003+). Manual - part 405





IGNITION SWITCH

CHASSIS ELECTRICAL

54A-15

STEP 3. Connector check: Immobilizer-ECU
connector C-304-1 and engine control relay
connector B-17X

Q: Are immobilizer-ECU connector C-304-1 and

engine control relay connector B-17X in good
condition?

YES :

Go to Step 4.

NO :

Repair or replace the component(s).
Confirm that MUT-II/III communicates
normally.

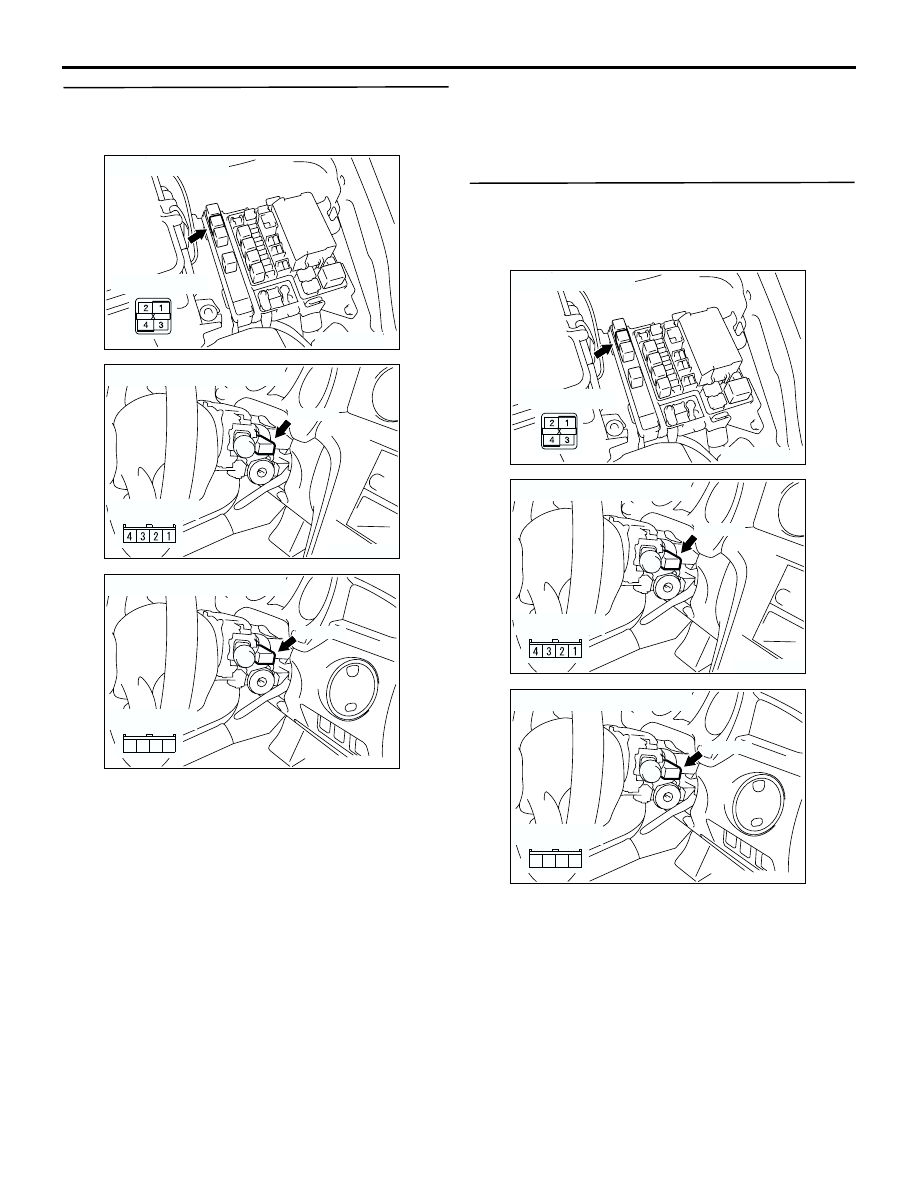

STEP 4. Check the harness wires between
immobilizer-ECU connector C-304-1 (terminal 1)
and engine control relay connector B-17X
(terminal 1).

AC309268

Connector: B-17X

AB

Relay box side

AC211664AC

C-304-1

Connector: C-304-1 <LHD>

Harness side

1

2

3

4

AC309267AB

C-304-1

Connector: C-304-1 <RHD>

Harness side

AC309268

Connector: B-17X

AB

Relay box side

AC211664AC

C-304-1

Connector: C-304-1 <LHD>

Harness side

1

2

3

4

AC309267AB

C-304-1

Connector: C-304-1 <RHD>

Harness side

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-16

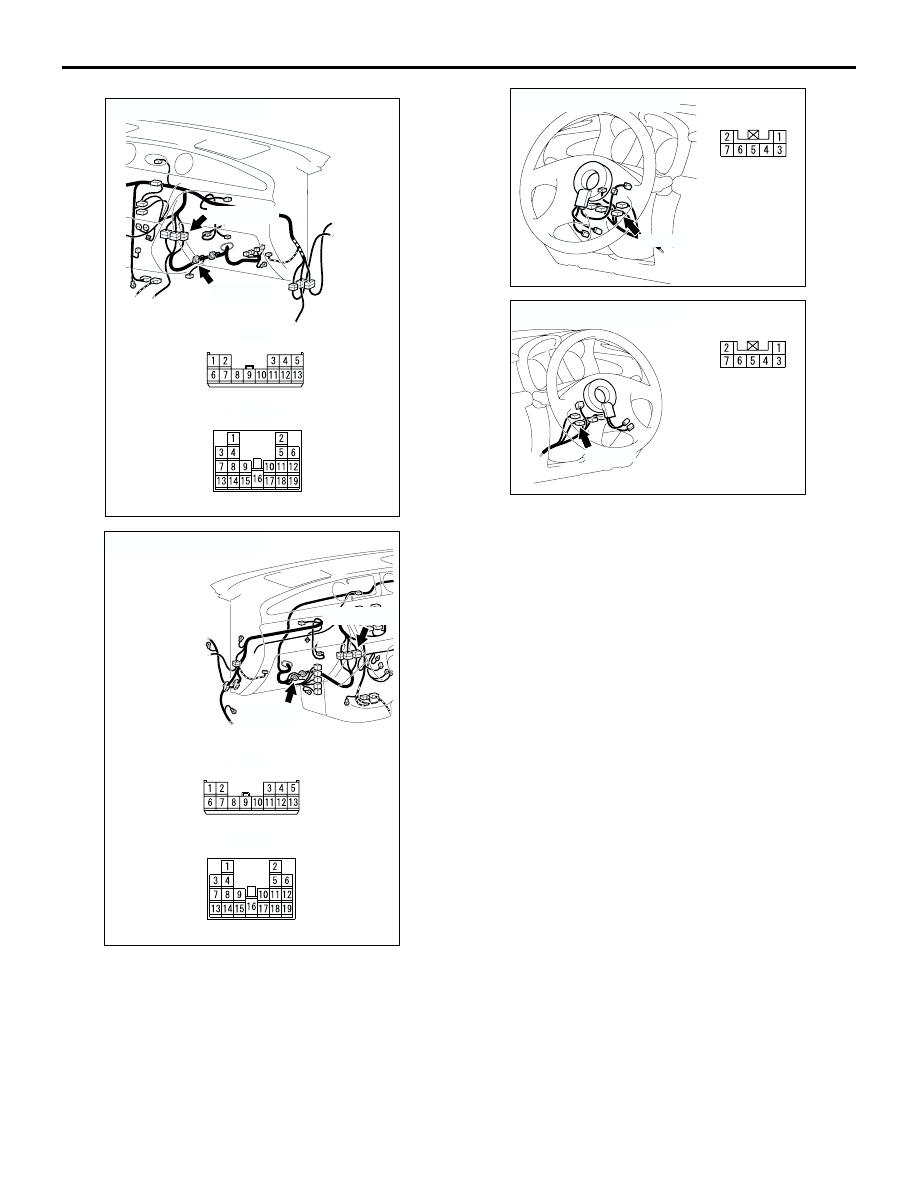

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-106, joint connector C-17
and key reminder switch connector C-304, and repair
if necessary.

Q: Are the harness wires between immobilizer-ECU

connector C-304-1 (terminal 1) and engine control
relay connector B-17X (terminal 1) in good
condition?

YES :

There is no action to be taken.

NO :

Replace the component(s). Confirm that
MUT-II/III communicates normally.

AC212135AC

C-17(GR)

C-106(GR)

Connectors: C-17, C-106 <LHD>

C-17

C-106

AC308736

AG

C-17(GR)

C-106(GR)

Connectors: C-17, C-106 <RHD>

C-17

C-106

AC212136AC

C-304

Connector: C-304 <LHD>

Harness side

AC308778

AH

C-304

Connector: C-304 <RHD>

Harness side

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-17

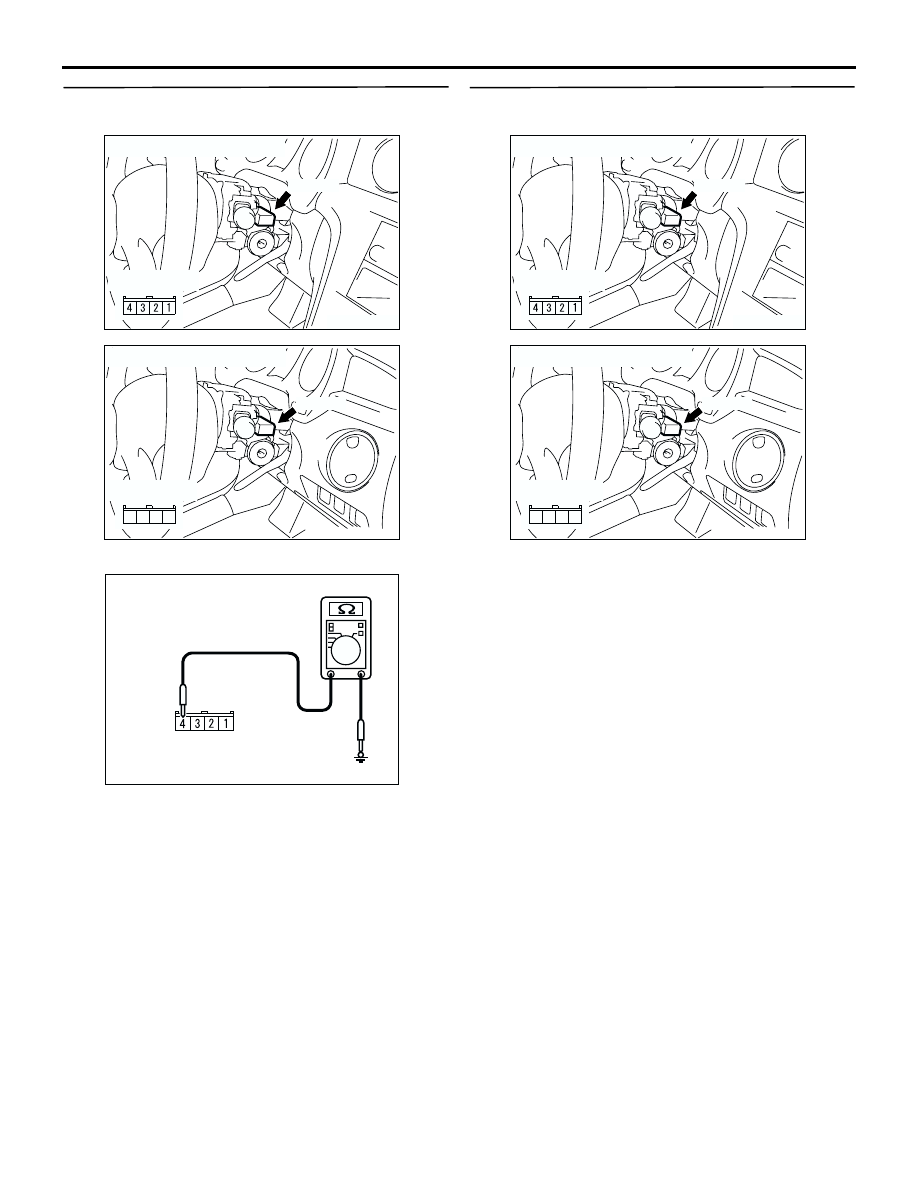

STEP 5. Resistance measurement at
immobilizer-ECU connector C-304-1.

(1) Disconnect immobilizer-ECU connector C-304-1.

(2) Measure the resistance between terminal 4 and

earth.

OK: 2 ohms or less

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 6.

STEP 6. Connector check: immobilizer-ECU
connector C-304-1

Q: Is immobilizer-ECU connector C-304-1 in good

condition?

YES :

Go to Step 7.

NO :

Repair or replace the component(s).
Confirm that MUT-II/III communicates
normally.

AC211664AC

C-304-1

Connector: C-304-1 <LHD>

Harness side

1

2

3

4

AC309267AB

C-304-1

Connector: C-304-1 <RHD>

Harness side

AC212143

C-304-1 Harness connector:
Component side

AB

AC211664AC

C-304-1

Connector: C-304-1 <LHD>

Harness side

1

2

3

4

AC309267AB

C-304-1

Connector: C-304-1 <RHD>

Harness side

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-18

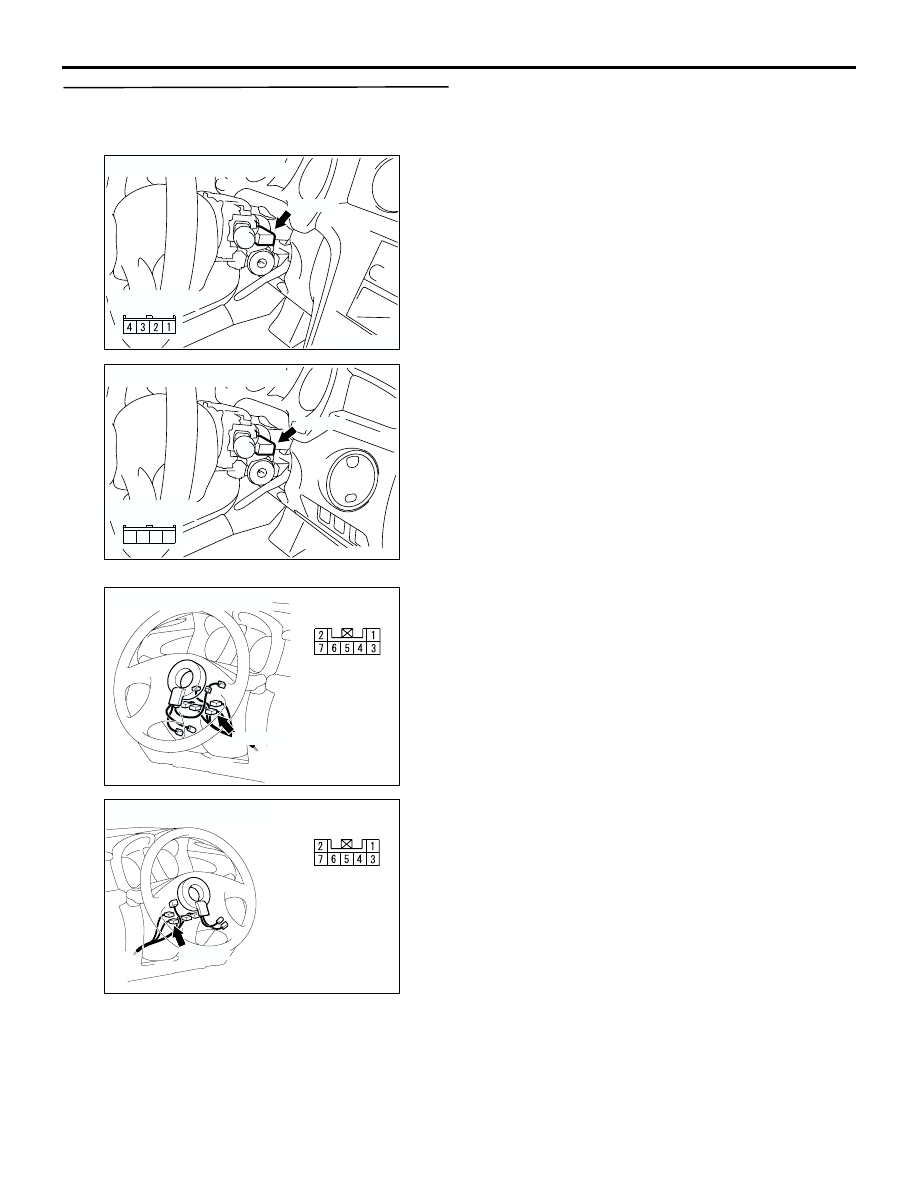

STEP 7. Check the harness wire between
immobilizer-ECU connector C-304-1 (terminal 4)
and earth.

NOTE:

Prior to the wiring harness inspection, check key
reminder switch connector C-304, and repair if
necessary.

Q: Is the harness wire between immobilizer-ECU

connector C-304-1 (terminal 4) and earth in good
condition?

YES :

There is no action to be taken.

NO :

Repair or replace the component(s).
Confirm that MUT-II/III communicates
normally.

AC211664AC

C-304-1

Connector: C-304-1 <LHD>

Harness side

1

2

3

4

AC309267AB

C-304-1

Connector: C-304-1 <RHD>

Harness side

AC212136AC

C-304

Connector: C-304 <LHD>

Harness side

AC308778

AH

C-304

Connector: C-304 <RHD>

Harness side
