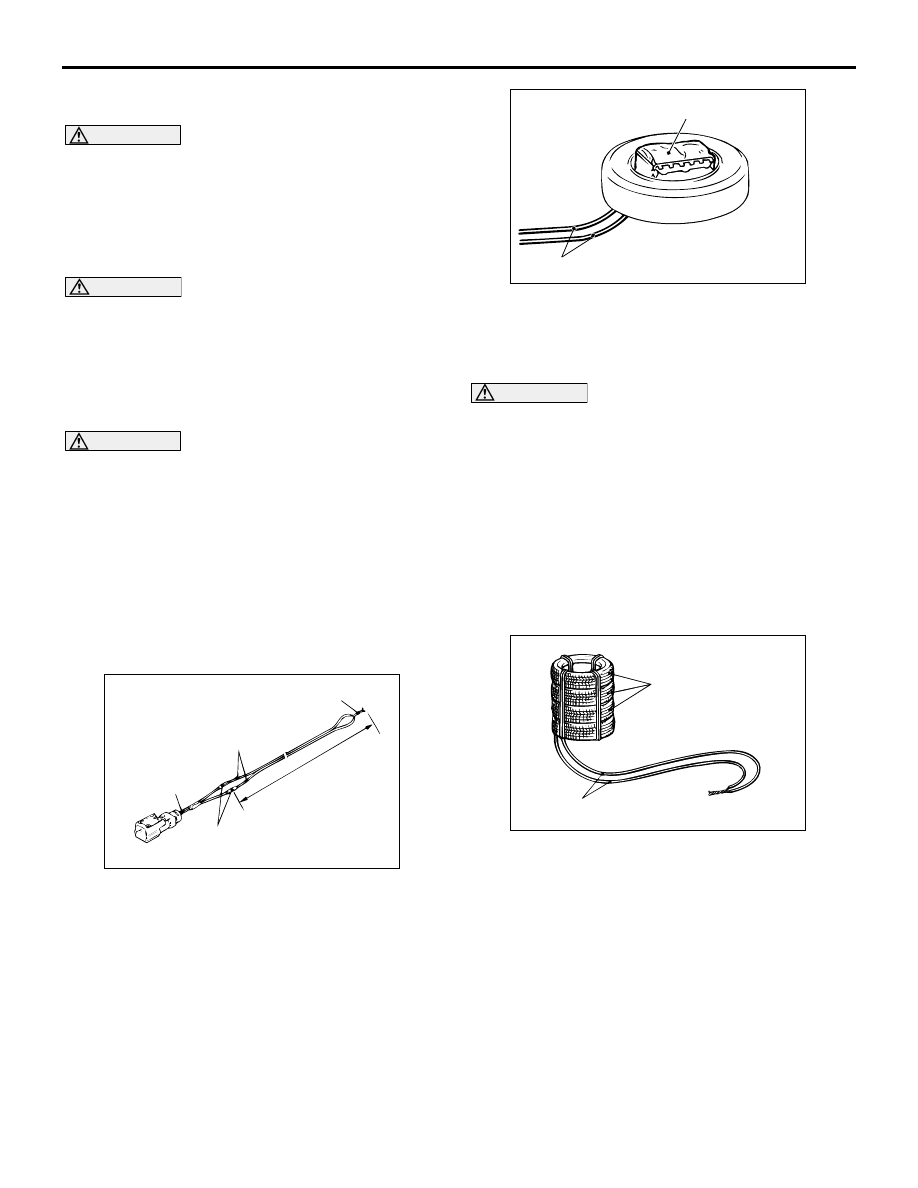

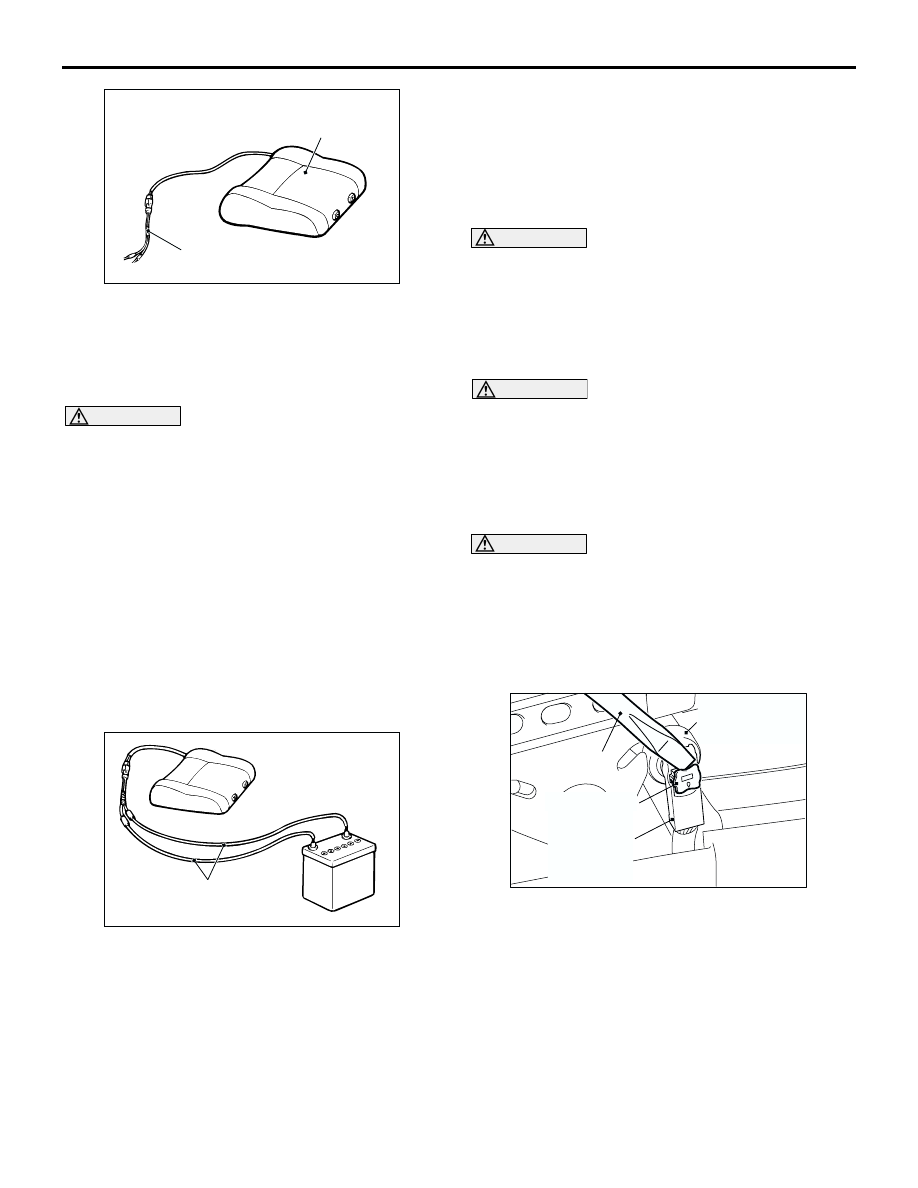

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-199

DEPLOYMENT OUTSIDE THE VEHICLE <Air bag
module (front passenger's side)>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.37A-3

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
front passenger’s air bag module connector
short automatically to prevent accidental
deployment caused by static etc. Still, in
consideration of the accidental deployment,
store the air bag module on flat place with
deployment surface facing up. Also, do not
put anything on it.

2. Remove the air bag module from the vehicle

(Refer to

P.52B-179

).

3. Connect deployment wires longer than 6 m to

each special tool SRS air bag adapter harness
(MB686560) and insulate the connections with
plastic tape. Also, connect the deployment wires
in the other ends to short, thereby preventing the
passenger's air bag from accidental deployment
caused by static etc.

4. Connect the deployment wires to special tool SRS

air bag adapter harness (MB686560), pass it
beneath the tyre and wheel assembly, and
connect it to the air bag module.

CAUTION

•

The adapter harness below the wheel should
be loose. If it is too tight, the reaction when
the air bag deploys could damage the adapter
harness.

•

During deployment, the connector of special
tool SRS air bag adapter harness (MB686560)
must not be between the tyres.

5. Pass the thick wire through the air bag module

mounting hole, and then secure the air bag
module to an old tyre with a wheel in it so that the
pad on the module is facing upwards.

6. Place three old tyres without wheels on top of the

tyre secured to the air bag module, and secure all
tyres together with ropes (four locations).

AC300419AB

Connection

Deployment wires

MB686560

Insulator tape

6 m Long or more

AC300520 AB

Front passenger's air bag module

Deployment wires

AC300521

Tyres without wheels

Deployment wires

AB

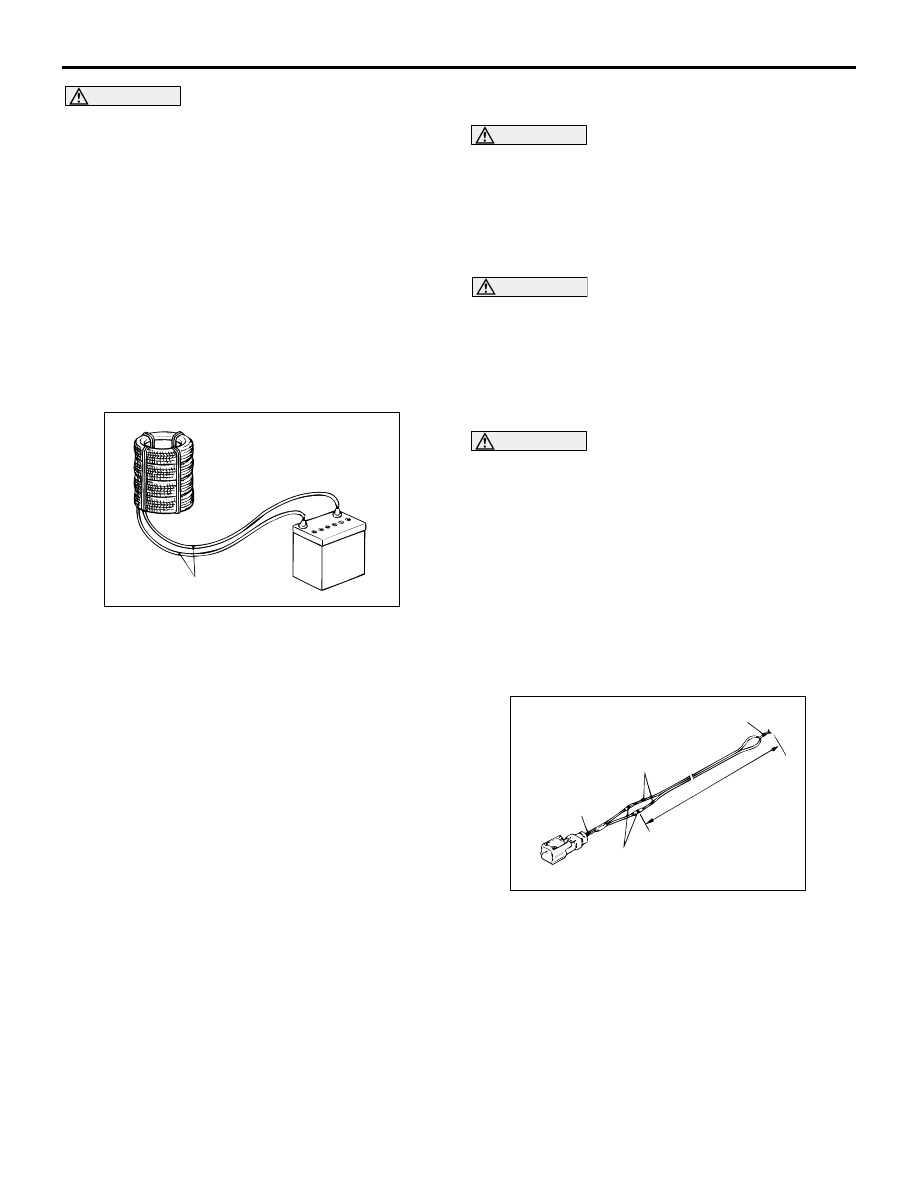

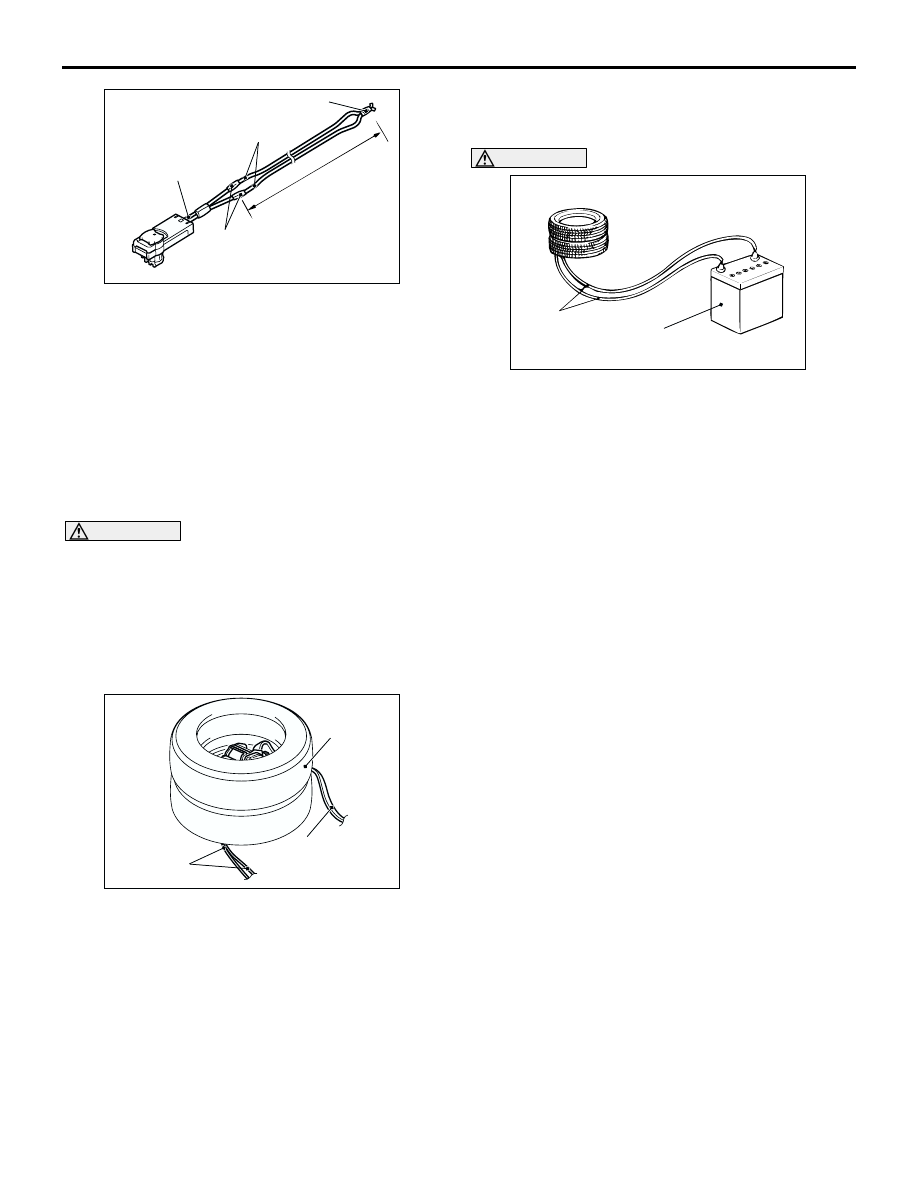

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-200

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not
poisonous, do not inhale gas from air bag
deployment. See Deployed Air Bag
Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-203

) for post-deployment handling

instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

7. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

8. Discard the deployed air bag module as specified

in Deployed Air Bag Module and Operated Seat
Belt Pre-tensioner Disposal (Refer to

P.52B-203

).

DEPLOYMENT OUTSIDE VEHICLE <Side air bag
module>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.37A-3

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
side air bag module connector short
automatically to prevent accidental
deployment caused by static etc. Still, in
consideration of the accidental deployment,
store the air bag module on flat place with
deployment surface facing up. Also, do not
put anything on it.

2. Remove the front seatback assembly with side air

bag module from the vehicle (Refer to

P.52B-179

).

3. Connect deployment wires longer than 6 m to

each special tool SRS air bag adapter harness
(MB686560) and insulate the connections with
plastic tape. Also, connect the deployment wires
in the other ends to short, thereby preventing the
passenger's air bag from accidental deployment
caused by static etc.

AC300522

Deployment wires

AB

AC300419AB

Connection

Deployment wires

MB686560

Insulator tape

6 m Long or more

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-201

4. Place the front seatback assembly with its back

contact with the earth.

5. Connect the special tool SRS air bag adapter

harness (MB686560) with the deployment wires
to the side air bag module connector.

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not
poisonous, do not inhale gas from air bag
deployment. See Deployed Air Bag
Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-203

) for post-deployment handling

instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

6. Disconnect the deployment wires as far from the

front seatback assembly possible and connect the
harnesses to the battery removed from the
vehicle. Then, deploy.

7. Remove the deployed air bag module from the

seatback assembly and discard as specified in the
Deployed air bag module and Operated Seat
Back Pre-tensioner (Refer to

P.52B-203

).

DEPLOYMENT OUTSIDE THE VEHICLE <Seat
belt pre-tensioner>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.37A-3

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Store the operated seat belt pre-tensioner
the correct way up with its operation surface
upper most on a flat surface. Do not place
anything on top of them.

2. Remove the seat belt pre-tensioner from the

vehicle (Refer to

P.52B-188

).

3. Use a flat-tipped screwdriver to unlock the locking

button of the harness-side connector (2-pin,
black) by with drawing it toward you in two stages.

4. Disconnect the D-29 or D-43 harness side

connector.

AC300528AB

Front seatback assembly

MB686560

AC300532 AB

Deployment wires

AC300446AB

D-29 or D-43
Seat belt
pre-tensioner
connector (2-pin)

Flat-tip screw
driver

Locking buttom

D-29 or D-43
Harness side
connector
(2-pin, black)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-202

5. Connect deployment wires longer than 6 m to

each special tool SRS air bag adapter harness
(MB991885) and insulate the connections with
plastic tape. Also, connect the deployment wires
in the other ends to short, thereby preventing the
passenger's air bag from accidental deployment
caused by static etc.

6. Connect the special tool SRS air bag adapter

harness (MB991885), which the deployment wires
is attached to, to the seat belt pre-tensioner
connector.

CAUTION

The adapter harness below the wheel should be
loose. If it is too tight, the reaction when the seat
belt pre-tensioner operates could damage the
adapter harness.
7. Pass the thick wires through the hole on the seat

belt pre-tensioner bracket and secure them to the
front (raised part) of the wheel on two place.

8. Pull the seat belt out the outside of the tyre, and

then place one tyre without a wheel inside on top
of the existing tyre.

WARNING

•

Before operation, check carefully to be sure

that no one is nearby.

•

The inflator will be quite hot immediately
following the operation, so wait at least 30
minutes to allow it to cool before
attempting to handle it. Although not
poisonous, do not inhale gas from seat
belt pre-tensioner operation. See
Deployed Air Bag Module and Operated
Seat Belt pre-tensioner Disposal (Refer to

P.52B-203

) for post-operation handling

instructions.

•

If the seat belt pre-tensioner fails to
operate, do not go near the seat belt
pre-tensioner. Contact your distributor.

9. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to operated seat belt pre-tensioner.

10.Discard the operated seat belt pre-tensioner as

specified in Deployed Air Bag Module and Seat
Belt pre-tensioner Disposal (Refer to

P.52B-203

).

AC300447AB

Connection

Deployment wires

MB991885

Insulator tape

6 m Long or more

AC300552AB

Tyres
without
wheels

Seat belt

Deployment
wires

AC300555 AB

<Seat belt pre-tensioner>

Deployment wires

Vehicle battery
