SIDE IMPACT SENSOR

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-187

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION
Even new side impact sensor requires inspection
before installation. (Refer to the previous item
"INSPECTION")

>>B<< SIDE IMPACT SENSOR INSTALLATION

WARNING

The side impact sensor, unless properly
installed, does not operate properly, thereby
resulting in serious injury or death of the
vehicle's occupants.

>>C<< POST-INSTALLATION INSPECTION
1. Connect the negative battery cable.
2. Turn the ignition key to "ON" position.

3. Does the SRS warning lamp illuminate for about 7

seconds, and then remain extinguished for at
least 5 seconds after turning OFF?

4. If no, refer to troubleshooting (Refer to

P.52B-11

).

INSPECTION

M1524004700206

WARNING

If any problems, replace the sensor.

1. Check the side impact sensor and bracket for

dents, cracks or deformation.

2. Check the connector for damage, and terminal

for deformation.

3. Check that there is no bending or corrosion in the

centre pillar.

NOTE: For the checks other than the items above,
refer to Troubleshooting (Refer to

P.52B-11

) .

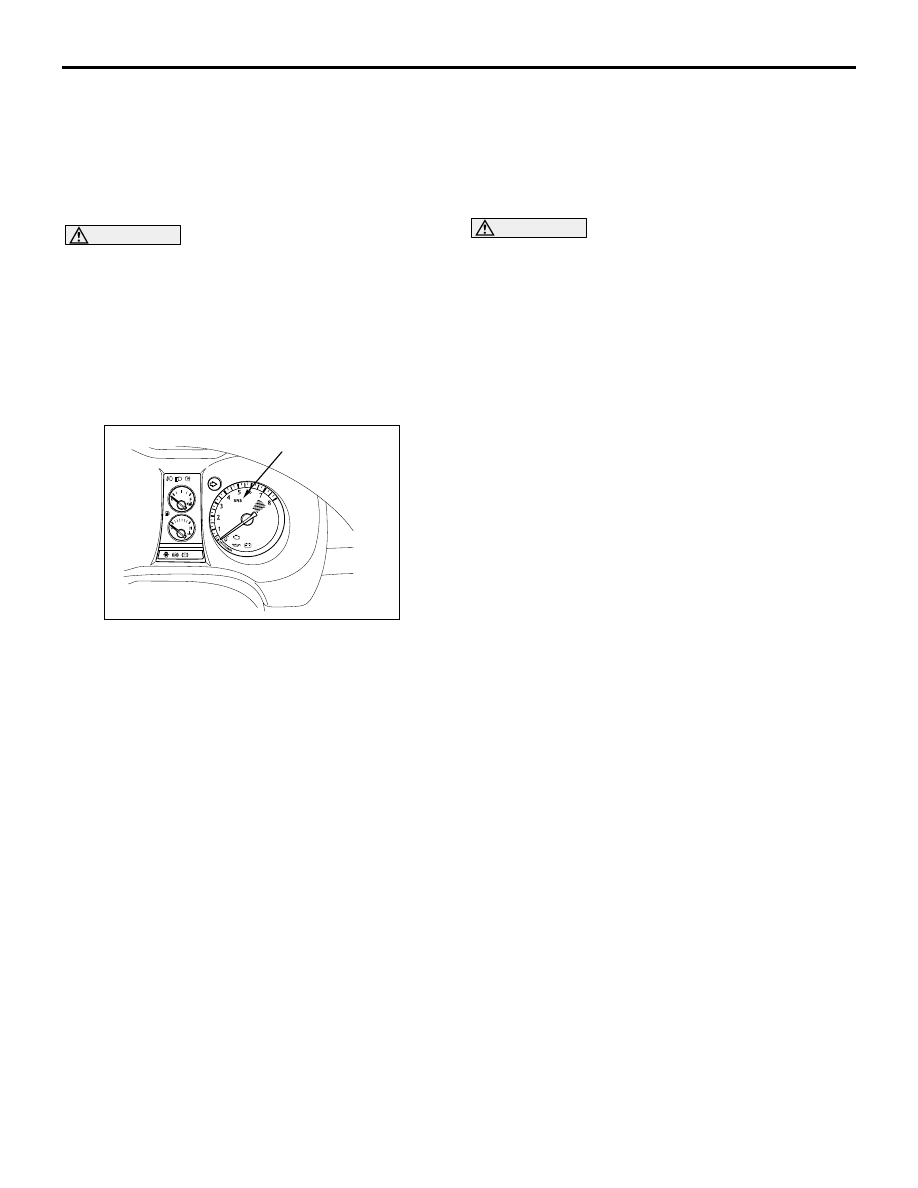

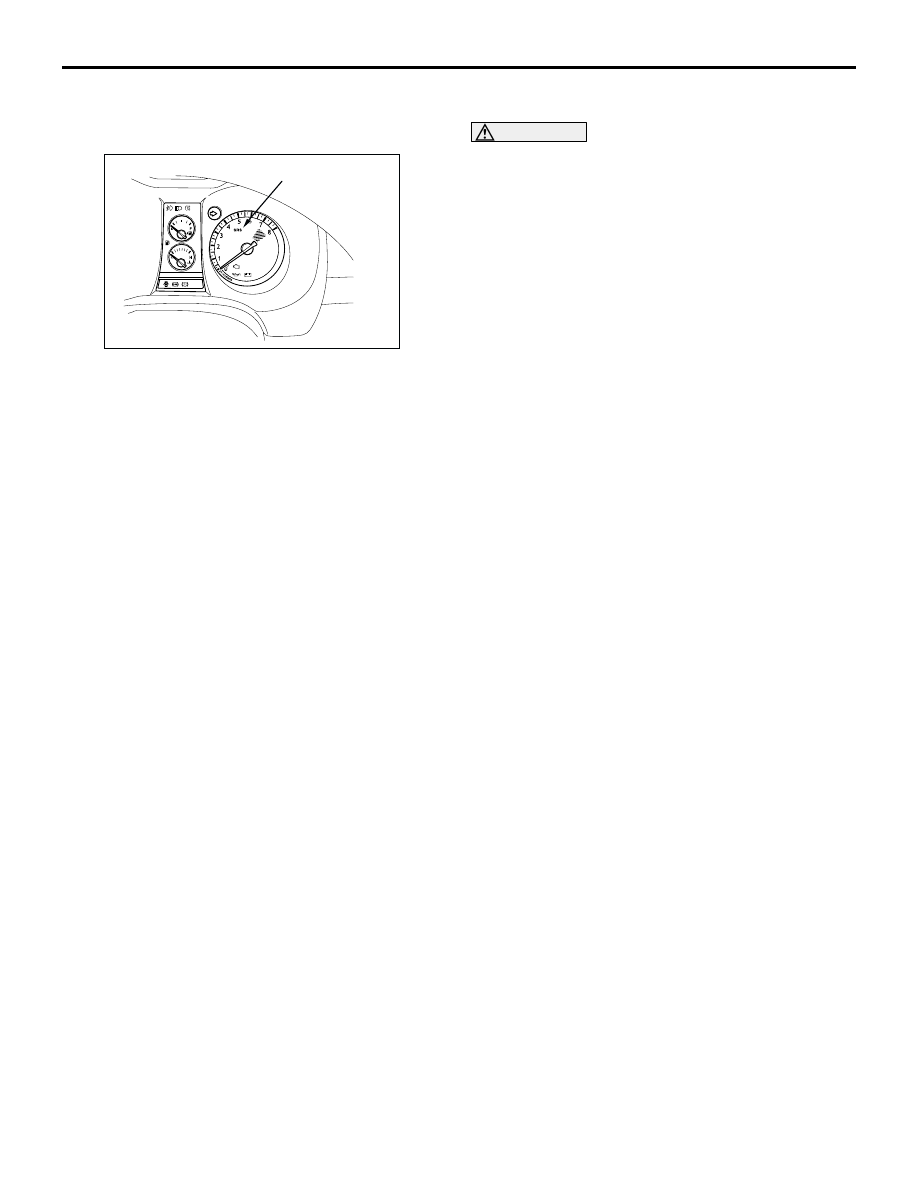

AC301667

SRS warning lamp

AB

SEAT BELTS WITH PRE-TENSIONER

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-188

SEAT BELTS WITH PRE-TENSIONER

REMOVAL AND INSTALLATION

M1524004100334

WARNING

Disconnect the negative battery terminal and wait for 60 seconds or more before starting
work. Furthermore, the disconnected battery terminal should be covered with tape to
insulate it.

Never attempt to disassemble or repair the seat belt pre-tensioner. If faulty, replace it.

Be extremely careful when handling the seat with pre-tensioner. Do not subject it to
shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil.
Always replace it with a new part if any dents, cracks or deformation is found.

Do not place anything on top of the seat belt pre-tensioner.

Do not expose the seat belt pre-tensioner to temperatures over 90

°

C.

After operating the seat belt pre-tensioner, replace the seat belt pre-tensioner with a new
part.

Gloves and protective goggles should be worn when handling a seat belt pre-tensioner
once it has been used.

If disposing of a seat belt with pre-tensioner which has not yet been operated, its seat belt
pre-tensioner should be operated first before disposal (Refer to

P.52B-191

).

Pre-removal Operation

Turn the ignition key to the "LOCK" (OFF) position.

Disconnect the Negative Battery Terminal.

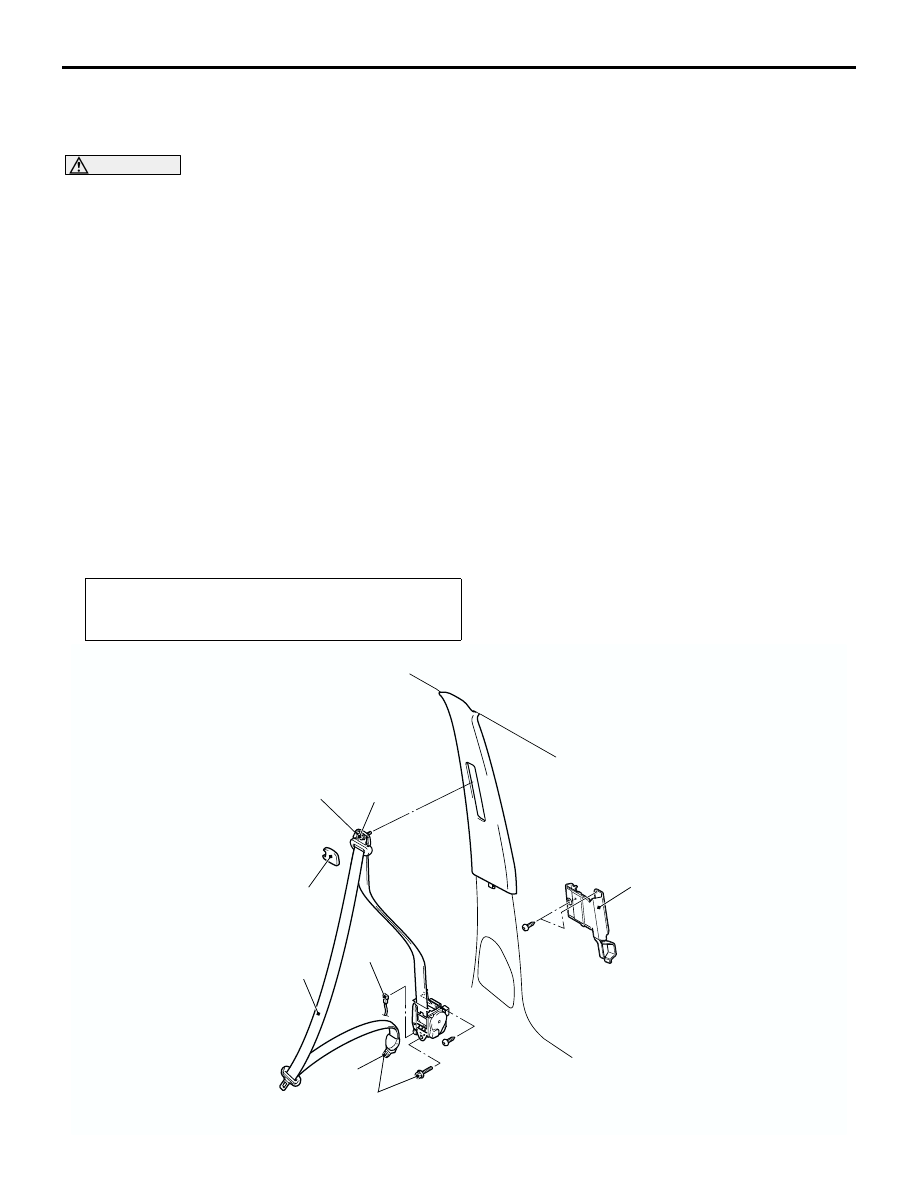

AC300144AB

1

2

3

4

5

6

44 ± 10 N·m

44 ± 10 N·m

SEAT BELTS WITH PRE-TENSIONER

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-189

NOTE: The figure shows the seat belt with
pre-tensioner (RH).

REMOVAL SERVICE POINTS

<<A>>PRE-TENSIONER CONNECTOR
DISCONNECTION

1. Use a flat-tipped screwdriver to pull out forward

and unlock the locking button of the harness-side
connector.

2. Disconnect the pretensioner connector.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

WARNING

When discarding the seat belt with
pre-tensioner, operate the pre-tensioner as
specified in the service procedure (Refer to

P.52B-191

).

1. Even new seat belt with pre-tensioner require

inspection before installation.

2. Connect the negative battery cable.

CAUTION

Turn the ignition switch to the "LOCK" (OFF)
position when connecting and disconnecting the
MUT-II/III.
3. Connect the MUT-II/III to the diagnosis connector

(16- pin).

4. Turn the ignition switch to the ON position.
5. Read a diagnosis code to refer to that the SRS is

operating properly except an open in the seat belt
with pre-tensioner circuit.

6. Turn the ignition switch to "LOCK" (OFF) position.

DANGER

Wait at least 60 seconds after the
disconnection of the battery cable before
any further job (Refer to

P.52B-3

).

7. Disconnect the negative battery cable and

insulate with tape.

>>B<< PRE-TENSIONER CONNECTOR
CONNECTION
Connect the pretensioner connector then securely
lock the locking button of the harness-side
connector.

Removal steps

1. Sash guide cover
2. Seat belt shoulder anchor bolt
3. Seat belt lower anchor bolt

Centre pillar trim, lower (Refer to
GROUP 52A

 Trims

P.52A-18

).

<<A>>

4. Pre-tensioner connector connection
5. Bracket
6. Seat belt with pre-tensioner

Installation steps

>>A<<

Pre-installation inspection

6. Seat belt with pre-tensioner
5. Bracket

>>B<<

4. Pre-tensioner connector connection

Centre pillar trim, lower (Refer to
GROUP 52A

 Trims

P.52A-18

).

3. Seat belt lower anchor bolt
2. Seat belt shoulder anchor bolt
1. Sash guide cover

Negative battery cable connection

>>C<<

Post-installation inspection

Installation steps (Continued)

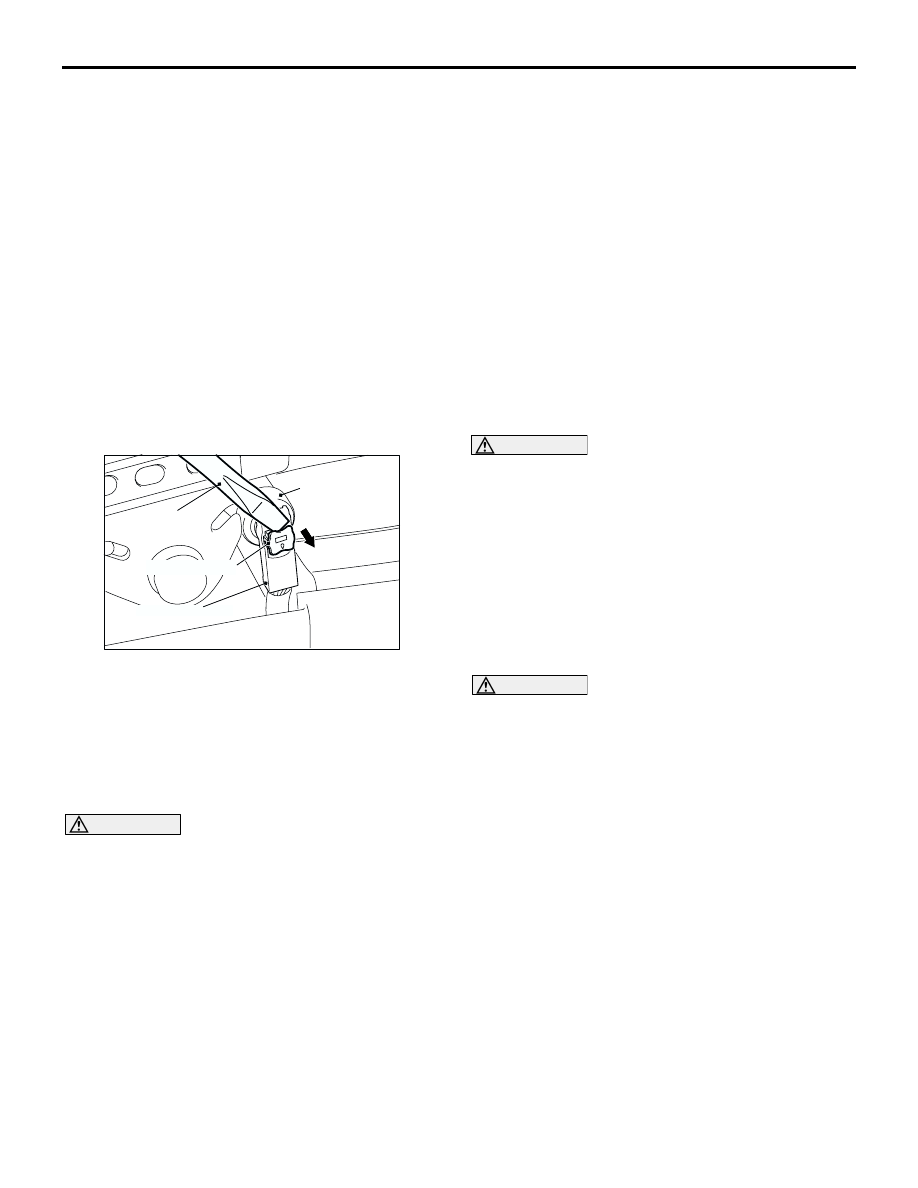

AC300147AB

Pre-tensioner
connector

Flat-tip screw
driver

Locking button

Harness side connector

SEAT BELTS WITH PRE-TENSIONER

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-190

>> C<< POST-INSTALLATION INSPECTION
1. Connect the negative battery cable.
2. Turn the ignition key to "ON" position.

3. Does the SRS warning lamp illuminate for about 7

seconds, and then remain extinguished for at
least 5 seconds after turning OFF?

4. If no, refer to troubleshooting (Refer to

P.52B-11

).

INSPECTION

M1524004200223

WARNING

If any component damage is found during
the following inspection, replace the seat
belt with pre-tensioner with a new one.
Dispose of the old one according to the
specified procedure (Refer to

P.52B-191

).

Never attempt to measure the circuit
resistance of the seat belt pre-tensioner
even if you are using the specified tester.
If the circuit resistance is measured with a
tester, accidental seat belt pre-tensioner
operation will result in serious personal
injury.

1. Check the pre-tensioner deployment section for

dents and deformation.

2. Check the harness and connector for damage and

the terminals for deformation.

AC301667

SRS warning lamp

AB
