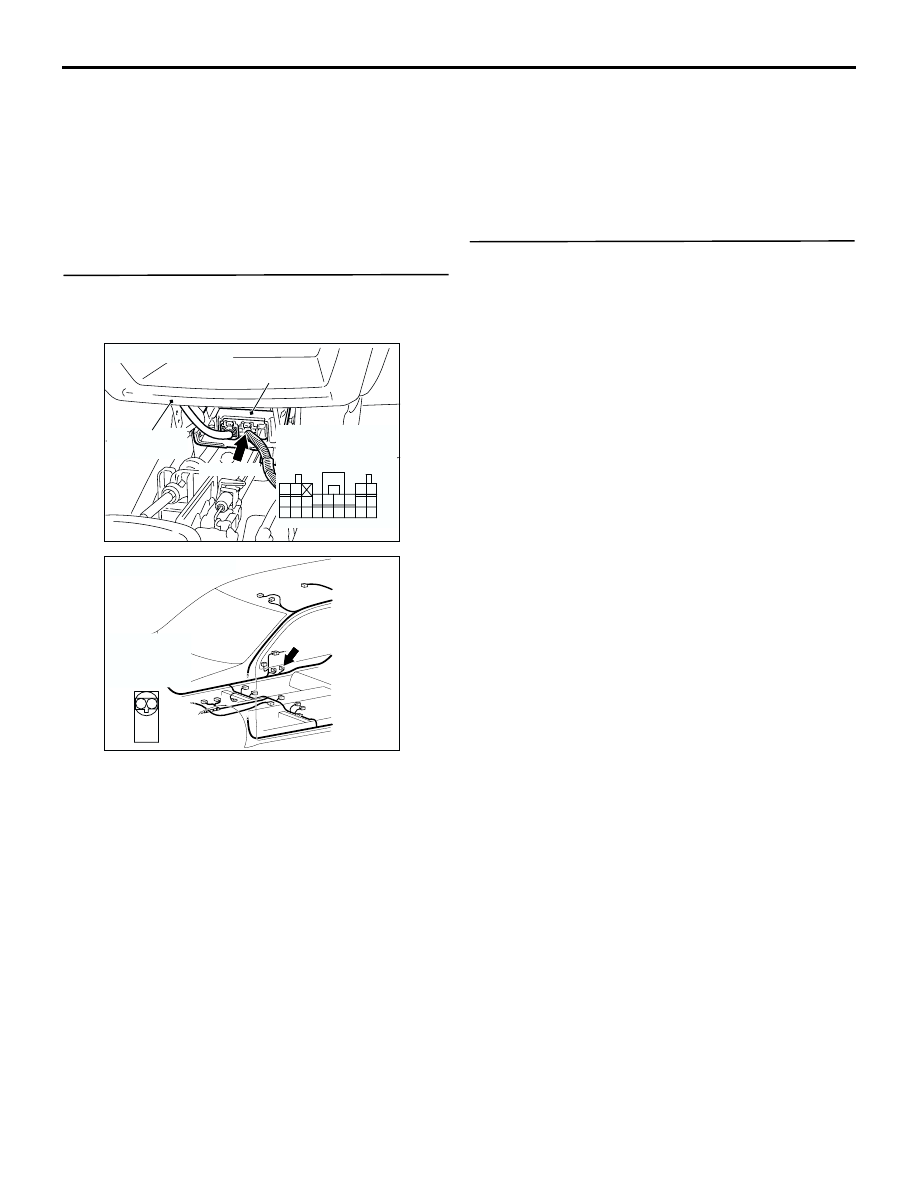

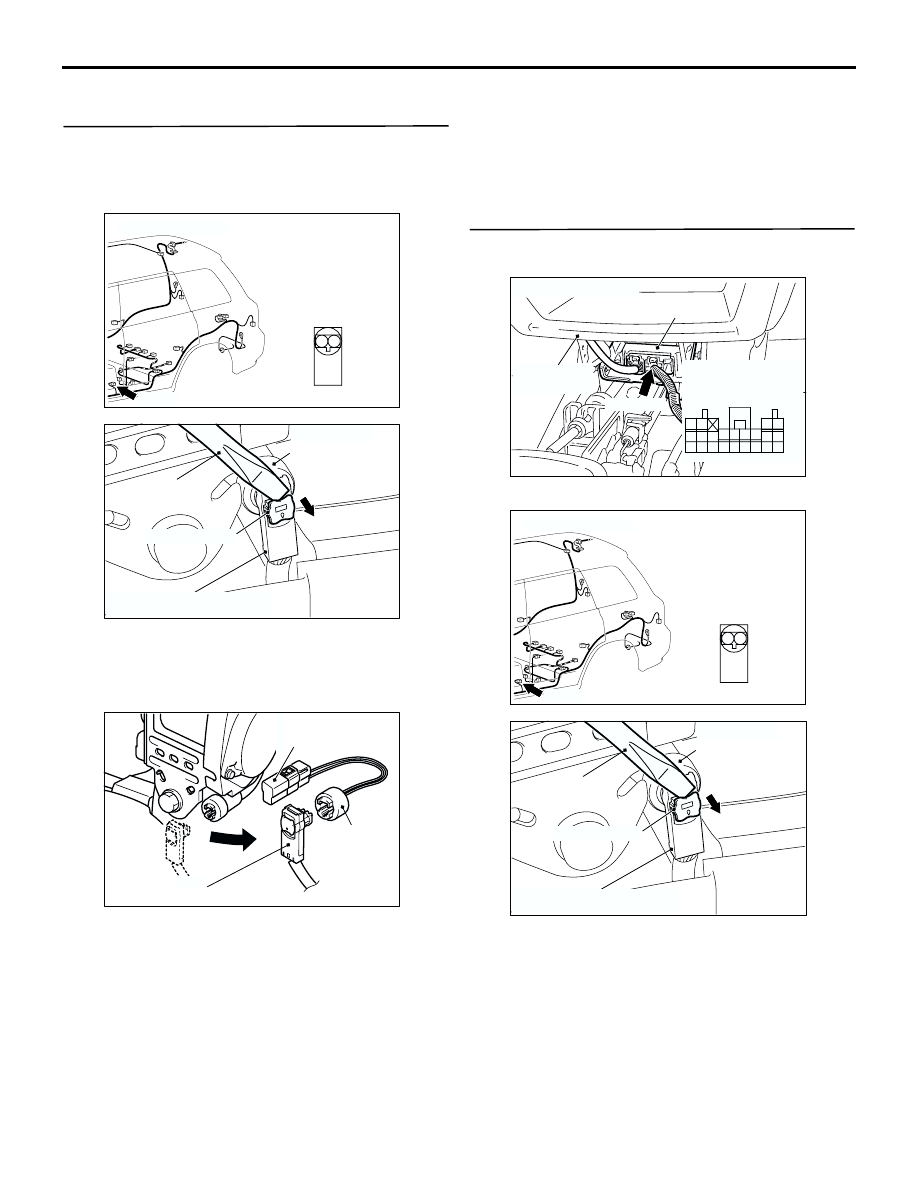

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-115

side connector terminals 27, 28 and body earth.

OK: 0 V

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
68 sets, replace the SRS-ECU (Refer to

P.52B-178

). Then go to Step 4       .

NO :

Go to Step 3.

STEP 3. Connector check: SRS-ECU connector
C-114 and passenger's seat belt pre-tensioner
connector D-43

Q: Is the check result normal?

YES :

Check the harness wires for short circuit to

power supply between SRS-ECU connector
C-114 (terminal No.27 and 28) and
passenger's seat belt pre-tensioner
connector D-43 (terminal No.1 and 2), and
repair if necessary. Then go to Step 4.

NO :

Repair or replace it. than go to Step 4.

STEP 4. Check whether the diagnosis code is
reset.

Q: Is diagnosis code 68 set?

YES :

Return to Step 1.

NO :

The procedure is complete (If no
malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00

−

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

).

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC301408AI

Connector: D-43

Harness side
connector
(front view)

1

2

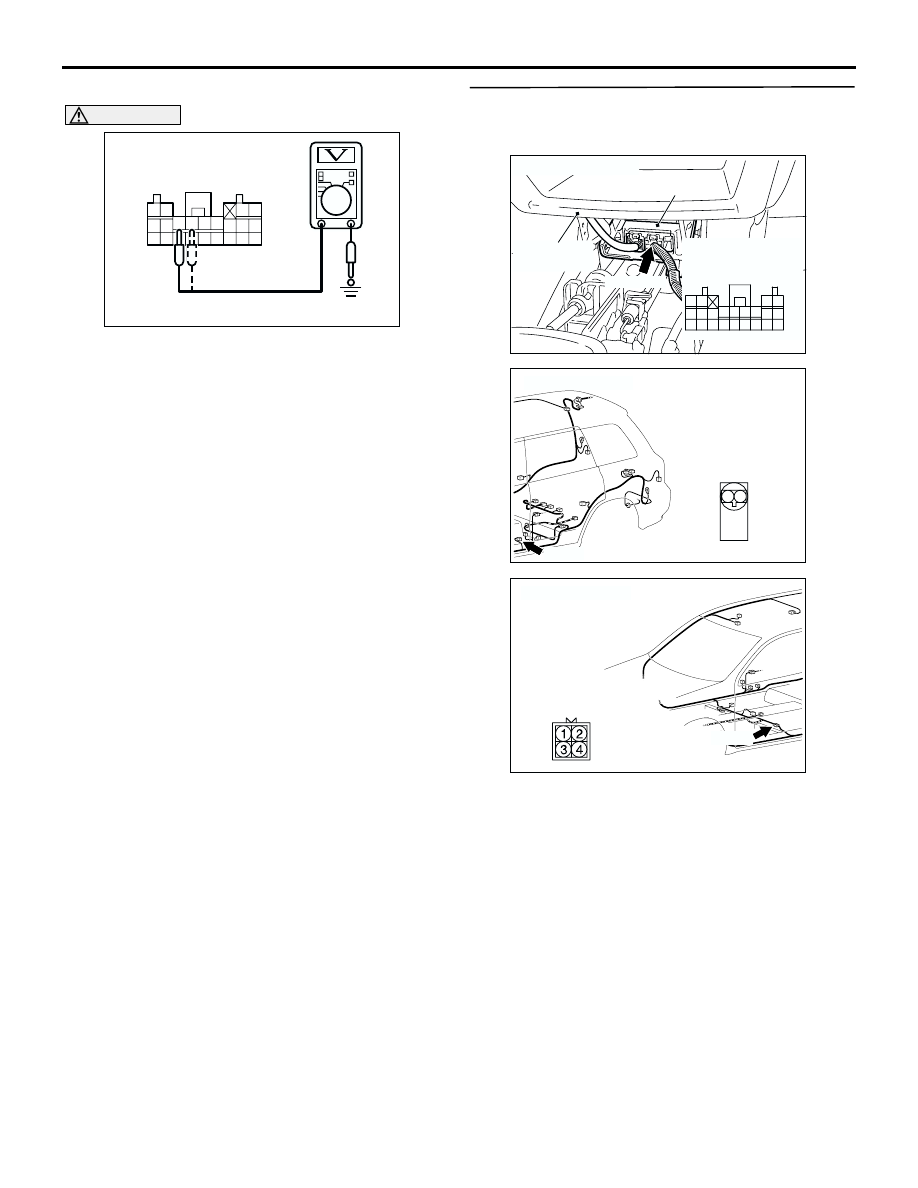

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-116

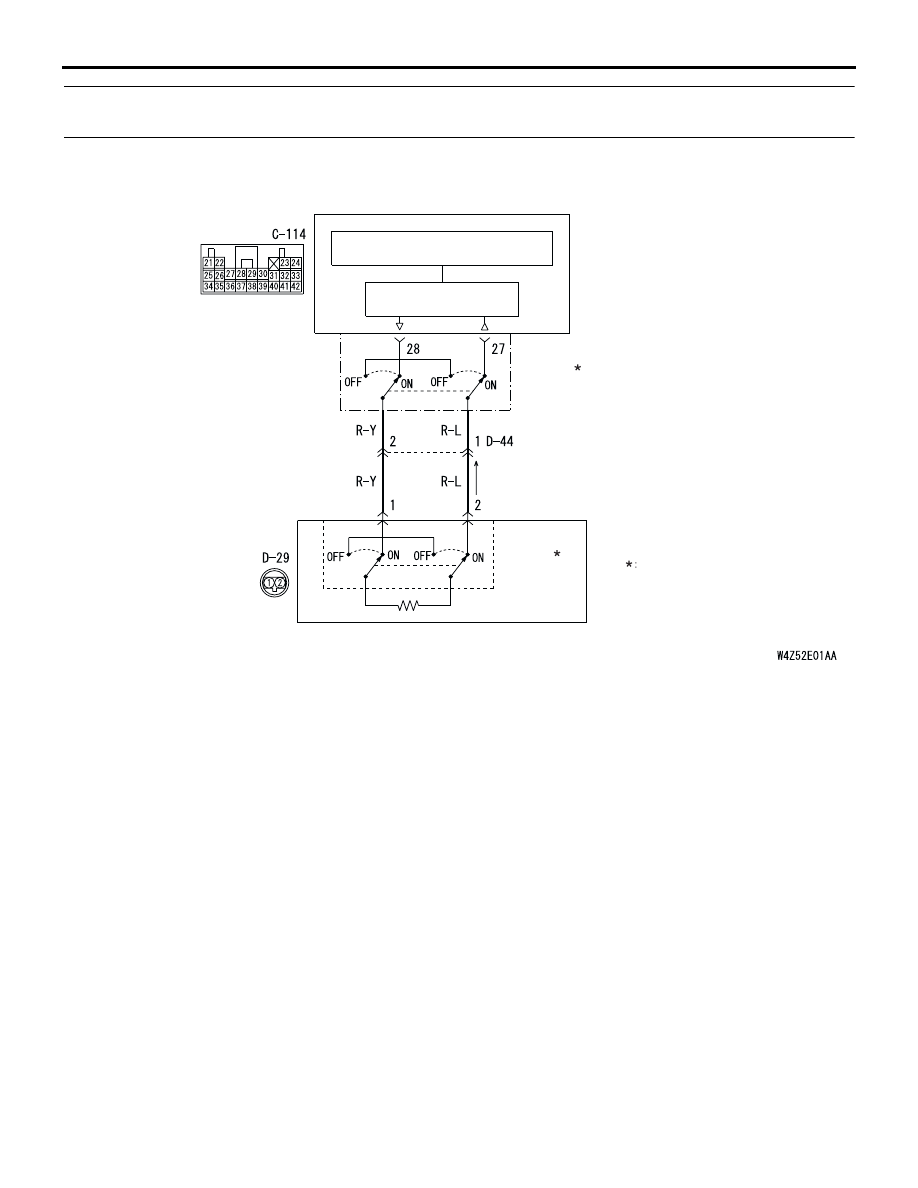

Code No.68: Passenger's (front) seat belt pre-tensioner (squib) system (short-circuited to the power
supply) <R.H. drive vehicles>

OPERATION
The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU outputs an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

DIAGNOSIS CODE SET CONDITIONS
This diagnosis code is set if passenger's (front) seat
belt pre-tensioner wire(s) are short-circuited to the
power supply.

PROBABLE CAUSES

•

Damaged wiring harnesses or connectors

•

Short to the power supply in the passenger's seat
belt pre-tensioner (squib) harness

•

Malfunction of the SRS-ECU

CONNECTOR
LOCK
SWITCH

NOTE

CONNECTOR
COUPLED: ON
CONNECTOR
UNCOUPLED: OFF

CONNECTOR
LOCK
SWITCH

MICROCOMPUTER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SRS-ECU

SEAT BELT
PRE-TENSIONER
(LH)

AIR BAG
DRIVE CIRCUIT

Passenger's (Front) Seat Belt Pre-tensioner (Squib)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-117

DIAGNOSIS PROCEDURE

STEP 1. Check the passenger's seat belt
pre-tensioner. (Check whether the diagnosis
code is reset.)
(1) Disconnect the negative battery terminal.

(2) Disconnect passenger's seat belt pre-tensioner

connector D-29. Use a flat-tipped screwdriver to
pull out the locking button at the harness side
connector, and then disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool (MB991884) to the D-29

harness side connector.

(5) Connect the negative battery terminal.
(6) Erase diagnosis code memory, and then check

the diagnosis code.

Q: Is diagnosis code 68 set?

YES :

Go to Step 2.

NO :

Replace the passenger's seat belt
pre-tensioner (Refer to

P.52B-188

). Then

go to Step 4.

STEP 2. Measure the voltage at the SRS-ECU
connector C-114.

(1) Disconnect SRS-ECU connector C-114.

(2) Disconnect passenger's seat belt pre-tensioner

connector D-29. Use a flat-tipped screwdriver to
pull out the locking button at the harness side
connector, and then disconnect the connector.

AC308787

Connector: D-29

AE

1

2

Harness side

D-29 (B)

AC300147AE

Flat-tip screw
driver

Locking button

D-29 Driver's seat
belt pre-tensioner
connector

D-29 Harness side connector

MB991884
MB991885

AC300975AD

MB991865
(Dummy resistor : 3

Ω)

MB991884
(Resistor
harness)

D-29 Harness side connector

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC308787

Connector: D-29

AE

1

2

Harness side

D-29 (B)

AC300147AE

Flat-tip screw
driver

Locking button

D-29 Driver's seat
belt pre-tensioner
connector

D-29 Harness side connector

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-118

(3) Turn the ignition switch to the "ON" position,

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(4) Measure the voltage between C-114 harness

side connector terminals 27, 28 and body earth.

OK: 0 V

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
68 sets, replace the SRS-ECU (Refer to

P.52B-178

). Then go to Step 4        .

NO :

Go to Step 3.

STEP 3. Connector check: SRS-ECU connector
C-114, passenger's seat belt pre-tensioner
connector D-29 and intermediate connector D-44

Q: Is the check result normal?

YES :

Check the harness wires for short circuit to

power supply between SRS-ECU connector
C-114 (terminal No.27 and 28) and
passenger's seat belt pre-tensioner
connector D-29 (terminal No.2 and 1), and
repair if necessary. Then go to Step 4.

NO :

Repair or replace it. than go to Step 4.

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AC301038AB

C-114 Harness side
connector (rear view)

AC301661

Connector: C-114

AE

SRS-ECU

C-114 (Y)

Center lower
panel

Harness side
connector
(front view)

40

23

24

41

32

42

33

31

29
38

39

30

37

28

21

22

35

26

36

27

34

25

AC308787

Connector: D-29

AE

1

2

Harness side

D-29 (B)

AC308785

Connector: D-44

AF

Harness side

D-44 (B)
