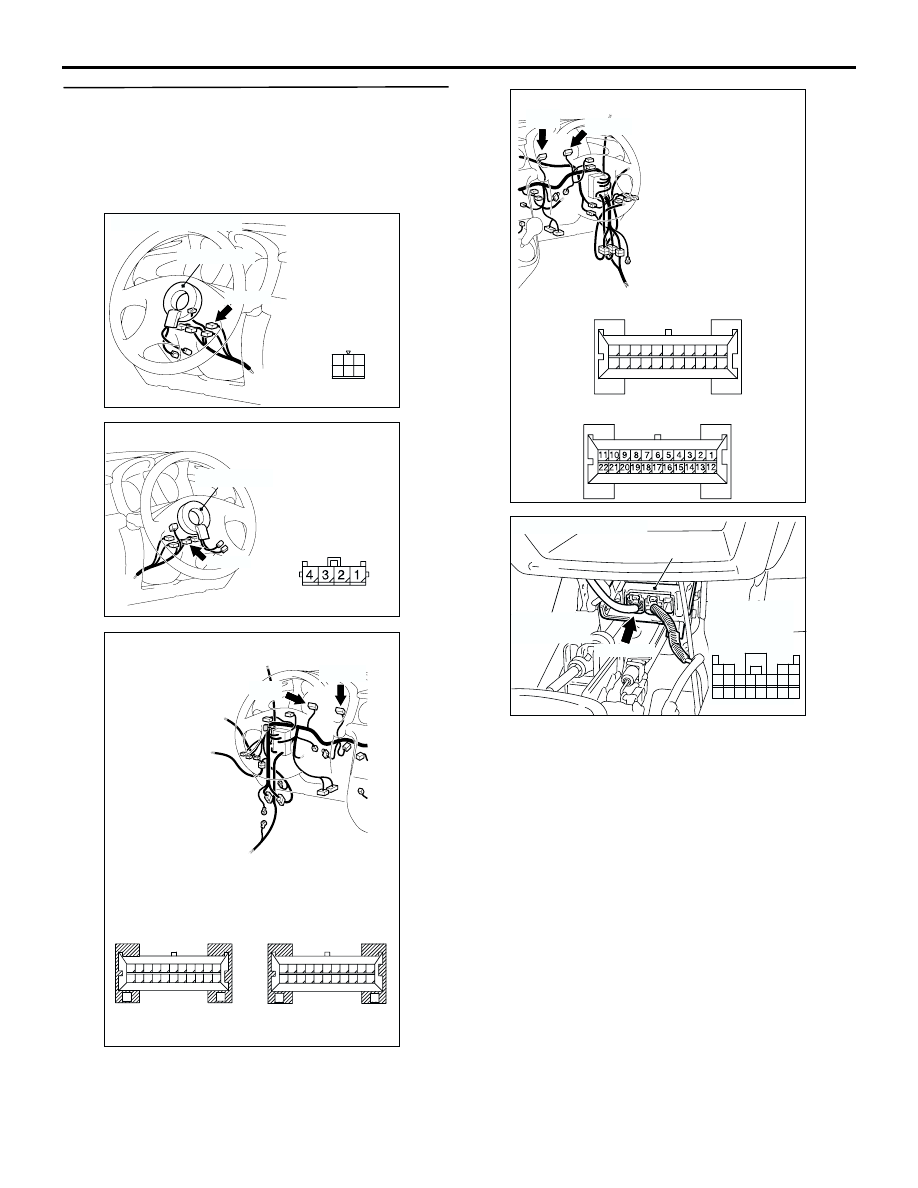

STEP 3. Check the harness for open circuit
between ignition switch connector C-303
(terminal No.2) and combination meter C-04
(terminal No.42), and between combination meter
C-05 (terminal No.11) and SRS-ECU connector
C-115 (terminal No.8).

AC301399

Connector: C-303

Clock spring

C-303

AG

Harness side
connector
(front view)

2
5

6

3

4

1

AC308778

Connector: C-307 <RHD>

AF

C-307 (Y)

Clock spring

Harness side
connector
(front view)

AC301396

Connectors: C-04, C-05

AH

C-04

C-05

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-04

G

G

52

41

35
46

49

50

51

47

48

38

4039

3736

43

4544

42

32

3433

31

C-05(L)

Harness side

AC308770

Connectors: C-04, C-05 <RHD>

AF

C-04

C-05

C-04

C-05(L)

Harness side

52

41

35

46

49

50

51

47

48

38

40 39

37 36

43

45 44

42

32

34 33

31

Harness side

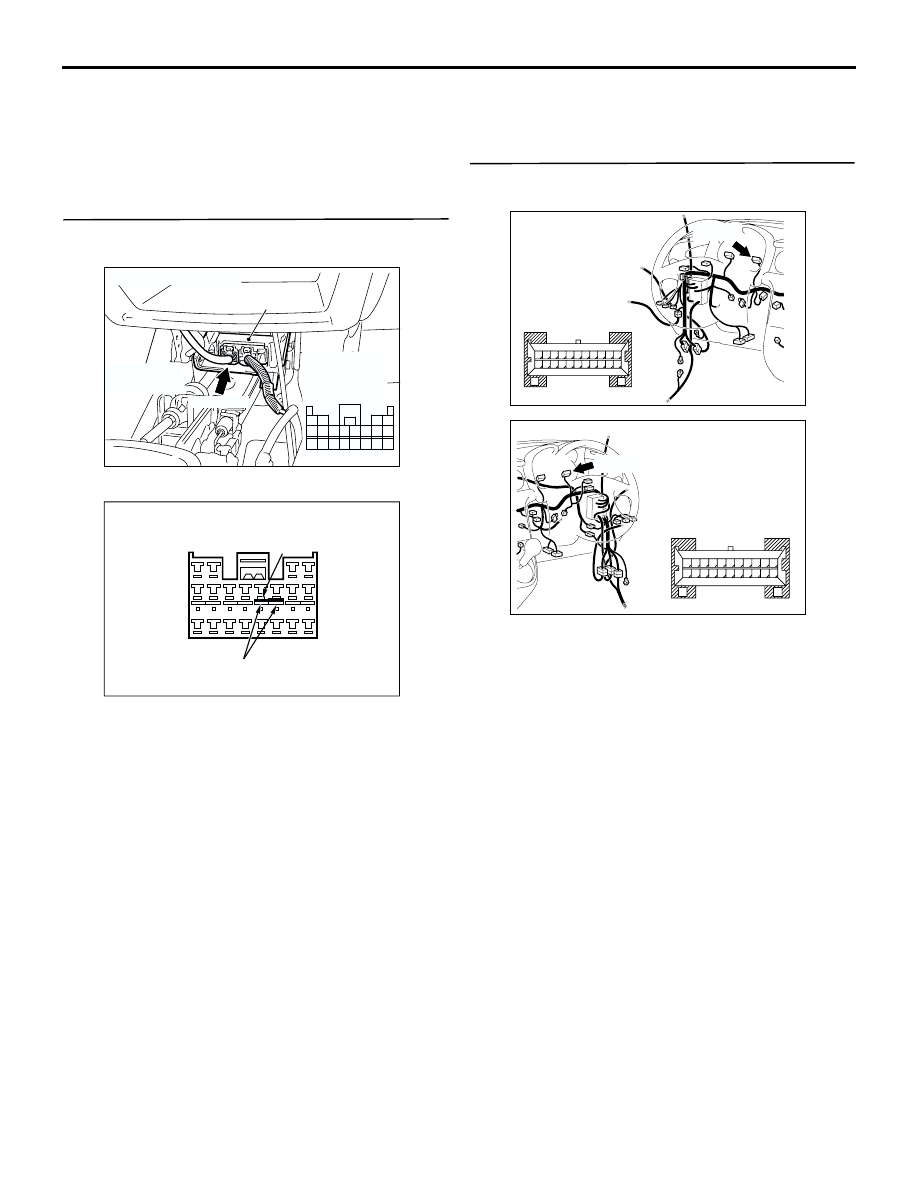

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-84

NOTE: After inspecting intermediate connectors
C-05, C-04, C-205 and C-203 inspect the wiring
harness. If intermediate connectors C-05, C-04,
C-205 and C-203 are damaged, repair or replace
them. Then go to Step 5 .

Q: Is the check result normal?

YES :

Replace the combination meter (Refer to

GROUP 54A

−

 Combination Meters

Assembly and Vehicle Speed Sensor

P.54A-72

). Then go to Step 5 .

NO :

Repair the harness wires between
SRS-ECU connector C-115 (terminal No.8)
and the ignition switch connector C-303
(terminal No.2). Then go to Step 5.

STEP 4. Connector check: SRS-ECU connector
C-115 and earth

Q: Is the check result normal?

YES :

Repair the harness wires between

SRS-ECU connector C-115 (terminal No.7)
and earth. Then go to Step 5.

NO :

Repair or replace it. Then go to Step 5.

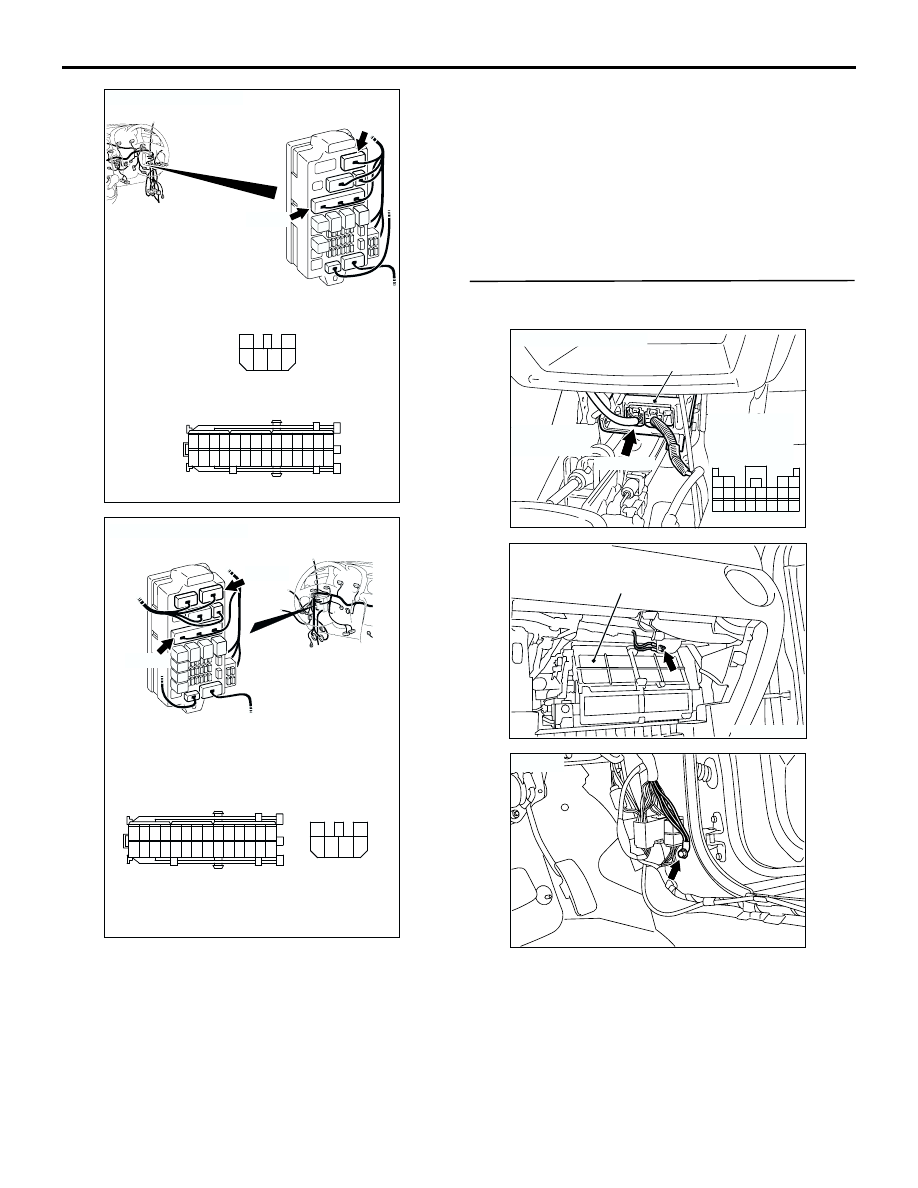

AC308773

Connectors: C-203, C-205 <RHD>

AK

Junction Block (Front View)

C-205

C-203

Harness side

C-203

C-205

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Harness side

AC210475

Connectors: C-203, C-205

AR

Junction Block (Front View)

C-205

C-203

Harness side

C-203

C-205

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC208080AG

Blower
assembly

<LHD>

AC208081

AC

<RHD>

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-85

STEP 5. Check whether the diagnosis code is
reset.

Q: Is diagnosis code 43 set?

YES :

Return to Step 1.

NO :

The procedure is complete (If no
malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00

−

 How to Use

Troubleshooting/Inspection Service Points

P.00-6

).

Code No.43: SRS warning lamp circuit open-circuited (Lamp does not Switch Off).

OPERATION

•

Power for the SRS warning lamp is supplied from
the ignition switch (IG1).

•

The SRS warning lamp illuminates when the
ignition switch is turned to the "ON" position and
goes out after approximately 7 seconds if there is
not a malfunction in the SRS system.

DIAGNOSIS CODE SET CONDITIONS
This diagnosis code is set when a short to earth
occurs in the harness between the SRS warning
lamp and SRS-ECU while SRS-ECU is monitoring
the lamp and the lamp is ON. However, if the vehicle
condition returns to normal, diagnosis code 43 will be
automatically erased, and the SRS warning lamp will
go out.

NOTE

CONNECTOR
COUPLED: ON
CONNECTOR
UNCOUPLED: OFF

IGNITION
SWITCH (IG1)

SRS-ECU

MICROCOMPUTER

CONNECTOR
LOCK
SWITCH

WARNING LAMP
DRIVE CIRCUIT

COMBINATION
METER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AC301799AB

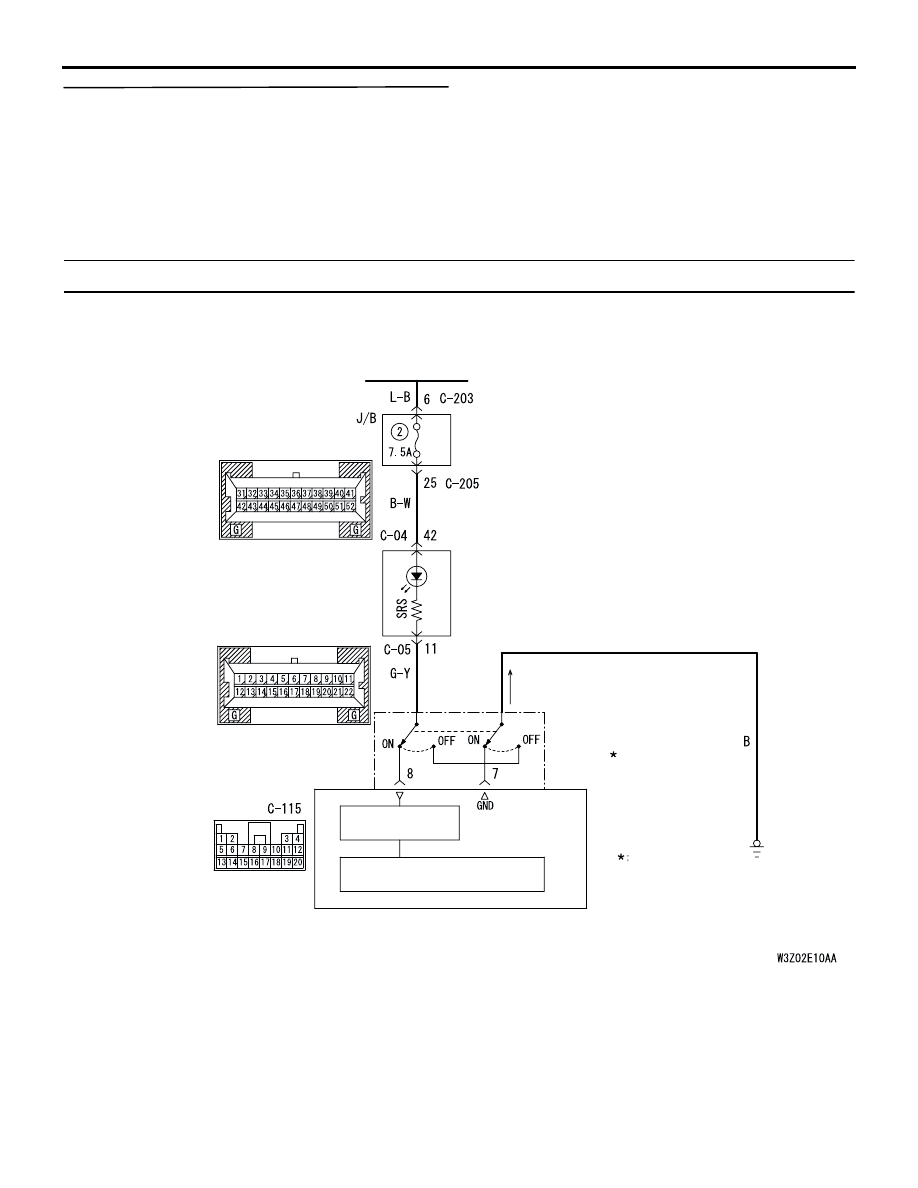

SRS Warning Lamp Drive Circuit

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-86

PROBABLE CAUSES

•

Damaged wiring harnesses or connectors

•

Malfunction of the SRS-ECU

•

Malfunction of the combination meter

DIAGNOSIS PROCEDURE

STEP 1. Connector check: SRS-ECU connector
C-115

(1) Disconnect SRS-ECU connectors C-115.

(2) Check the short spring for the warning lamp

inside the harness side connector for improper
contact or deformation.

Q: Is the check result normal.

YES :

Then go to Step 2.

NO :

Repair or replace the SRS-ECU connector
C-115. Then go to Step 4.

STEP 2. Check the SRS warning lamp.
(1) Disconnect the negative battery cable.

(2) Disconnect the combination meter connector

C-05.

(3) Connect the negative battery cable.
(4) Turn the ignition switch to the "ON" position.

Q: Does the SRS warning lamp go out?

YES :

Go to Step 3.

NO :

Replace the combination meter (Refer to
GROUP 54A

−

 Combination Meters

Assembly and Vehicle Speed Sensor

P.54A-72

). Then go to Step 4 .

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC302001AB

C-115 SRS-ECU Harness side
connector (front view)

Terminal

Short spring

AC301395AR

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05 <LHD>

Harness side
(front view)

AC308769

AU

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05 <RHD>
