TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-71

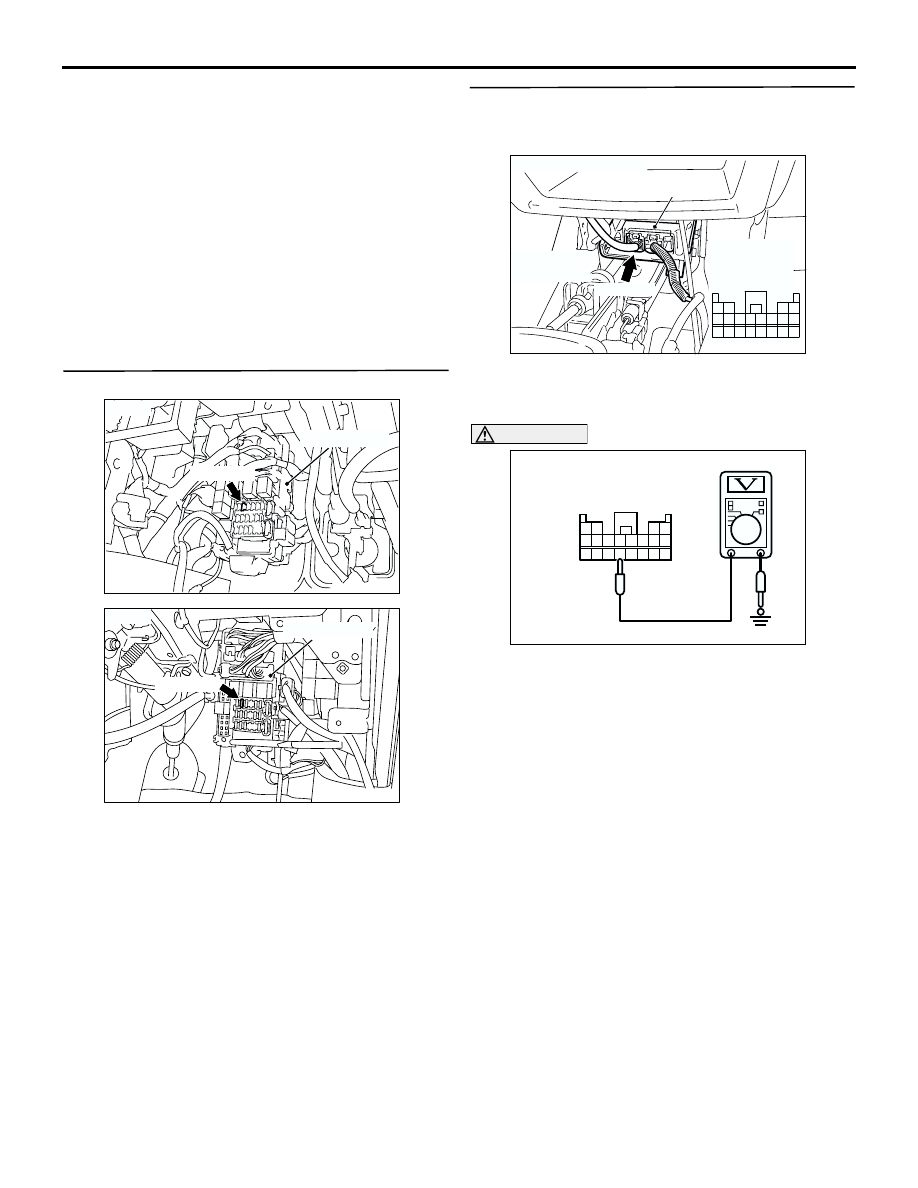

DIAGNOSIS CODE SET CONDITIONS
This diagnosis code is set if the voltage between the
IG1 terminals (fuse No.2 circuit) and earth is lower
than a predetermined value for a continuous period
of 5 second or more. However, if the vehicle
condition returns to normal, diagnosis code number
41 will be automatically erased, and the SRS
warning lamp will switch off.

PROBABLE CAUSES

•

Damaged wiring harnesses or connectors

•

Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check junction block fuse number 2.

Q: Is the fuse burned out?

YES :

Go to Step 4.

NO :

Go to Step 2.

STEP 2. Measure the voltage at the SRS-ECU
connector C-115.
(1) Disconnect the negative battery terminal.

(2) Disconnect SRS-ECU connector C-115.
(3) Connect the negative battery terminal.
(4) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(5) Measure the voltage between C-115 harness

side connector terminal 16 and body earth.

OK: 9 V or more.

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
41 sets, replace the SRS-ECU (Refer to

P.52B-178

). Then go to Step 8     .

NO :

Go to Step 3.

AC201423AE

Fuse No.2

Junction block

<LHD>

AC309266

AB

Fuse No.2

Junction block

<RHD>

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

13 14 15 16 17 18 19 20

5 6 7 8 9 10 11 12

1 2

3 4

AC301002AB

C-115 Harness side
connector (rear view)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-72

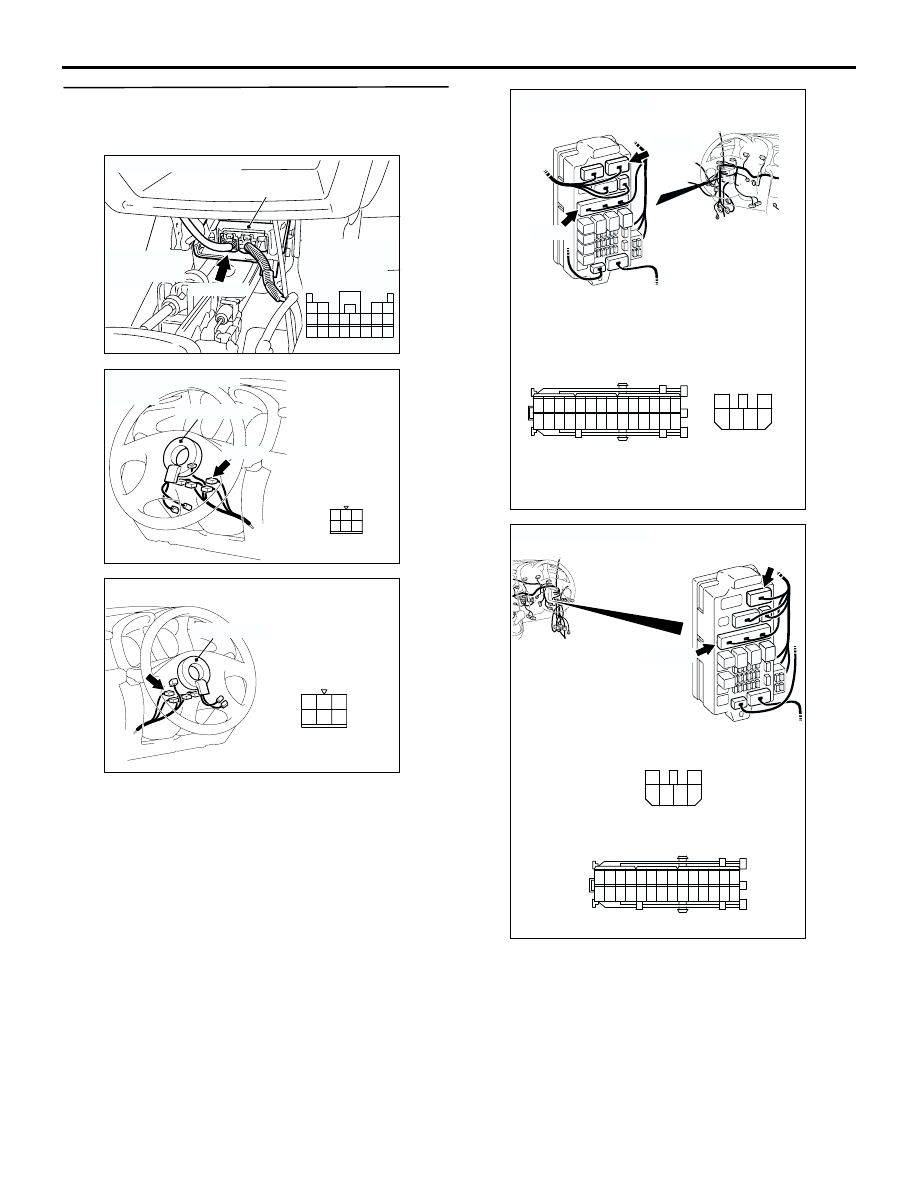

STEP 3. Connector check: SRS-ECU connector
C-115, ignition switch connector C-303, junction
block connector C-203 and C-205

Q: Is the check result normal?

YES :

Check the harness wire for open circuit

between SRS-ECU connector C-115
(terminal No.16) and the ignition switch
connector C-303 (terminal No.2), and repair
if necessary. Then go to Step 8.

NO :

Repair or replace it. Then go to Step 8.

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC301399

Connector: C-303

Clock spring

C-303

AK

Harness side
connector
(front view)

2
5

6

3

4

1

<LHD>

AC308778

Connector: C-303 <RHD>

Clock spring

AG

Harness side

2
5

6

3

4

1

AC210475

Connectors: C-203, C-205 <LHD>

BC

Junction Block (Front View)

C-205

C-203

Harness side

C-203

C-205

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

AC308773

Connectors: C-203, C-205 <RHD>

AK

Junction Block (Front View)

C-205

C-203

Harness side

C-203

C-205

4

6 5

3

2

1

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Harness side

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-73

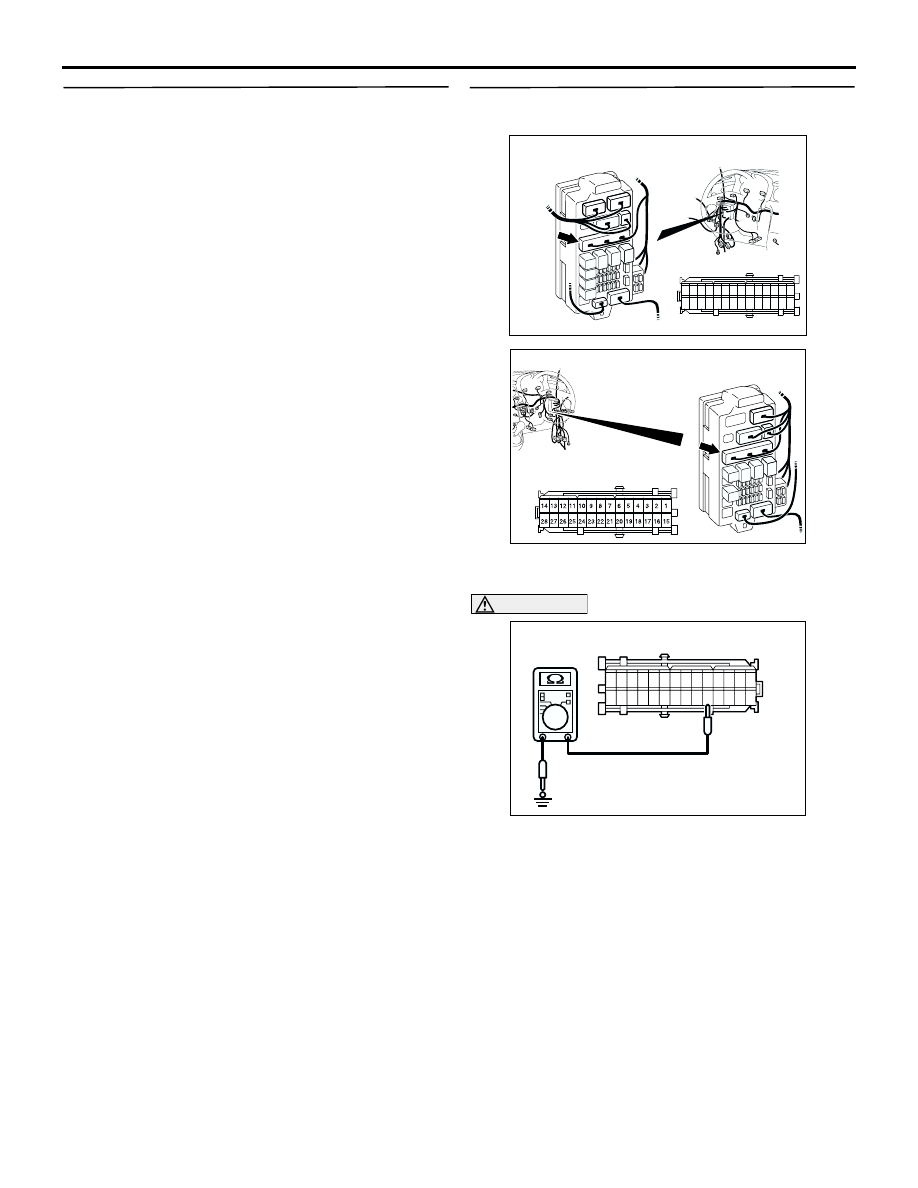

STEP 4. Check a burned-out fuse.
(1) Replace the fuse.
(2) Turn the ignition switch to the "ON" position, wait

for at least one minute and then turn the ignition
switch to the "LOCK" (OFF) position.

(3) Check the fuse.

Q: Is the fuse in good condition?

YES :

Go to Step 8.

NO :

Go to Step 5.

STEP 5. Measure the resistance at the junction
block connector C-205.

(1) Disconnect junction block connector C-205, and

measure at the wiring harness side.

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(2) Measure the resistance between terminal 24 and

body earth.

OK: Open circuit

Q: Is the check result normal?

YES :

Check the other circuit, which flows through

fuse number 2.

NO :

Go to Step 6.

AC210474

Connector: C-205 <LHD>

Harness side

AM

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

AC308772

Connector: C-205

Harness side

AC

Junction block (Front view)

<RHD>

1 2 3 4 5 6 7 8 9 10 1112 1314

1516 1718 19 20 212223 242526 2728

AC301014AB

C-205 Harness side
connector (rear view)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-74

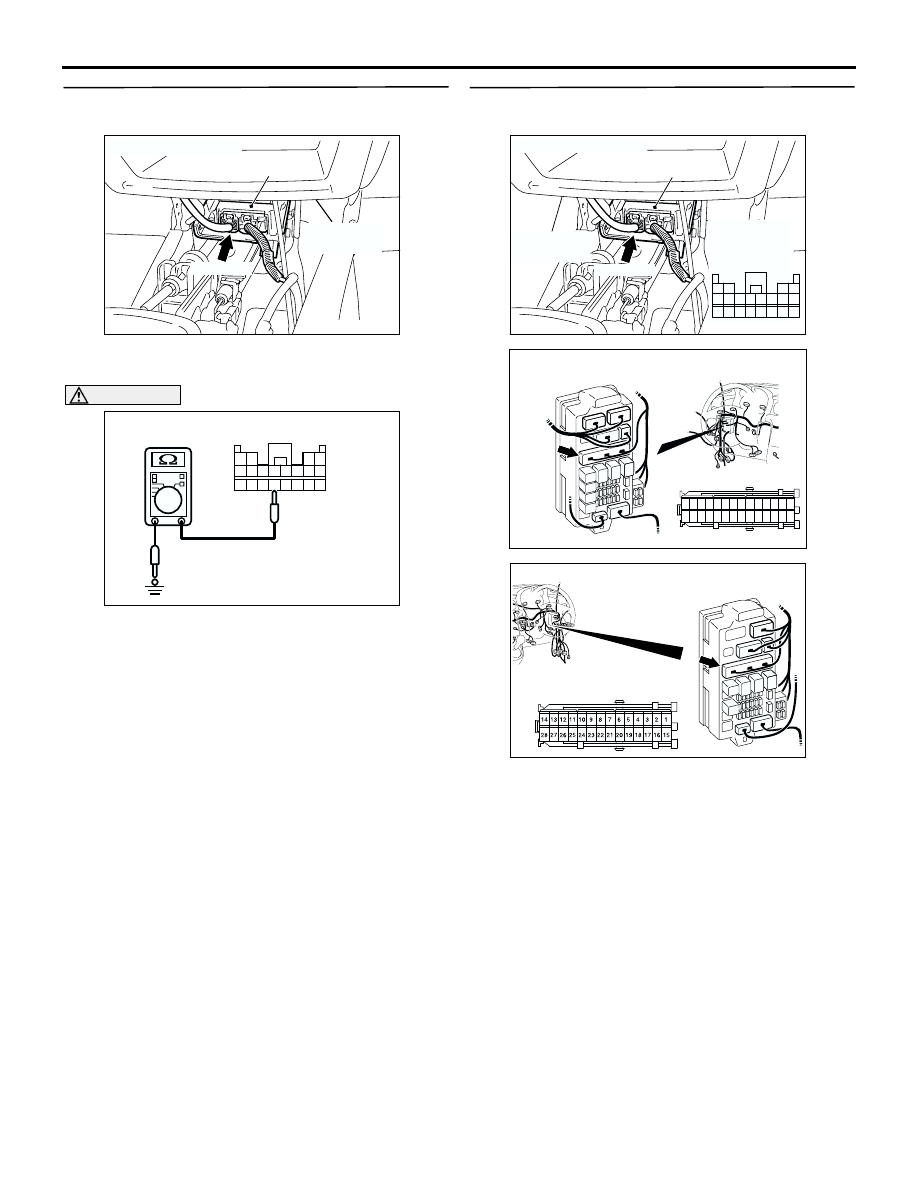

STEP 6. Measure the resistance at the SRS-ECU
connector C-115.

(1) Disconnect SRS-ECU connector C-115, and

measure at the wiring harness side.

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(2) Measure the resistance between terminal 16 and

body earth.

OK: Open circuit

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
41 sets, replace the SRS-ECU. (Refer to

P.52B-178

). Then go to Step 8     .

NO :

Go to Step 7.

STEP 7. Connector check: SRS-ECU connector
C-115 and junction block connector C-205

Q: Is the check result normal?

YES :

Check the harness wire for short circuit

between SRS-ECU connector C-115
(terminal No.16) and junction block
connector C-205 (terminal No.24), and
repair if necessary. Then go to Step 8.

NO :

Repair or replace it. Then go to Step 8.

AC301661

Connector: C-115

AB

SRS-ECU

C-115 (Y)

Center lower
panel

AC201665

13 14 15 16 17 18 19 20

5 6 7 8 9 10 11 12

1 2

3 4

AF

C-115 Harness side
connector (rear view)

AC301661AC

Harness side
connector
(front view)

Connector: C-115

SRS-ECU

C-115 (Y)

Center lower
panel

1110 9

1

2

3

1413

12

4

5

6

16

8

15

7

17

18

19

20

AC210474

Connector: C-205 <LHD>

Harness side

AM

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

AC308772

Connector: C-205

Harness side

AC

Junction block (Front view)

<RHD>
